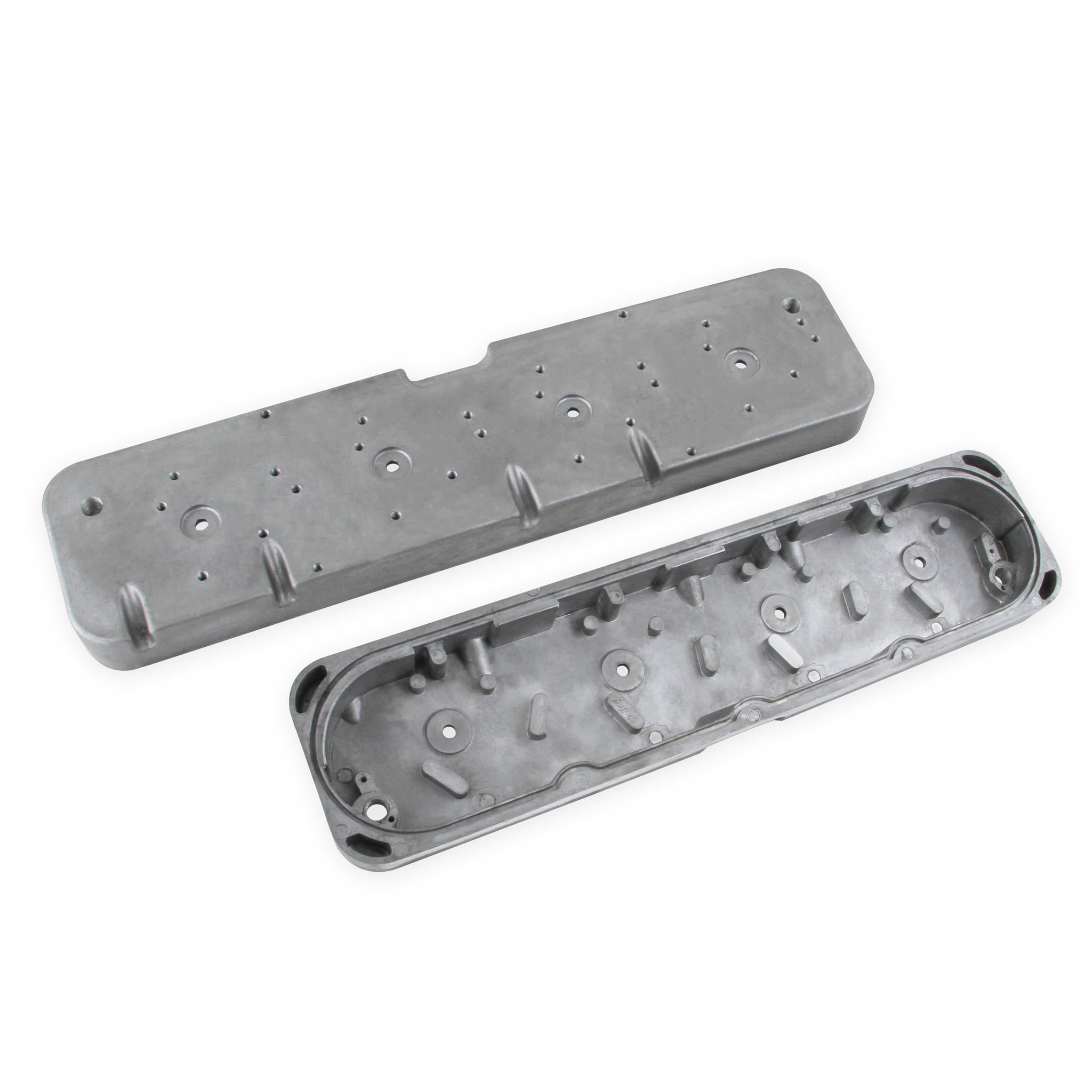

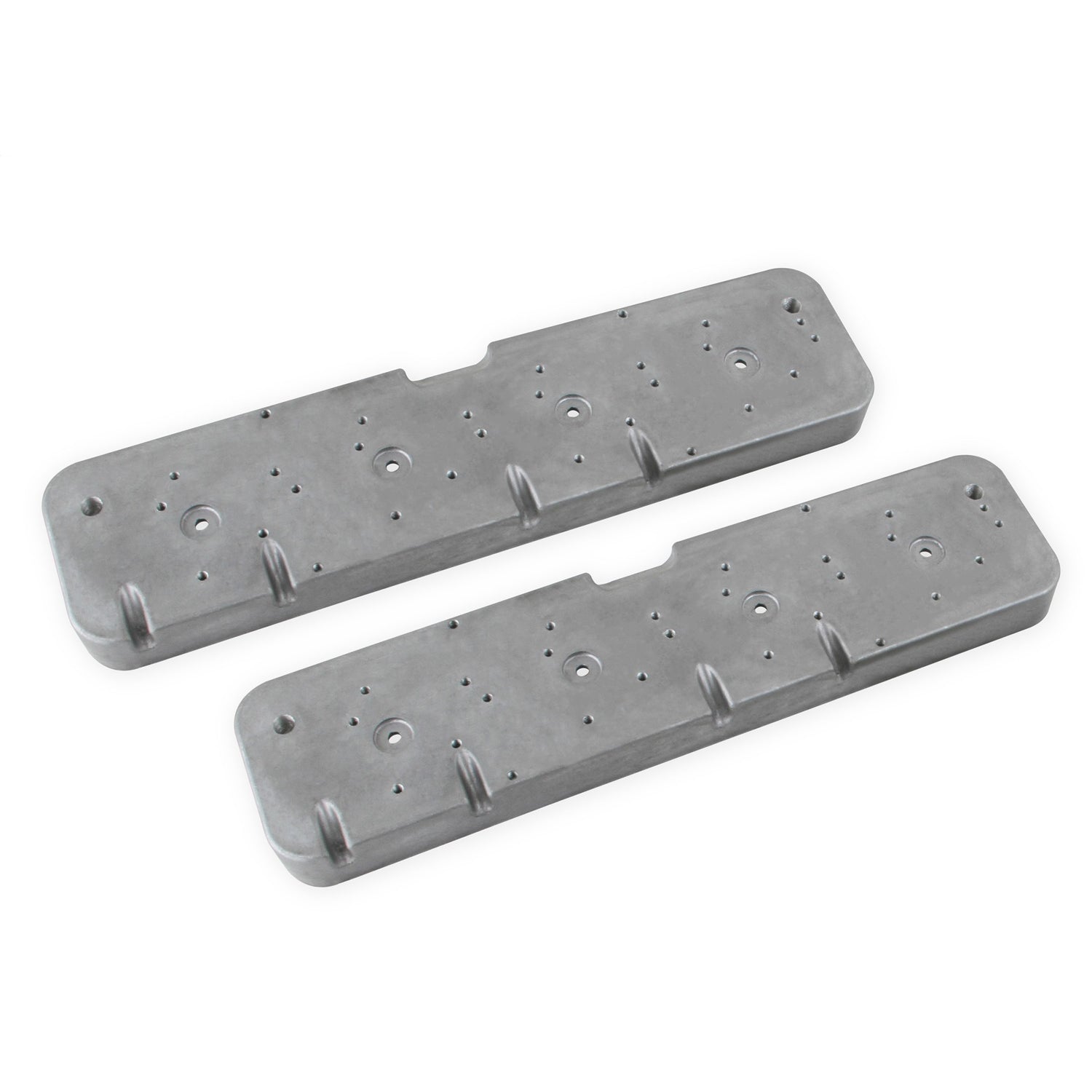

Holleys new cast aluminum LS valve cover adapter plates offer an innovative way to add the vintage styling cues of a 1958-1986 Small Block Chevy perimeter bolt valve cover to your modern GM LS engine. These adapter plates feature an integrated oil fill and are pre-threaded for PCV ventilation fittings. Simply install the LS valve cover adapter plate onto your GM LS1, LS2, LS3, LS6, or LS7 engine to serve as your true valve cover, install the coil packs on top and route the wiring harness and spark plug wires into their designated locations, and use a perimeter bolt SBC valve cover of your choice to hide the unsightly coils without the need for any coil relocation and retention of all the benefits of OE style coil-on-plug mounting.
Specifications:
| Description_ASC |
NOTICE: Natural finish parts are straight from the die cast tooling. These parts are intended to be brush finished, polished, painted, etc. prior to use. These parts will have some visual inconsistencies and tooling marks from the manufacturing process. |
| Description_DES |
Holley LS Valve Cover Adapter Plates |
| Description_DEF |
Engine Valve Cover Set |
| Description_FAB |
Constructed of Cast Aluminum |
| Description_FAB |
Available in three finishes (Natural Cast, Black Painted, and Polished Finish) |
| Description_FAB |
Includes all mounting hardware that allows mounting of three different generations of coil packs |
| Description_EXT |
Valve Cover Adapter Plate; Adapt Perimeter Bolt Small Block Chevy Valve Covers to GM LS1/LS2/LS3/LS6/LS7 Engines; Internal Height 1.208 in./Overall Height 1.385 in.; Natural; |
| Description_INV |
VALVE COVER ADAPTER PLATES - SBC TO LS |
| Description_KEY |
Valve Covers; cover; plate; aluminum; Small Block Chevy; LS; Chevrolet; perimeter bolt |
| Description_MKT |
Holleys new cast aluminum LS valve cover adapter plates offer an innovative way to add the vintage styling cues of a 1958-1986 Small Block Chevy perimeter bolt valve cover to your modern GM LS engine. These adapter plates feature an integrated oil fill and are pre-threaded for PCV ventilation fittings. Simply install the LS valve cover adapter plate onto your GM LS1, LS2, LS3, LS6, or LS7 engine to serve as your true valve cover, install the coil packs on top and route the wiring harness and spark plug wires into their designated locations, and use a perimeter bolt SBC valve cover of your choice to hide the unsightly coils without the need for any coil relocation and retention of all the benefits of OE style coil-on-plug mounting. |
| Description_SHO |
Valve Cover Set |
| Cylinder Head Type |
Standard |
| Emission Code |
4 |
| Material |
Cast Aluminum |
| Baffle Included |
No |
| Breather(s) Included |
No |
| Coil Mounting Studs |
Yes |
| Coil Options |
with Coil Stands |
| Oil Fill |
No |
| Overall Height |
1.385" |
| Style |
SBC to LS Adapter |
| Finish |
Natural |
| Valve Cover Style |
Standard |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Application |
SBC to LS Engines |
| Bolt Pattern |
Center Bolt |
| Brand |
Holley |
| Construction |
Die Cast Aluminum |
| Hardware Included |
Yes |
| Logo |
None |
| Quantity |
Pair |
| Warning |
California Proposition 65 |
| Engine Make/Size |
Chevy Small Block (262-400) |
| WARNING CA Proposition 65 |
Yes |
| Gaskets Included |
No |
| Gromment(s) Included |
Yes |
| Internal Height |
1.208" |
| Mounting Hardware Included |
Yes |
| Oil Fill Cap Included |
No |
| Overall Height (in) |
1.385" |
| Product Type |
Valve Cover Adapter Plates |
| Type of Component |
Adapter Plate |
| Warranty |
Limited 90 Day |
| Length |
3.2000 |
| Width |
5.1000 |
| Height |
20.1000 |
| Weight |
8.3000 |
