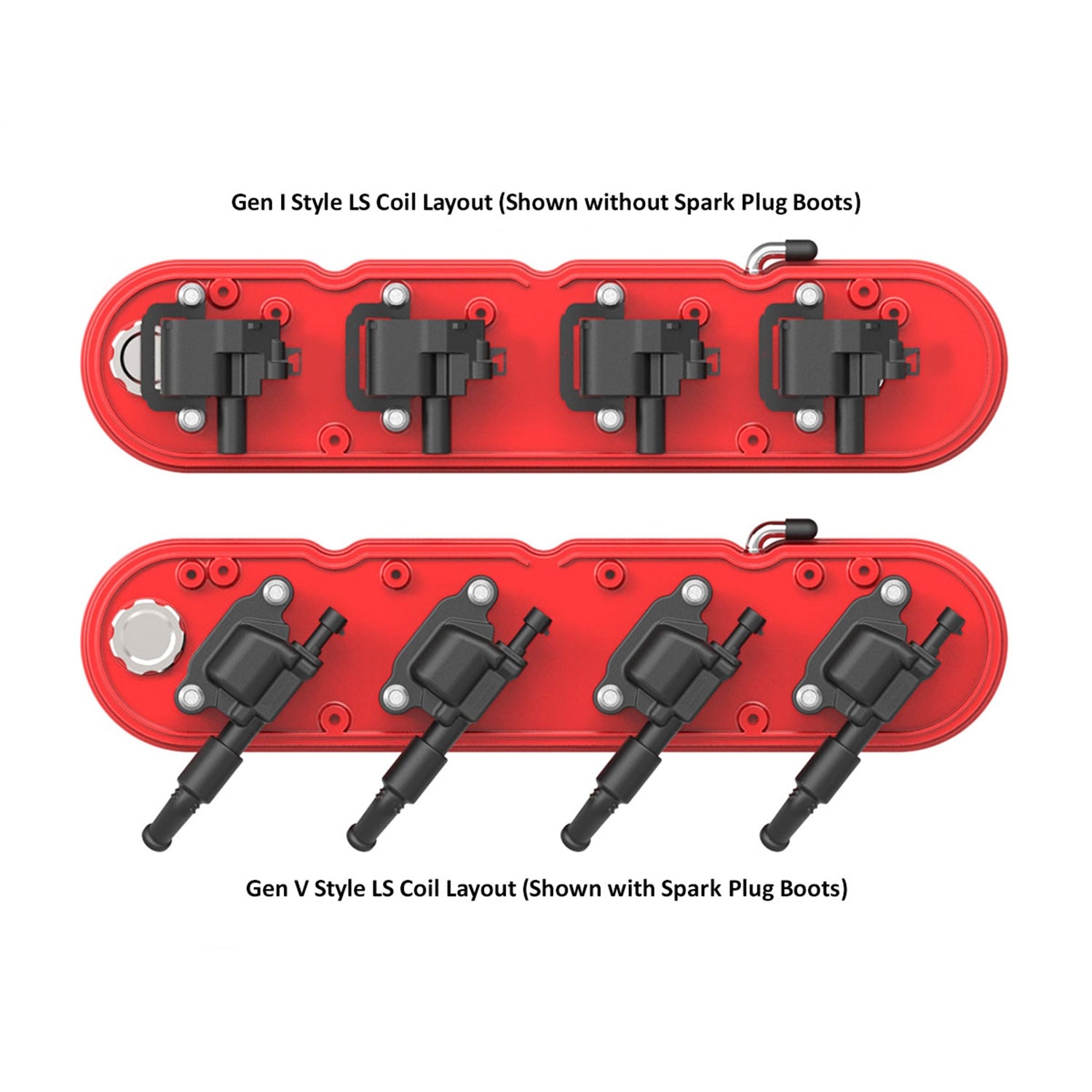

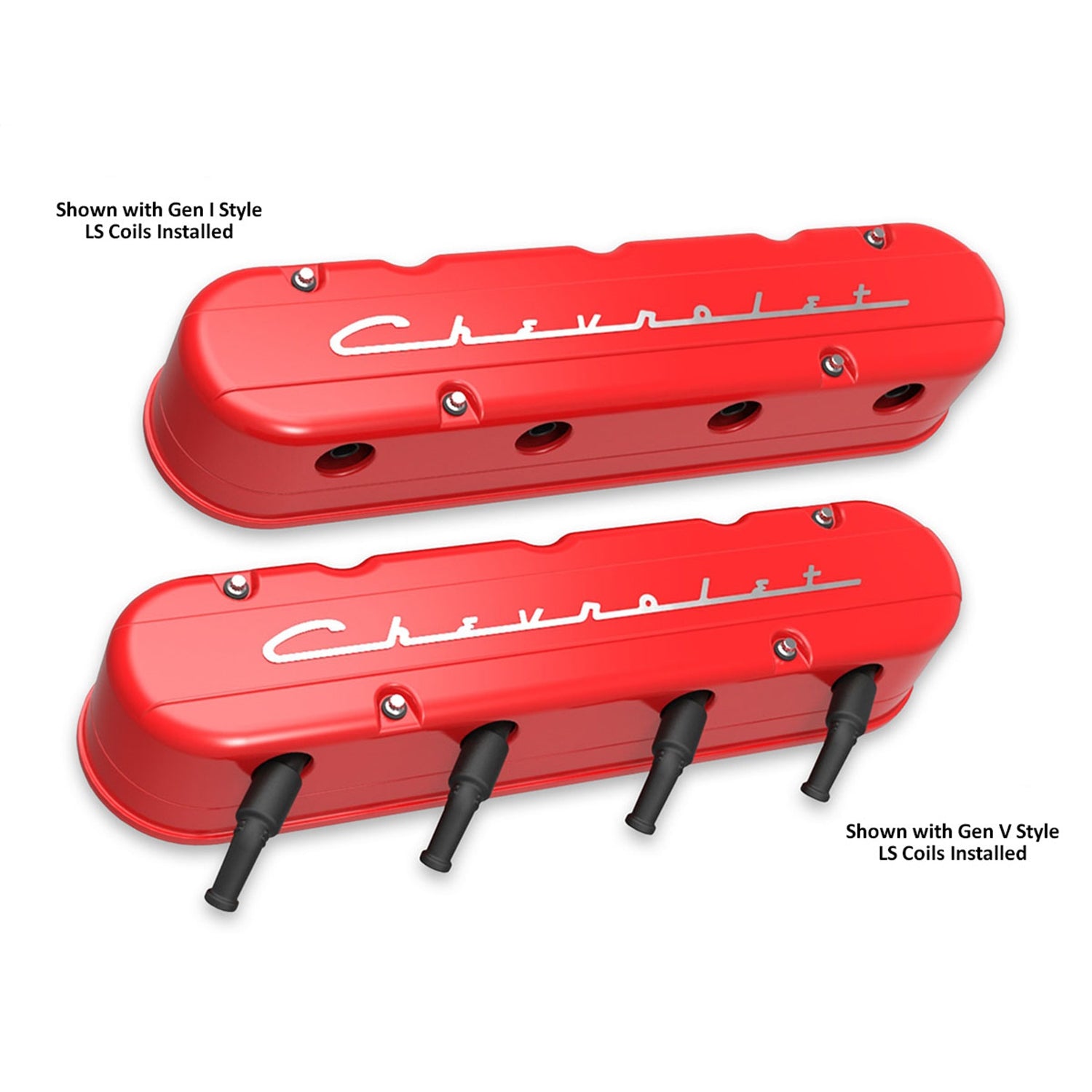

Holleys new 2-Piece LS valve covers are a great way to update the look of your LS engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular LS valve covers feature an OE height, internally baffled LS valve cover base with integrated coil mounts for popular Gen I and Gen V style LS coil bodies (coils not included), and a "Chevrolet" branded overcover that hides the unsightly LS coils and messy wiring harness - allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling. Each modular coil cover features a prominent vintage "Chevrolet" logo that matches various other GM licensed Holley products. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required. Each 2-Piece LS valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of LS coil bodies, and 12-point dress up hardware and rubber grommets for the coil covers. These modular LS valve covers are available in 5 unique finishes: natural cast, polished, satin black, factory orange, and gloss red (black, factory orange and gloss red sets feature machined fins).
Specifications:
| Description_ASC |
The OE Camaro and Corvette accessory brackets may need to be clearanced when installing Holley 2-Piece LS and Tall LS valve covers and coils. |
| Description_DES |

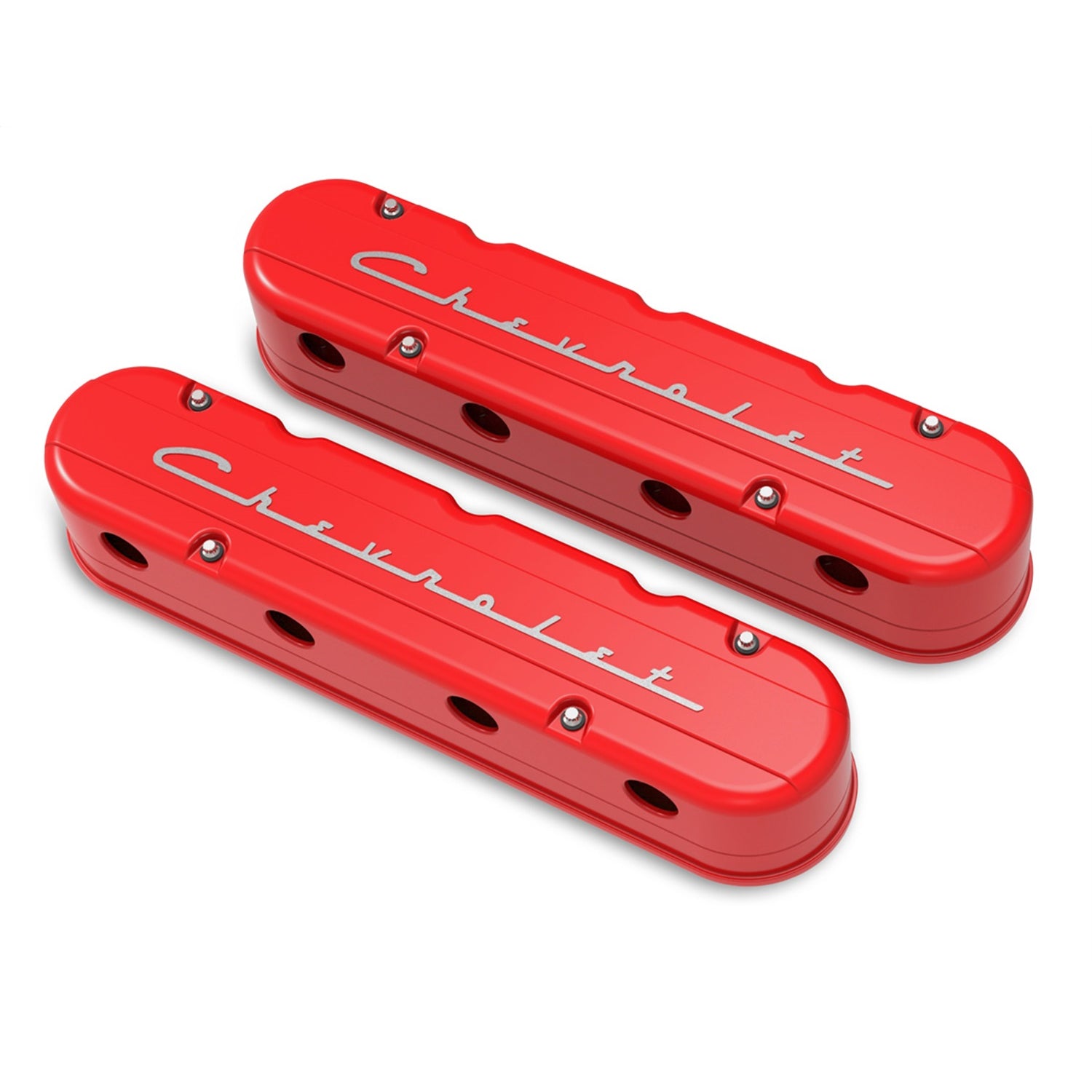

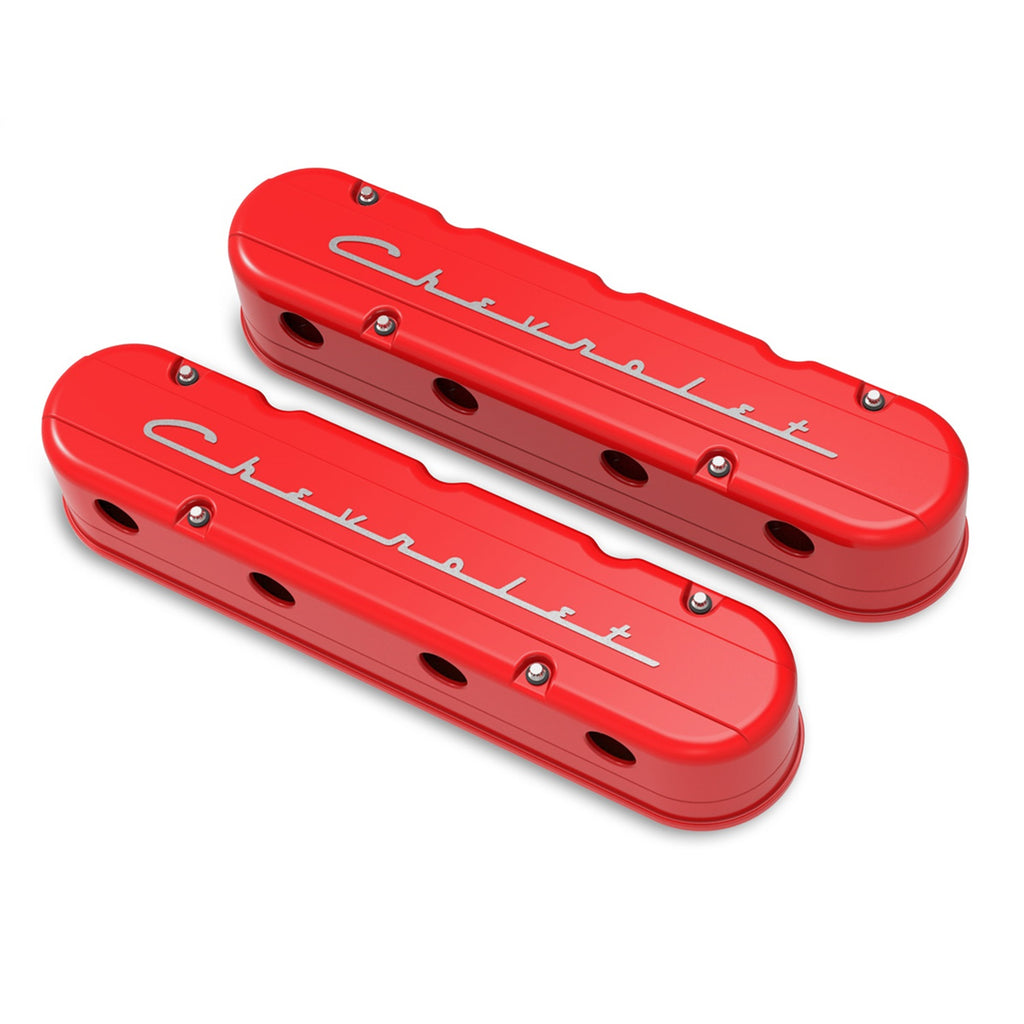

Holley 2-Piece "Chevrolet" Script Valve Cover - Gen III/IV LS - Gloss Red Machined |
| Description_DEF |
Engine Valve Cover Set |
| Description_FAB |

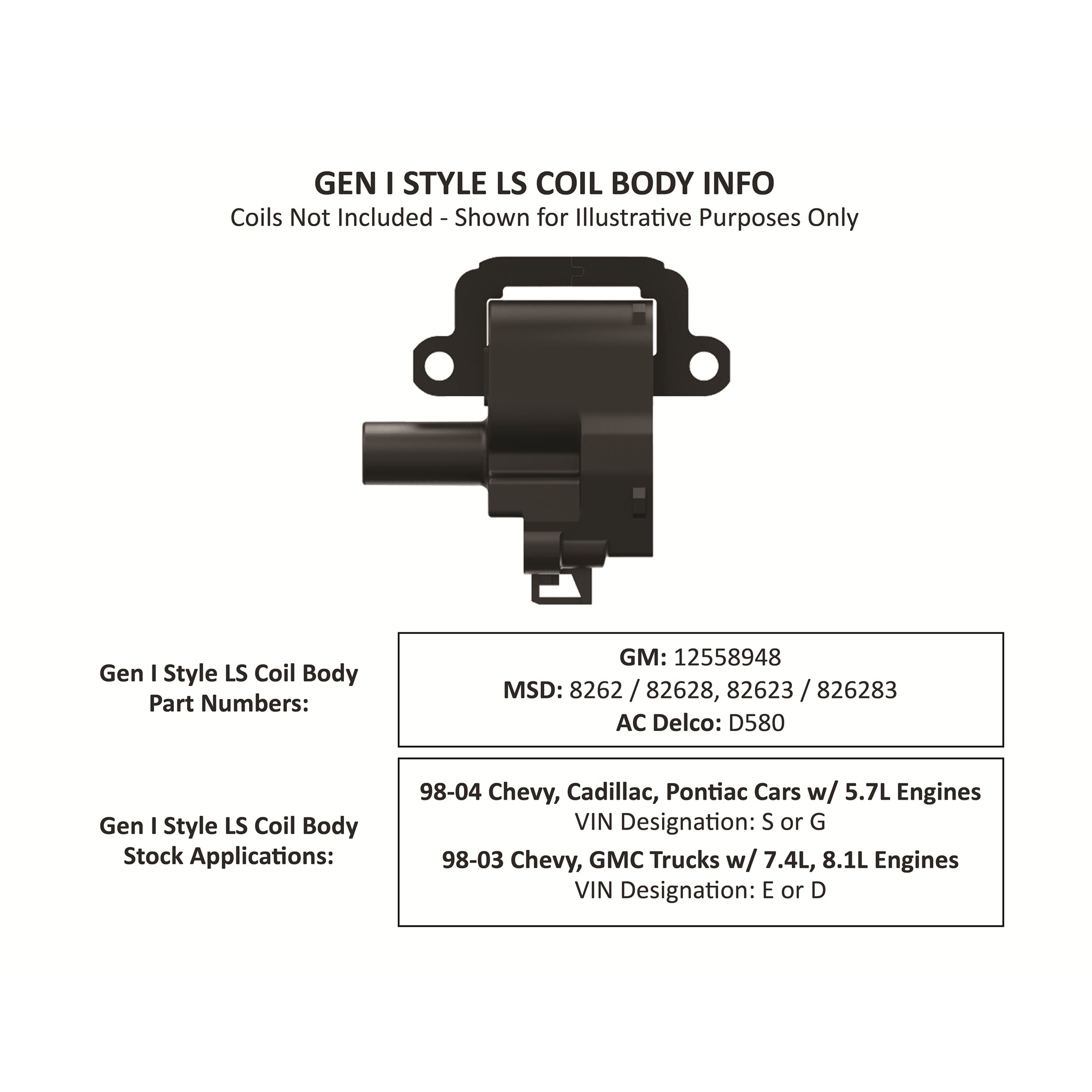

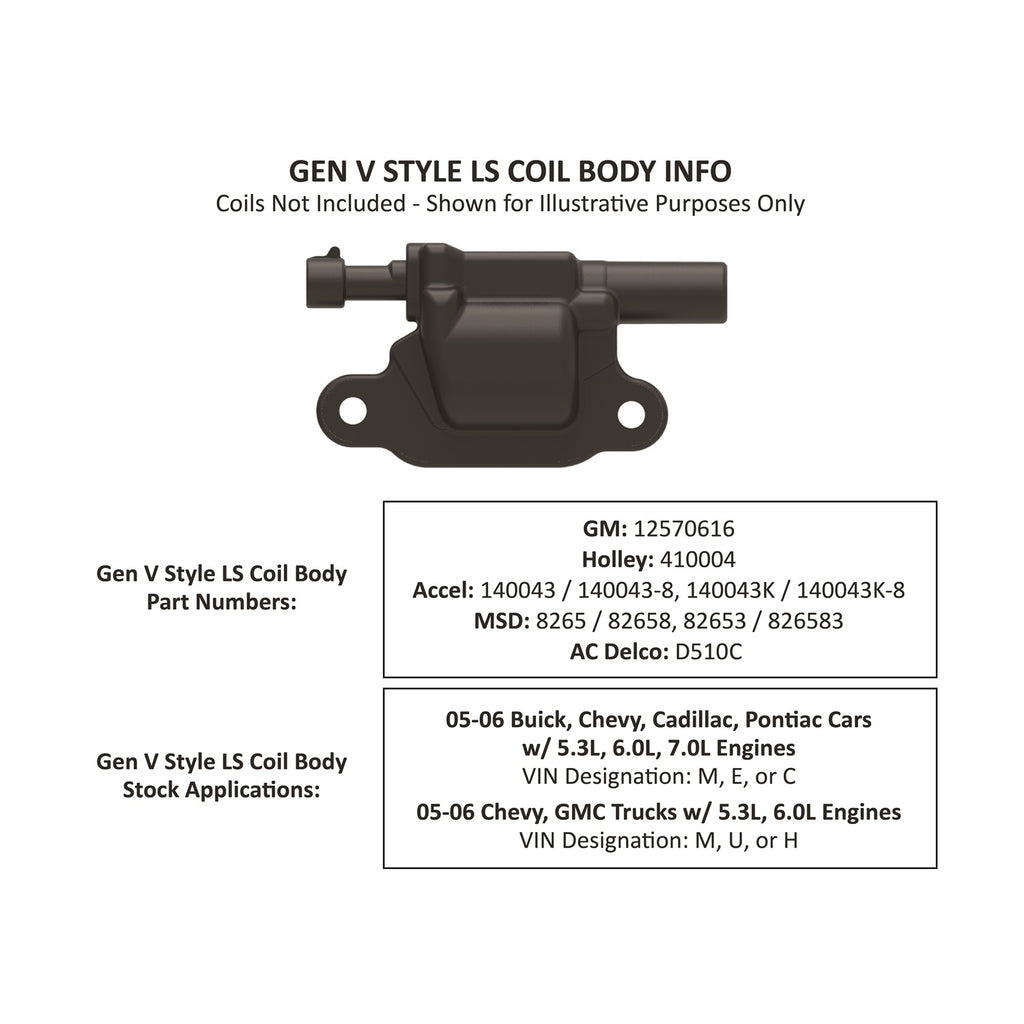

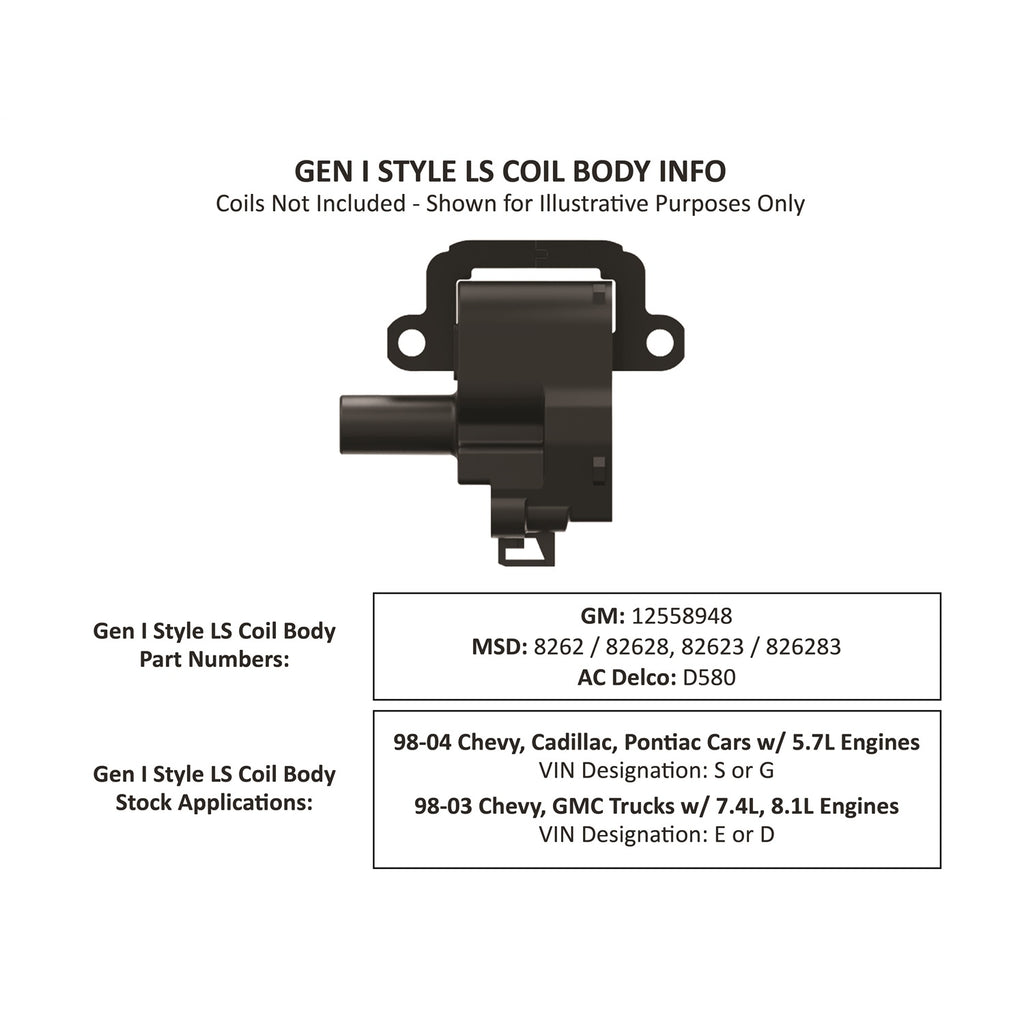

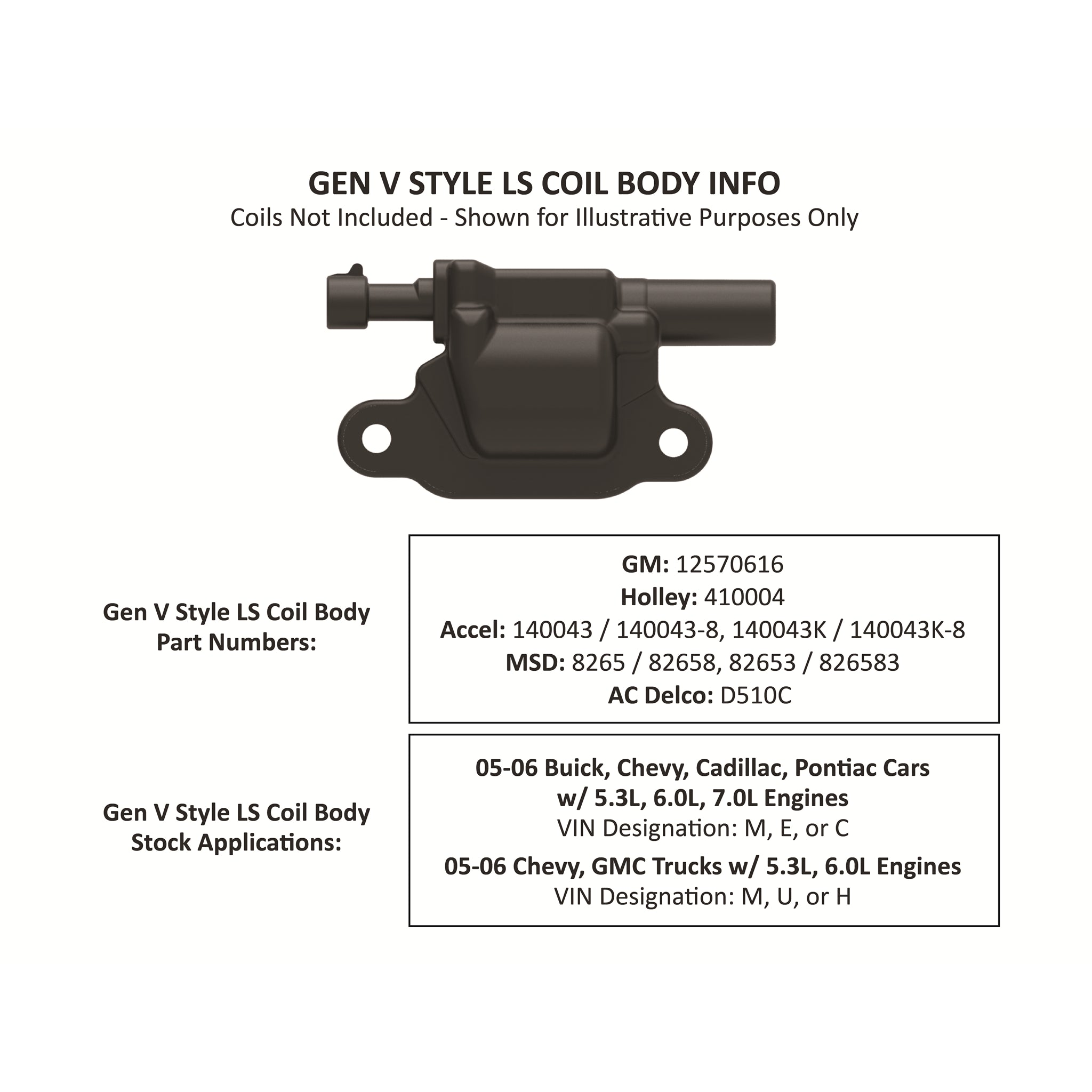

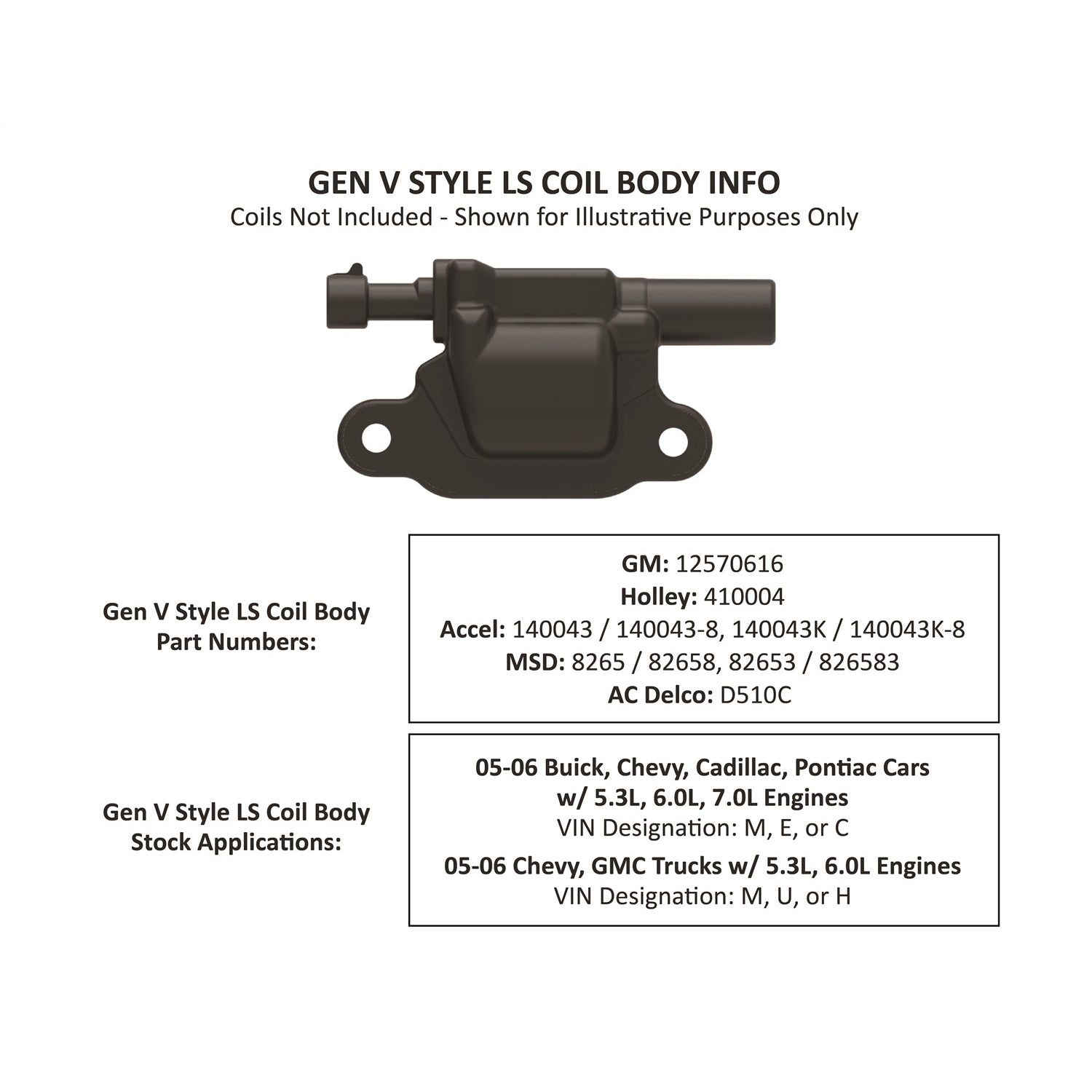

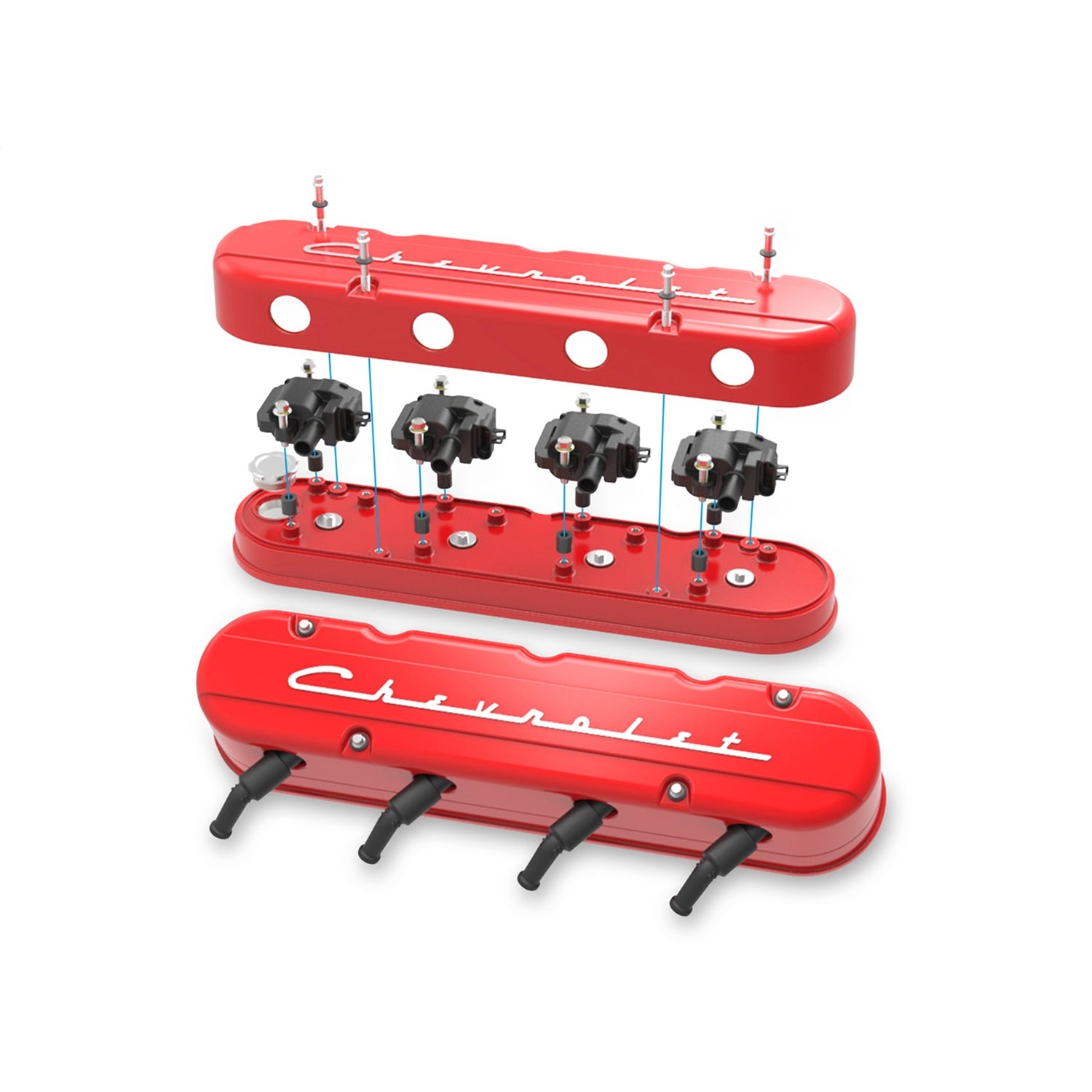

Cast aluminum 2-Piece LS valve covers designed to mount and hide both Gen I and Gen V style LS coil bodies |
| Description_FAB |
Retain the performance of factory coil-on-cover ignition without the unsightly styling |
| Description_FAB |
Coil cover features vintage valve cover styling with a prominent GM Licensed ΓÇ£Chevrolet" script logo and cast-in wiring provisions |
| Description_FAB |
Base fits LS1, LS2, LS3, LS6 and LS7 engines with clearance for .750" lift cam with stock style rocker arms |
| Description_FAB |
Base features internally baffled ventilation system |
| Description_FAB |
No coil relocation, wire harness extensions, or custom spark plug wires required |
| Description_FAB |
Includes low-profile billet oil fill cap |
| Description_FAB |
Includes all necessary coil mounting and dress-up hardware |
| Description_KEY |
LS; Valve Cover; Chevrolet; V8; V-8; Cast; Die Cast; Die-Cast; Finned; Vintage; Aluminum; Fin; Fins; 2Piece; 2-piece; 2 piece LS; vintage series; Gen 1; Gen I; Gen 5; Gen V; Coils; Integrated; LS valve covers; coil cover |
| Description_INV |
2-PIECE VALVE COVER GM LS CHEVROLET LOGO |
| Description_EXT |
Chevrolet Gen III/IV LS - Cast Aluminum - Coil-Mounting Base & Integrated Coil Cover |
| Description_SHO |
Valve Cover Set |
| Description_MKT |
Holleys new 2-Piece LS valve covers are a great way to update the look of your LS engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular LS valve covers feature an OE height, internally baffled LS valve cover base with integrated coil mounts for popular Gen I and Gen V style LS coil bodies (coils not included), and a "Chevrolet" branded overcover that hides the unsightly LS coils and messy wiring harness - allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling. Each modular coil cover features a prominent vintage "Chevrolet" logo that matches various other GM licensed Holley products. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required. Each 2-Piece LS valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of LS coil bodies, and 12-point dress up hardware and rubber grommets for the coil covers. These modular LS valve covers are available in 5 unique finishes: natural cast, polished, satin black, factory orange, and gloss red (black, factory orange and gloss red sets feature machined fins). |
| Coil Mounting Studs |
Yes, on Baseplate |
| Finish |
Gloss Red |
| Coil Options |
with Coil Stands |

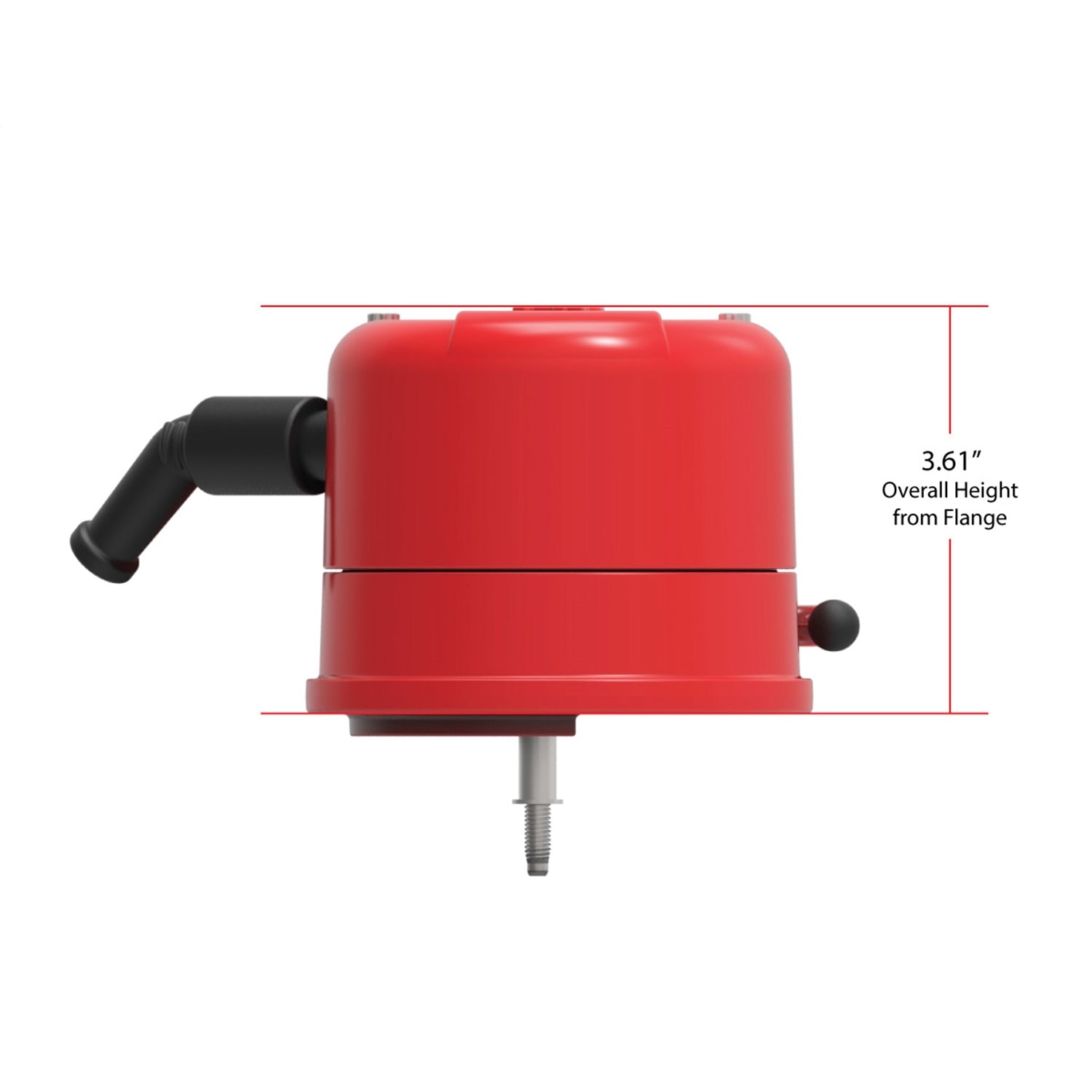

| Overall Height (in) |
3.610" |
| Engine Make/Size |
Chevy LS Series |
| Breather(s) Included |
No |
| Product Type |
Valve Cover |
| Type of Component |
Valve Cover |
| Warranty |
Limited 90 Day |
| Design Type |
2-Piece LS |
| Gromment(s) Included |
No |
| Logo |
Chevrolet Script |
| Style |
Chevrolet Script |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65 |
Yes |
| Material |
Cast Aluminum |
| Baffle Included |
Yes |
| Construction |
Die Cast Aluminum |
| Quantity |
Pair |
| Valvetrain Clearance |
.750" lift cam with stock style rocker arms |
| Warning |
California Proposition 65 |
| Valve Cover Style |
Standard |
| Application |
GM LS Engines |
| Bolt Pattern |
Center Bolt |
| Gasket Included |
No |
| Gaskets Included |
No |
| Height |
3.75" |
| Cylinder Head Type |
Standard |
| Brand |
Holley |
| Emission Code |
2, 4 |
| Mounting Hardware Included |
Yes |
| Oil Fill |
Yes |
| Oil Fill Cap Included |
Yes |
| Sale Category |
Engine |
| Length |
5.0000 |
| Width |
11.0000 |
| Height |
20.0000 |
| Weight |
12.0000 |
