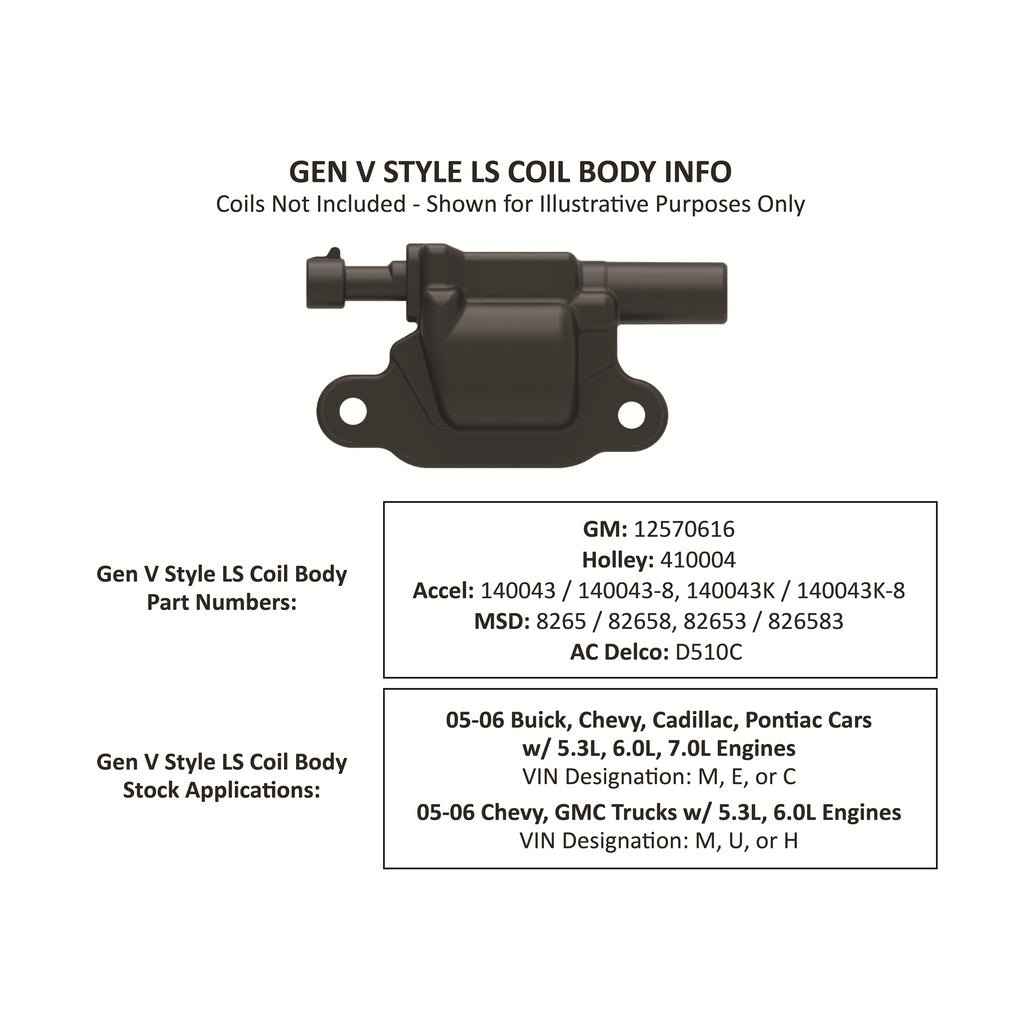

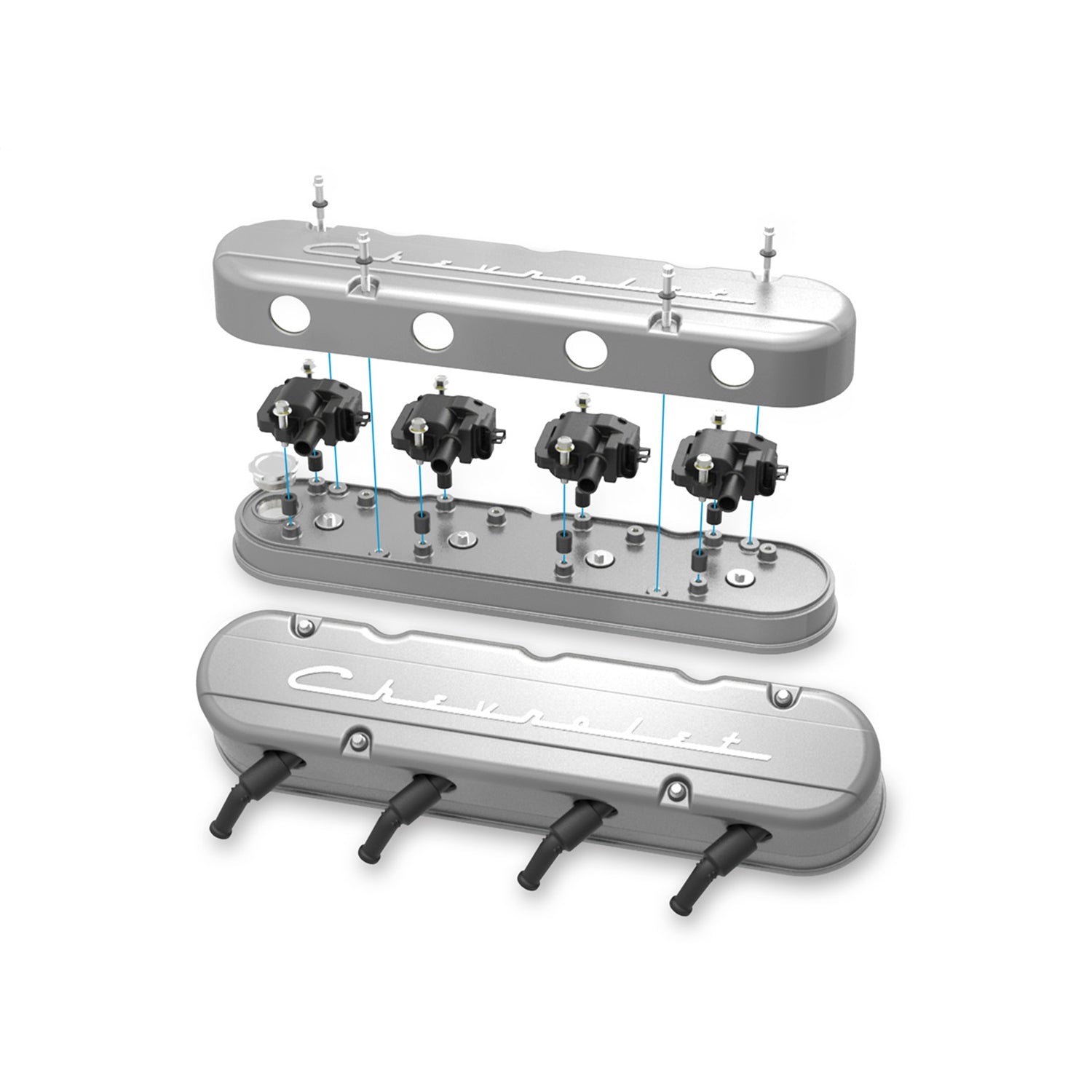

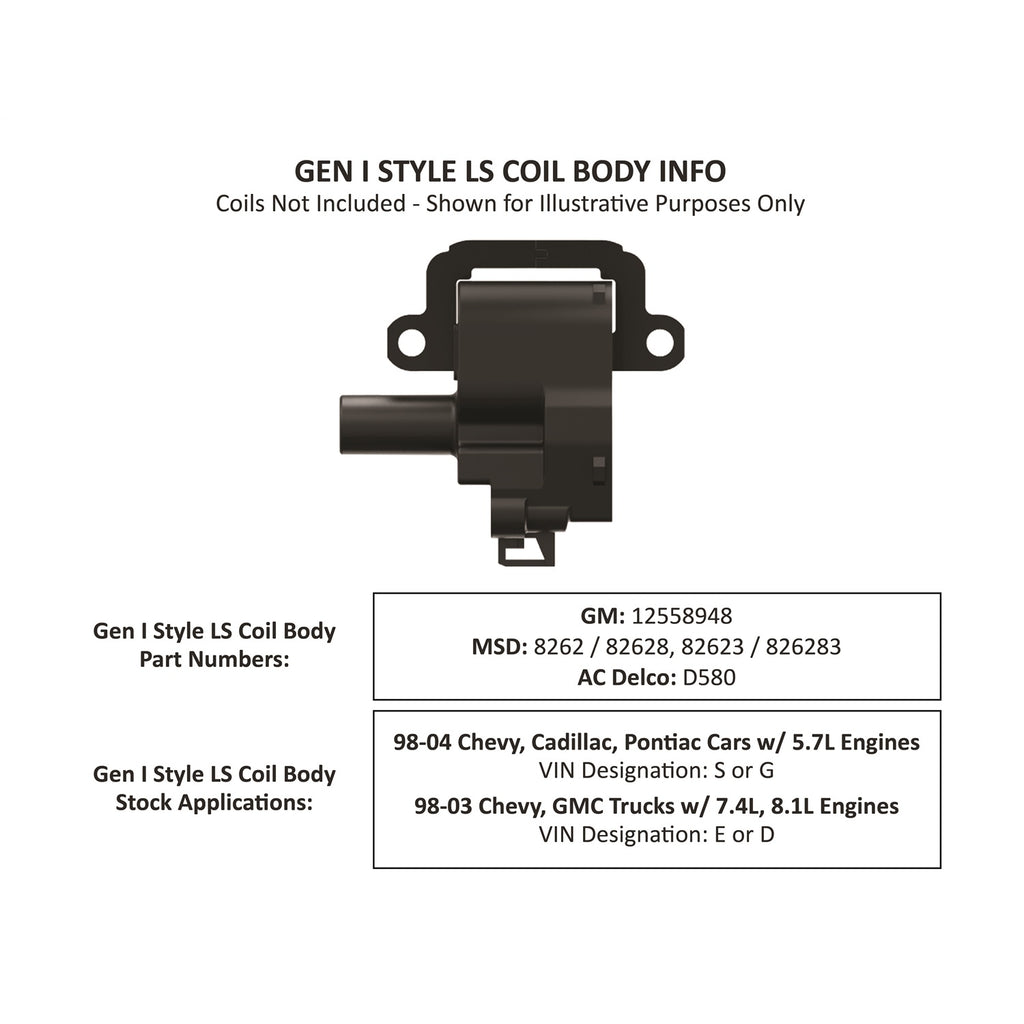

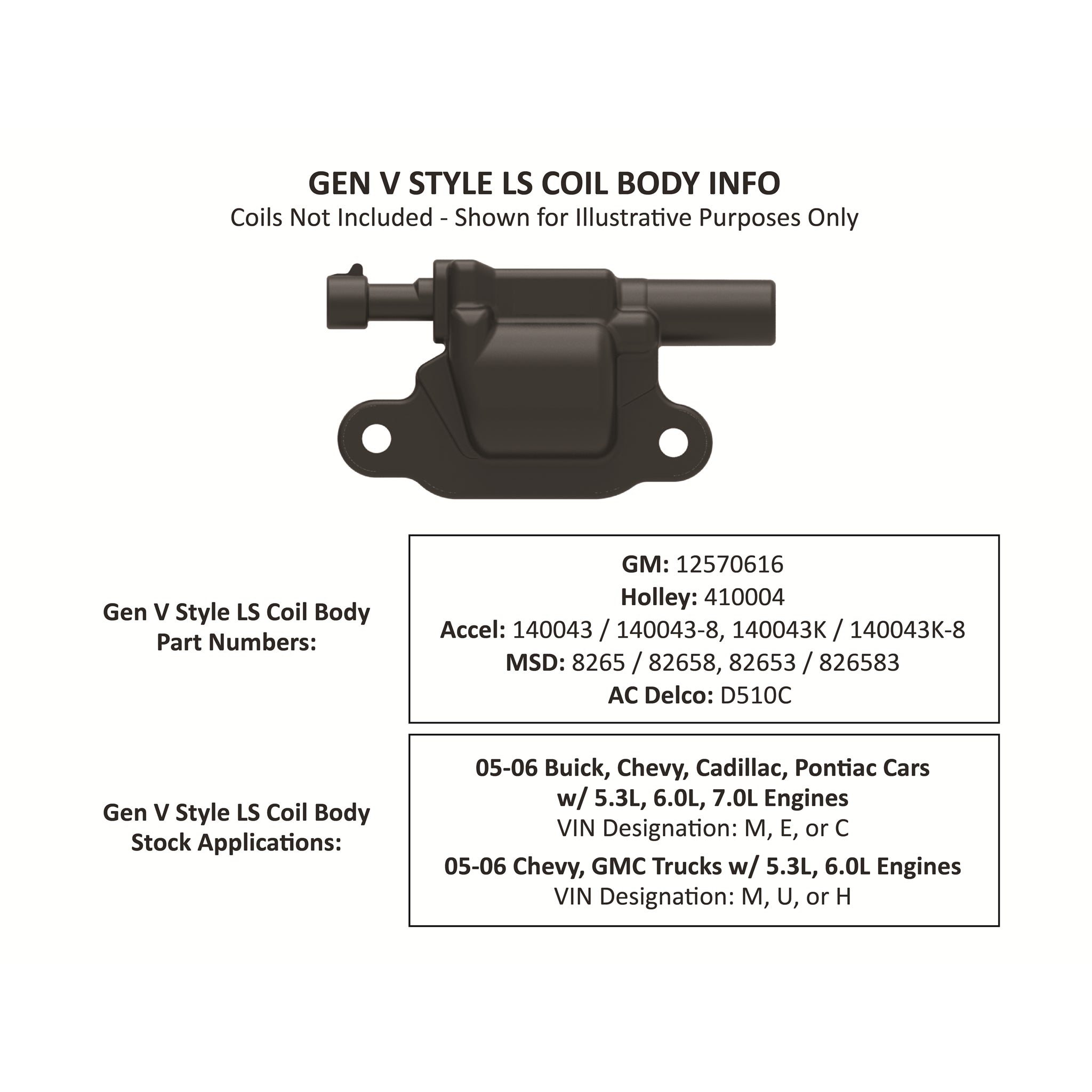

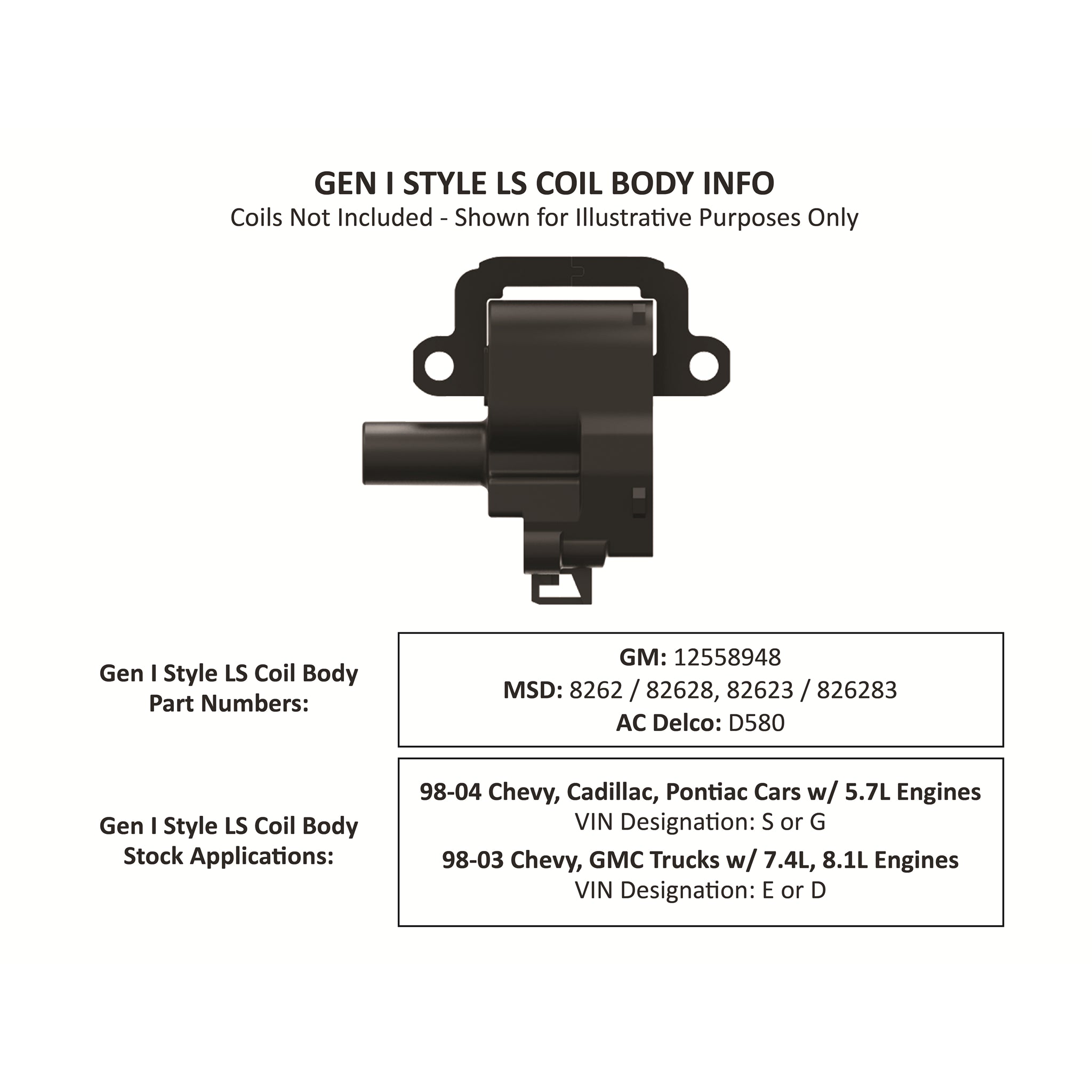

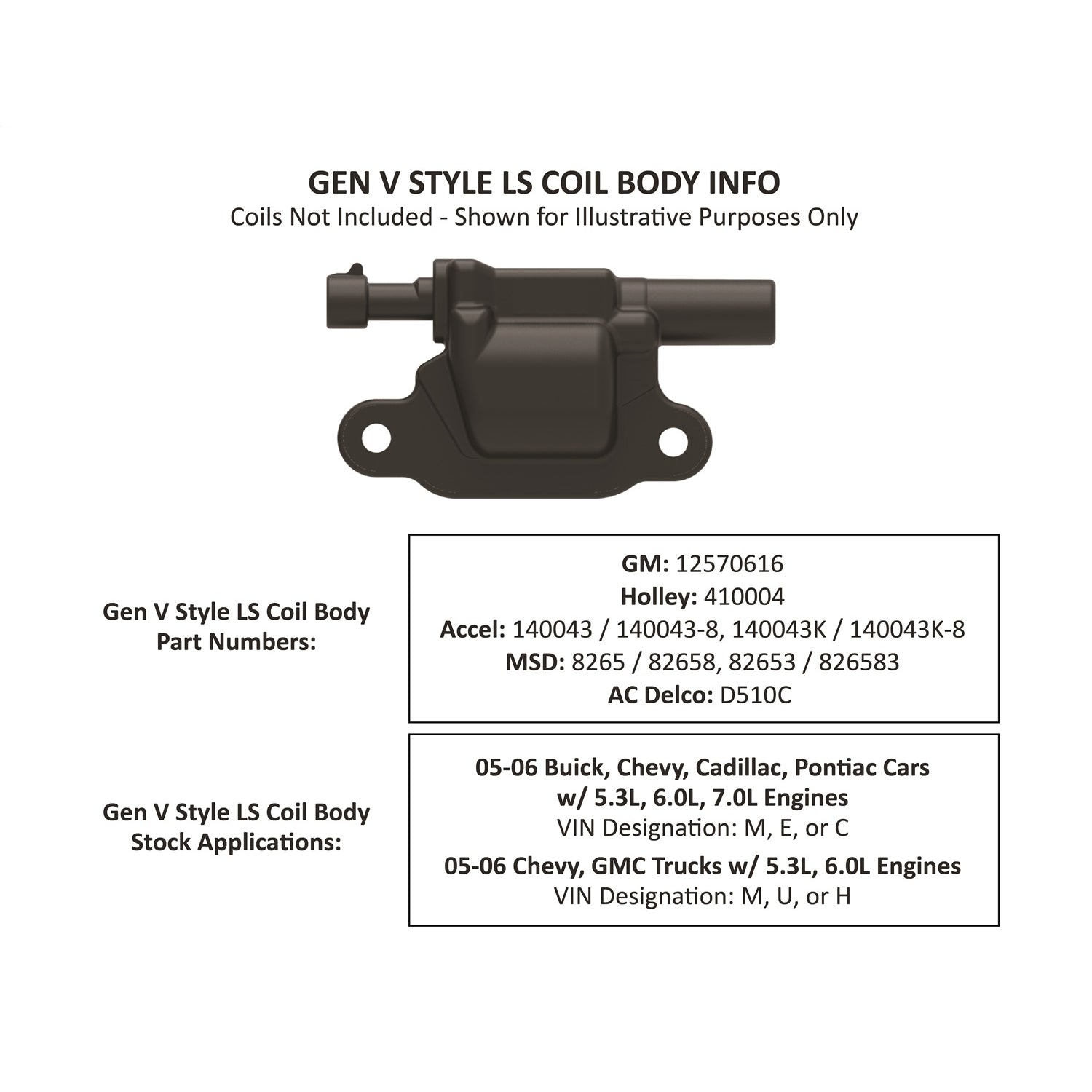

Holleys new 2-Piece LS valve covers are a great way to update the look of your LS engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular LS valve covers feature an OE height, internally baffled LS valve cover base with integrated coil mounts for popular Gen I and Gen V style LS coil bodies (coils not included), and a "Chevrolet" branded overcover that hides the unsightly LS coils and messy wiring harness - allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling. Each modular coil cover features a prominent vintage "Chevrolet" logo that matches various other GM licensed Holley products. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required. Each 2-Piece LS valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of LS coil bodies, and 12-point dress up hardware and rubber grommets for the coil covers. These modular LS valve covers are available in 5 unique finishes: natural cast, polished, satin black, factory orange, and gloss red (black, factory orange and gloss red sets feature machined fins).
Specifications:
| Description_ASC |
NOTICE: Natural finish parts are straight from the die cast tooling. These parts are intended to be brush finished, polished, painted, etc. prior to use. These parts will have some visual inconsistencies and tooling marks from the manufacturing process.
The OE Camaro and Corvette accessory brackets may need to be clearanced when installing Holley 2-Piece LS and Tall LS valve covers and coils. |
| Description_DEF |
Engine Valve Cover Set |
| Description_DES |

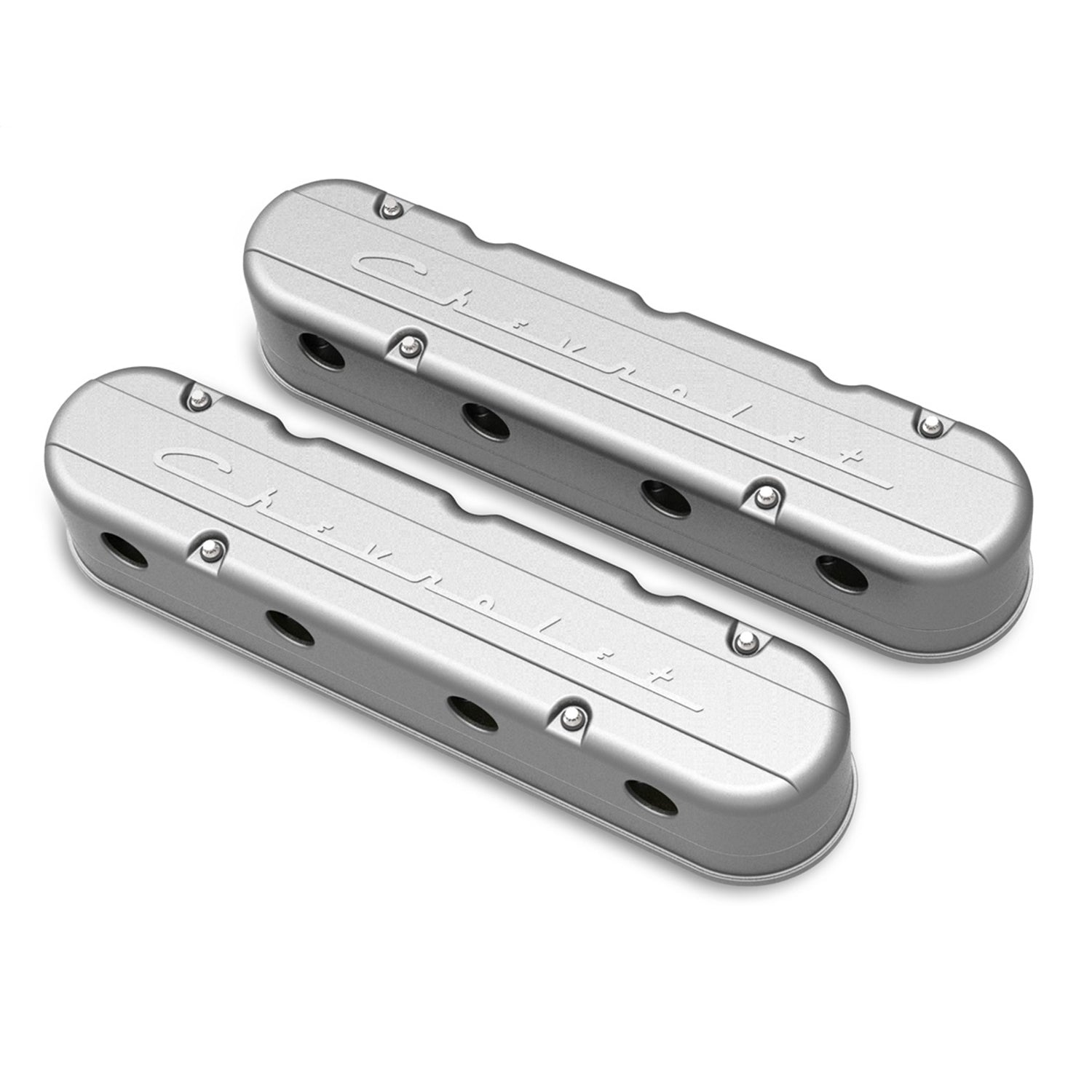

Holley 2-Piece "Chevrolet" Script Valve Cover - Gen III/IV LS - Natural |
| Description_KEY |
LS; Valve Cover; Chevrolet; V8; V-8; Cast; Die Cast; Die-Cast; Finned; Vintage; Aluminum; Fin; Fins; 2Piece; 2-piece; 2 piece LS; vintage series; Gen 1; Gen I; Gen 5; Gen V; Coils; Integrated; LS valve covers; coil cover |
| Description_FAB |

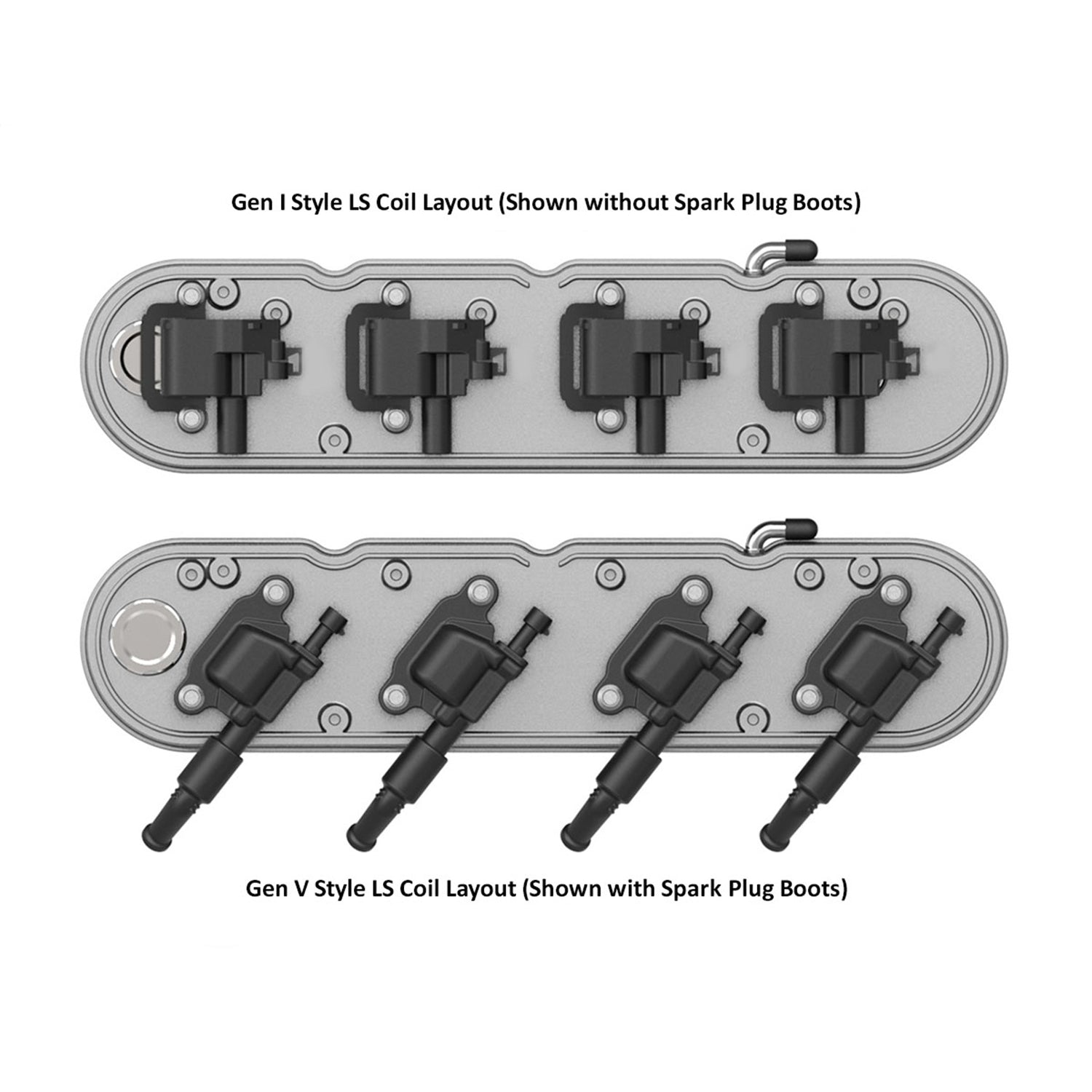

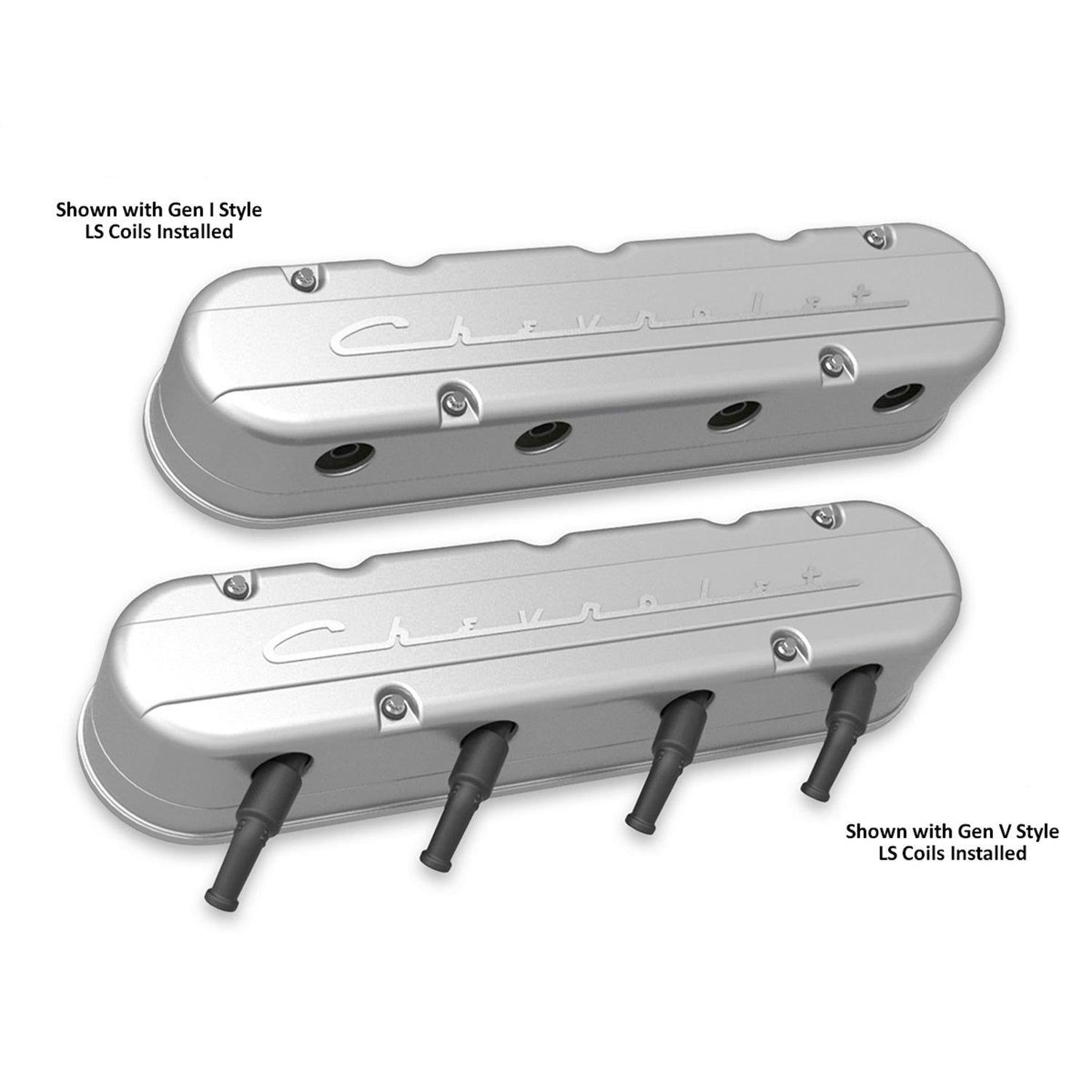

Cast aluminum 2-Piece LS valve covers designed to mount and hide both Gen I and Gen V style LS coil bodies |
| Description_FAB |
Retain the performance of factory coil-on-cover ignition without the unsightly styling |
| Description_FAB |
Coil cover features vintage valve cover styling with a prominent GM Licensed ΓÇ£Chevrolet" script logo and cast-in wiring provisions |
| Description_FAB |
Base fits LS1, LS2, LS3, LS6 and LS7 engines with clearance for .750" lift cam with stock style rocker arms |
| Description_FAB |
Base features internally baffled ventilation system |
| Description_FAB |
No coil relocation, wire harness extensions, or custom spark plug wires required |
| Description_FAB |
Includes low-profile billet oil fill cap |
| Description_FAB |
Includes all necessary coil mounting and dress-up hardware |
| Description_INV |
2-PIECE VALVE COVER GM LS CHEVROLET LOGO |
| Description_EXT |
Chevrolet Gen III/IV LS - Cast Aluminum - Coil-Mounting Base & Integrated Coil Cover |
| Description_MKT |
Holleys new 2-Piece LS valve covers are a great way to update the look of your LS engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular LS valve covers feature an OE height, internally baffled LS valve cover base with integrated coil mounts for popular Gen I and Gen V style LS coil bodies (coils not included), and a "Chevrolet" branded overcover that hides the unsightly LS coils and messy wiring harness - allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling. Each modular coil cover features a prominent vintage "Chevrolet" logo that matches various other GM licensed Holley products. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required. Each 2-Piece LS valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of LS coil bodies, and 12-point dress up hardware and rubber grommets for the coil covers. These modular LS valve covers are available in 5 unique finishes: natural cast, polished, satin black, factory orange, and gloss red (black, factory orange and gloss red sets feature machined fins). |
| Description_SHO |
Valve Cover Set |
| Bolt Pattern |
Center Bolt |
| Gaskets Included |
No |
| Mounting Hardware Included |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Valve Cover Style |
Standard |
| Brand |
Holley |
| Construction |
Die Cast Aluminum |
| Gasket Included |
No |
| Warning |
California Proposition 65 |
| Engine Make/Size |
Chevy LS Series |
| WARNING CA Proposition 65 |
Yes |
| Gromment(s) Included |
No |
| Height |
3.75" |
| Oil Fill Cap Included |
Yes |

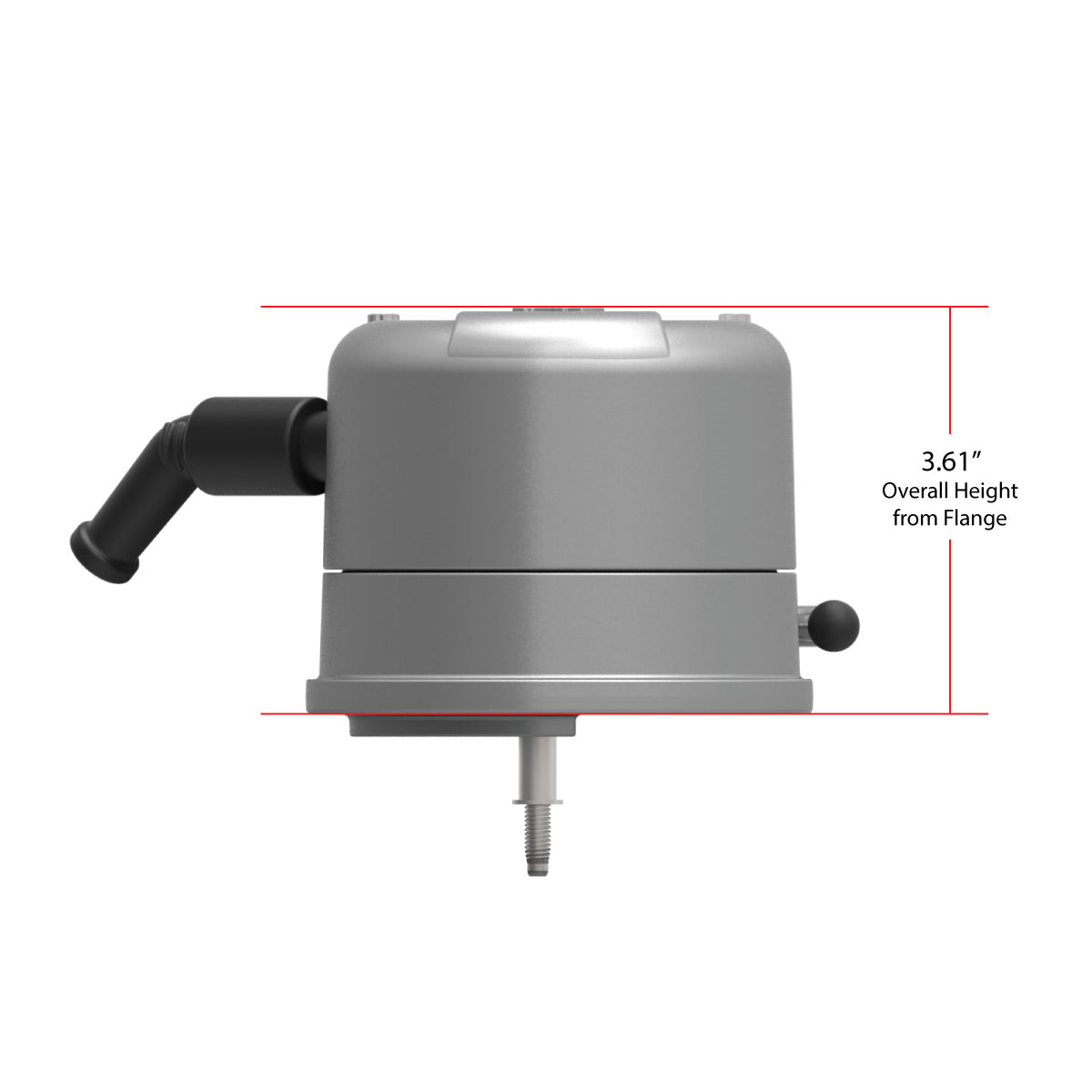

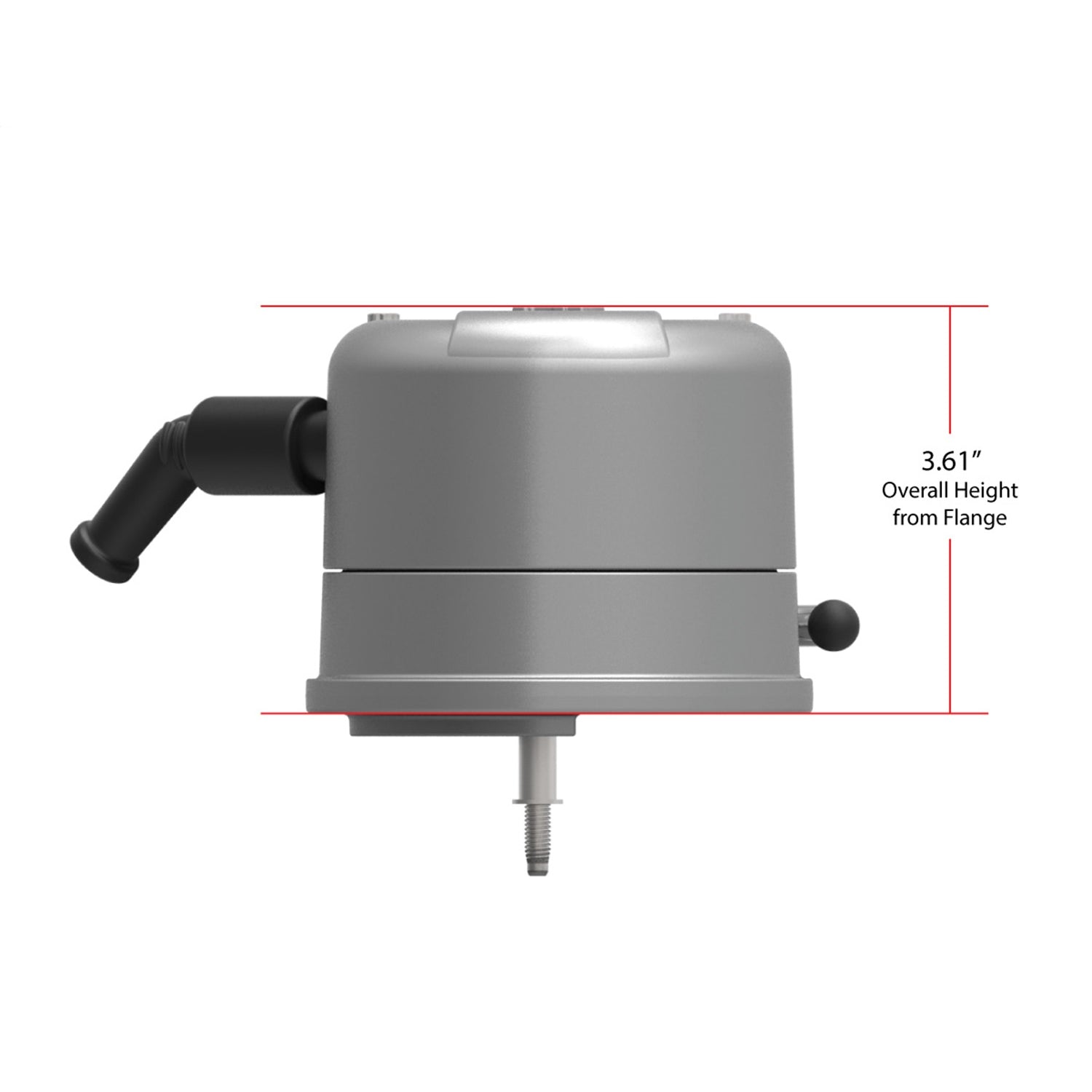

| Overall Height (in) |
3.610" |
| Product Type |
Valve Cover |
| Type of Component |
Valve Cover |
| Valvetrain Clearance |
.750" lift cam with stock style rocker arms |
| Warranty |
Limited 90 Day |
| Cylinder Head Type |
Standard |
| Material |
Cast Aluminum |
| Application |
GM LS Engines |
| Baffle Included |
Yes |
| Breather(s) Included |
No |
| Coil Mounting Studs |
Yes, on Baseplate |
| Coil Options |
with Coil Stands |
| Design Type |
2-Piece LS |
| Emission Code |
2, 4 |
| Finish |
Natural |
| Logo |
Chevrolet Script |
| Oil Fill |
Yes |
| Quantity |
Pair |
| Style |
Chevrolet Script |
| Length |
4.3000 |
| Width |
10.9000 |
| Height |
20.5000 |
| Weight |
12.6500 |
