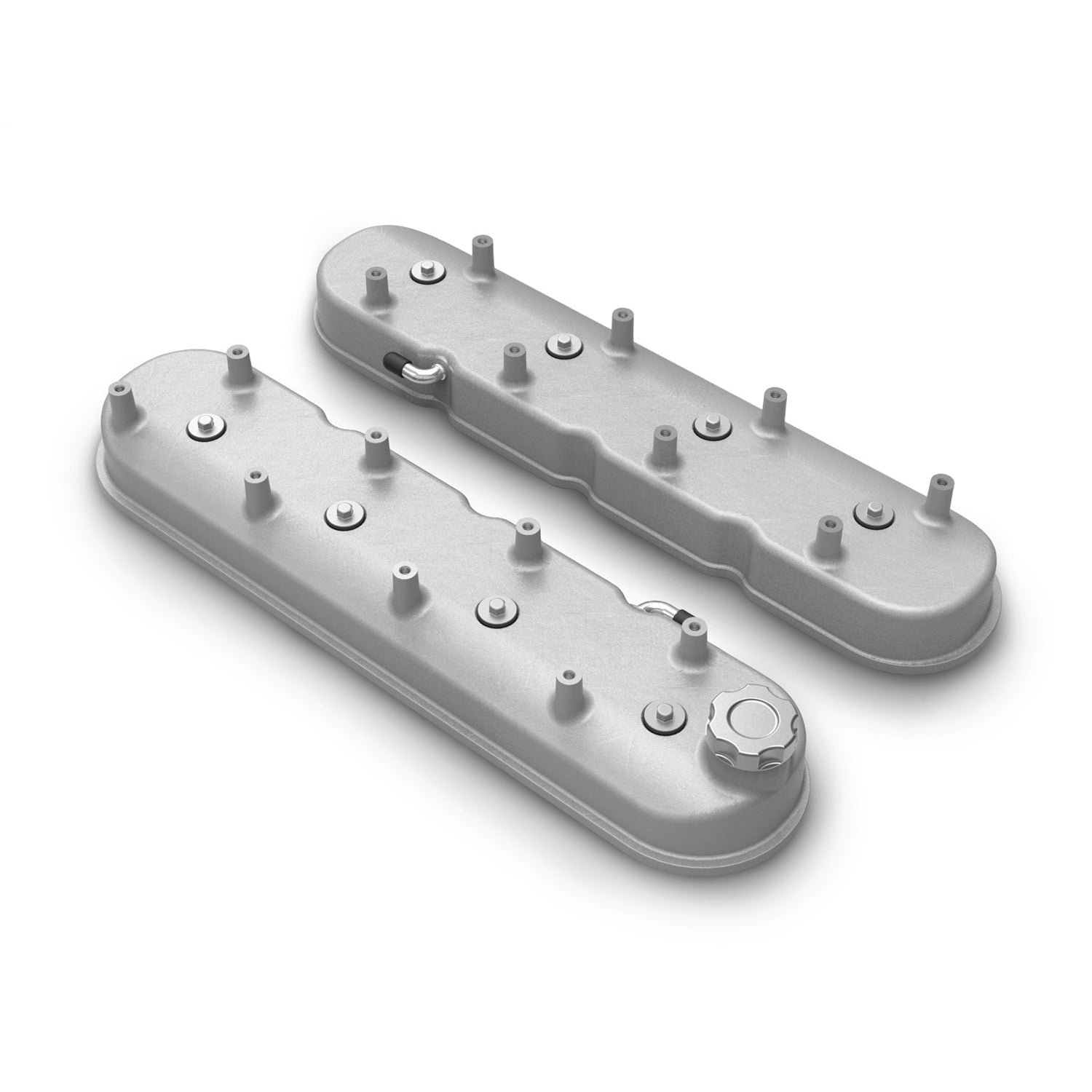

Holley's tall LS valve covers are the latest addition to our extensive line of LS engine components that will add a custom touch to your engine bay and help you to stand out from the crowd. These valve covers were designed to add an additional 0.54" of internal clearance over factory height valve covers. The valve covers retain Holley's signature integrated angled coil mounts, and the hi-tech look and performance of coil-on-cover applications. The Holley tall LS valve covers fit LS1, LS2, LS3, LS6 and LS7 engines using coils with a standard LS3 bolt spacing of 72mm (coils not included). These valve covers come ready for installation with an OE style baffle and ventilation system, lengthened factory style mounting hardware, plus a billet aluminum oil fill cap.
Specifications:
| Description_ASC |
The OE Camaro and Corvette accessory brackets may need to be clearanced when installing Holley 2-Piece LS and Tall LS valve covers and coils. |
| Description_CAP |
NOTICE: Natural finish parts are straight from the die cast tooling. These parts are intended to be brush finished, polished, painted, etc. prior to use. These parts will have some visual inconsistencies and tooling marks from the manufacturing process. |
| Description_DES |
Tall LS Valve Covers - Natural Cast |
| Description_DEF |
Engine Valve Cover Set |
| Description_FAB |
Angled coil mounts deliver a smooth clean look |
| Description_FAB |
Retain the high-tech look and performance of ΓÇ£coil on cover" |
| Description_FAB |
Eliminates unsightly OE style coil brackets |
| Description_FAB |
Billet aluminum oil fill cap |
| Description_FAB |
Reuses original gaskets and bolts |
| Description_FAB |
Fits all LS engines using LS1, LS2, LS3, LS6 and LS7 or similar coils with spacing 72mm bolt spacing |
| Description_FAB |

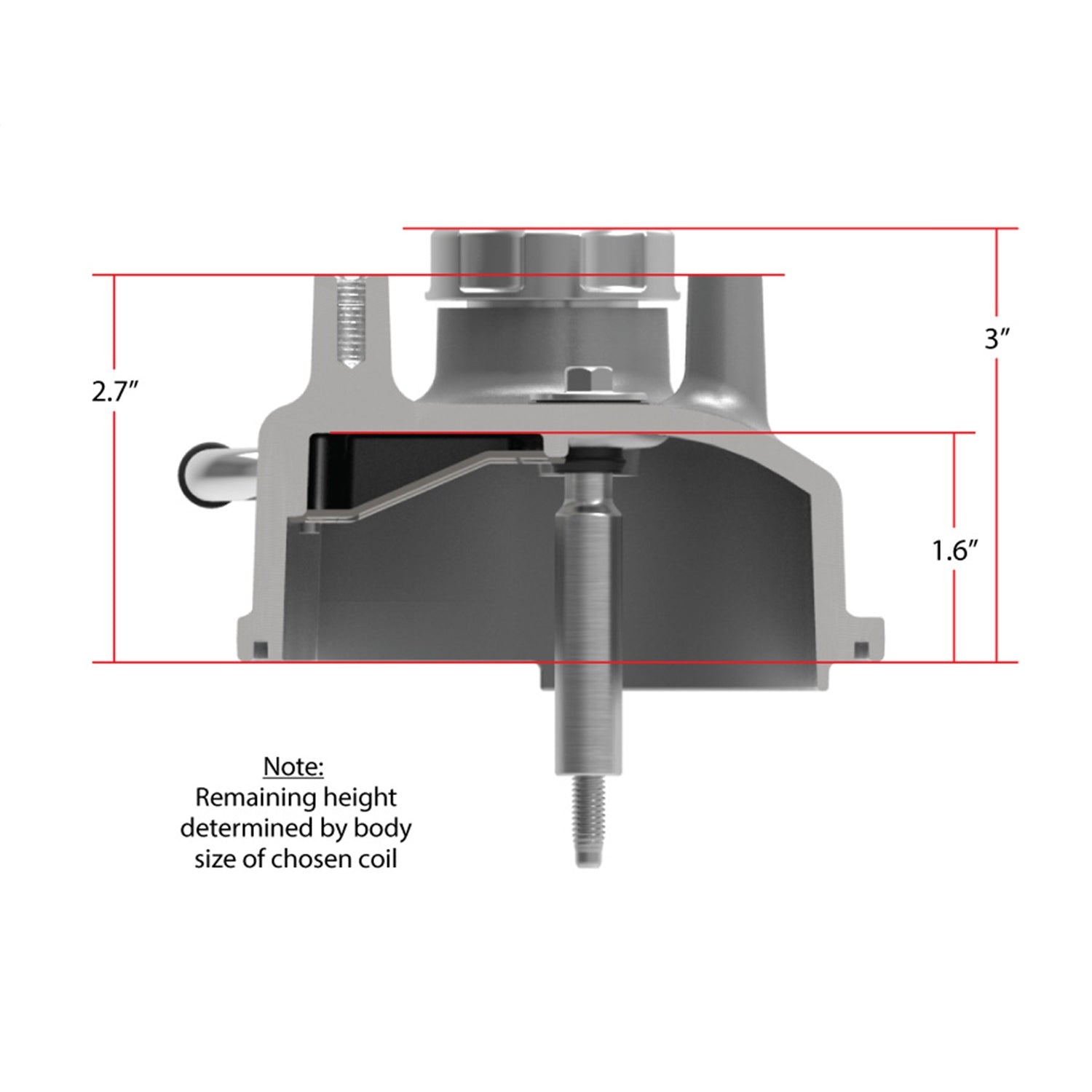

Designed to add an additional 0.54" of internal clearance over factory height valve covers |
| Description_FAB |
Holley's LS covers use proven OE style baffles and vents |
| Description_FAB |
Available in polished, satin black, gloss red and natural cast |
| Description_EXT |
Tall LS Valve Covers w/ Coil Mounting Posts, Cast Aluminum - Natural Cast Finish |
| Description_INV |
VALVE COVER, TALL LS NATURAL CAST FINISH |
| Description_MKT |
Holley's tall LS valve covers are the latest addition to our extensive line of LS engine components that will add a custom touch to your engine bay and help you to stand out from the crowd. These valve covers were designed to add an additional 0.54" of internal clearance over factory height valve covers. The valve covers retain Holley's signature integrated angled coil mounts, and the hi-tech look and performance of coil-on-cover applications. The Holley tall LS valve covers fit LS1, LS2, LS3, LS6 and LS7 engines using coils with a standard LS3 bolt spacing of 72mm (coils not included). These valve covers come ready for installation with an OE style baffle and ventilation system, lengthened factory style mounting hardware, plus a billet aluminum oil fill cap. |
| Description_SHO |
Valve Cover Set |
| Description_KEY |
LS; LSX; LS2; LS3; LS7; LS Swap; GM LS Valve Cover; long valve cover; tall valve cover; |
| Cylinder Head Type |
Standard |
| Height |
Tall |
| Oil Fill Cap Included |
Yes |
| Finish |
Natural |
| Valve Cover Style |
Tall |
| Brand |
Holley |
| Breather(s) Included |
No |
| Coil Options |
with Coil Stands |
| Emission Code |
2, 4 |
| Engine Make/Size |
Chevy Small Block LS1 |
| Material |
Cast Aluminum |
| Mounting Hardware Included |
Yes |
| Grommets Included |
Yes |
| Baffle Included |
Yes |
| Application |
GM LS Engines |
| Coil Mounting Studs |
Yes |
| Construction |
Die Cast Aluminum |
| Design Type |
Tall Height |
| Logo |
None |
| Oil Fill |
Yes |
| Overall Height (in) |
3.000" |
| Quantity |
Pair |
| Style |
w/ Coil Mounts |
| Gasket Or Seal Included |
No |
| WARNING CA Proposition 65 |
No |
| Bolt Pattern |
Center Bolt |
| Gaskets Included |
No |
| Gromment(s) Included |
Yes |
| Product Type |
Valve Cover |
| Type of Component |
Valve Cover |
| Warranty |
Limited 90 Day |
| Length |
4.0000 |
| Width |
11.0000 |
| Height |
18.0000 |
| Weight |
9.0000 |
