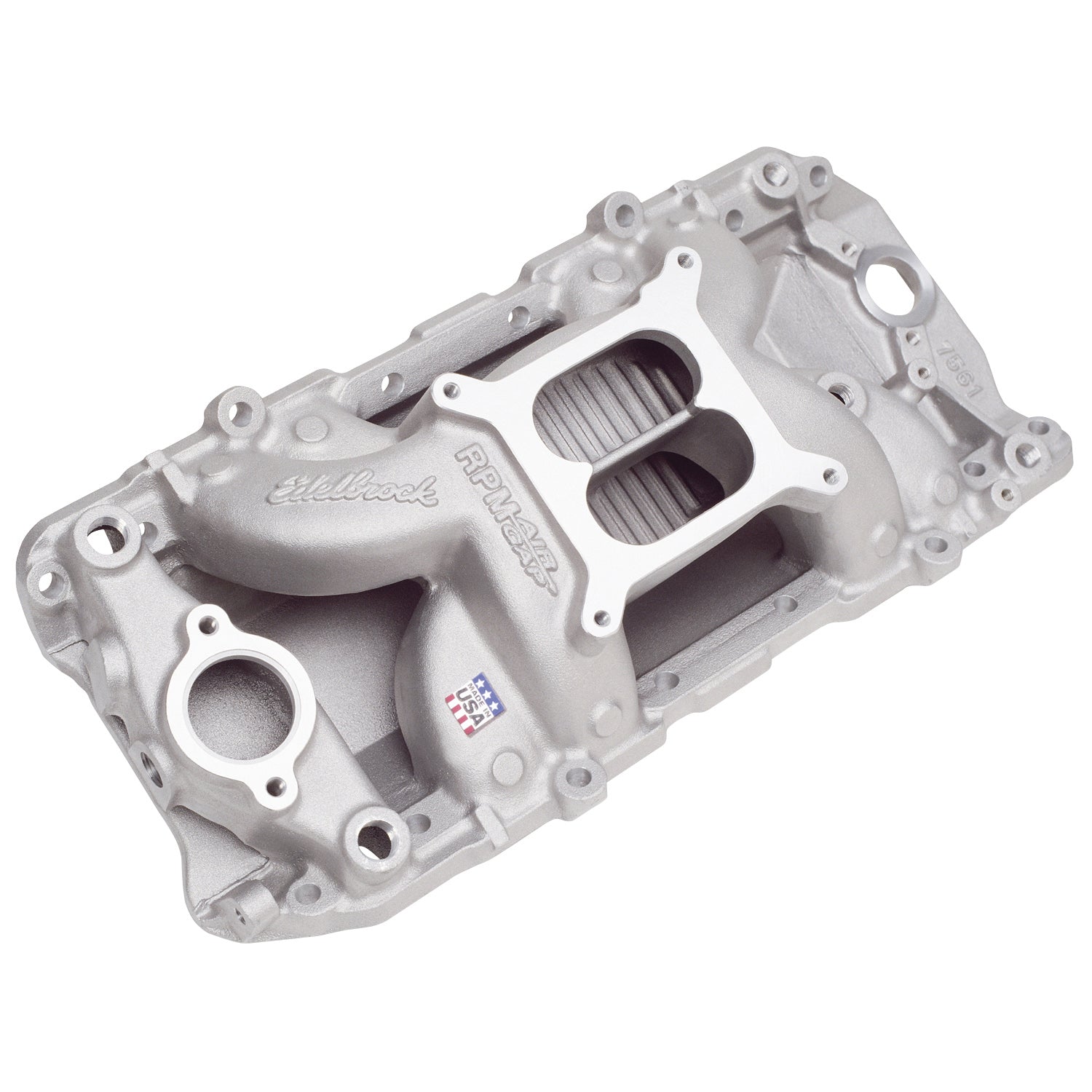

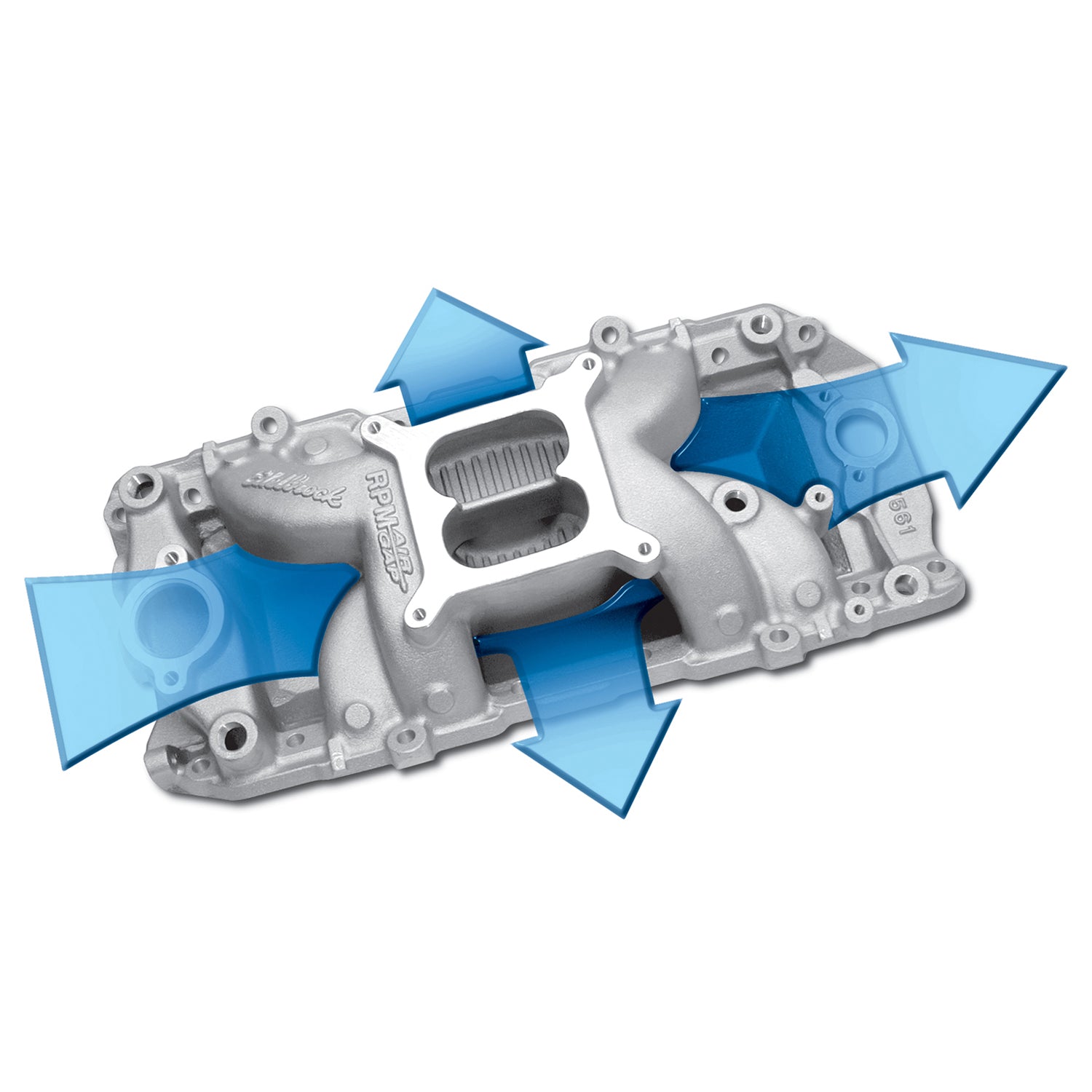

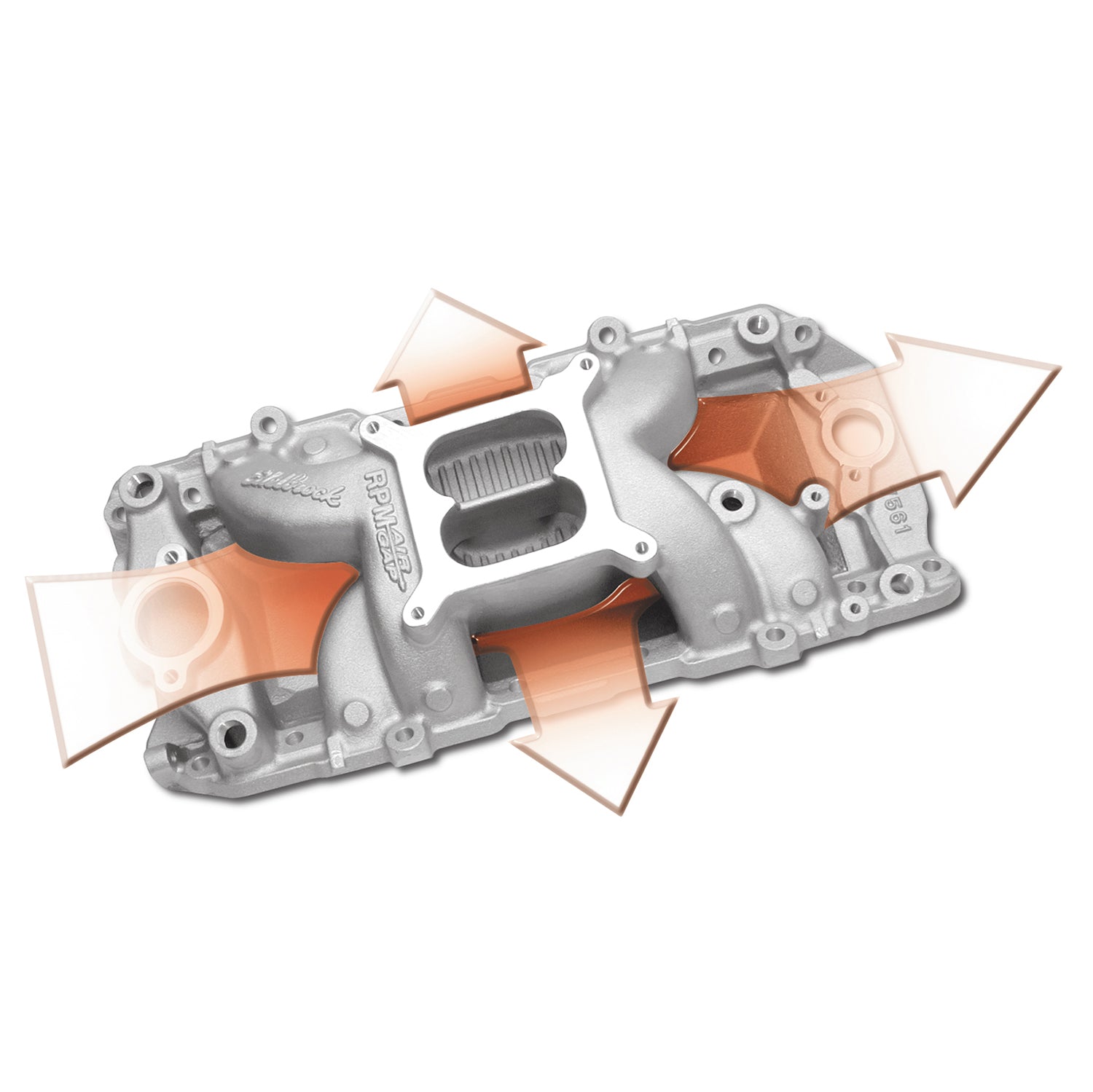

Edelbrock part #7561 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. This RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block:396 (6.5L)-502 (8.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock RPM Air-Gap 2-O Intake Manifold for Chevrolet 396-502 Big-Block V8 |
| Description_INV |
RPM Air-Gap BBC Oval Port Intake Manfld |
| Description_MKT |
Edelbrock part #7561 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. This RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover. |
| Description_LAB |
RPM Air-Gap Big Block Chevy 2-O Intake Manifold |
| Description_TRA |
Recommended intake gasket: Edelbrock #7203 |
| Description_TRA |
Manifold height: A-4.45", B-6.0" |
| Description_TRA |
Carb pad height: 5.22" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78. |
| Description_TRA |
Port exit dimensions: 1.60" x 1.94" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Chevrolet |
| Flange Type |
4150 |
| CNC Ported |
No |
| Front Maximum Height |
4.450 |
| Rear Maximum Height |
6.000 |
| Basic Operating RPM Range |
1500-6500 |
| EGR Port |
No |
| Finish |
Satin |
| Series |
RPM Air-Gap |
| Single Or Dual Plane Type |
Dual |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Material |
Aluminum |
| Center Maximum Height |
5.220 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
22.0000 |
