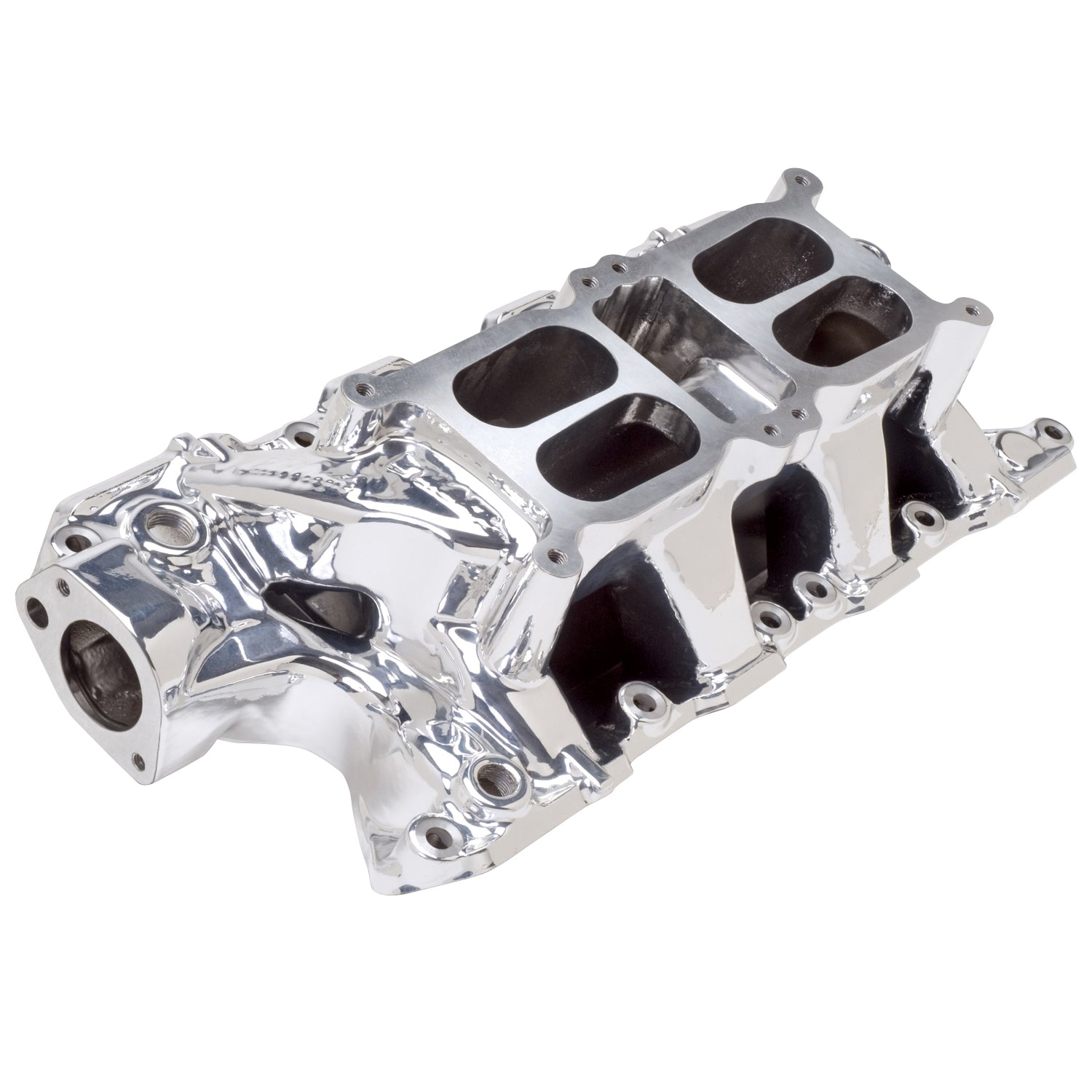

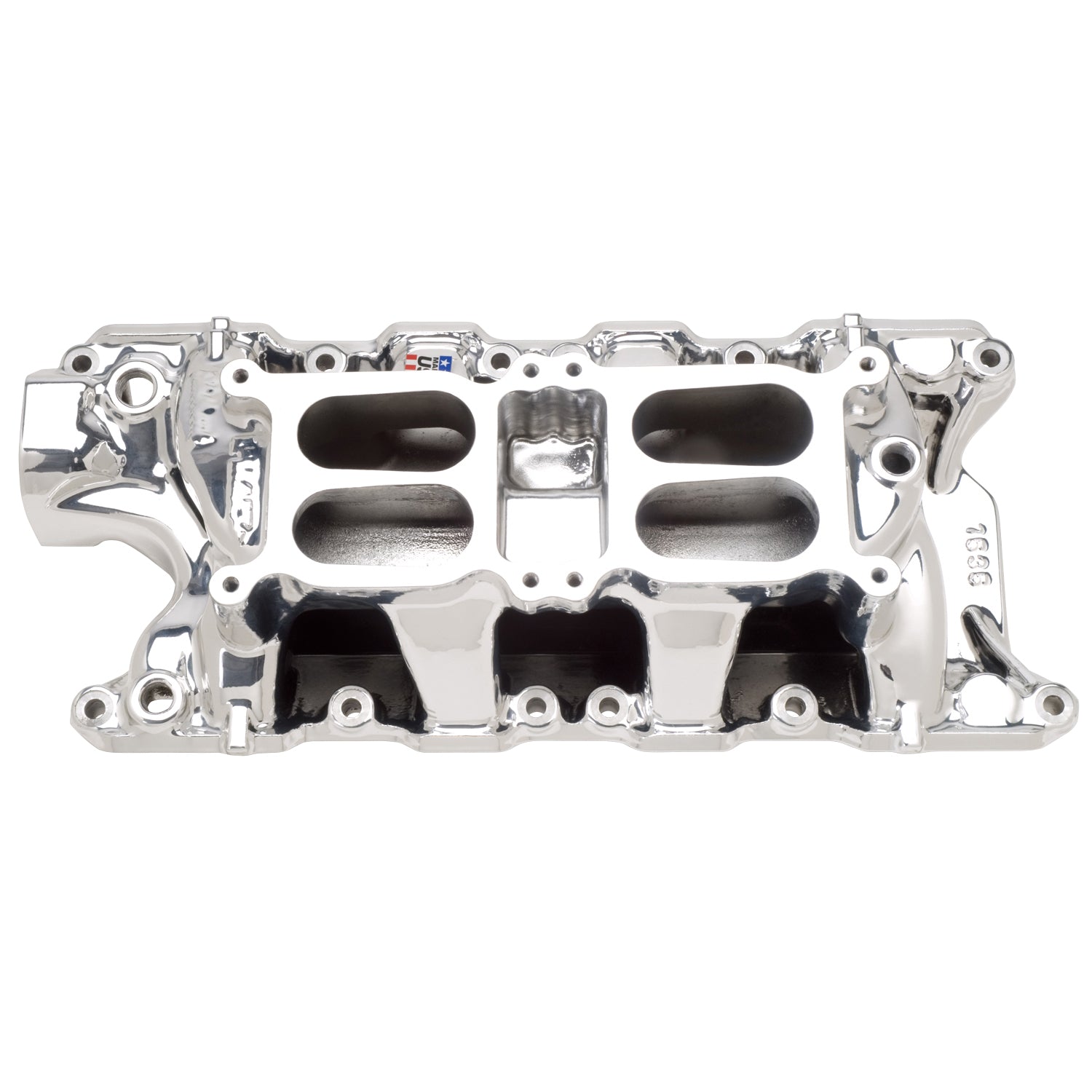

Edelbrock part #75354 RPM Air-Gap Dual-Quad intake manifold is designed for 289-302-347 c.i.d. small-block Ford V8 applications. This intake manifold is a dual plane design which combines dual four-barrel excitement with a well-mannered street manifold. The intake is taller than the low-profile F-28 intake and offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Carb center to carb center is 6-7/16". This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block:289 (4.7L)-347 (5.7L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Eshine RPM Air-Gap Dual Quad 8.2 Intake |
| Description_EXT |
Edelbrock RPM Air-Gap Dual Quad Intake Manifold for Ford 289-347 Small-Block V8 |
| Description_LAB |
RPM Air-Gap Dual-Quad Small Block Ford Endurashine Intake Manifold |
| Description_MKT |
Edelbrock part #75354 RPM Air-Gap Dual-Quad intake manifold is designed for 289-302-347 c.i.d. small-block Ford V8 applications. This intake manifold is a dual plane design which combines dual four-barrel excitement with a well-mannered street manifold. The intake is taller than the low-profile F-28 intake and offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Carb center to carb center is 6-7/16". This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7220 |
| Description_TRA |
Manifold height: A-4.85", B-5.70" |
| Description_TRA |
Carb pad height: 5.28" |
| Description_TRA |
Port exit dimensions: 1.05" x 1.90" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Material |
Aluminum |
| CNC Ported |
No |
| Finish |
EnduraShine |
| Flange Type |
4150 Dual-Quad (4-Barrel Square Bore) |
| Rear Maximum Height |
5.700 |
| Basic Operating RPM Range |
1500-6500 |
| EGR Port |
No |
| Grade Type |
Performance |
| Front Maximum Height |
4.850 |
| Series |
RPM Air-Gap |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Maximum Height |
5.280 |
| Vehicle Model |
Ford |
| Single Or Dual Plane Type |
Dual |
| Gasket Or Seal Included |
No |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
19.0000 |
