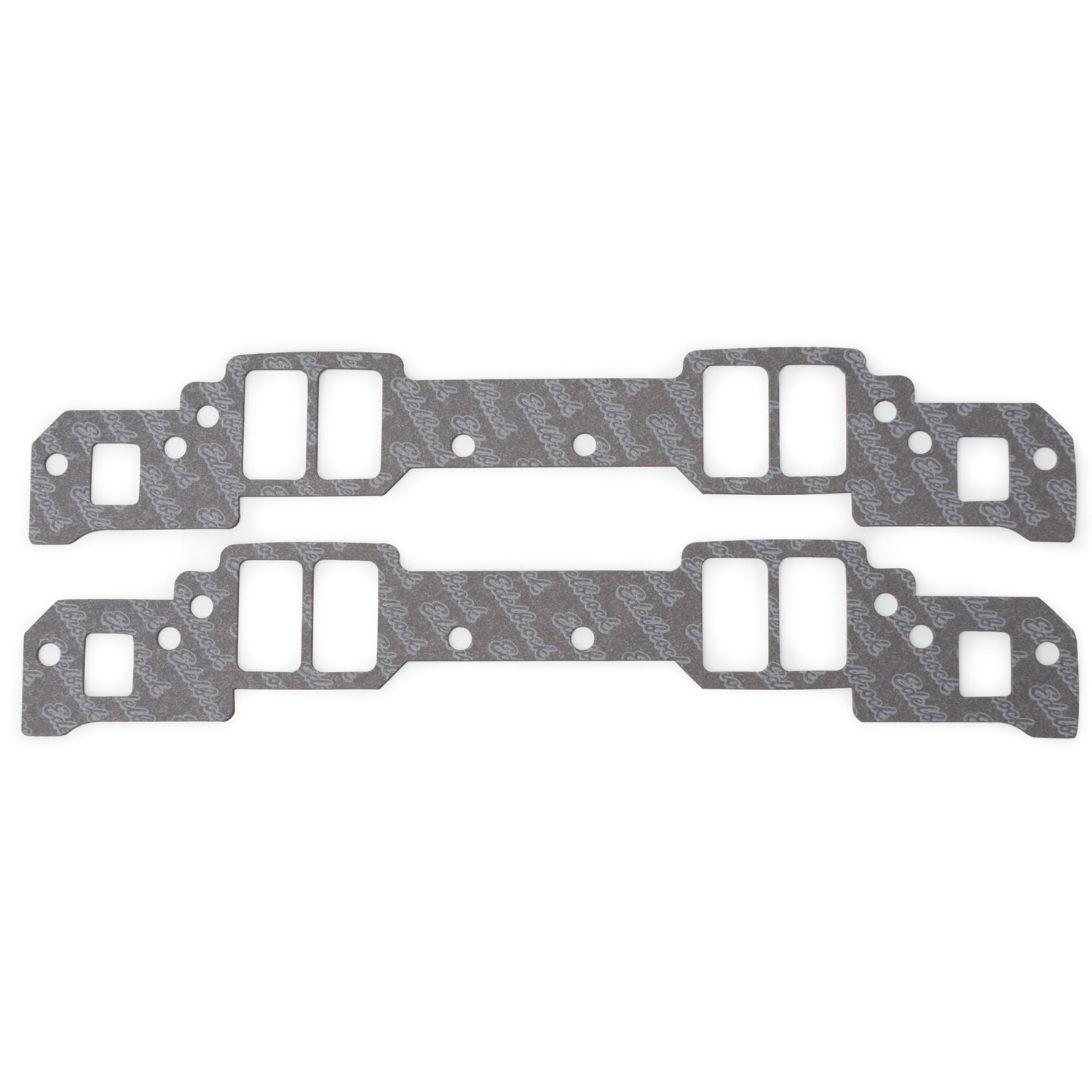

Edelbrock part #7218 Intake Gaskets for Edelbrock 18 degree Small-Block Chevy Victor Jr. and Victor High-Port Intakes allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better.
Specifications:
| Description_ABR |
INT MAN GASK |
| Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold Gasket Set |
| Description_EXT |
Edelbrock Intake Manifold Gasket for 18 degree S/B Chevy Edelbrock High-Port Intakes. Top quality Edelbrock gaskets ensure a perfect seal every time. |
| Description_INV |
Edelbrock Intake Manifold Gasket |
| Description_MKT |
Edelbrock part #7218 Intake Gaskets for Edelbrock 18 degree Small-Block Chevy Victor Jr. and Victor High-Port Intakes allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better. |
| Description_TRA |
Port Size: 1.23" x 2.13" |
| Description_TRA |
Thickness: .60" |
| Description_TRA |
Graphite Style |
| Description_TRA |
We recommend the use of Edelbrock Gasgacinch (Part #9300) on the intake manifold mounting surfaces of the cylinder head and on the bottom side of the intake manifold gaskets (side without silicon beads). The Gasgacinch will secure the gaskets in place, ensuring a proper seal. |
| Description_TRA |
Silicon beads facing up towards intake manifold |
| Description_LAB |
Intake Manifold Gasket for 18 Deg S/B Chevy High-Port Intakes |
| Material |
Graphite |
| Finish |
Grey |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Manifold Gasket Bolt Hole Quantity |
8 |
| Configuration |
Two Piece |
| Valley Pan Included |
No |
| Length |
0.0000 |
| Width |
5.0000 |
| Height |
26.0000 |
