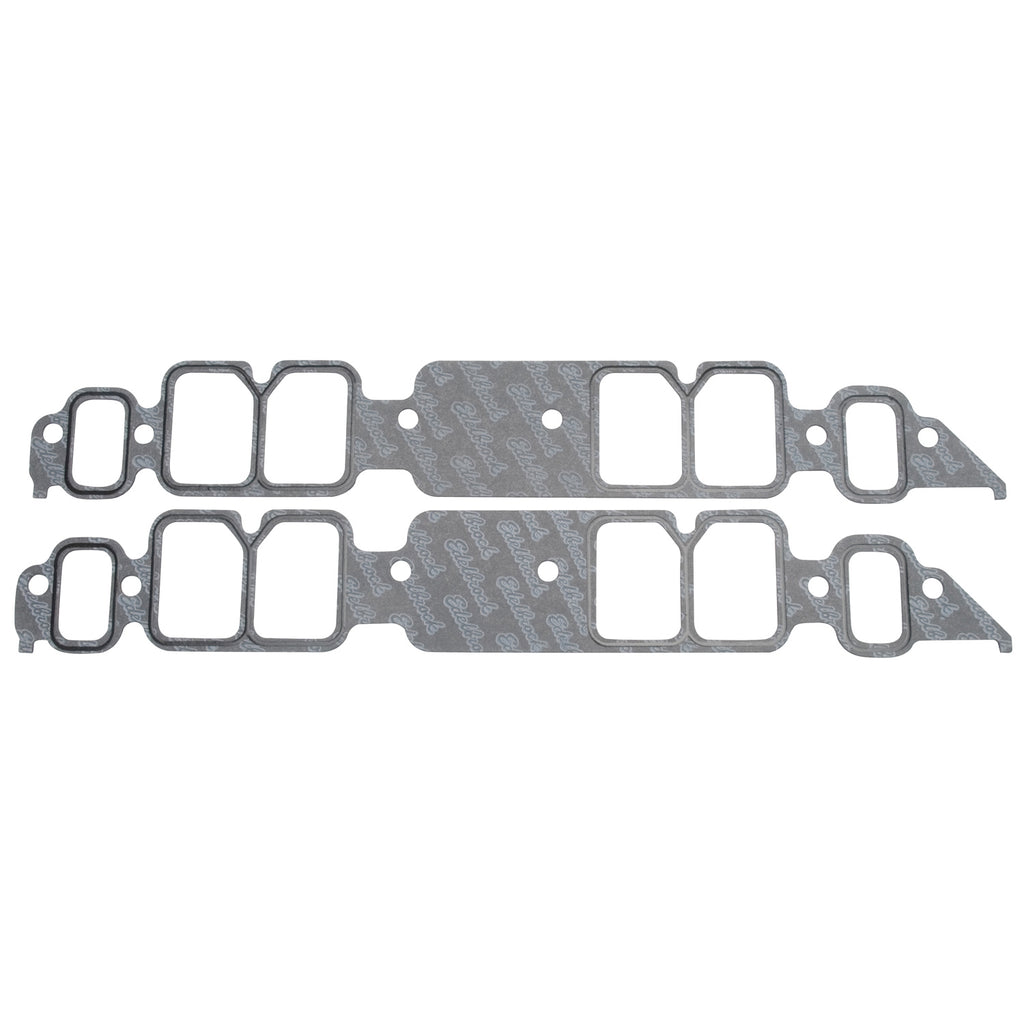

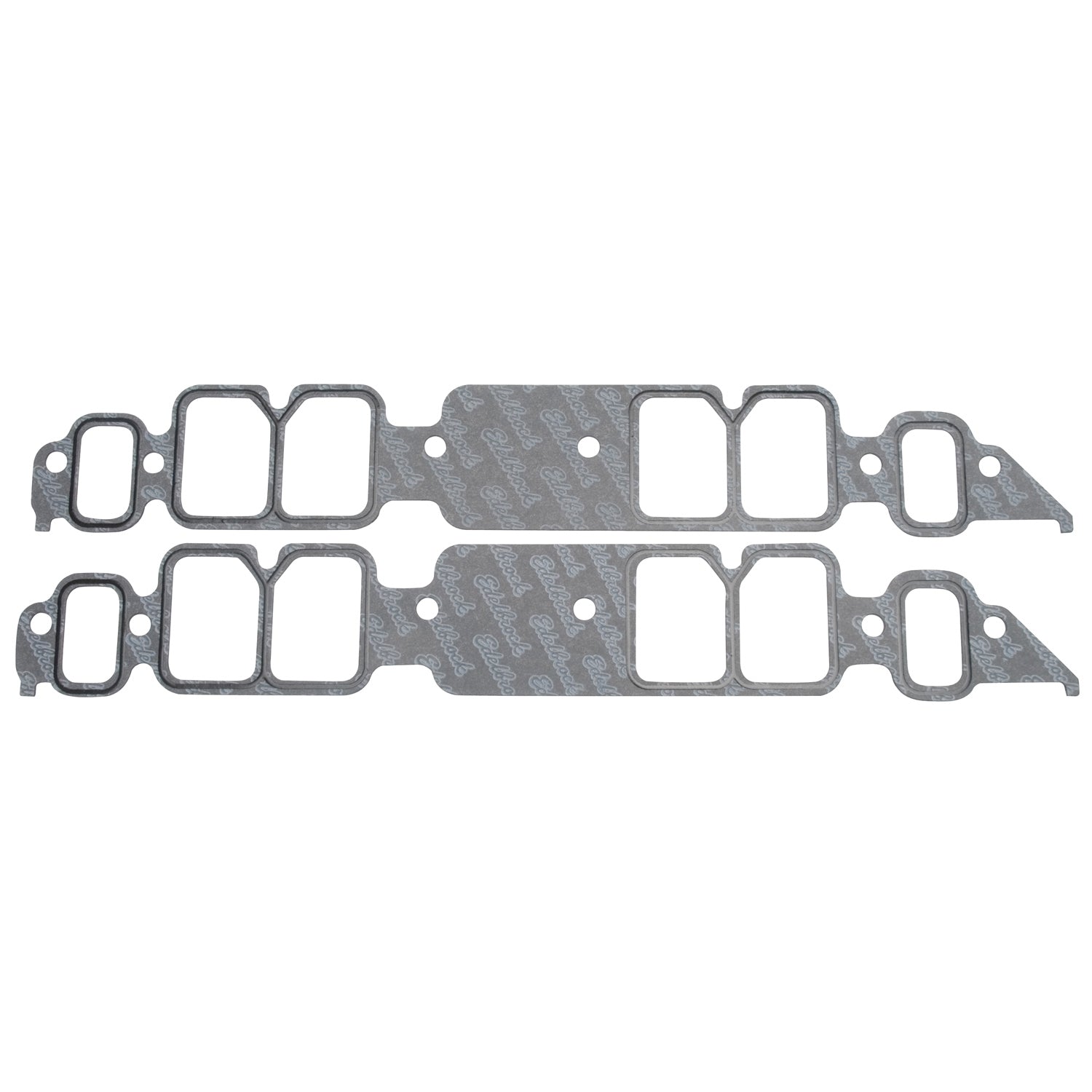

Edelbrock part #7202 Intake Gaskets for 1991 & later Gen V & VI, Rectangular port 454 Big-block Chevy allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better.
Specifications:
| Description_ABR |
INT MAN GASK |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Intake Manifold Gasket Set |
| Description_EXT |
Edelbrock Intake Manifold Gasket for 1991 & later Rectangular port 454 B/B Chevy. Top quality Edelbrock gaskets ensure a perfect seal every time. |
| Description_LAB |
Intake Manifold Gasket for 1991 & Later Rectangular port 454 B/B Chevy |
| Description_INV |
Edelbrock Intake Manifold Gasket |
| Description_MKT |
Edelbrock part #7202 Intake Gaskets for 1991 & later Gen V & VI, Rectangular port 454 Big-block Chevy allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better. |
| Description_TRA |
Port Size: 1.82" x 2.54" |
| Description_TRA |
Thickness: .060" |
| Description_TRA |
We recommend the use of Edelbrock Gasgacinch (Part #9300) on the intake manifold mounting surfaces of the cylinder head and on the bottom side of the intake manifold gaskets (side without silicon beads). The Gasgacinch will secure the gaskets in place, ensuring a proper seal. |
| Description_TRA |
Silicon beads facing up towards intake manifold |
| Material |
Synthetic Fiber composite |
| Valley Pan Included |
No |
| Manifold Gasket Bolt Hole Quantity |
6 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish |
Grey |
| Configuration |
Two Piece |
| Length |
0.0000 |
| Width |
5.0000 |
| Height |
24.0000 |
