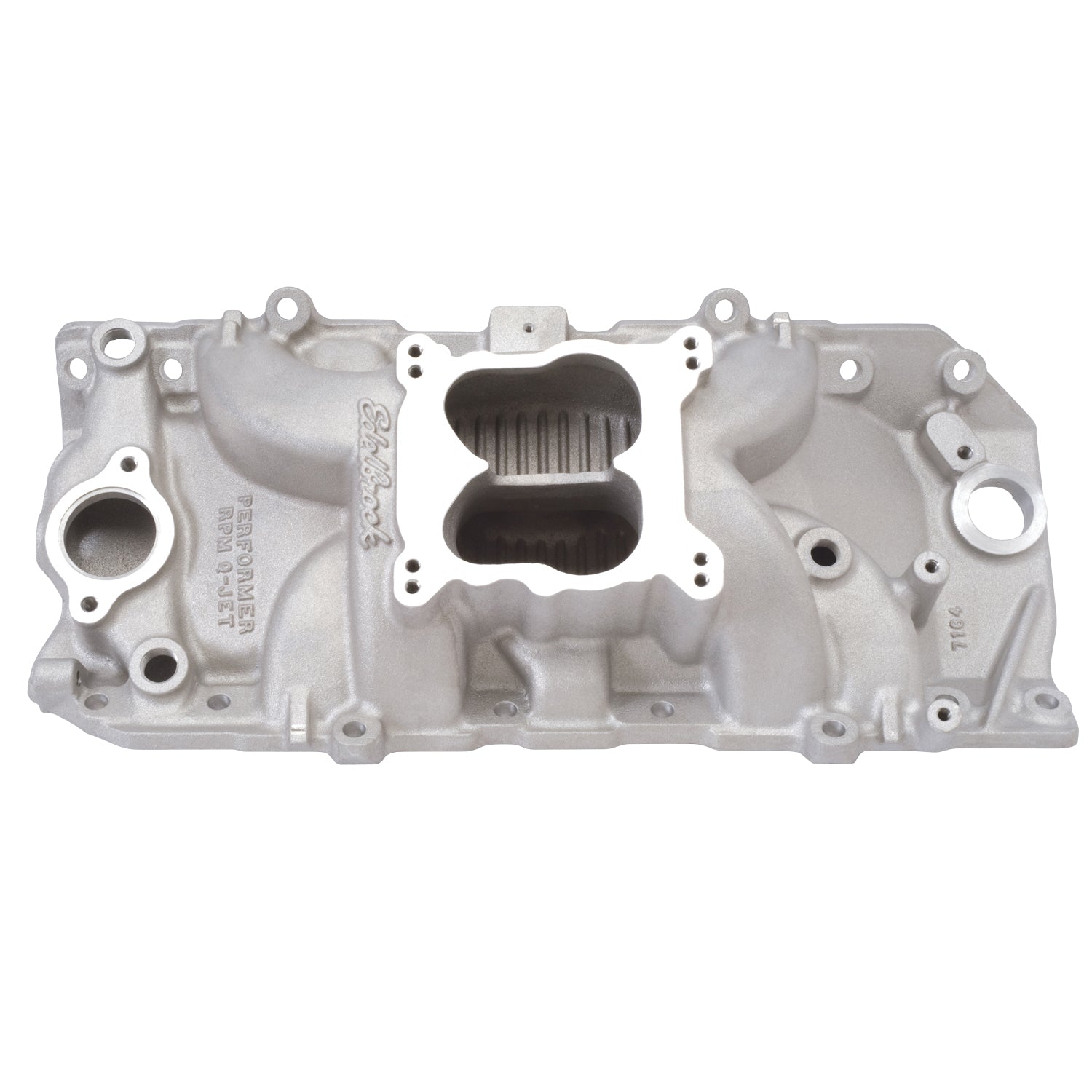

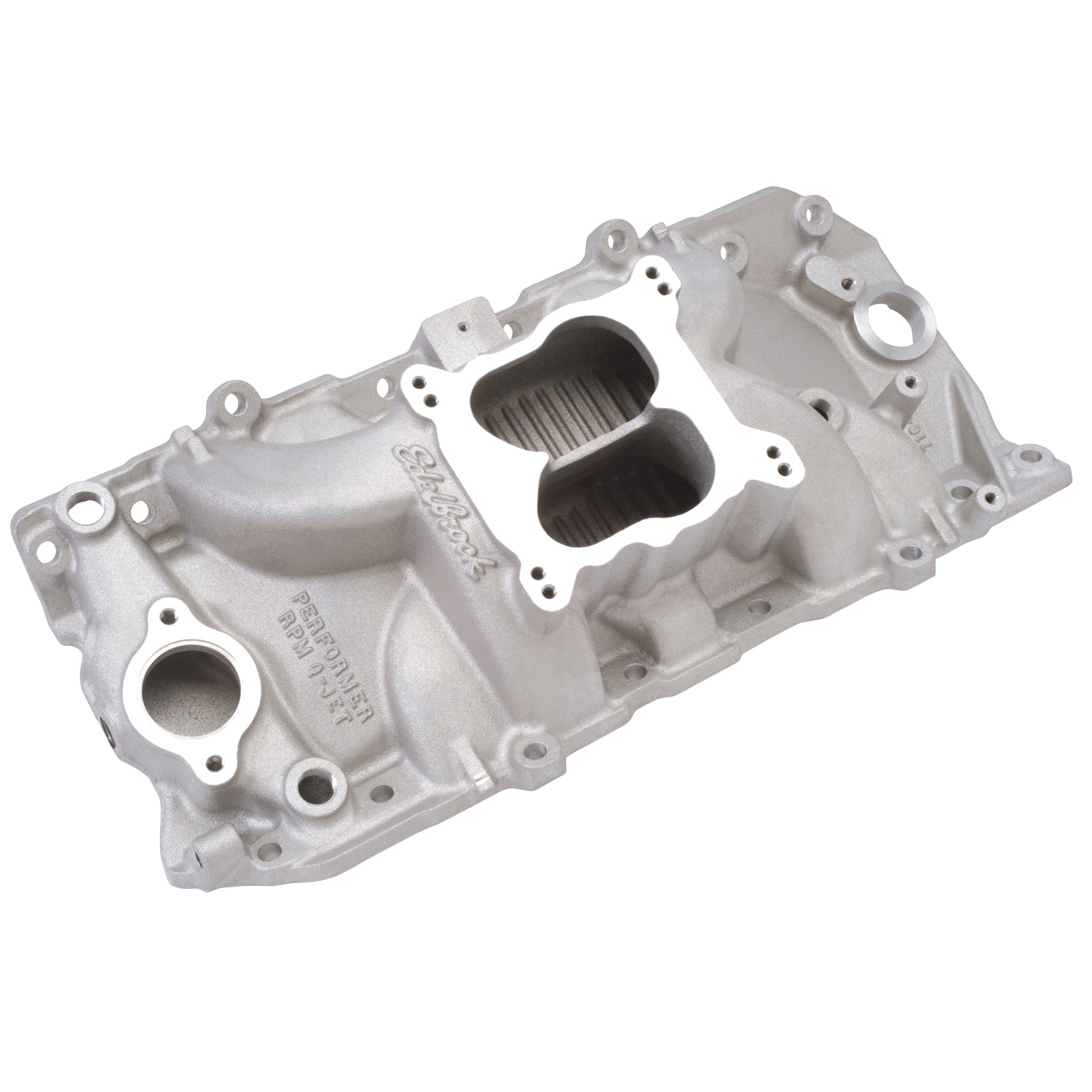

Edelbrock part #7164 Performer RPM Q-Jet intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port (1975 and earlier) heads. This intake manifold is designed works with spread-bore carbs, but also works with Edelbrock square-bore carbs without adapter. No provisions for hot air style chokes. Accepts divorced choke, late-model waterneck, air-conditioning, alternator and HEI equipment.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_MKT |
Edelbrock part #7164 Performer RPM Q-Jet intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port (1975 and earlier) heads. This intake manifold is designed works with spread-bore carbs, but also works with Edelbrock square-bore carbs without adapter. No provisions for hot air style chokes. Accepts divorced choke, late-model waterneck, air-conditioning, alternator and HEI equipment. |
| Description_LAB |
Performer RPM Big Block Chevy Oval Port Q-Jet Intake Manifold |
| Description_EXT |
Edelbrock Performer RPM Q-Jet Intake Manifold for Chevrolet 396-502 Big-Block V8 |
| Description_INV |
Performer RPM BBC Q-Jet Oval Port Intake |
| Description_TRA |
Recommended intake gasket: Edelbrock #7203 |
| Description_TRA |
Manifold height: A-4.45", B-6.0" |
| Description_TRA |
Carb pad height: 5.22" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78. |
| Description_TRA |
Port exit dimensions: 1.60"w x 1.94"t. |
| Description_TRA |
Will not fit under stock hood of Corvette, 1964-67 Chevelle, or 1967-81 Camaro. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Gasket Or Seal Included |
No |
| Front Maximum Height |
4.450 |
| Center Maximum Height |
5.220 |
| Vehicle Model |
Chevrolet |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| CNC Ported |
No |
| Series |
Performer RPM |
| Flange Type |
4150 |
| EGR Port |
No - For Oval Port |
| Material |
Aluminum |
| Finish |
Satin |
| Single Or Dual Plane Type |
Dual |
| Basic Operating RPM Range |
1500-6500 |
| Rear Maximum Height |
6.000 |
| Grade Type |
Performance |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
