| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:W Big-Block:348 (5.7L)/409 (6.7L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Performer RPM Small Port Intake Manifold for Chevrolet W-Series |
| Description_INV |
RPM Dual Quad 409 SM Port Intake Manifld |
| Description_MKT |

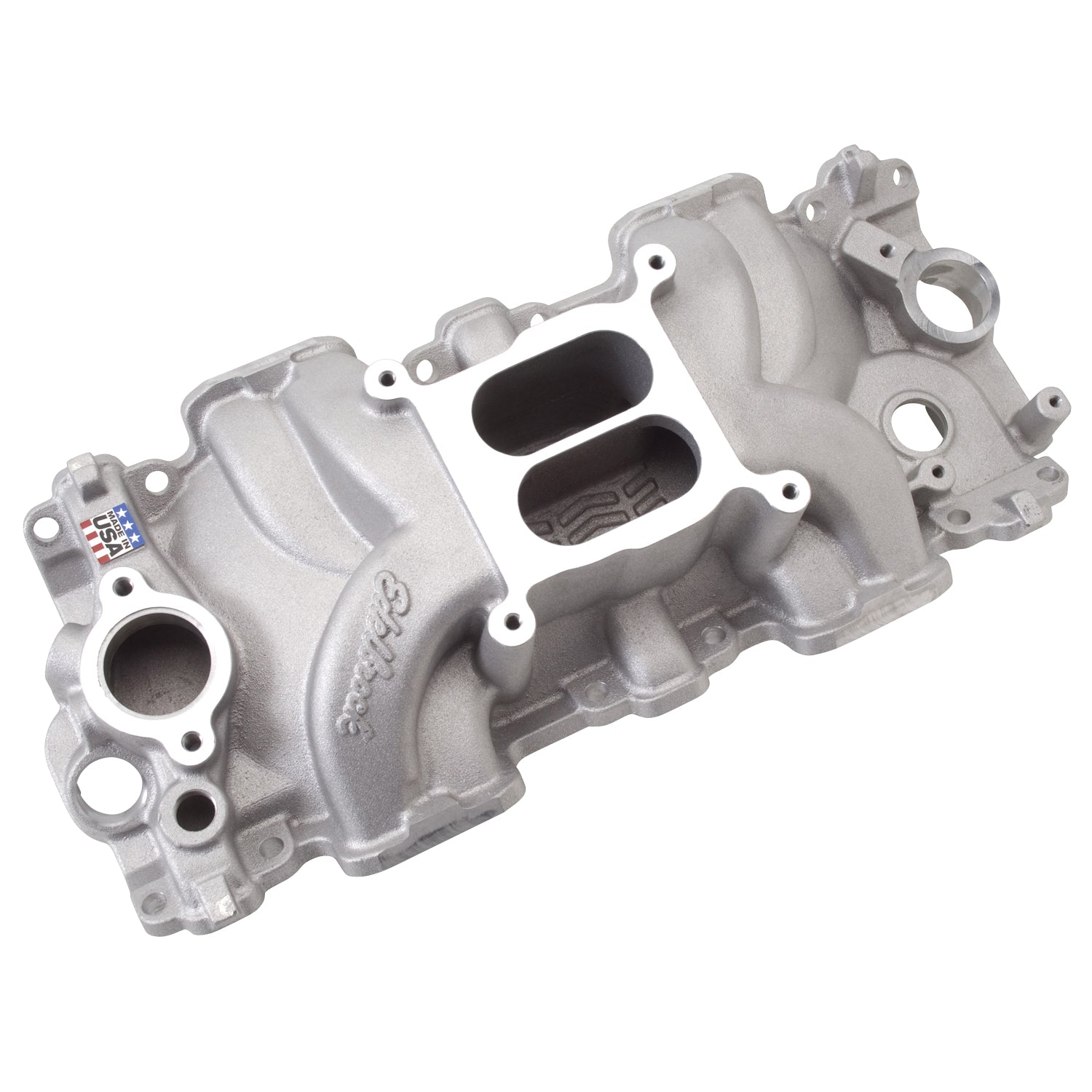

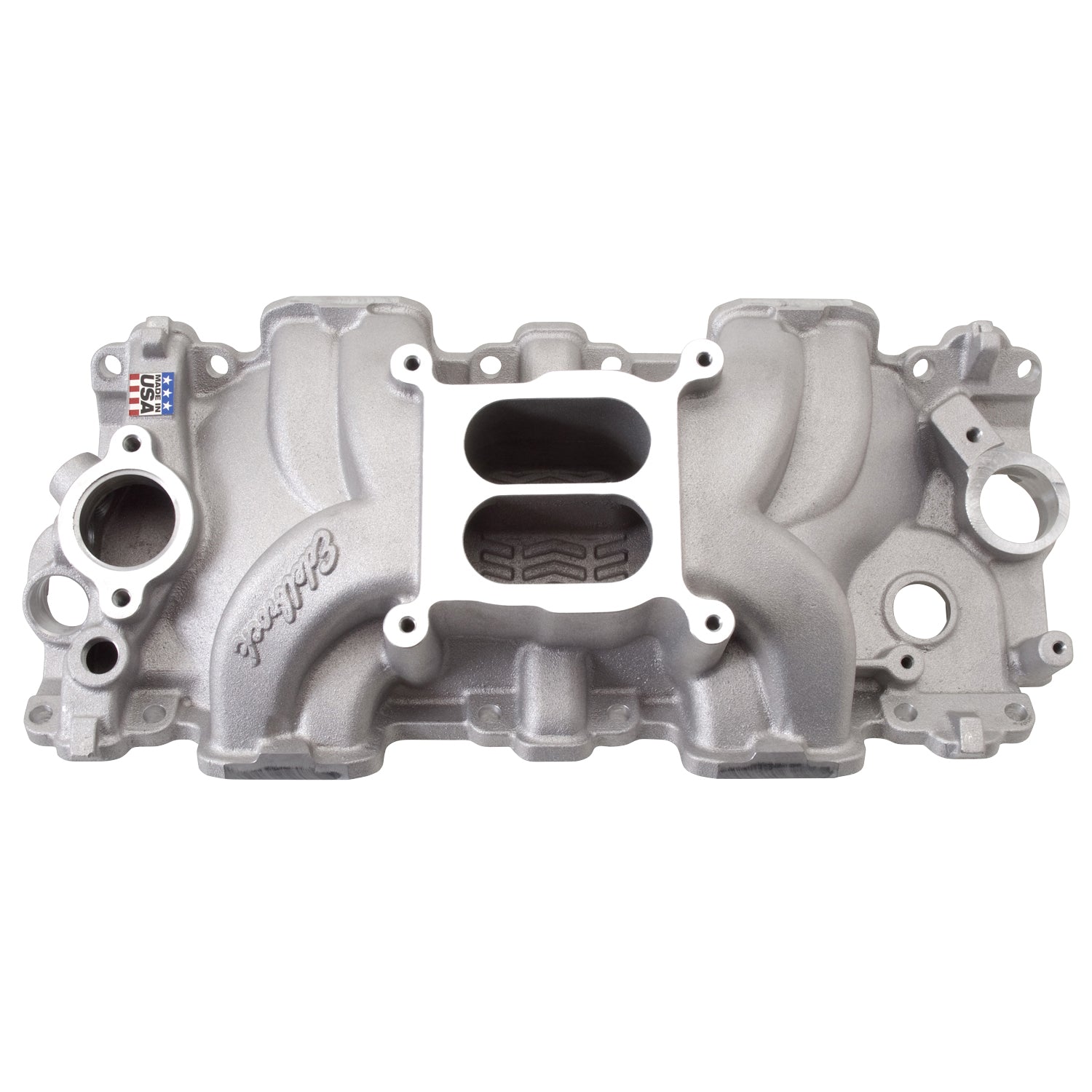

Edelbrock part #7158 Performer RPM small port intake manifold is designed to fit 1958-1965 Chevrolet 348/409 "W" big-block engines. Includes Oil Fill Tube (not installed) and matching push-in breather cap. The Oil Fill Tube and Breather are also available separately as #4803. For square-bore carburetors only. |
| Description_LAB |
Performer RPM Big Block Chevy W-Engine Small Port Intake Manifold |
| Description_TRA |
Recommended intake gasket: Edelbrock #7242 or Fel-Pro MS9459B |
| Description_TRA |
Port exit dimensions: 2.06" x 1.16" |
| Description_TRA |
Manifold Dimensions: A-4.35", B-5.54" |
| Description_TRA |
Carb pad height: 4.62" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. |
| Description_TRA |
Carburetor size (CFM) should be selected based on your specific engine combination. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA |
To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Rear Maximum Height |
5.540 |
| Material |
Aluminum |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Dual |
| Center Maximum Height |
4.940 |
| Basic Operating RPM Range |
1500-6500 |
| Series |
Performer RPM |
| Flange Type |
4150 |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chevrolet |
| EGR Port |
No |
| Finish |
Satin |
| Front Maximum Height |
4.350 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| CNC Ported |
No |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
22.0000 |
