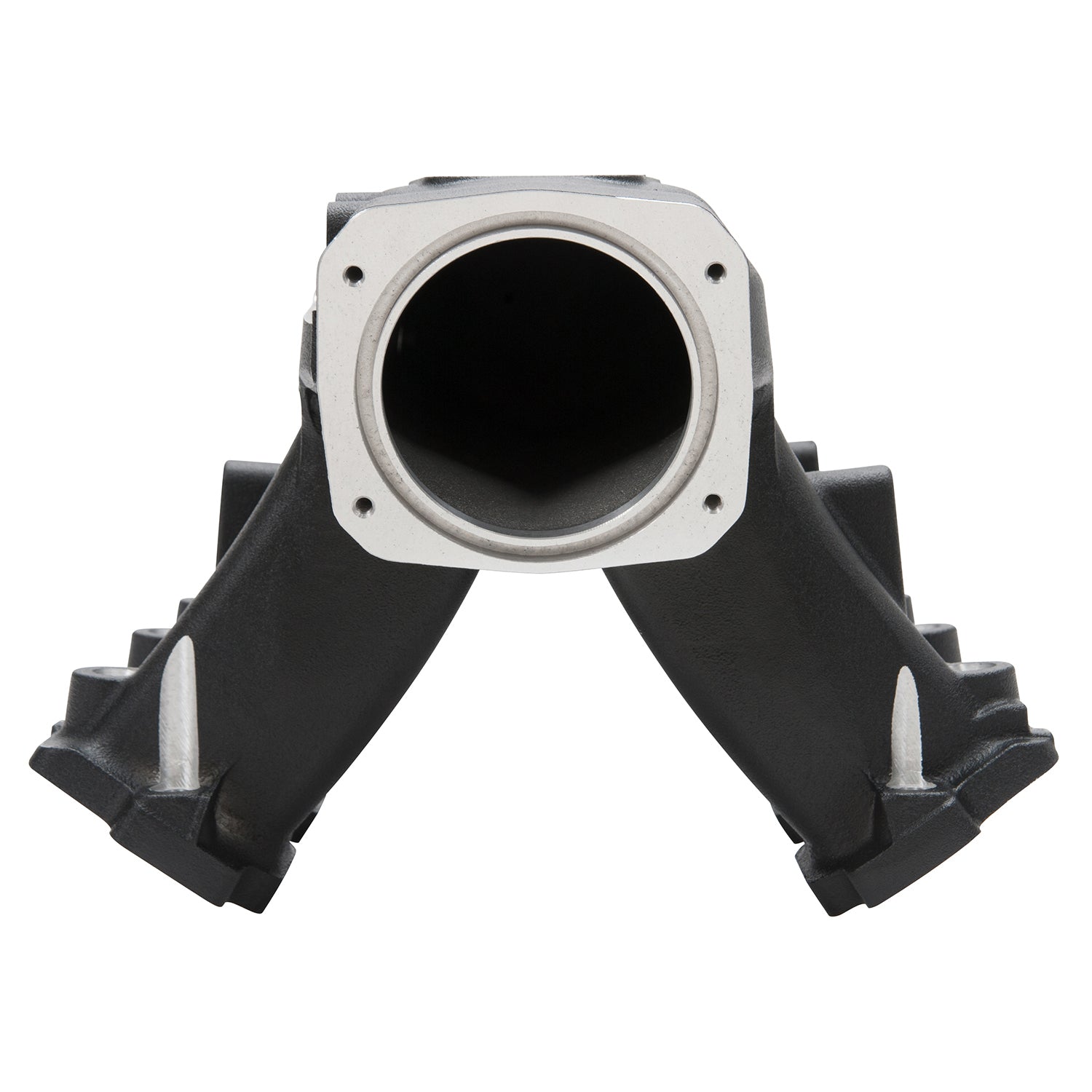

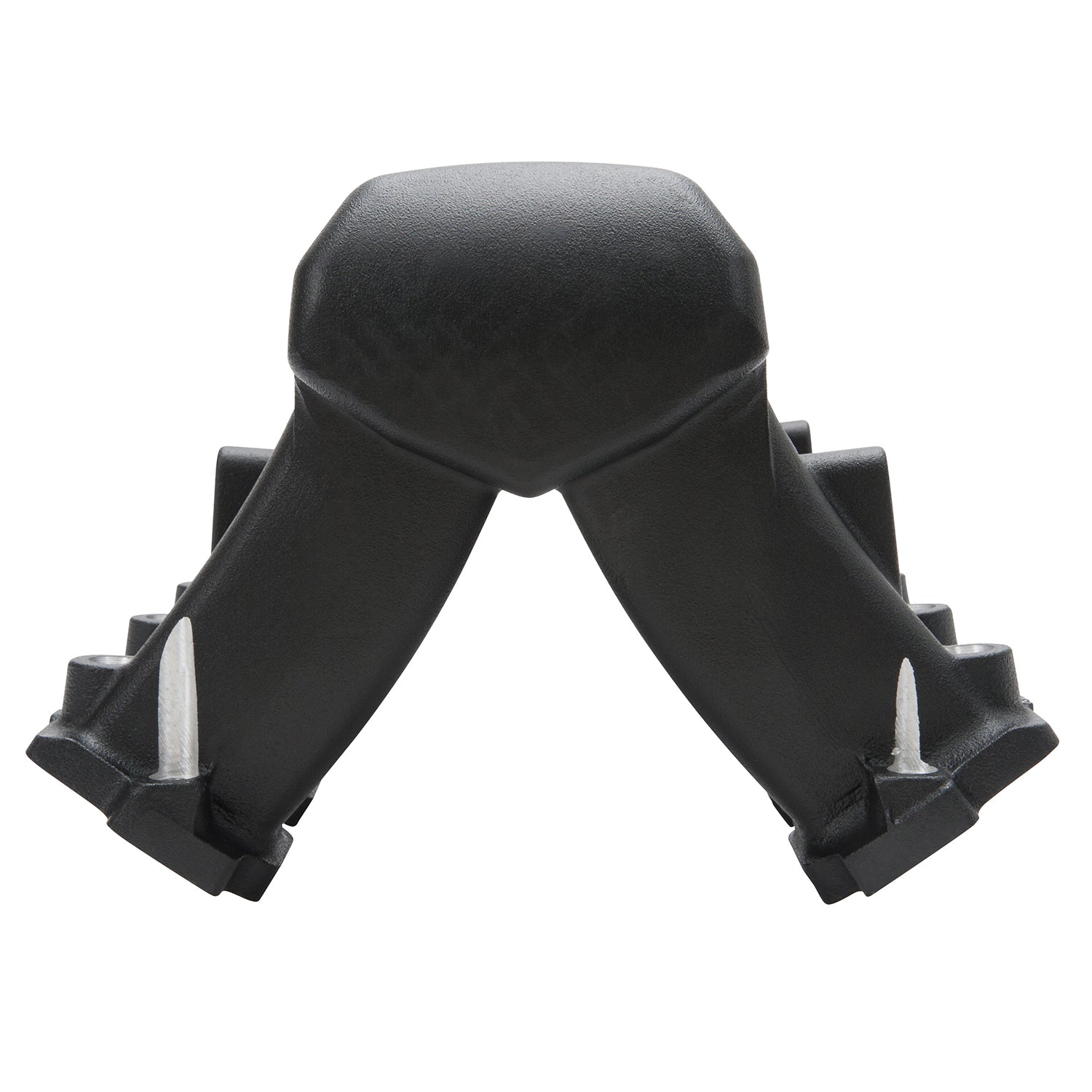

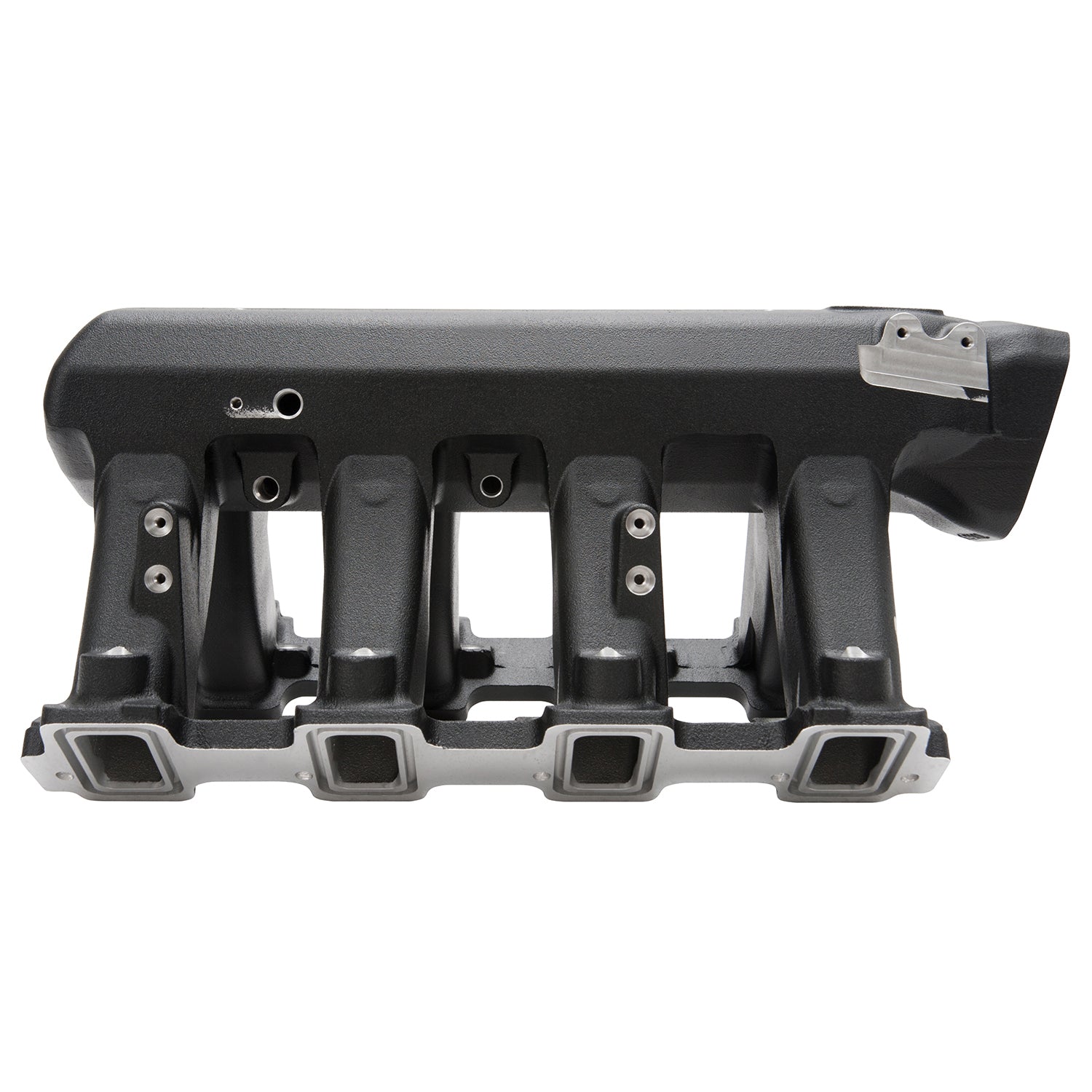

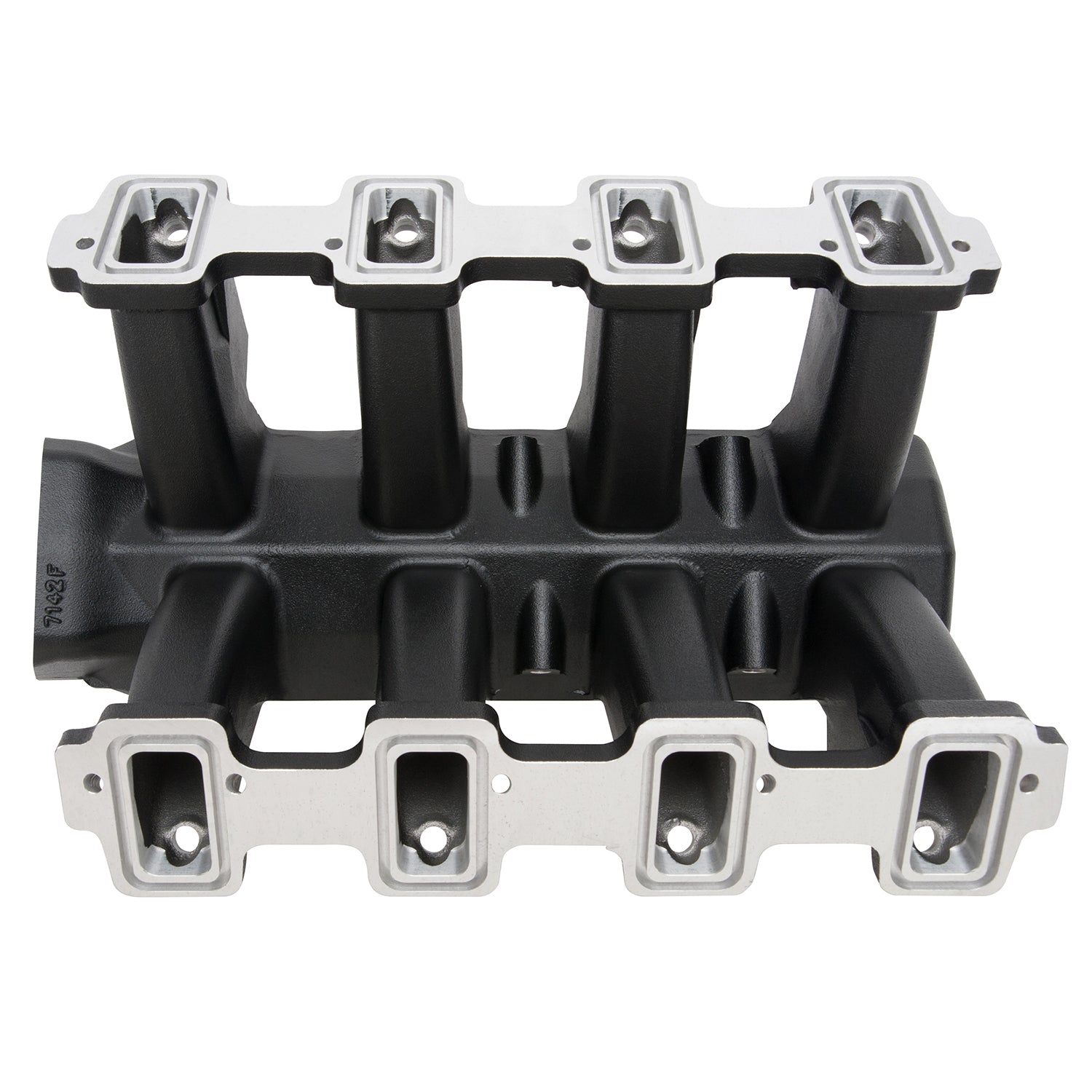

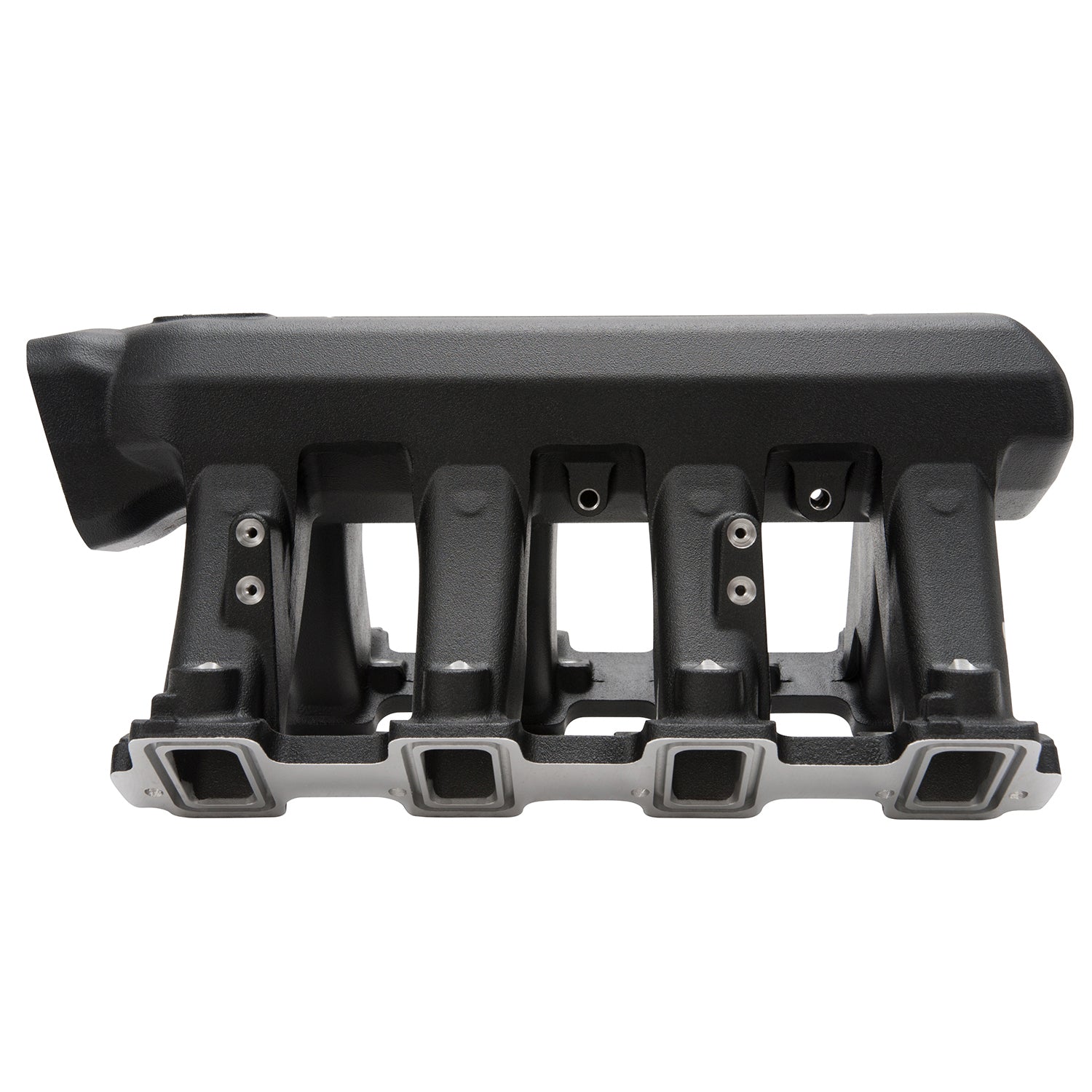

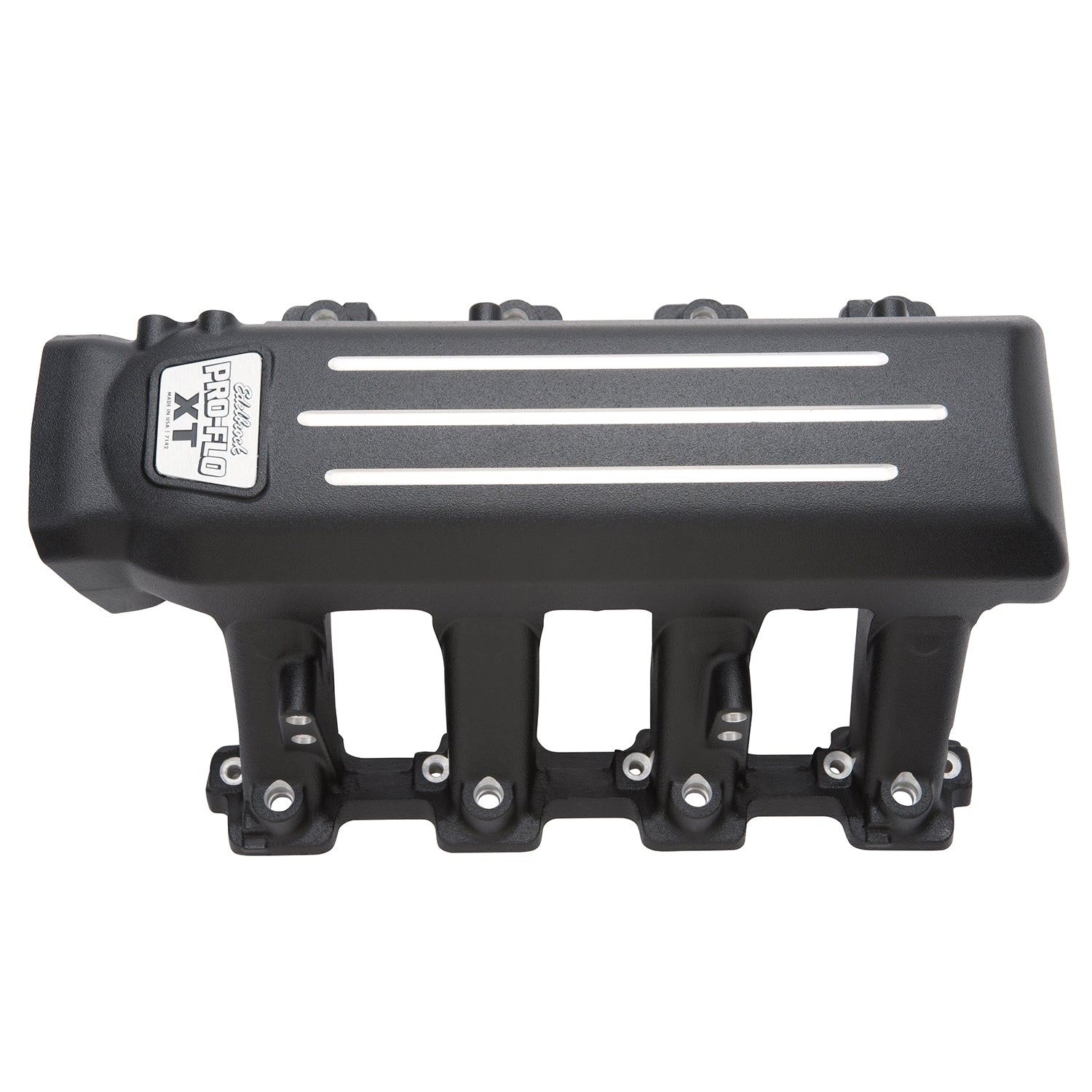

Edelbrock part #7142 Pro Flo XT LS3 intake manifold is designed for use on GM LS3 engines. This manifold will accept late model LS Drive-By-Wire throttle bodies or Edelbrock 90mm mechanical throttle body and is offered in a black powder coat finish. This manifold is not intended to be a direct replacement for late model vehicle applications due to hood/cowl clearance and emissions incompatibility.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen IV L76:364 (6.0L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L77:364 (6.0L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L92:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L94:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L99:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L9H:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Black Pro Flo XT LS3 Intake Manifold |
| Description_EXT |
Edelbrock Black Pro Flo LS3 Intake Manifold GM LS Engines |
| Description_MKT |
Edelbrock part #7142 Pro Flo XT LS3 intake manifold is designed for use on GM LS3 engines. This manifold will accept late model LS Drive-By-Wire throttle bodies or Edelbrock 90mm mechanical throttle body and is offered in a black powder coat finish. This manifold is not intended to be a direct replacement for late model vehicle applications due to hood/cowl clearance and emissions incompatibility. |
| Description_LAB |
Black Pro Flo Small Block Chevy LS3 Intake Manifold |
| Description_TRA |
Uses LS3/ L92/L76 style individual port o-ring seals GM #19256623 or Edelbrock #7395. |
| Description_TRA |
Throttle body recommendations: Edelbrock #3869, #38693 or OEM drive-by-wire style. |
| Description_TRA |
Manifold Dimensions: A-9.28", B-9.68", C-17.40", D-3.02", E-15 Deg . |
| Description_TRA |
Port exit dimensions: 1.23" x 2.52". |
| Description_TRA |
Recommended Fuel Rail Kit Edelbrock #3648 Designed for use with standard injectors measure 2.50" from the o-ring center to o-ring enter. Compact injectors measure 1.50" from the o-ring center to o-ring enter. Ends are tapped for use with -8 AN fittings. |
| Vehicle Model |
Chevrolet |
| Front Maximum Height |
9.280 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Gasket Or Seal Included |
No |
| Material |
Aluminum |
| Series |
Pro-Flo XT |
| Flange Type |
Throttle Body XT |
| EGR Port |
No |
| Rear Maximum Height |
9.680 |
| Basic Operating RPM Range |
1500-7000 |
| CNC Ported |
No |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Finish |
Black Powder Coated |
| Center Maximum Height |
9.680 |
| Length |
13.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
42.0000 |
