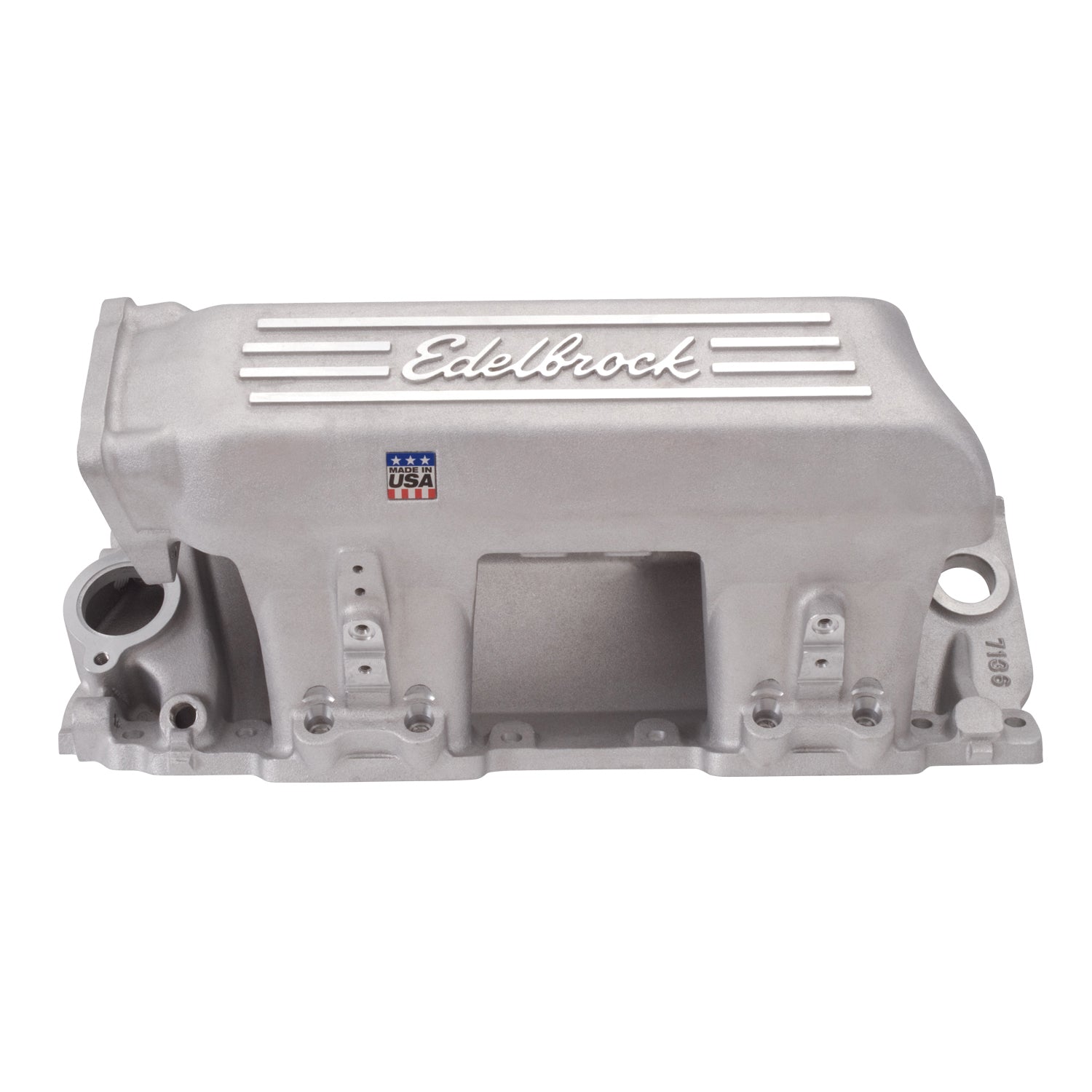

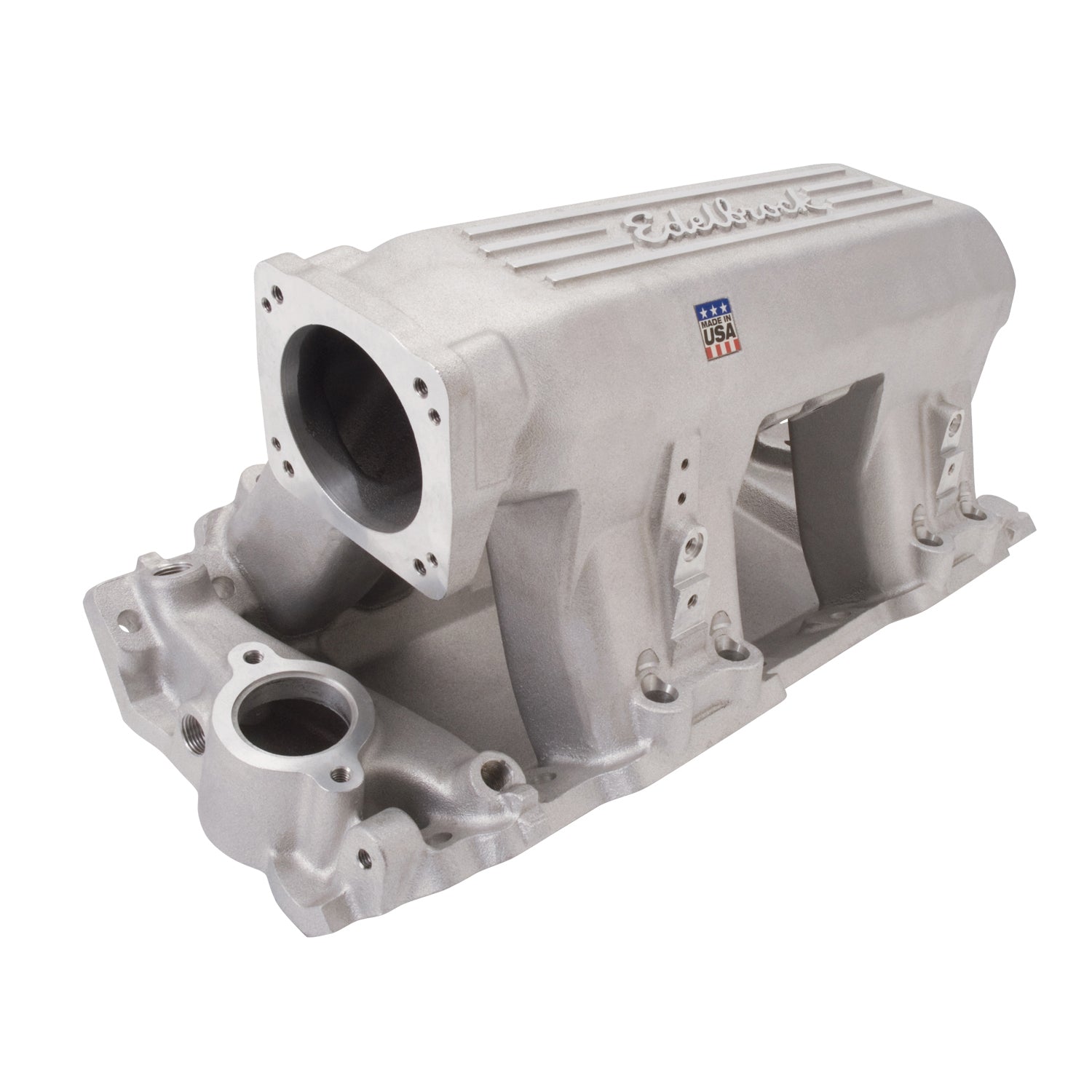

Edelbrock part #7136 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. Aesthetics were also a major consideration in the design, offering enthusiasts a custom look. The Air-Gap design features an open air space that separates the runners from the hot engine oil, resulting in a cooler, denser charge for more power. Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (sold separately).
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Pro Flo XT BBC Rectangular Intake Manfld |
| Description_EXT |
Edelbrock Pro-Flo XT EFI Intake Manifold For Chevrolet Rectangular Port 396-502 Big Block-Block V8 |
| Description_MKT |
Edelbrock part #7136 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. Aesthetics were also a major consideration in the design, offering enthusiasts a custom look. The Air-Gap design features an open air space that separates the runners from the hot engine oil, resulting in a cooler, denser charge for more power. Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (sold separately). |
| Description_LAB |
Pro-Flo XT Big Block Chevy EFI Intake Manifold Rectangle Port |
| Description_TRA |
Recommended gasket: Edelbrock #7202 |
| Description_TRA |
Throttle body recommendations: Edelbrock #3869 or #38693 |
| Description_TRA |
Manifold Dimensions: A-9.80", B-10.00", C-17.80", D-0.00", E-10 Degree |
| Description_TRA |
Port exit dimensions: 1.67"x2.34" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Flange Type |
Throttle Body XT |
| CNC Ported |
No |
| Finish |
Satin |
| Series |
Pro-Flo XT |
| EGR Port |
No - For Rectangular Port |
| Grade Type |
Performance |
| Material |
Aluminum |
| Single Or Dual Plane Type |
Single |
| Rear Maximum Height |
10.000 |
| Center Maximum Height |
10.000 |
| Front Maximum Height |
9.800 |
| Basic Operating RPM Range |
1500-6500 |
| Gasket Or Seal Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Chevrolet |
| Length |
14.0000 |
| Width |
12.0000 |
| Height |
24.0000 |
| Weight |
25.0000 |
