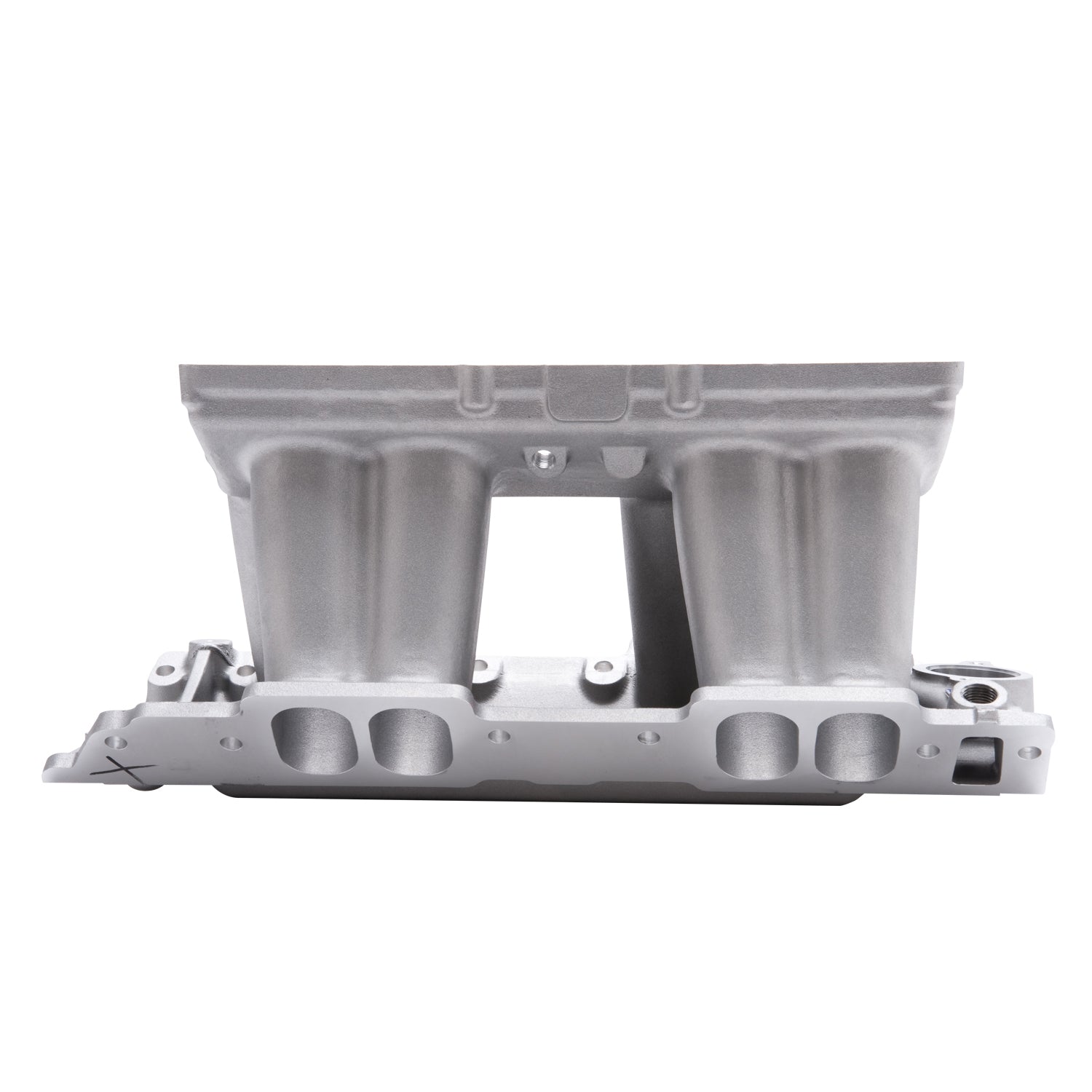

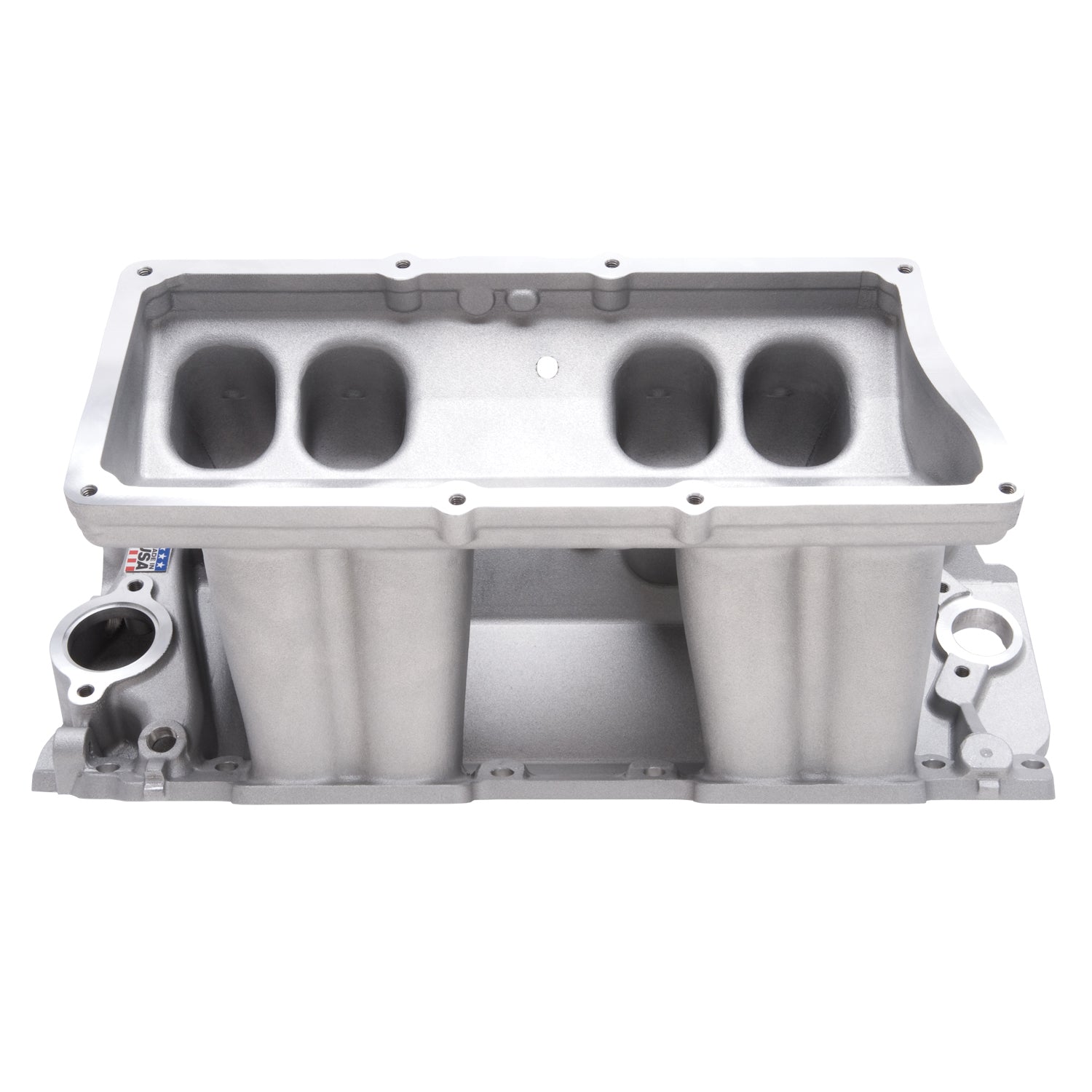

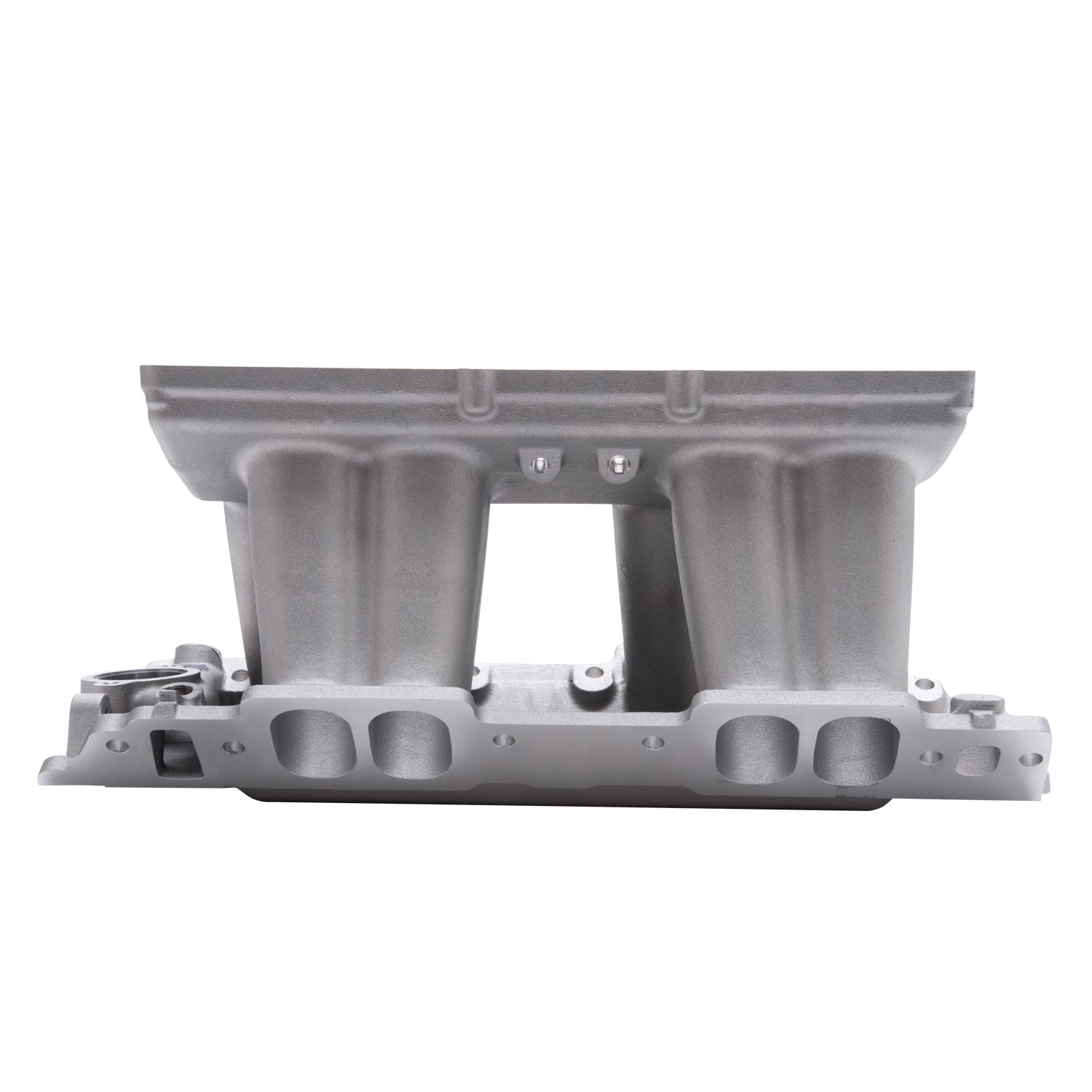

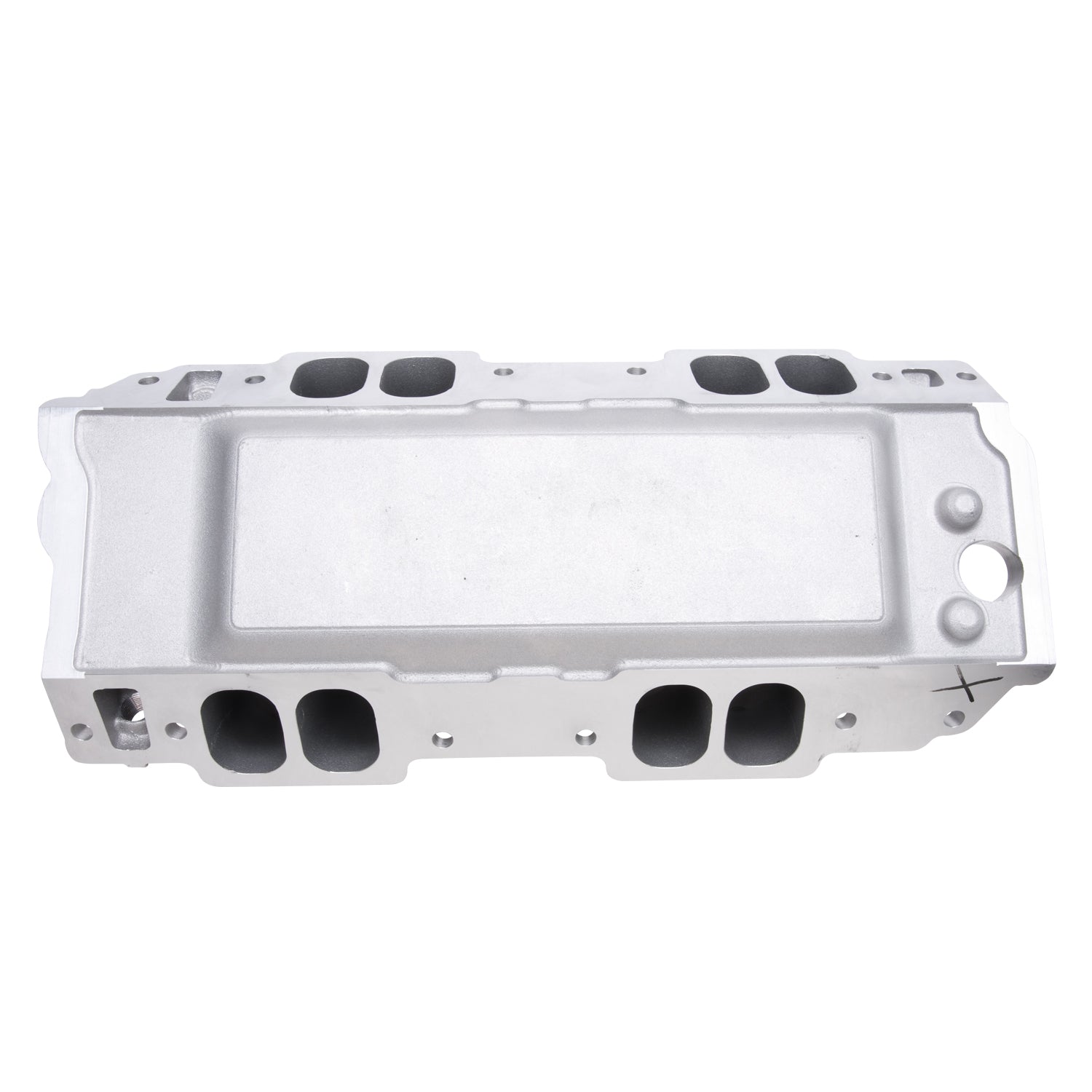

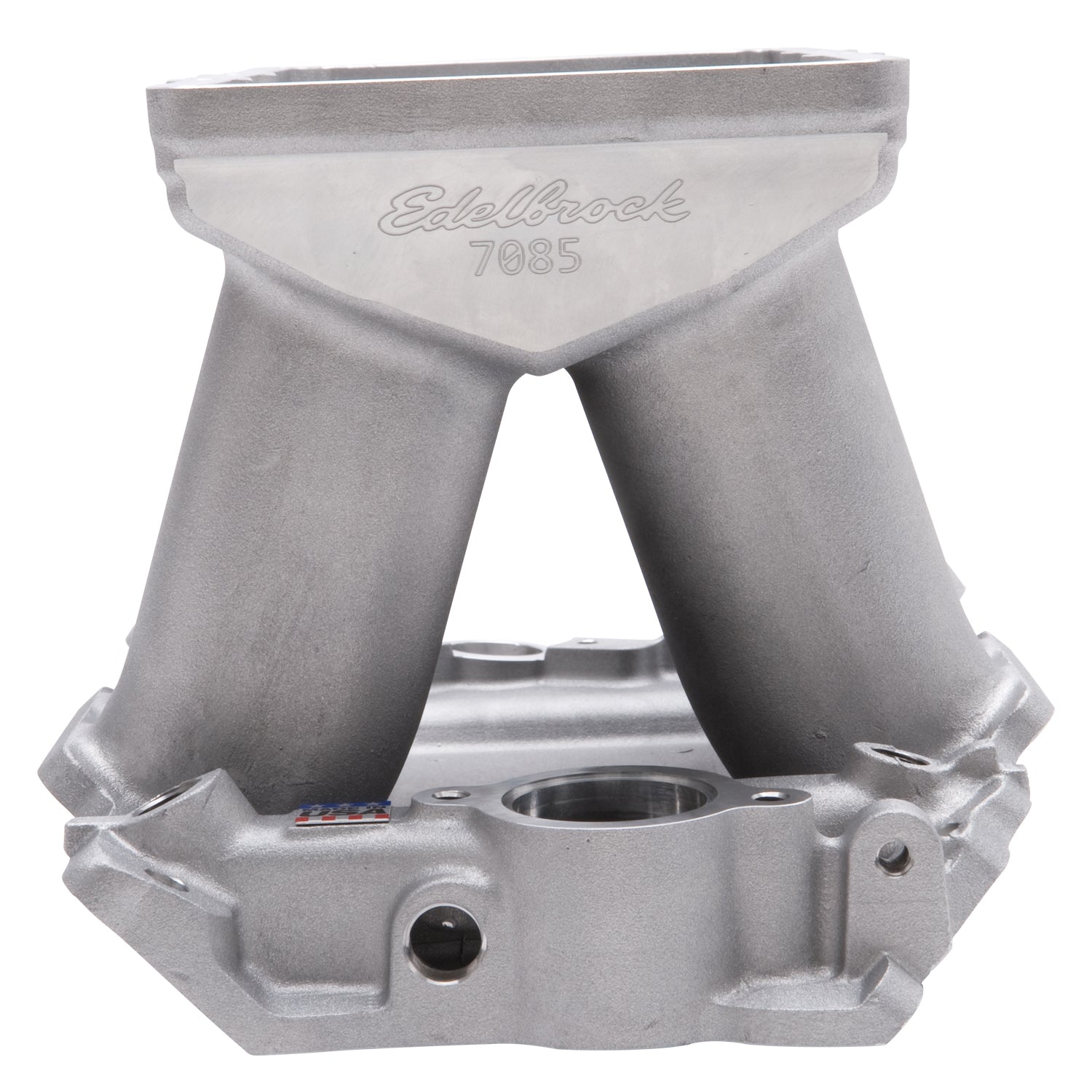

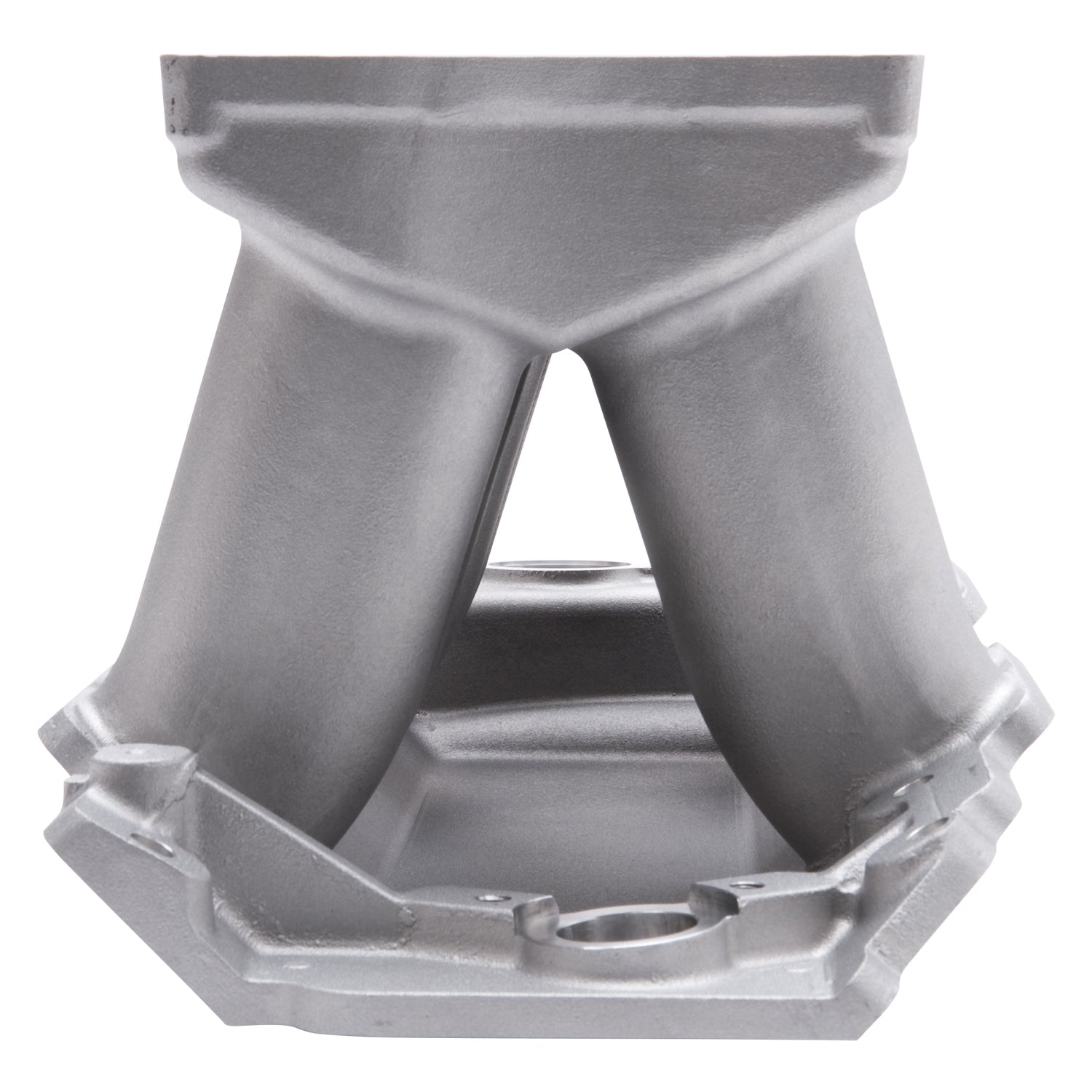

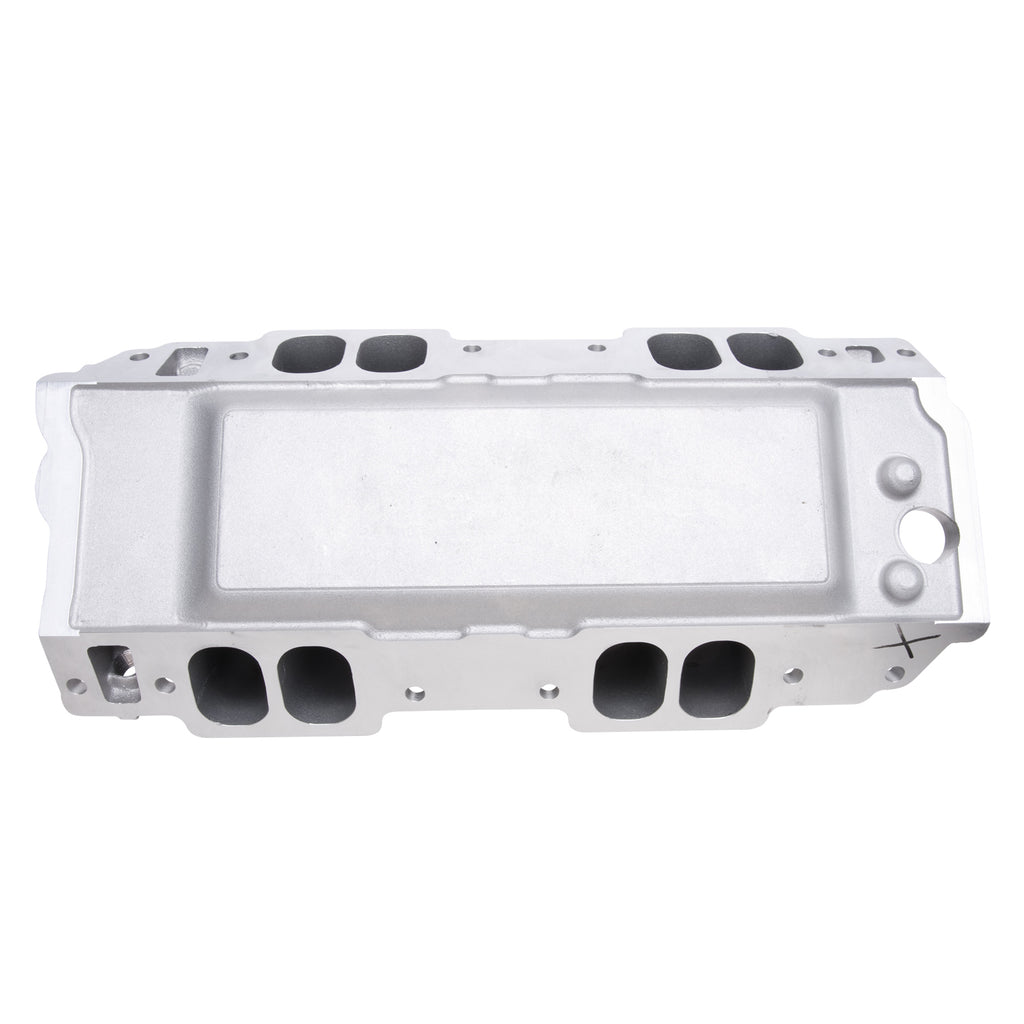

Edelbrock part #7085 Victor Carbureted Tunnel Ram base is designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This Tunnel Ram Base is a modern updated design to our very successful Victor Ram 2-R Tunnel Ram, which was first released over 35 years ago. It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum, making it 25% larger than our current Victor Ram 2-R Tunnel Ram base! This is the ideal intake manifold for any modern high horsepower demanding application. Will fit Edelbrock Victor series race cylinder heads #77409, #77459 and #77609. Available for carbureted and fuel injected applications.
Specifications:
Description_ABR |
Intake Mnfld |
Description_ASM |
Chevrolet:Big-Block Race |
Description_DEF |
Engine Intake Manifold |
Description_MKT |
Edelbrock part #7085 Victor Carbureted Tunnel Ram base is designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This Tunnel Ram Base is a modern updated design to our very successful Victor Ram 2-R Tunnel Ram, which was first released over 35 years ago. It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum, making it 25% larger than our current Victor Ram 2-R Tunnel Ram base! This is the ideal intake manifold for any modern high horsepower demanding application. Will fit Edelbrock Victor series race cylinder heads #77409, #77459 and #77609. Available for carbureted and fuel injected applications. |
Description_LAB |
Victor Ram 2-R Big Block Chevy Intake Manifold Base for Carbureted Applications |
Description_INV |
Victor Tunnel Ram Base BBC Intake |
Description_EXT |
Edelbrock Victor Ram 2-R Intake Manifold Base for Carbureted Applications 468-582 Big-Block Chevy |
Description_TRA |
Recommended intake gasket: Edelbrock #7208 or Fel-Pro #1275. |
Description_TRA |
Distance from carb center to carb center: 9.40" |
Description_TRA |
Carbureted Applications ONLY |
Description_TRA |
Base Only |
Description_TRA |
Manifold height: 10.75" |
Description_TRA |
Port exit dimensions: 1.78" x 2.50" |
Description_TRA |
Generously sized port exits |
Description_TRA |
R=1.44" |
Description_TRA |
F=1.06" |
Description_TRA |
W=1.78" |
Description_TRA |
H=2.50" |
Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
Grade Type |
Performance |
Color |
Satin |
Basic Operating RPM Range |
4500-8500 |
Single Or Dual Plane Type |
Dual |
Series |
Dual-Quad/Multi Carb |
Gasket Or Seal Included |
No |
Center Maximum Height |
10.750 |
Material |
Aluminum |
EGR Port |
No |
CNC Ported |
No |
Vehicle Model |
Chevrolet |
Rear Maximum Height |
10.750 |
Front Maximum Height |
10.750 |
RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Length |
14.0000 |
Width |
12.0000 |
Height |
24.0000 |
Weight |
26.0000 |
