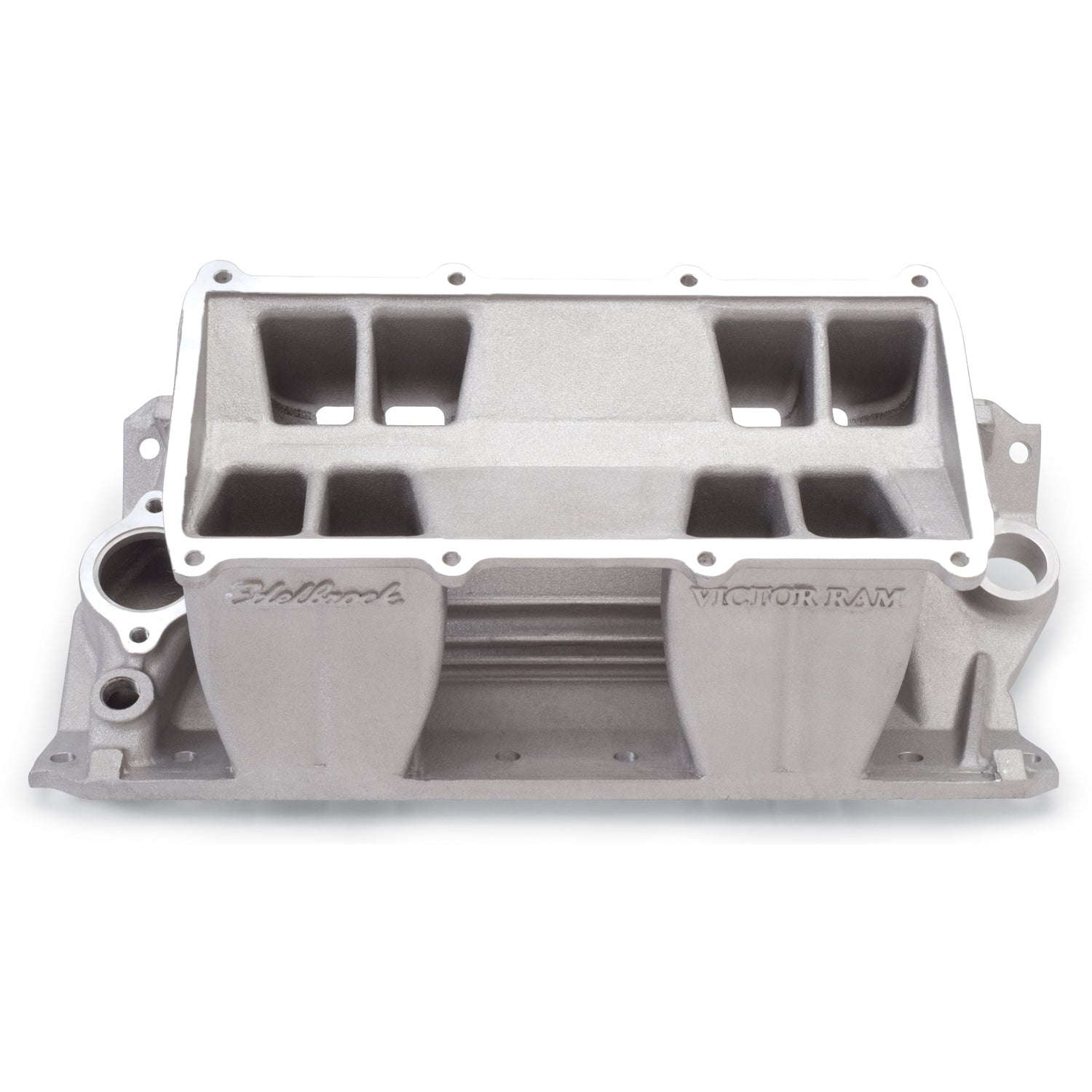

Edelbrock part #7070 Victor Ram 23-degree for Small-Block Chevy is a tunnel ram manifold base for the control of high velocity mixture flow, especially above 8500 rpm. Suited to drag race engines operating at 6500-10,000 rpm and race boat engines above 7000 rpm. Does not fit raised port cylinder heads or 1987 and later cast iron heads.
Specifications:
Description_ABR |
Intake Mnfld |
Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
Description_DEF |
Engine Intake Manifold |
Description_LAB |
Victor Ram 23-Degree Intake Manifold Base for Small-Block Chevy |
Description_MKT |
Edelbrock part #7070 Victor Ram 23-degree for Small-Block Chevy is a tunnel ram manifold base for the control of high velocity mixture flow, especially above 8500 rpm. Suited to drag race engines operating at 6500-10,000 rpm and race boat engines above 7000 rpm. Does not fit raised port cylinder heads or 1987 and later cast iron heads. |
Description_EXT |
Edelbrock Victor Ram 23 Degree Intake Manifold Base For Chevrolet 262-400 Small-Block V8 |
Description_INV |
Victor Tunnel Ram Base Only SBC |
Description_TRA |
Recommended intake gasket: Fel-Pro #1206 |
Description_TRA |
Distance from carburetor center to carburetor center: 8.88" |
Description_TRA |
Manifold top with base height: 9.25" |
Description_TRA |
H.E.I. ignition will not clear manifold |
Description_TRA |
For the heights of all Edelbrock manifolds, please visit the Manifold Reference Dimensions page. http://www.edelbrock.com/automotive/mc/manifolds/reference-dimensions.shtml |
Description_TRA |
H.E.I. ignition will not clear manifold |
Description_TRA |
Base ONL:Y |
Description_TRA |
Match with Edelbrock top #7073 |
Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
Description_TRA |
Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
Front Maximum Height |
7.130 |
RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
CNC Ported |
No |
Flange Type |
4150 Dual-Quad |
Vehicle Model |
Chevrolet |
Rear Maximum Height |
7.130 |
EGR Port |
No |
Single Or Dual Plane Type |
Single |
Material |
Aluminum |
Center Maximum Height |
7.130 |
Color |
Satin |
Series |
Victor |
Grade Type |
Performance |
Gasket Or Seal Included |
No |
Basic Operating RPM Range |
6500-10000 |
Length |
9.0000 |
Width |
10.0000 |
Height |
21.0000 |
Weight |
20.0000 |
