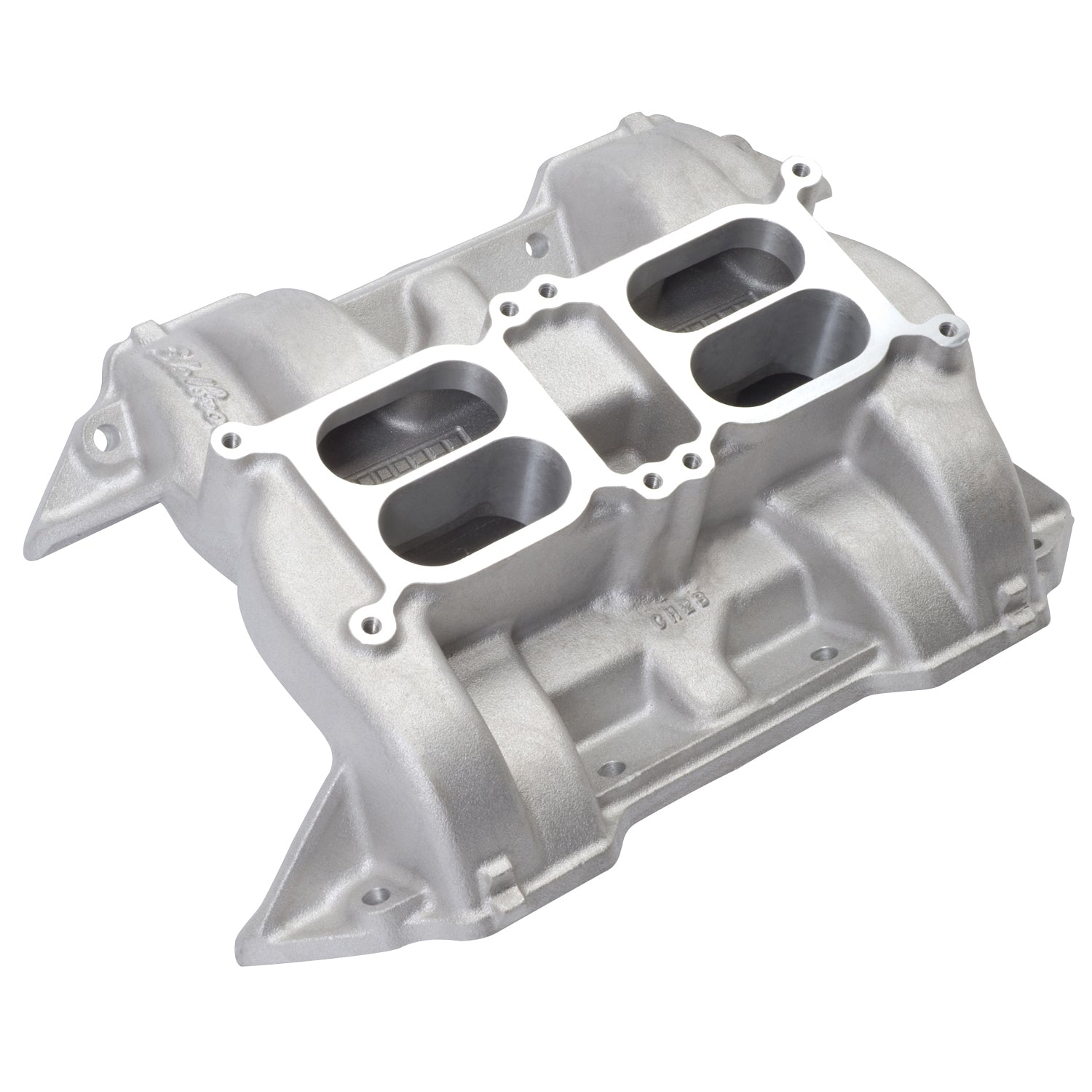

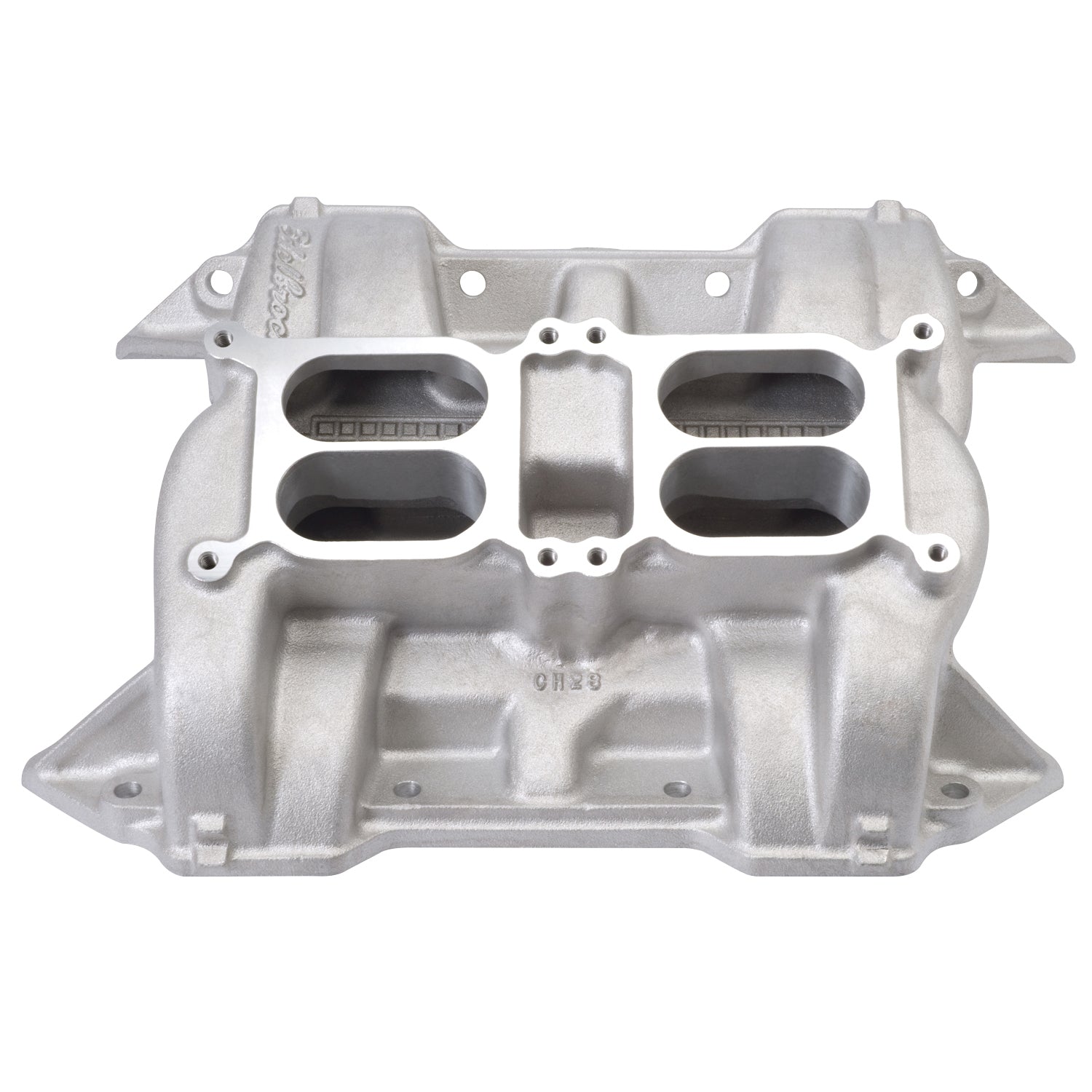

Edelbrock part #5440 Chrysler CH-28 Dual-Quad intake manifold is designed for 413-426-440 c.i.d. Chrysler V8's. Use with Performer-Plus cam #2192 for low-end torque or Performer RPM cam #7194 for top-end power. Will not fit 1962-64 Max Wedge heads. Carb center to carb center: 6-7/16". Manifold measures 8.75" across block.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Ch-28 440 Dual Quad Chrysler Intake |
| Description_EXT |
Edelbrock CH-28 Dual-Quad Intake Manifold for Chrysler 413-426-440 Big-Block V8 |
| Description_LAB |
CH-28 Chrysler Big Block RB Dual-Quad Intake Manifold |
| Description_MKT |
Edelbrock part #5440 Chrysler CH-28 Dual-Quad intake manifold is designed for 413-426-440 c.i.d. Chrysler V8's. Use with Performer-Plus cam #2192 for low-end torque or Performer RPM cam #7194 for top-end power. Will not fit 1962-64 Max Wedge heads. Carb center to carb center: 6-7/16". Manifold measures 8.75" across block. |
| Description_TRA |
Recommended intake gasket: #7225 |
| Description_TRA |
Manifold height: A-4.45", B-4.88", measured to engine block |
| Description_TRA |
Carb pad height: 4.66" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 650 cfm or Performer Series #1405 600 cfm. |
| Description_TRA |
Port exit dimensions: 1.14" x 2.10" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Rear Maximum Height |
4.880 |
| Series |
Dual-Quad/Multi Carb |
| Flange Type |
4150 Dual-Quad (4-Barrel Square Bore) |
| EGR Port |
No |
| Basic Operating RPM Range |
1500-6000 |
| Single Or Dual Plane Type |
Dual |
| CNC Ported |
No |
| Material |
Aluminum |
| Color |
Satin |
| Grade Type |
Performance |
| Front Maximum Height |
4.450 |
| Vehicle Model |
Chrysler |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
4.660 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
