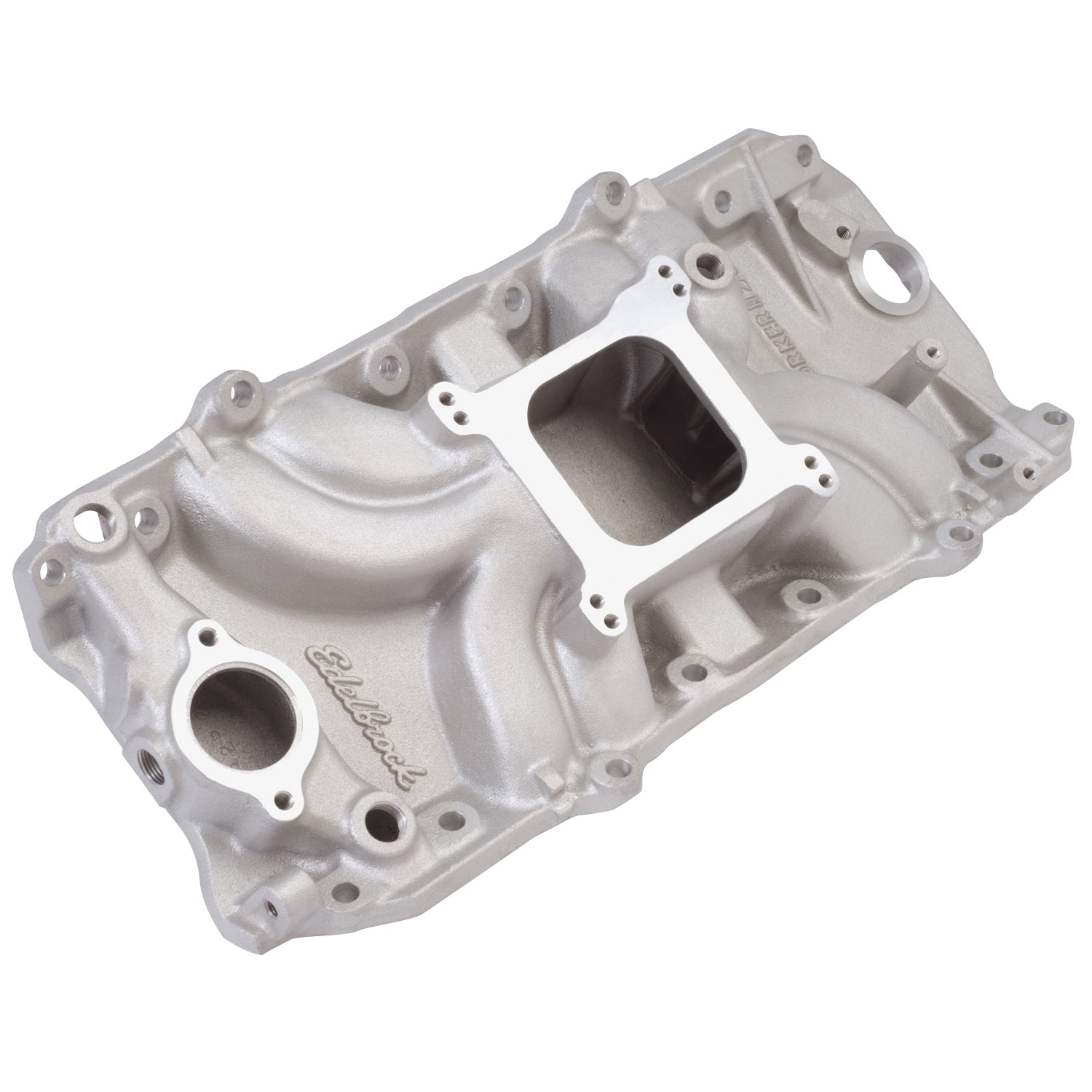

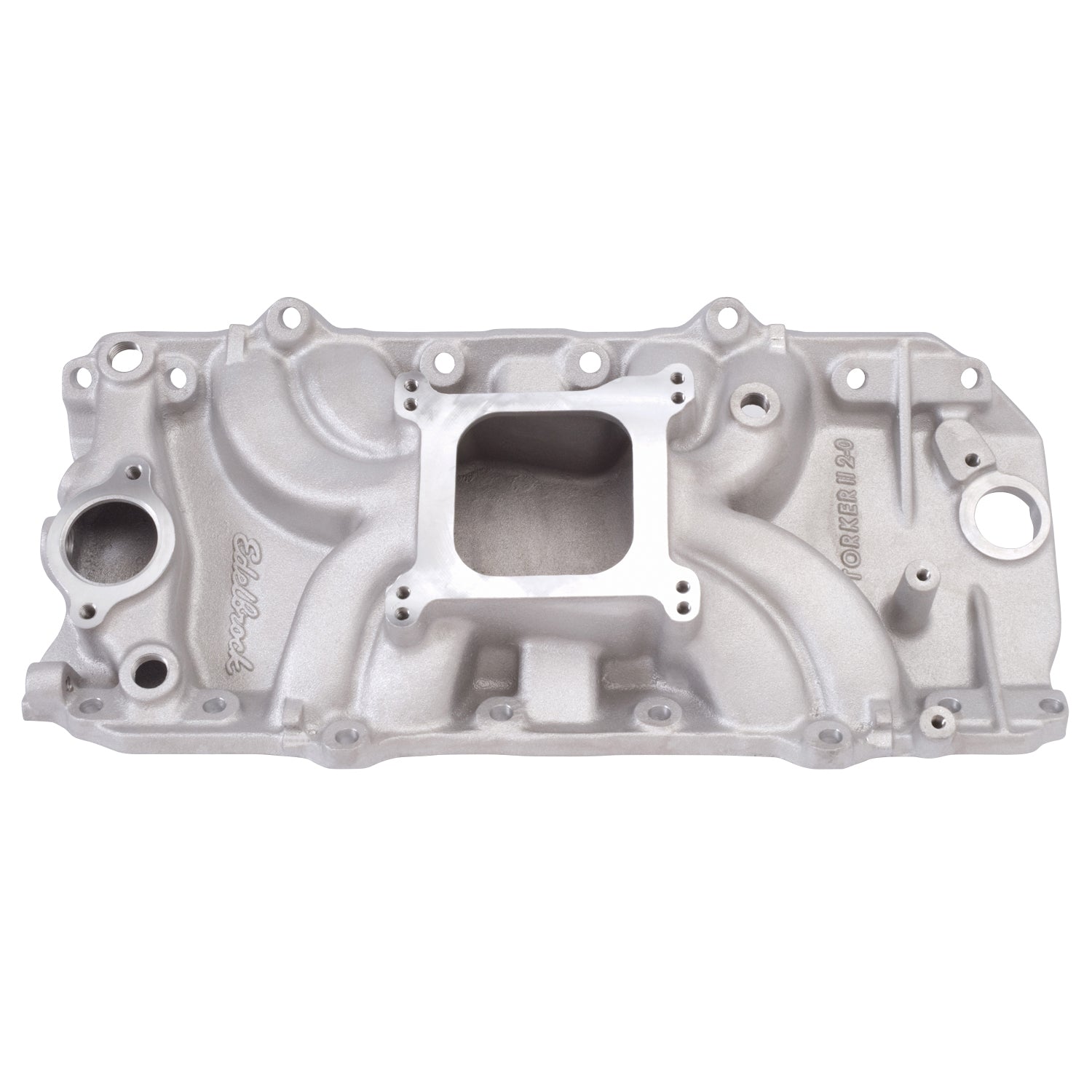

Edelbrock part #5061 Torker II 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier). Manifold not equipped with EGR. Will not fit "tall block" V8 engines. The Torker II 2-O intake manifold is a singe plane low rise intake that's great for high performance applications that have limited hood clearance. The manifold has an exhaust crossover for easy cold weather warm-ups, but no provisions for exhaust heated chokes or EGR. Customers will need either electric or manual choke carburetors. Not for heavy vehicles (trucks, vans etc.)
Specifications:
Description_ABR |
Intake Mnfld |
Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
Description_DEF |
Engine Intake Manifold |
Description_EXT |
Edelbrock Torker II 2-O Intake Manifold for Chevrolet 396-502 Big-Block V8 |
Description_INV |
Torker 2 BBC Oval Port Intake Manifold |
Description_MKT |
Edelbrock part #5061 Torker II 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier). Manifold not equipped with EGR. Will not fit "tall block" V8 engines. The Torker II 2-O intake manifold is a singe plane low rise intake that's great for high performance applications that have limited hood clearance. The manifold has an exhaust crossover for easy cold weather warm-ups, but no provisions for exhaust heated chokes or EGR. Customers will need either electric or manual choke carburetors. Not for heavy vehicles (trucks, vans etc.) |
Description_MKT |
use Performer 2-O #2161. |
Description_LAB |
Torker II 2-O Big Block Chevy Intake Manifold |
Description_TRA |
Recommended intake gasket: Edelbrock #7203 |
Description_TRA |
Manifold height: A-3.050", B-4.600" (.25" taller than stock Corvette) |
Description_TRA |
Carb pad height: 3.82" |
Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78. |
Description_TRA |
Port exit dimensions: 1.35" x 1.90"/1.60" x 1.90" |
Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
Material |
Aluminum |
Series |
Torker/Torker II |
Gasket Or Seal Included |
No |
Color |
Satin |
Basic Operating RPM Range |
2500-6500 |
Single Or Dual Plane Type |
Single |
Center Maximum Height |
3.820 |
Rear Maximum Height |
4.600 |
Grade Type |
Performance |
EGR Port |
No |
CNC Ported |
No |
Front Maximum Height |
3.050 |
Flange Type |
4150 |
Vehicle Model |
Chevrolet |
RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Length |
8.0000 |
Width |
15.0000 |
Height |
24.0000 |
Weight |
17.0000 |
