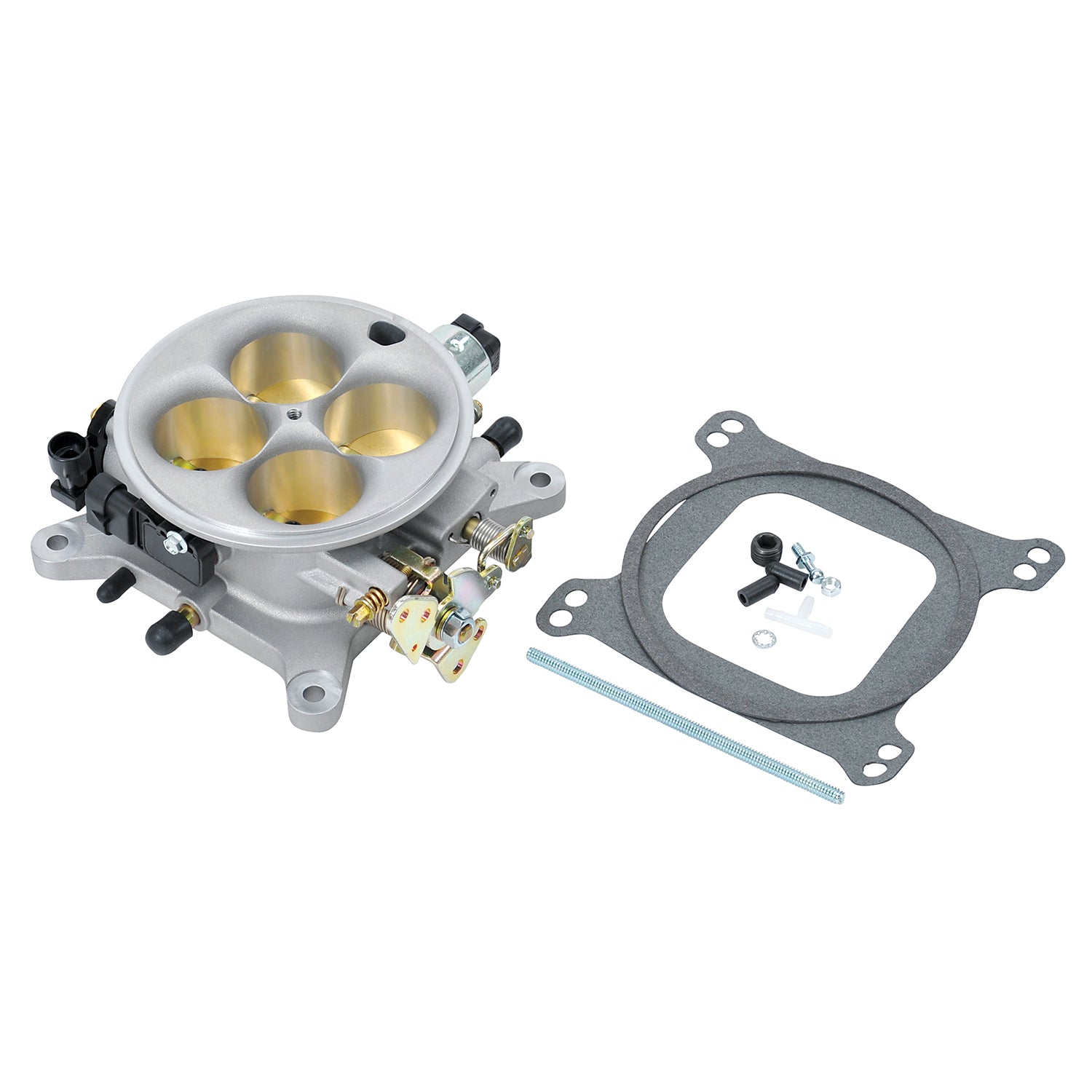

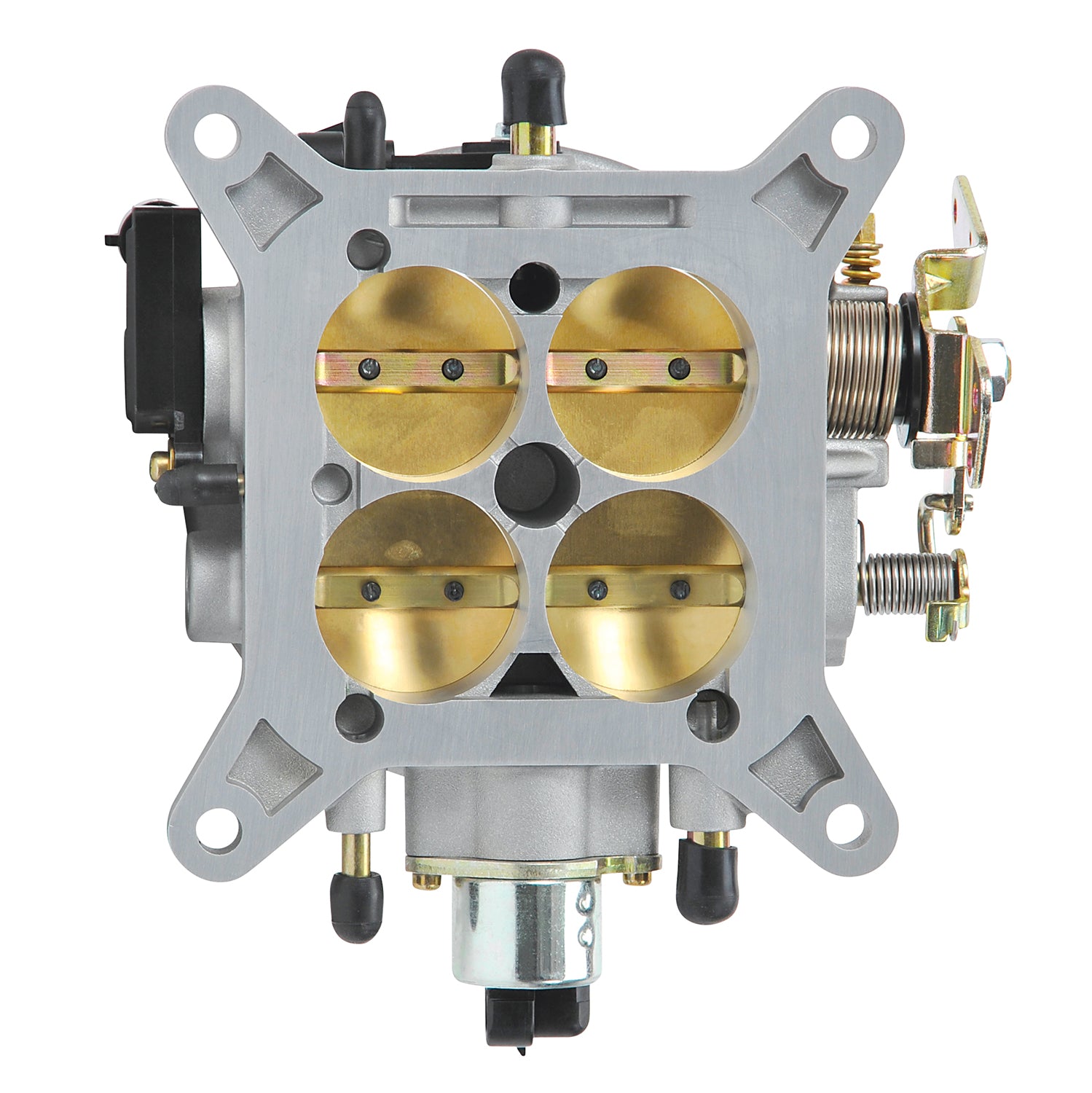

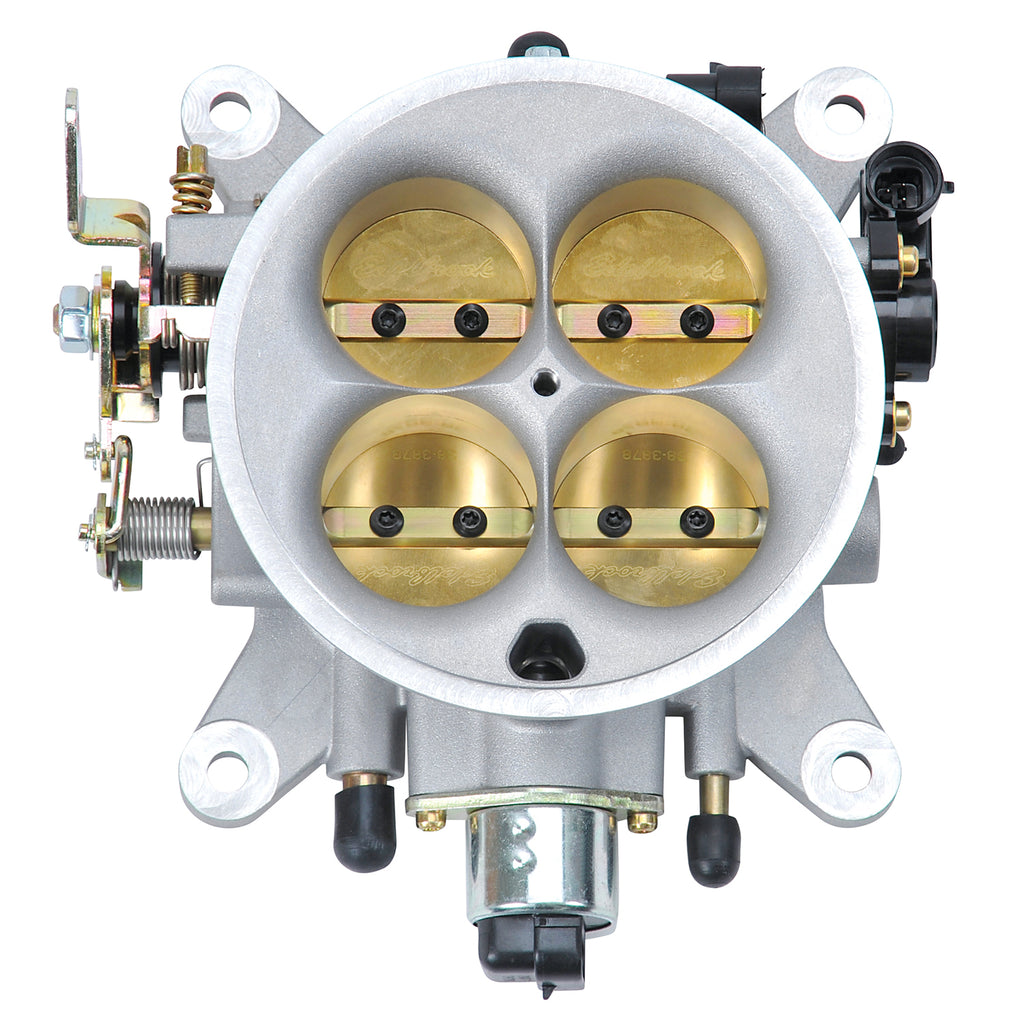

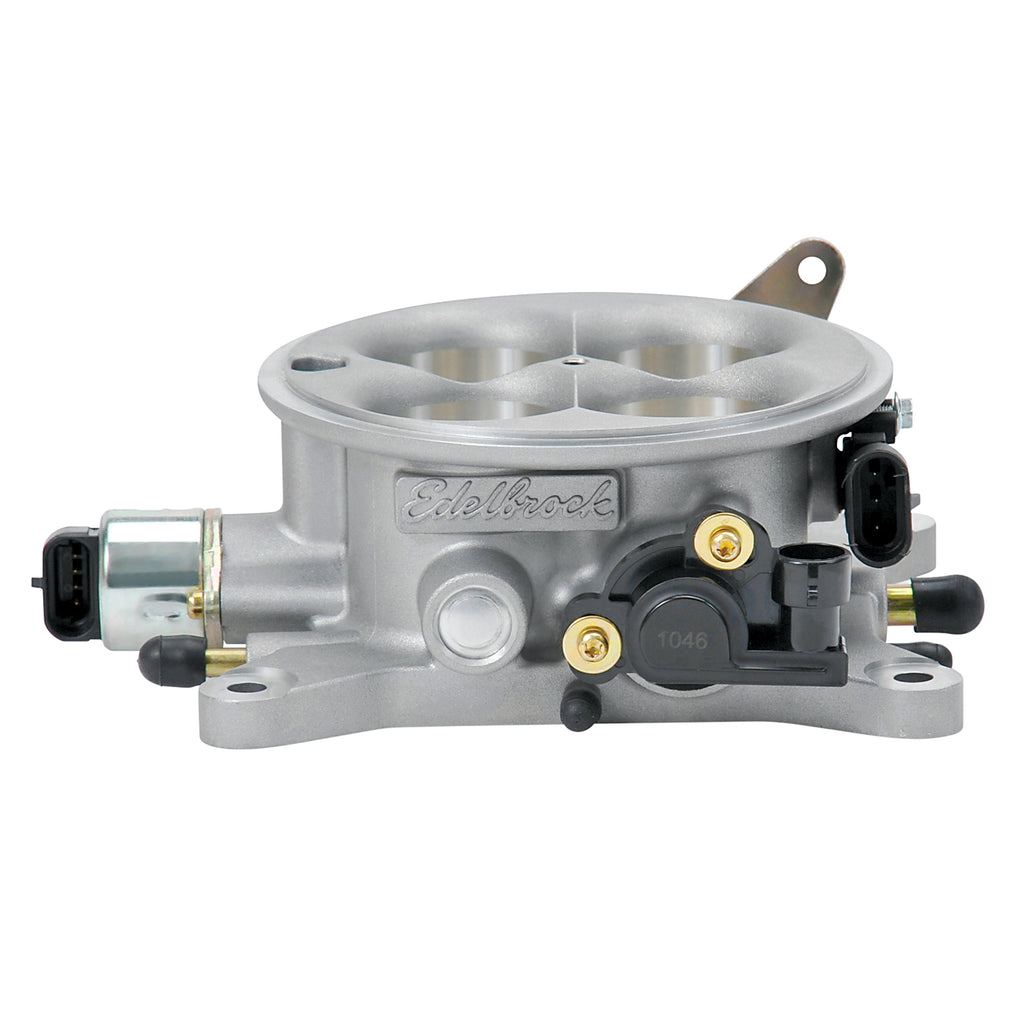

The Edelbrock #4150 Victor EFI 4-Barrel Throttle Body is the perfect complement for fuel injection systems that are based on the Victor EFI line of intake manifolds. This high-quality satin-finished component is an affordably priced replacement for throttle body #3878. The Victor #4150 Throttle Body has four 1.75-inch throttle bores for a 1,000 CFM flow rating and its 4150-style base flange will fit most of the Edelbrock Victor and Pro-Flo 4 style manifolds or other similar manifolds with a 4150-style square-bore carburetor flange and standard bolt spacing. The Victor EFI Four-Barrel Throttle Body will accept a standard air cleaner with a 5-1/8-inch flange and the assembly includes a Delphi/GM 4-pin stepper-style idle air control (IAC) motor with a GM-style 3-pin throttle position sensor (TPS) and 1-bar GM MAP sensor. Included are multiple vacuum take-offs (3/8 and 1/4 at the front with 3/8, 1/4 and 3/16 at the rear, and another 3/16 on the passenger side), and a MAP sensor mounting location incorporated on the housing. Precision throttle control is provided by a progressive linkage with provisions for a 700R4-style throttle valve cable. Measurement from base flange to air cleaner flange is 2.53 inches. This Edelbrock-designed throttle body is diecast and fully machined by the supplier prior to assembly with high-quality components at the Edelbrock factory.
Specifications:
| Description_ABR |
ThrottleBody |
| Description_DEF |
Fuel Injection Throttle Body |
| Description_LAB |
Throttle Body #4150 For Universal 4150 Style 4-Barrel |
| Description_MKT |
The Edelbrock #4150 Victor EFI 4-Barrel Throttle Body is the perfect complement for fuel injection systems that are based on the Victor EFI line of intake manifolds. This high-quality satin-finished component is an affordably priced replacement for throttle body #3878. The Victor #4150 Throttle Body has four 1.75-inch throttle bores for a 1,000 CFM flow rating and its 4150-style base flange will fit most of the Edelbrock Victor and Pro-Flo 4 style manifolds or other similar manifolds with a 4150-style square-bore carburetor flange and standard bolt spacing. The Victor EFI Four-Barrel Throttle Body will accept a standard air cleaner with a 5-1/8-inch flange and the assembly includes a Delphi/GM 4-pin stepper-style idle air control (IAC) motor with a GM-style 3-pin throttle position sensor (TPS) and 1-bar GM MAP sensor. Included are multiple vacuum take-offs (3/8 and 1/4 at the front with 3/8, 1/4 and 3/16 at the rear, and another 3/16 on the passenger side), and a MAP sensor mounting location incorporated on the housing. Precision throttle control is provided by a progressive linkage with provisions for a 700R4-style throttle valve cable. Measurement from base flange to air cleaner flange is 2.53 inches. This Edelbrock-designed throttle body is diecast and fully machined by the supplier prior to assembly with high-quality components at the Edelbrock factory. |
| Description_INV |
Throttle Body 4-Barrel with 4150 Flange |
| Description_EXT |
The Edelbrock #4150 Throttle Body. Victor EFI. 4-Barrel. 4150-Style Mounting Flange. 1.75" Bores. Includes GM-Style Stepper IAC Motor. Satin Finish |
| Description_SLA |
With smooth, larger-than-stock bores, our throttle bodies are designed to deliver more air for increased performance. The Edelbrock #4150 Victor EFI 4-Barrel Throttle Body is the perfect complement for fuel injection systems that are based on our Victor EFI line of intake manifolds. This high-quality satin-finished unit is an affordably priced replacement for our #3878 throttle body. The Victor #4150 Throttle Body has four 1.75-inch throttle bores for a 1,000 CFM flow rating and its 4150-style base flange fits most of our Edelbrock Victor and Pro-Flo 4 style manifolds or other similar manifolds with a standard 4150-style square-bore carburetor flange and standard bolt spacing. The Victor EFI Four-Barrel Throttle Body will accept a standard air cleaner with a 5-1/8-inch flange and the assembly includes a Delphi/GM 4-pin stepper-style idle air control (IAC) motor with a GM-style 3-pin throttle position sensor (TPS) and a 1-bar GM MAP sensor. Included are multiple vacuum take-offs (3/8 and 1/4 at the front with 3/8, 1/4 and 3/16 at the rear, and another 3/16 on the passenger side), and a MAP sensor mounting location incorporated on the housing. Precision throttle control is provided by a progressive linkage with provisions for a 700R4-style throttle valve cable. Measurement from base flange to air cleaner flange is 2.53 inches. This Edelbrock-designed throttle body is diecast and fully machined by the supplier prior to assembly with high-quality components at the Edelbrock factory. |
| Description_TRA |
Please study the instructions carefully before installation. Most installations can be accomplished with common tools and procedures |
| Description_TRA |
however, you should be familiar with and comfortable working on your vehicle. If you do not feel comfortable performing this installation, it is recommended to have the installation performed by a qualified mechanic. |
| Fuel System Type |
Gas |
| Idle Air Control Motor Included |
Yes |
| Fuel Injectors Included |
No |
| Cubic Feet Per Minute Rating |
1000 |
| Venturi Quantity |
4 |
| Series |
Universal 4150 Style 4-Barrel |
| Bore Diameter |
1.75 |
| Throttle Body Spacer Color |
N/A |
| Type |
4 Barrel |
| Throttle Body Type |
Electronic Fuel Injection |
| Quantity |
Sold Individually |
| Throttle Position Sensor Included |
Yes |
| Throttle Body Finish |
Satin |
| Throttle Body Spacer Material |
N/A |
| Throttle Body Material |
Die-Cast Aluminum |
| Gasket Or Seal Included |
Yes |
| Material |
Die-Cast Aluminum |
| Throttle Body Spacer Thickness |
N/A |
| Airflow Rate |
1000 |
| Throttle Body Spacer Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Throttle Body Spacer Finish |
N/A |
| Mounting Hardware Included |
Yes |
| Fuel System Grade |
All |
| Finish |
Satin |
| Length |
5.0000 |
| Width |
10.0000 |
| Height |
10.0000 |
| Weight |
5.0000 |
