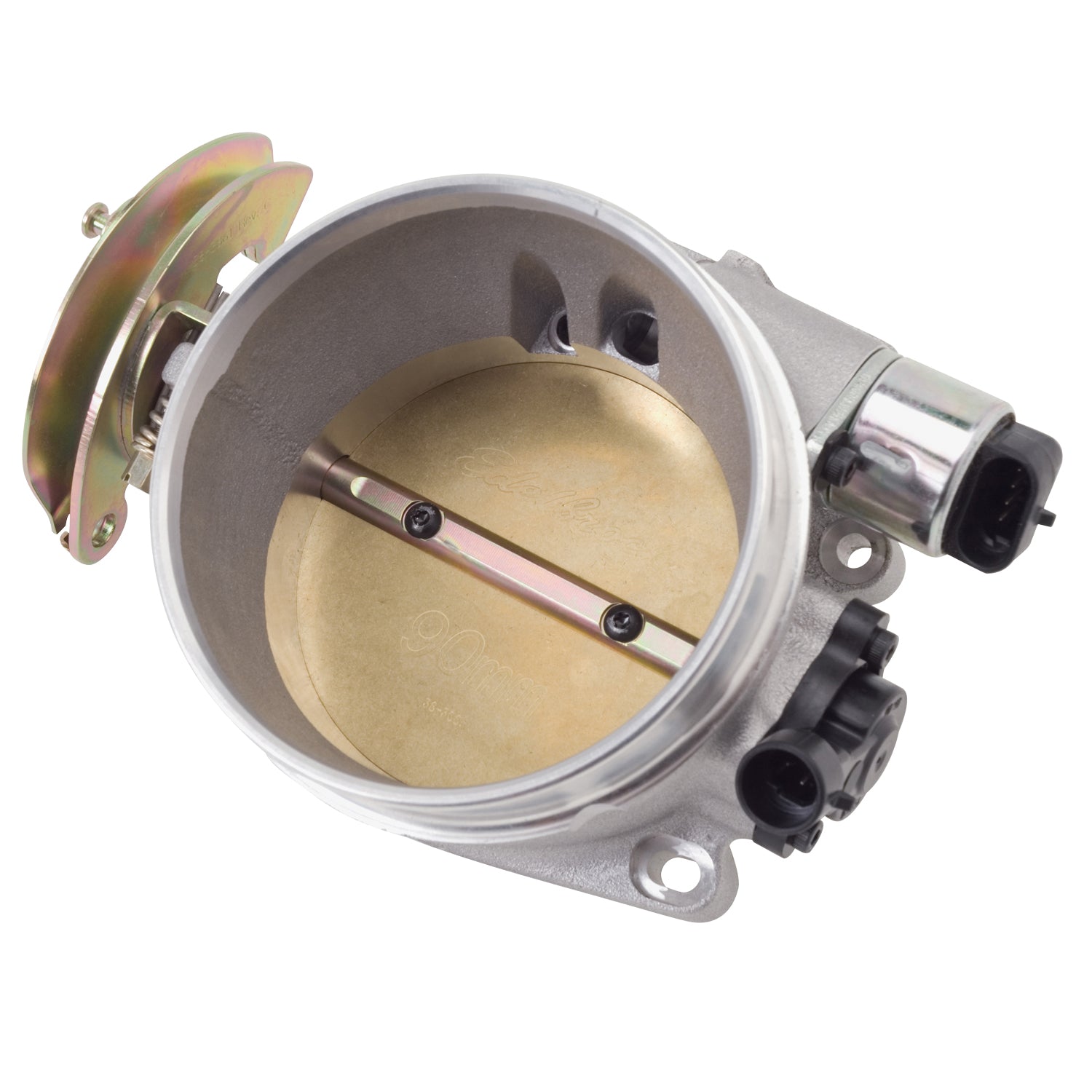

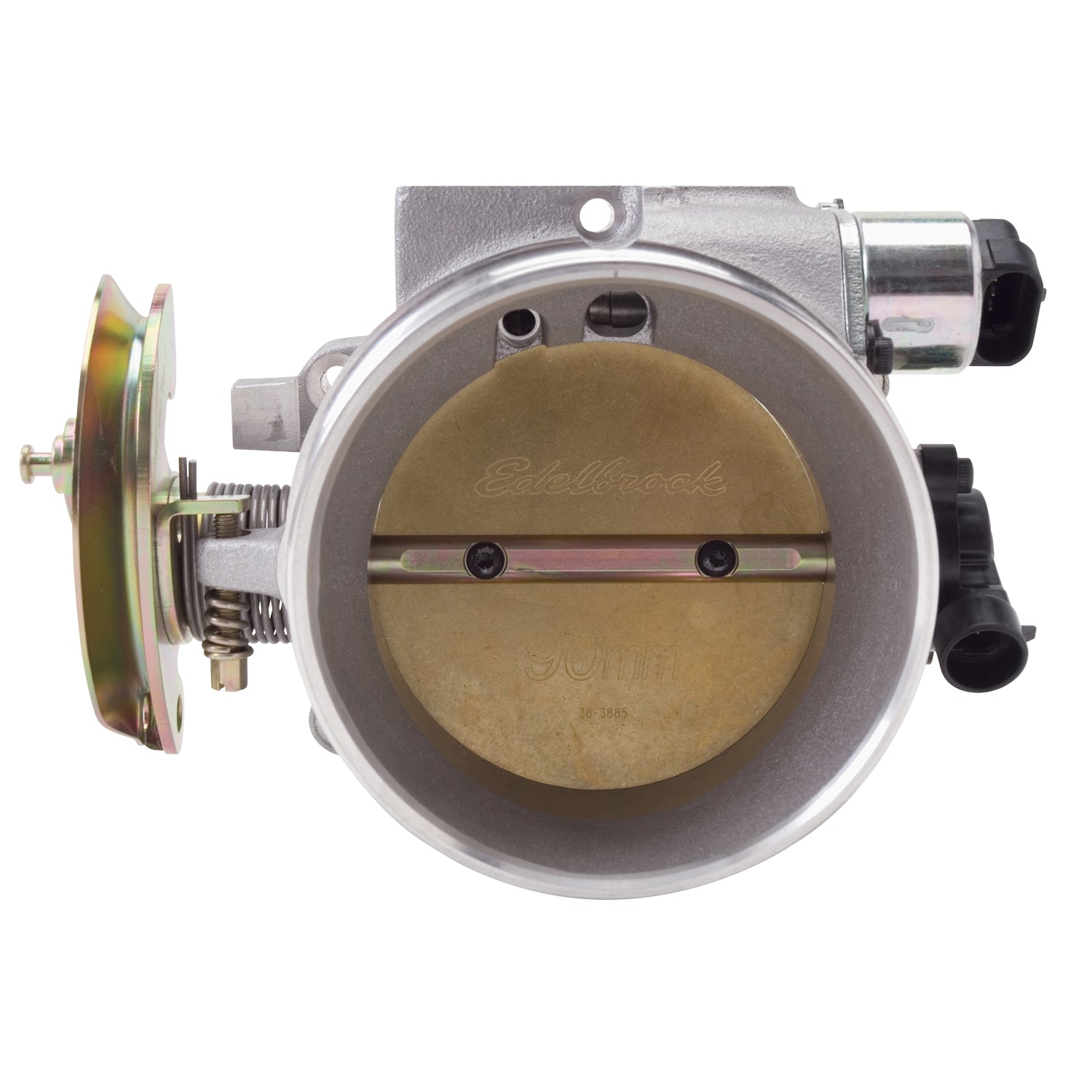

The Edelbrock #3864 Victor LS Series 90mm Throttle Body is Designed for modified Gen III-IV engines in high-performance's street or competition applications. Throttle body #3864 includes a LS1 stock-style TPS and IAC. Extra idle control is provided with the addition of an idle bleed screw. They have an LS1/LS2 flange that can be mounted on aftermarket LS1 manifolds with a 90mm opening as well as LS2/LS7 factory manifolds. They do not retain the lower water tube and are perfect for enthusiasts who want to use an LS2 or LS7 in an older vehicle with no fly-by-wire throttle. Satin Finish
Specifications:
| Description_ABR |
ThrottleBody |
| Description_DEF |
Fuel Injection Throttle Body |
| Description_EXT |
The Edelbrock Victor LS Series 90mm Throttle Body is Designed for modified Gen III-IV engines in high-performance's street or competition applications. Throttle body #3864 includes a LS1 stock-style TPS and IAC. Satin Finish |
| Description_LAB |
Throttle Body #3864 For Victor LS |
| Description_MKT |
The Edelbrock #3864 Victor LS Series 90mm Throttle Body is Designed for modified Gen III-IV engines in high-performance's street or competition applications. Throttle body #3864 includes a LS1 stock-style TPS and IAC. Extra idle control is provided with the addition of an idle bleed screw. They have an LS1/LS2 flange that can be mounted on aftermarket LS1 manifolds with a 90mm opening as well as LS2/LS7 factory manifolds. They do not retain the lower water tube and are perfect for enthusiasts who want to use an LS2 or LS7 in an older vehicle with no fly-by-wire throttle. Satin Finish |
| Description_INV |
Victor LS Series 90mm Throttle Body |
| Finish |
Satin |
| Quantity |
Sold Individually |
| Series |
Victor LS |
| Bore Diameter |
90 |
| Material |
Aluminum |
| Type |
Single Blade |
| Gasket Or Seal Included |
Yes |
| Cubic Feet Per Minute Rating |
1100 |
| Idle Air Control Motor Included |
Yes |
| Throttle Position Sensor Included |
Yes |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
6.0000 |
| Width |
10.0000 |
| Height |
10.0000 |
| Weight |
4.0000 |
