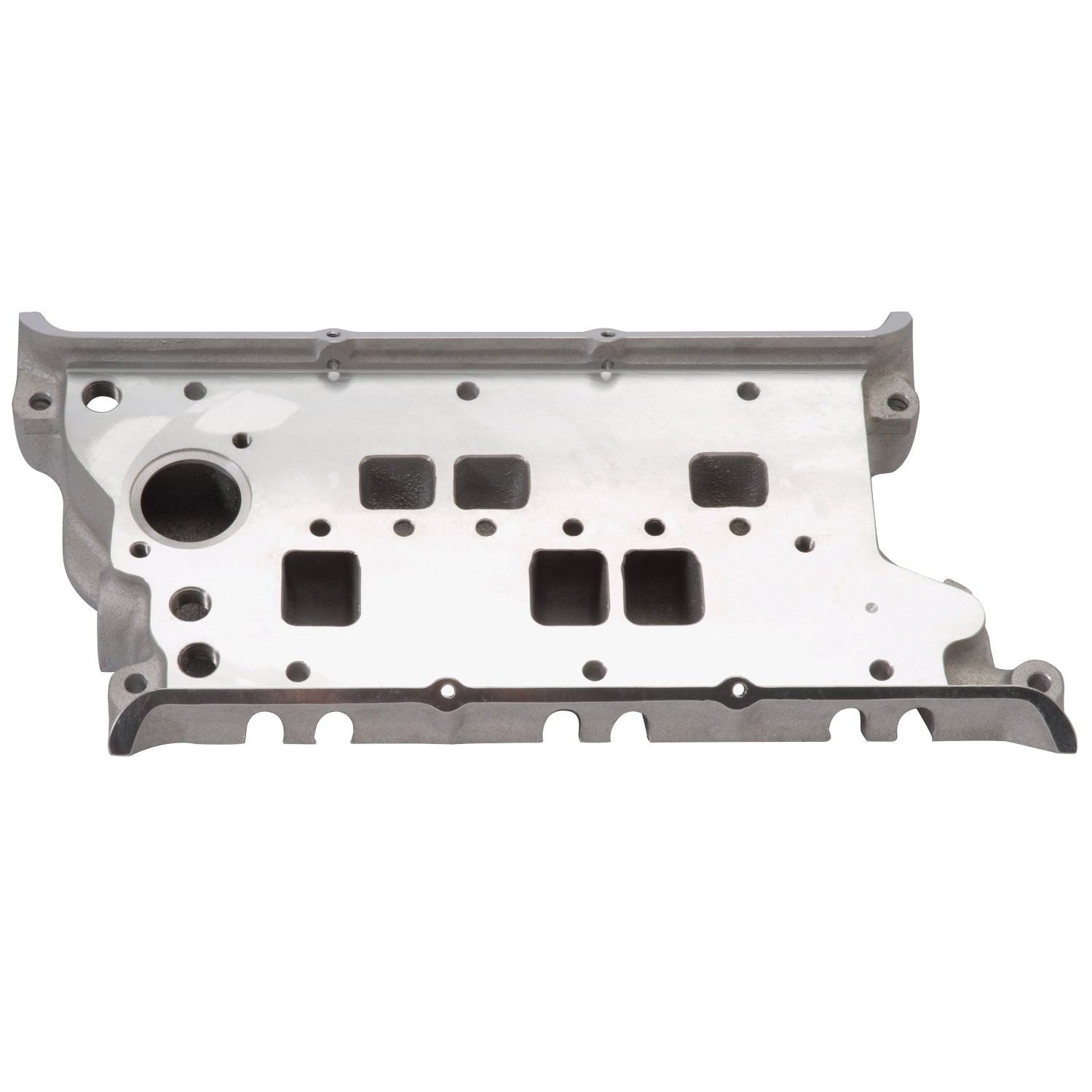

Edelbrock part #3785 Performer 60-degree V6 intake manifold base is designed for 1982-85 2.8L 60 degree V6 Chevy longitudinal-mount engines used in light duty pick-ups and cars. Design features one manifold base and two interchangeable tops. The Edelbrock Performer 4V 60 degree V6 #3789 intake manifold top accepts std. flange 4-bbl. carbs. The Edelbrock Performer 60 degree V6 #3787 intake manifold top accepts stock 2-bbl. carb. Edelbrock chrome valve covers #4488 are available for this engine.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block 60 Deg V6:173 (2.8L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Performer 2.8L V6 GM Intake Manifold Carburetor |
| Description_LAB |
Performer Small-Block Chevy 2.8L Intake Manifold |
| Description_MKT |
Edelbrock part #3785 Performer 60-degree V6 intake manifold base is designed for 1982-85 2.8L 60 degree V6 Chevy longitudinal-mount engines used in light duty pick-ups and cars. Design features one manifold base and two interchangeable tops. The Edelbrock Performer 4V 60 degree V6 #3789 intake manifold top accepts std. flange 4-bbl. carbs. The Edelbrock Performer 60 degree V6 #3787 intake manifold top accepts stock 2-bbl. carb. Edelbrock chrome valve covers #4488 are available for this engine. |
| Description_INV |
Performer 2.8L Intake Manifold |
| Description_TRA |
Recommended intake gasket: Fel-Pro #1270 or #MS91022. |
| Description_TRA |
Linkage and bracketry come with top. |
| Description_TRA |
Jeep Cherokee, additional hood shimming is required for clearance (when used with #3787 Top) Hood shims available from Jeep dealers (part #J0680435) |
| Description_TRA |
Port exit dimensions: 1.00" x 1.28"/1.00" x 1.71". |
| Description_TRA |
Manifold height: A-4.90", B-5.95" |
| Description_TRA |
Carb pad height: 5.42" (when used with #3789 Top) |
| Description_TRA |
Manifold height: A-4.37", B-5.45" |
| Description_TRA |
Carb pad height: 4.91" (when used with #3787 Top) |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port |
No |
| Series |
Performer |
| Single Or Dual Plane Type |
Dual |
| Finish |
Satin |
| Rear Maximum Height |
0.010 |
| Basic Operating RPM Range |
Idle-6000 |
| Center Maximum Height |
0.010 |
| Grade Type |
Performance |
| Material |
Aluminum |
| CNC Ported |
No |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chevrolet |
| Front Maximum Height |
0.010 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
6.0000 |
| Width |
11.0000 |
| Height |
21.0000 |
| Weight |
10.0000 |
