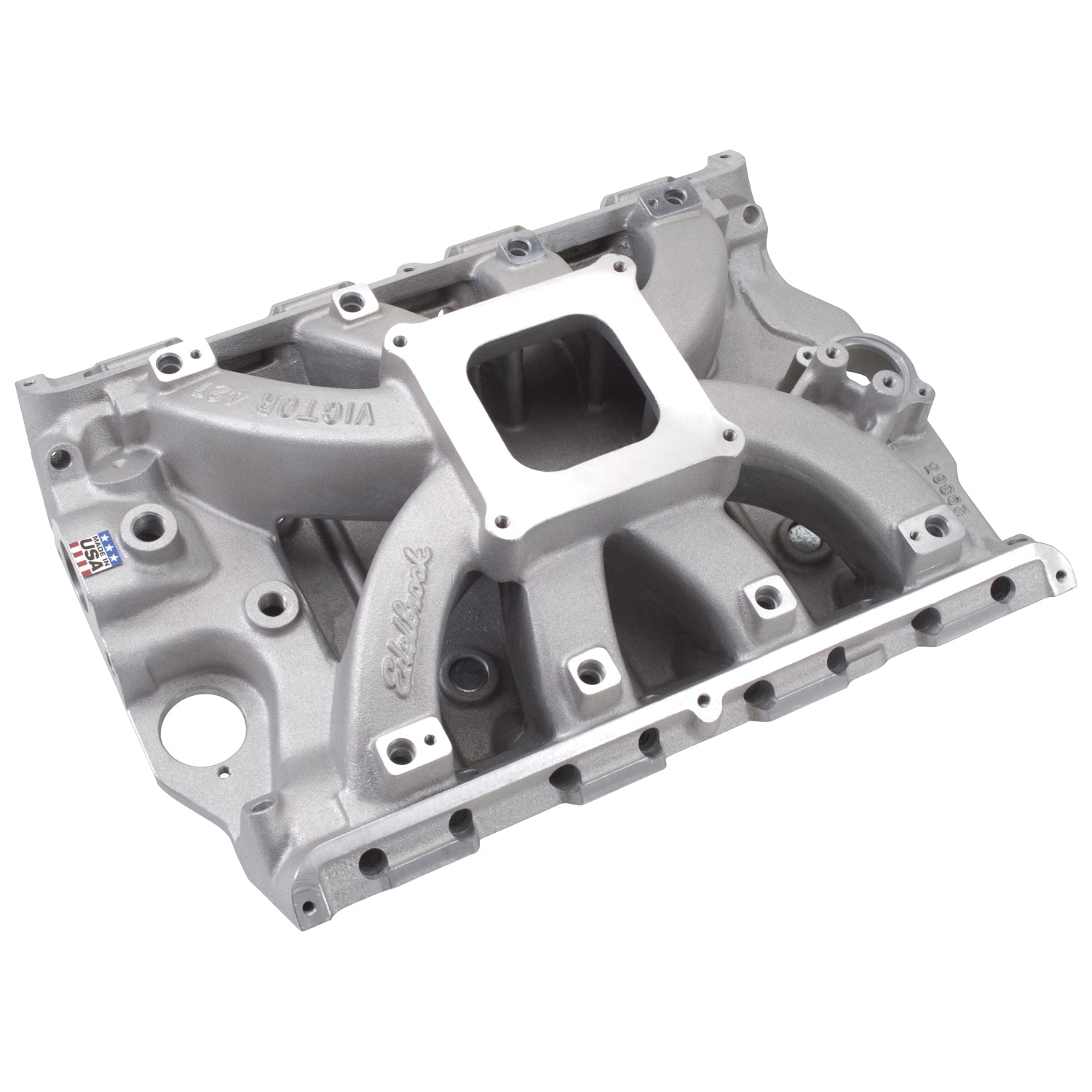

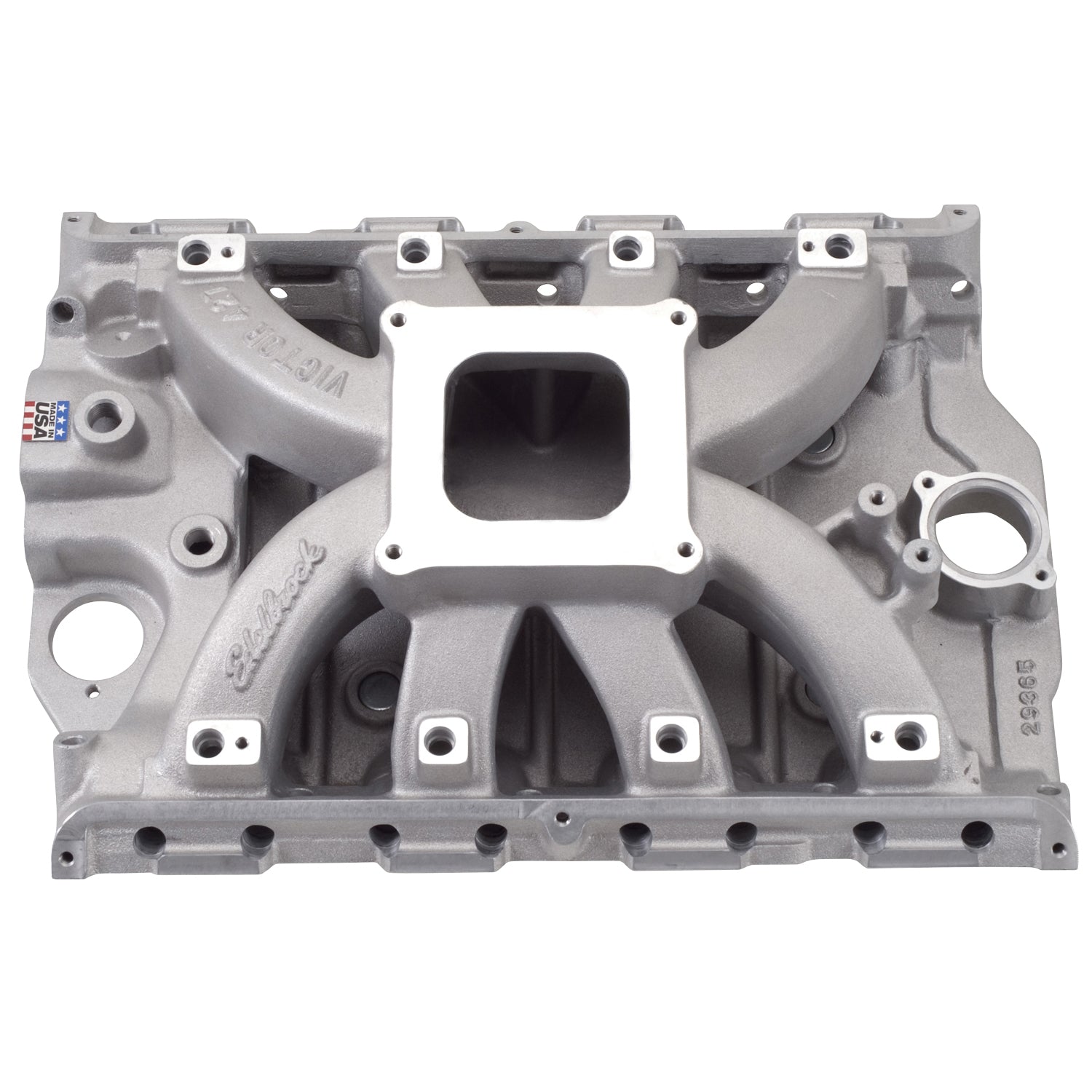

Edelbrock part #29365 Victor FE EFI intake manifold is designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. The single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our FE heads.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Victor FE EFI Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8 |
| Description_INV |
EFI Victor FE Standard Flange Intake |
| Description_LAB |
Victor Ford FE EFI Intake Manifold |
| Description_MKT |
Edelbrock part #29365 Victor FE EFI intake manifold is designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. The single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our FE heads. |
| Description_TRA |
Recommended intake gasket: Fel-Pro #1247 |
| Description_TRA |
Manifold height: A-6.49", B-6.49" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Material |
Aluminum |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Center Maximum Height |
6.490 |
| Series |
Victor |
| Gasket Or Seal Included |
No |
| Basic Operating RPM Range |
4000-8000 |
| Vehicle Model |
Ford |
| Finish |
Satin |
| Flange Type |
4150 |
| CNC Ported |
No |
| Rear Maximum Height |
6.490 |
| Front Maximum Height |
6.490 |
| EGR Port |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
9.0000 |
| Width |
16.0000 |
| Height |
24.0000 |
| Weight |
37.0000 |
