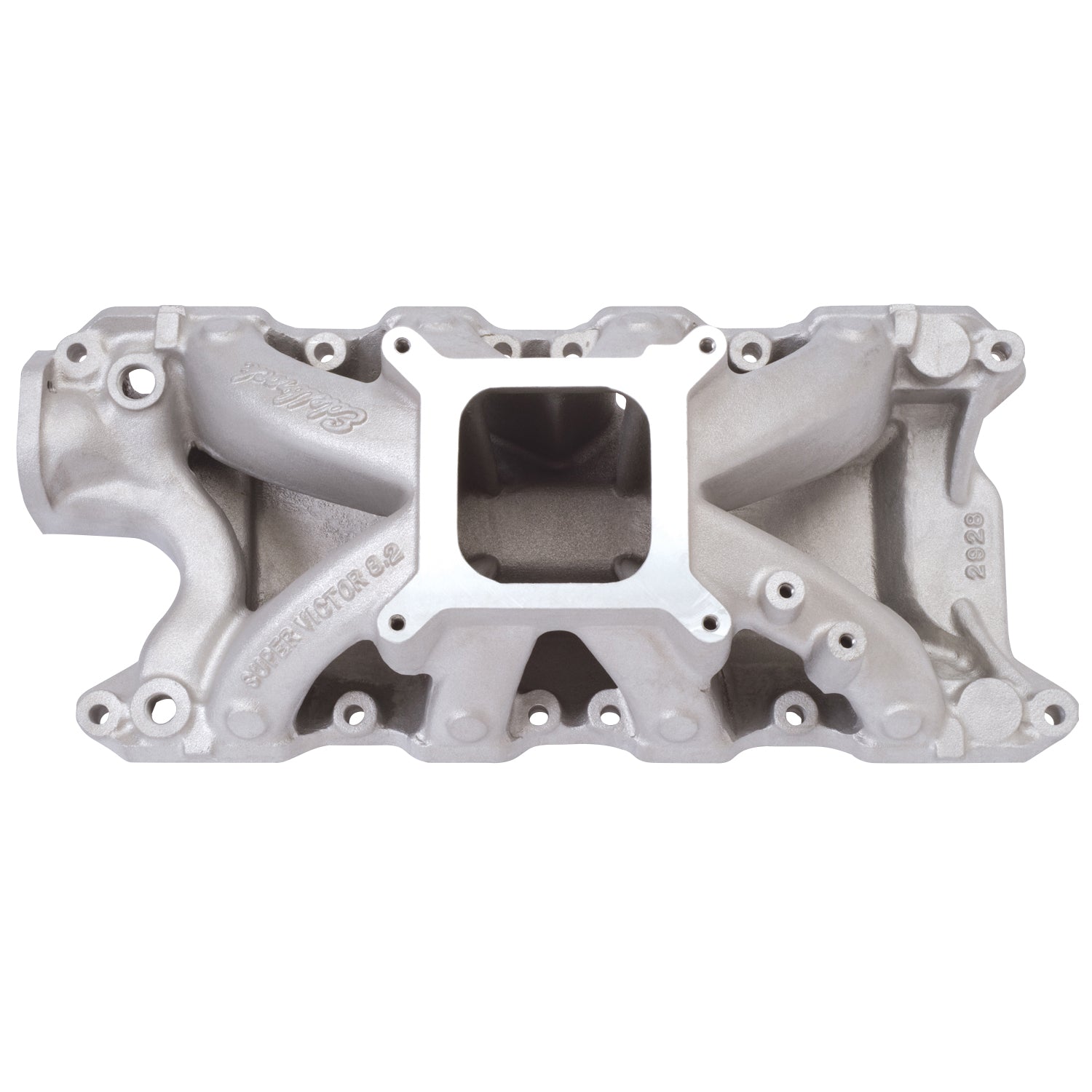

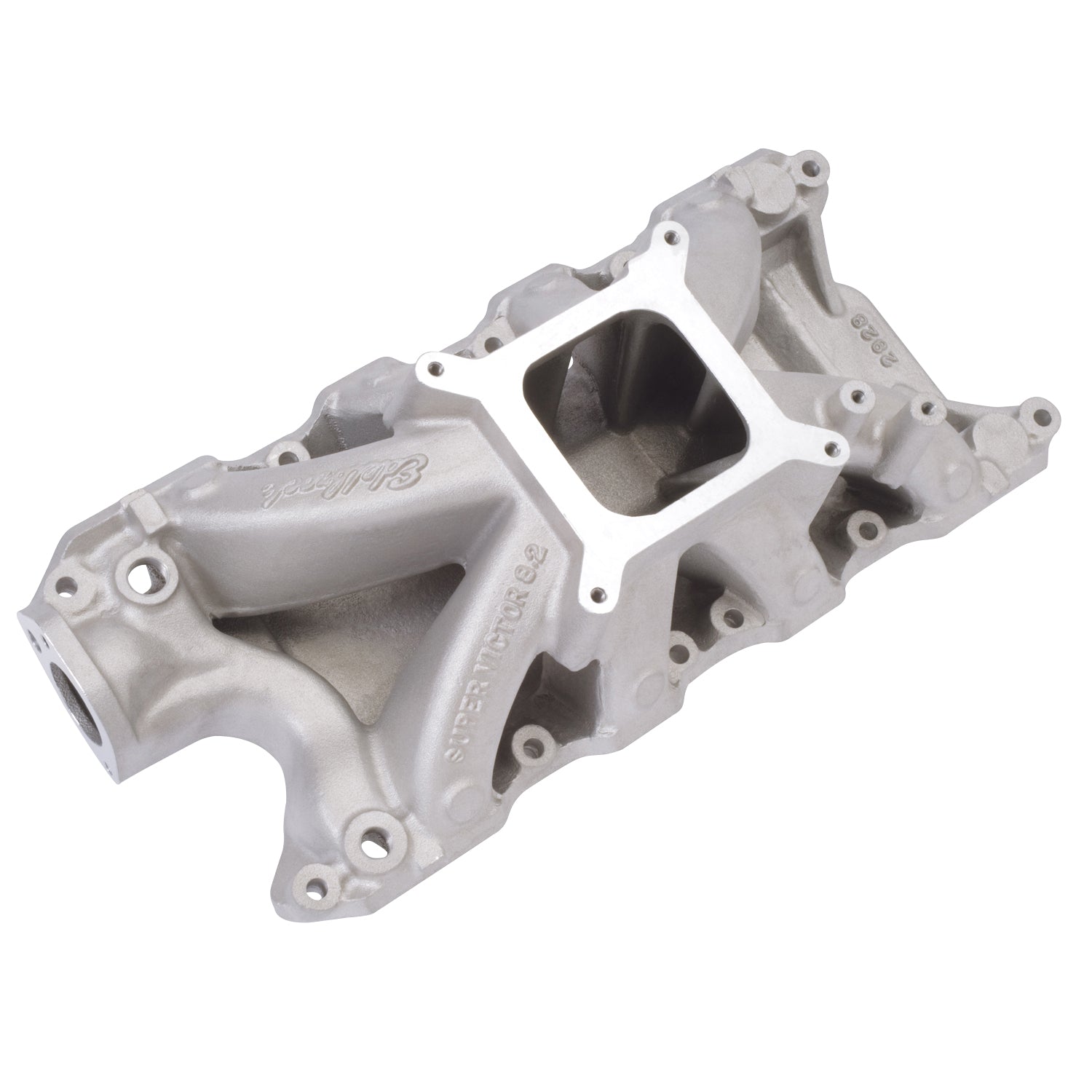

Edelbrock part #2928 Super Victor 8.2 intake manifold is designed for high-rpm and competition 302-347 engines with aftermarket Windsor-style racing cylinder heads such as the Edelbrock Victor heads #77219 or Victor Jr. heads #77169. The Super Victor 8.2 is for engines with a standard 8.2" deck height. Excellent for large displacement drag racing engines, this single plane race manifold delivers big power gains from 4500 to 8500 rpm and includes nitrous and rear cooling water bosses. The square-bore carburetor pad stands .850" taller than the Edelbrock Victor Jr. #2921.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Super Victor 8.2 Intake Manifold for Ford 289-347 Small-Block V8 |
| Description_INV |
Super Victor 8.2 Deck Intake Manifold |
| Description_MKT |
Edelbrock part #2928 Super Victor 8.2 intake manifold is designed for high-rpm and competition 302-347 engines with aftermarket Windsor-style racing cylinder heads such as the Edelbrock Victor heads #77219 or Victor Jr. heads #77169. The Super Victor 8.2 is for engines with a standard 8.2" deck height. Excellent for large displacement drag racing engines, this single plane race manifold delivers big power gains from 4500 to 8500 rpm and includes nitrous and rear cooling water bosses. The square-bore carburetor pad stands .850" taller than the Edelbrock Victor Jr. #2921. |
| Description_LAB |
Super Victor 8.2 Intake Manifold Small-Block Ford |
| Description_TRA |
Recommended intake gasket: Fel-Pro #1262 or #1262R |
| Description_TRA |
Manifold height: A-6.35", B-6.35" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Finish |
Satin |
| Rear Maximum Height |
6.350 |
| Series |
Victor |
| Basic Operating RPM Range |
4500-9000 |
| EGR Port |
No |
| Grade Type |
Performance |
| CNC Ported |
No |
| Single Or Dual Plane Type |
Single |
| Flange Type |
4150 |
| Material |
Aluminum |
| Center Maximum Height |
6.350 |
| Front Maximum Height |
6.350 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Ford |
| Gasket Or Seal Included |
No |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
21.0000 |
