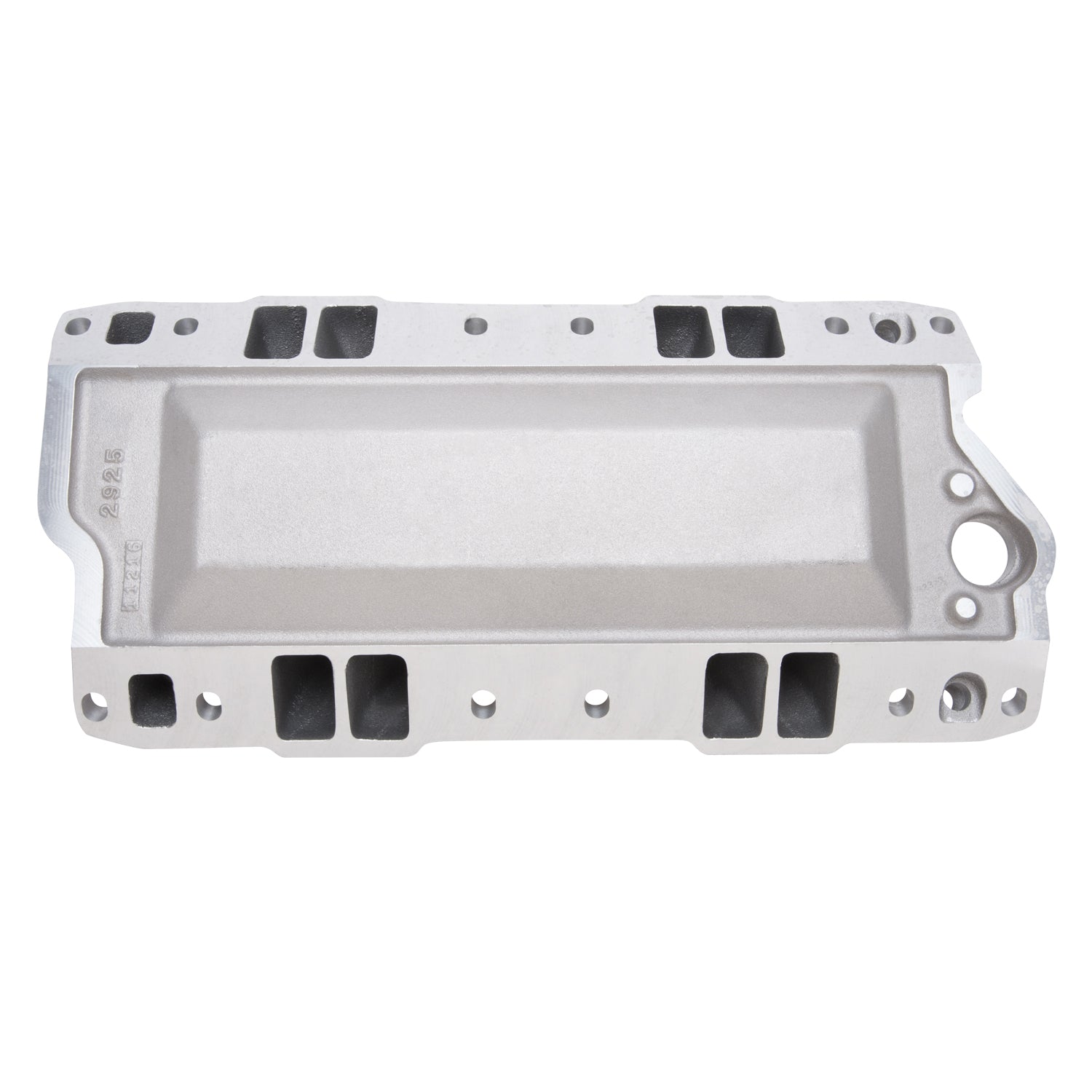

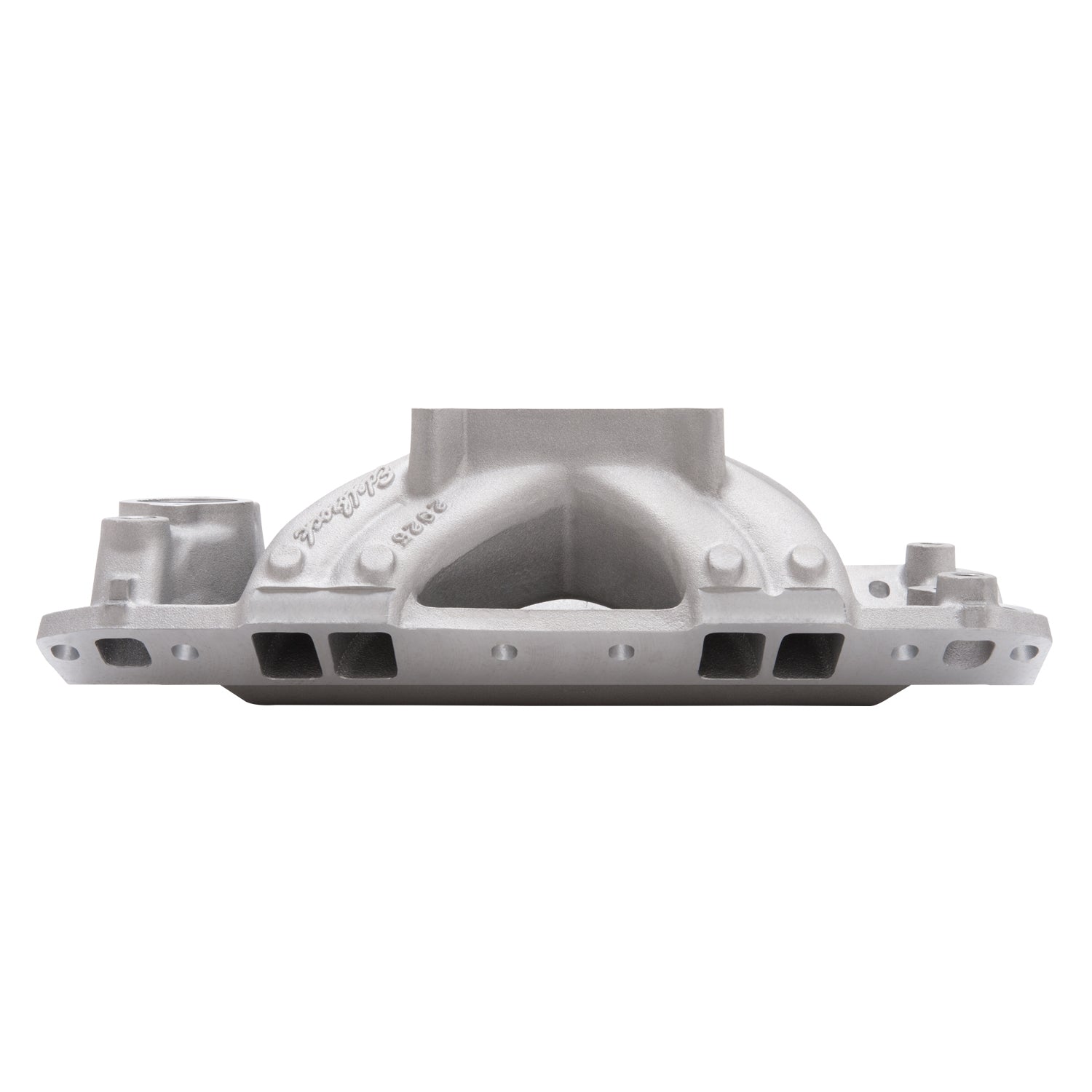

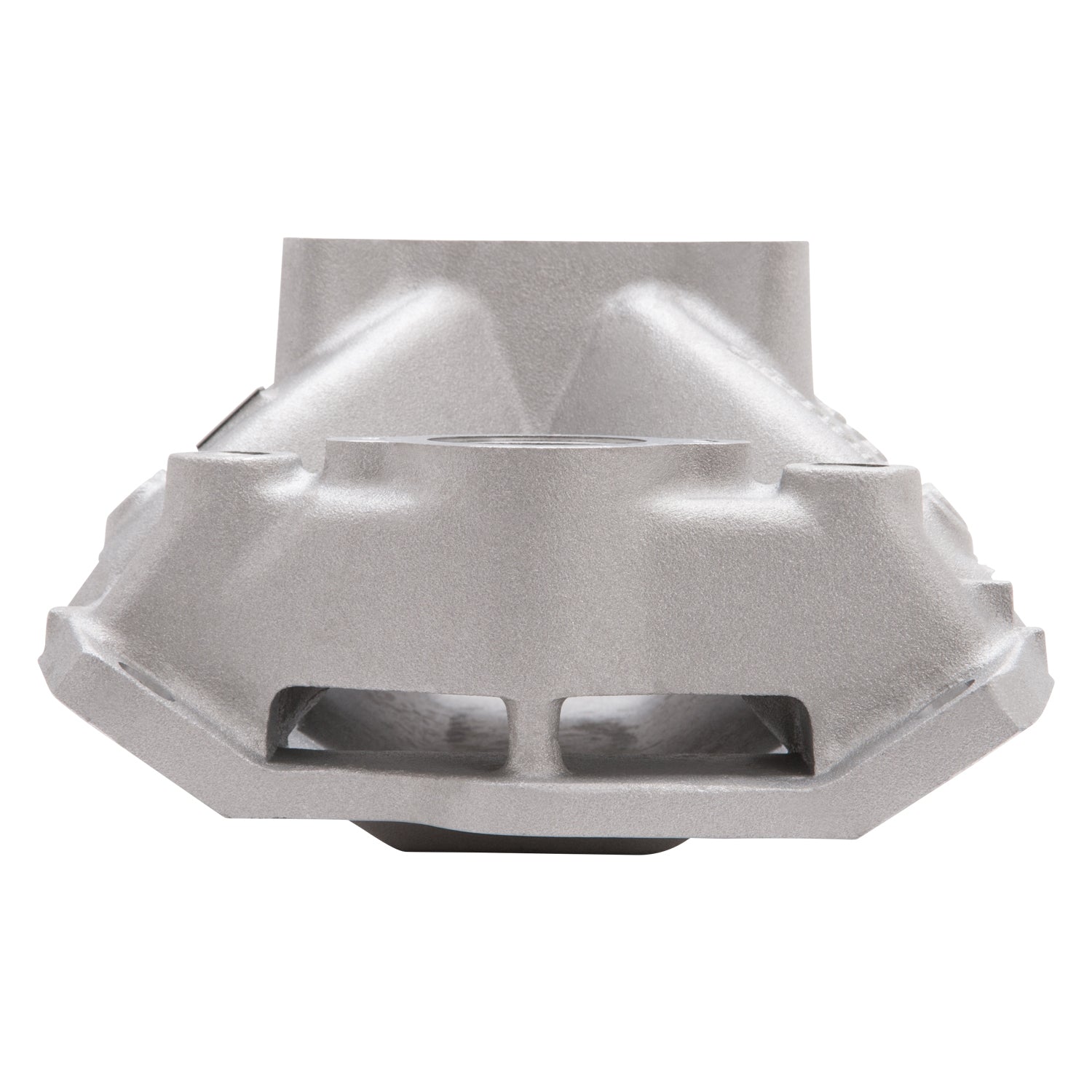

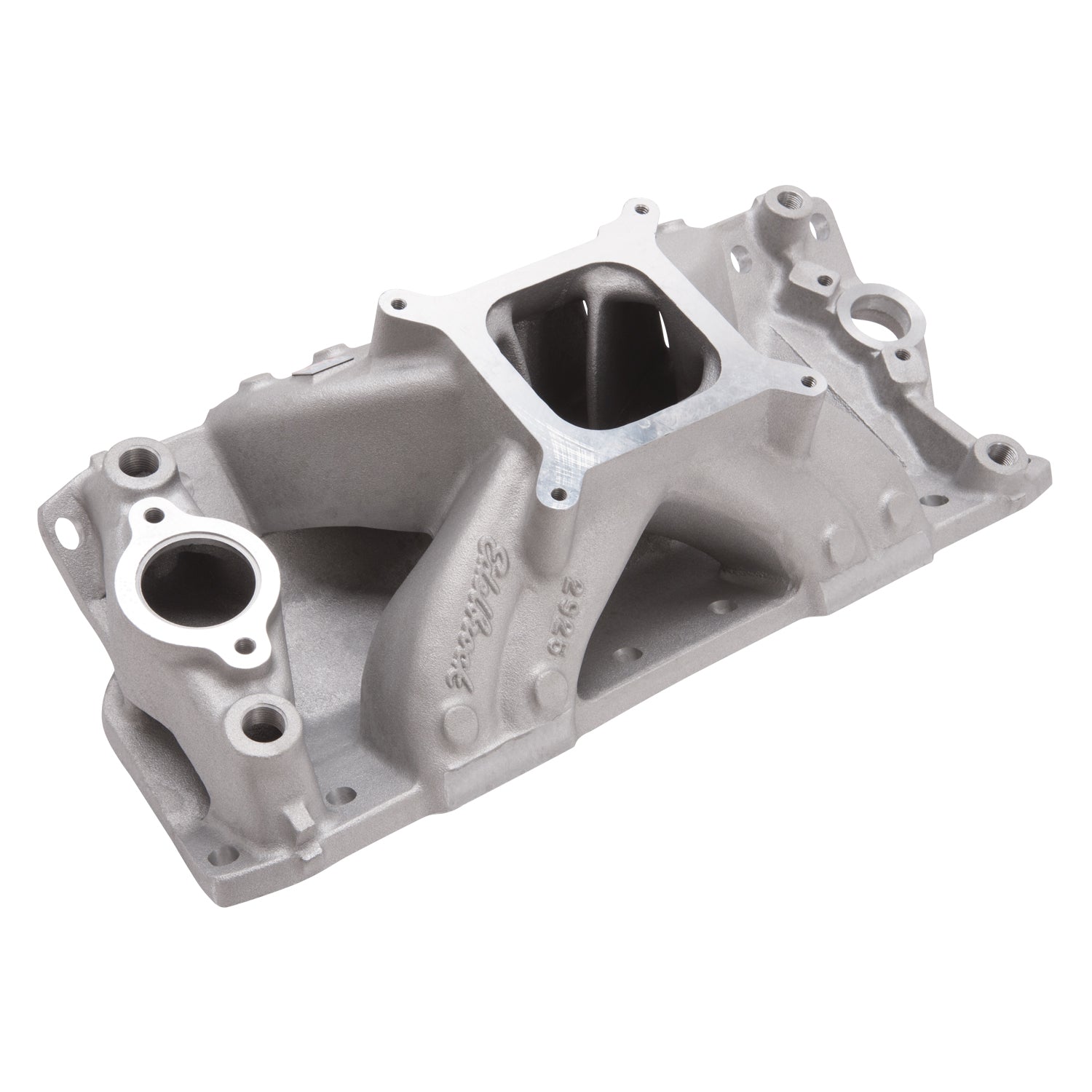

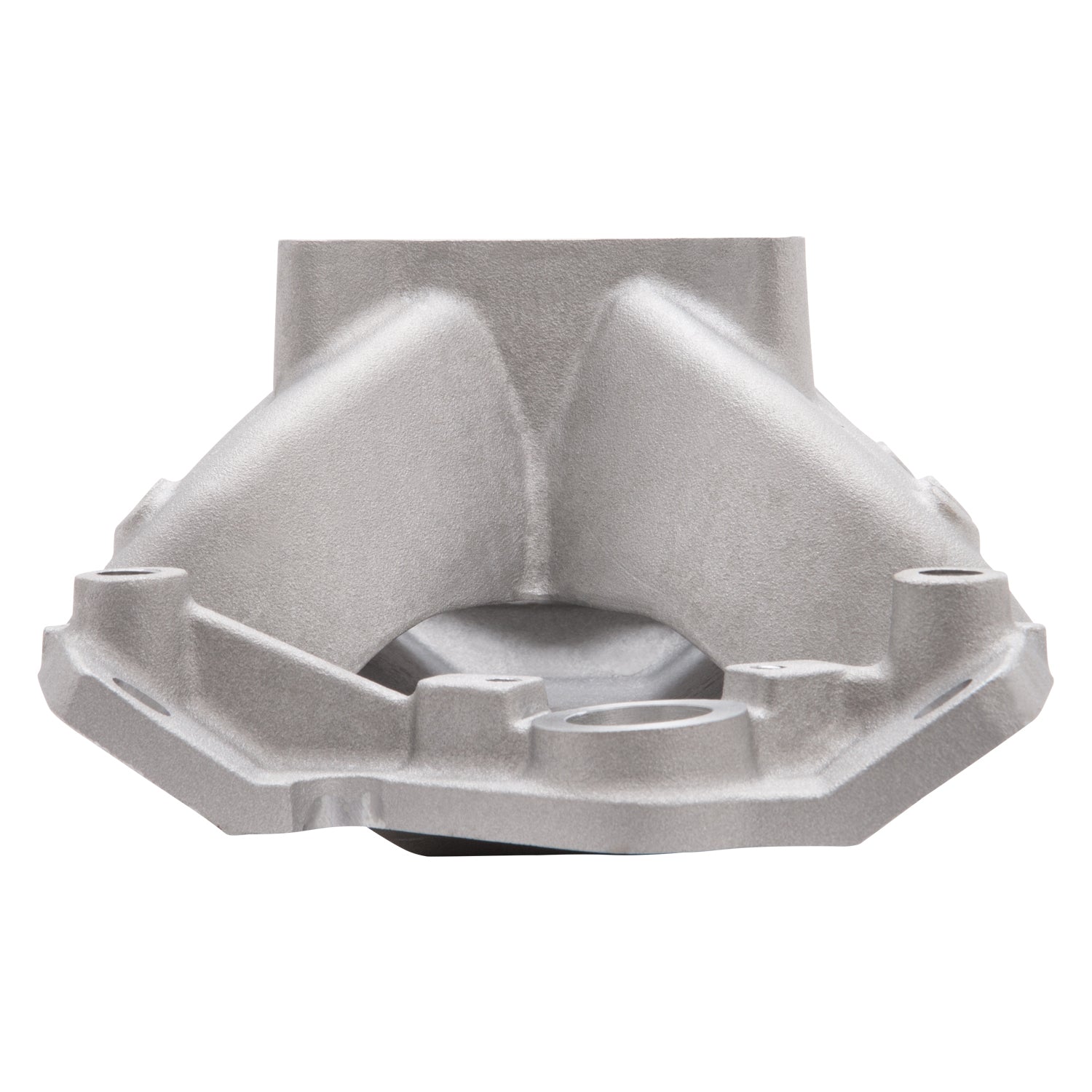

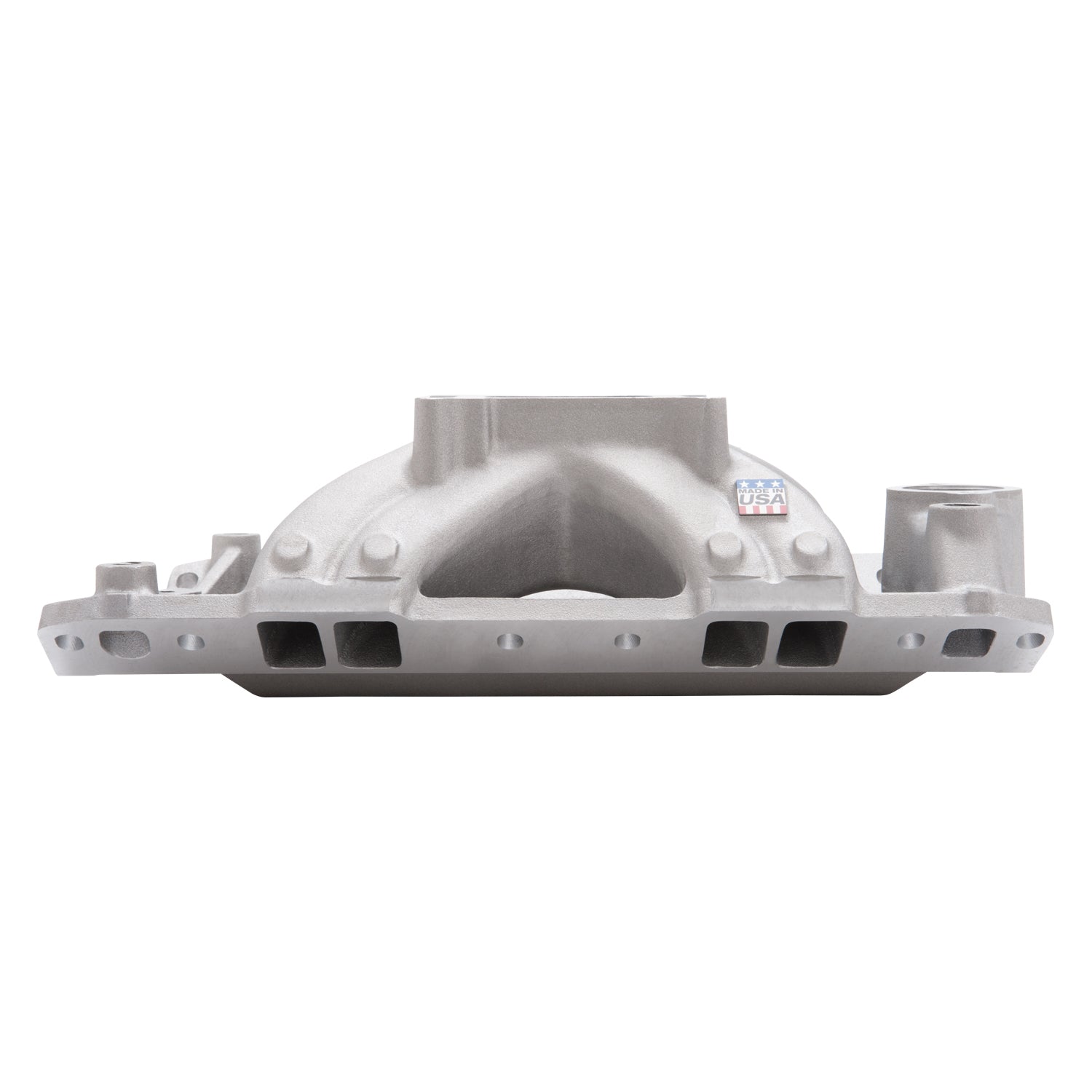

Edelbrock part #2925 Super Victor 23-degree intake manifold is designed for heads with a standard port location, the runners match the "flat floor" entry of the latest 23-degree heads. Carb pad height is 5-1/2" (from end seals) and overall, this intake is about one-inch taller than our Victor Jr. intake #2975. Runners have a 2.80 square-inch cross-section.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Super Victor 23 Degree Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_MKT |
Edelbrock part #2925 Super Victor 23-degree intake manifold is designed for heads with a standard port location, the runners match the "flat floor" entry of the latest 23-degree heads. Carb pad height is 5-1/2" (from end seals) and overall, this intake is about one-inch taller than our Victor Jr. intake #2975. Runners have a 2.80 square-inch cross-section. |
| Description_INV |
Super Victor SBC Intake Manifold |
| Description_LAB |
Super Victor 23 Degree Intake Manifold Small-Block Chevy |
| Description_TRA |
Recommended intake gasket: Edelbrock #7201 |
| Description_TRA |
Carb recommendations: Use appropriate standard flange square-bore racing carb. |
| Description_TRA |
No provisions for exhaust heated chokes or EGR. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Front Maximum Height |
5.500 |
| Vehicle Model |
Chevrolet |
| Flange Type |
4150 |
| CNC Ported |
No |
| Rear Maximum Height |
5.500 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| EGR Port |
No |
| Finish |
Satin |
| Center Maximum Height |
5.500 |
| Gasket Or Seal Included |
No |
| Basic Operating RPM Range |
3500-8000 |
| Series |
Victor |
| Material |
Aluminum |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
