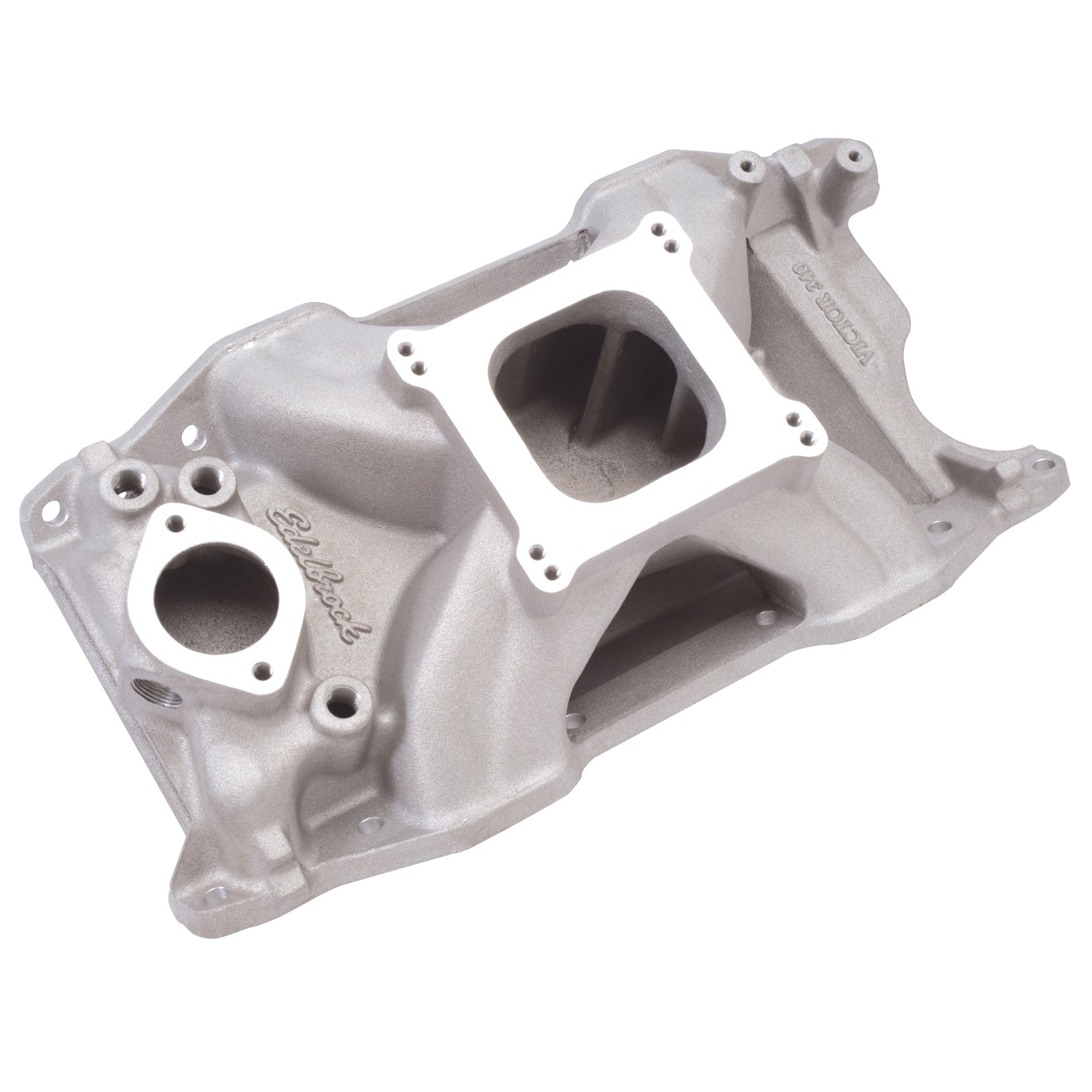

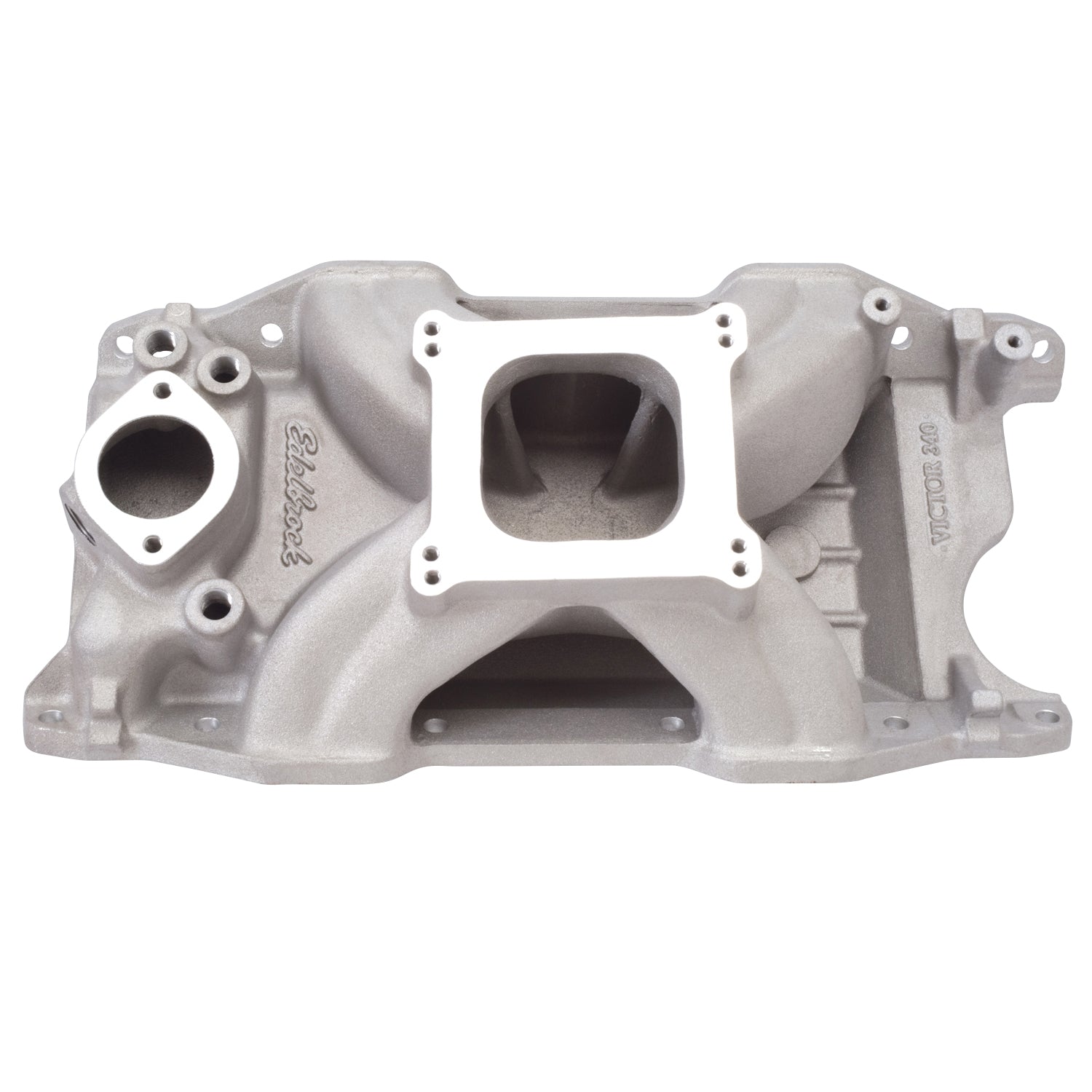

Edelbrock part #2915 Victor 340 intake manifold is designed for 340-360 c.i.d. Chryslers using standard rectangular-port heads. For oval track and drag race engines operating from 3500-8000 rpm. This intake manifold can be used on 318 c.i.d. engines with 340-360 heads. Will not fit 1992 and later Magnum engines. Accepts 1975 and earlier waterneck only.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Small-Block LA-Series:340 (5.6L)/360 (5.9L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Victor Intake Manifold for 318-360 Chrysler Small Block LA engines |
| Description_INV |
Victor 340/360 Intake Manifold |
| Description_MKT |
Edelbrock part #2915 Victor 340 intake manifold is designed for 340-360 c.i.d. Chryslers using standard rectangular-port heads. For oval track and drag race engines operating from 3500-8000 rpm. This intake manifold can be used on 318 c.i.d. engines with 340-360 heads. Will not fit 1992 and later Magnum engines. Accepts 1975 and earlier waterneck only. |
| Description_LAB |
Victor Intake Manifold Small-Block Chrysler |
| Description_TRA |
Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213 |
| Description_TRA |
Manifold height.: A-4.15", B-5.70" |
| Description_TRA |
Carb recommendations: Use appropriate racing carburetor |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Front Maximum Height |
4.920 |
| Basic Operating RPM Range |
3500-8000 |
| Center Maximum Height |
4.920 |
| Vehicle Model |
Chrysler |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Gasket Or Seal Included |
No |
| Rear Maximum Height |
4.920 |
| CNC Ported |
No |
| Series |
Victor |
| EGR Port |
No |
| Flange Type |
4150 |
| Material |
Aluminum |
| Finish |
Satin |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
21.0000 |
