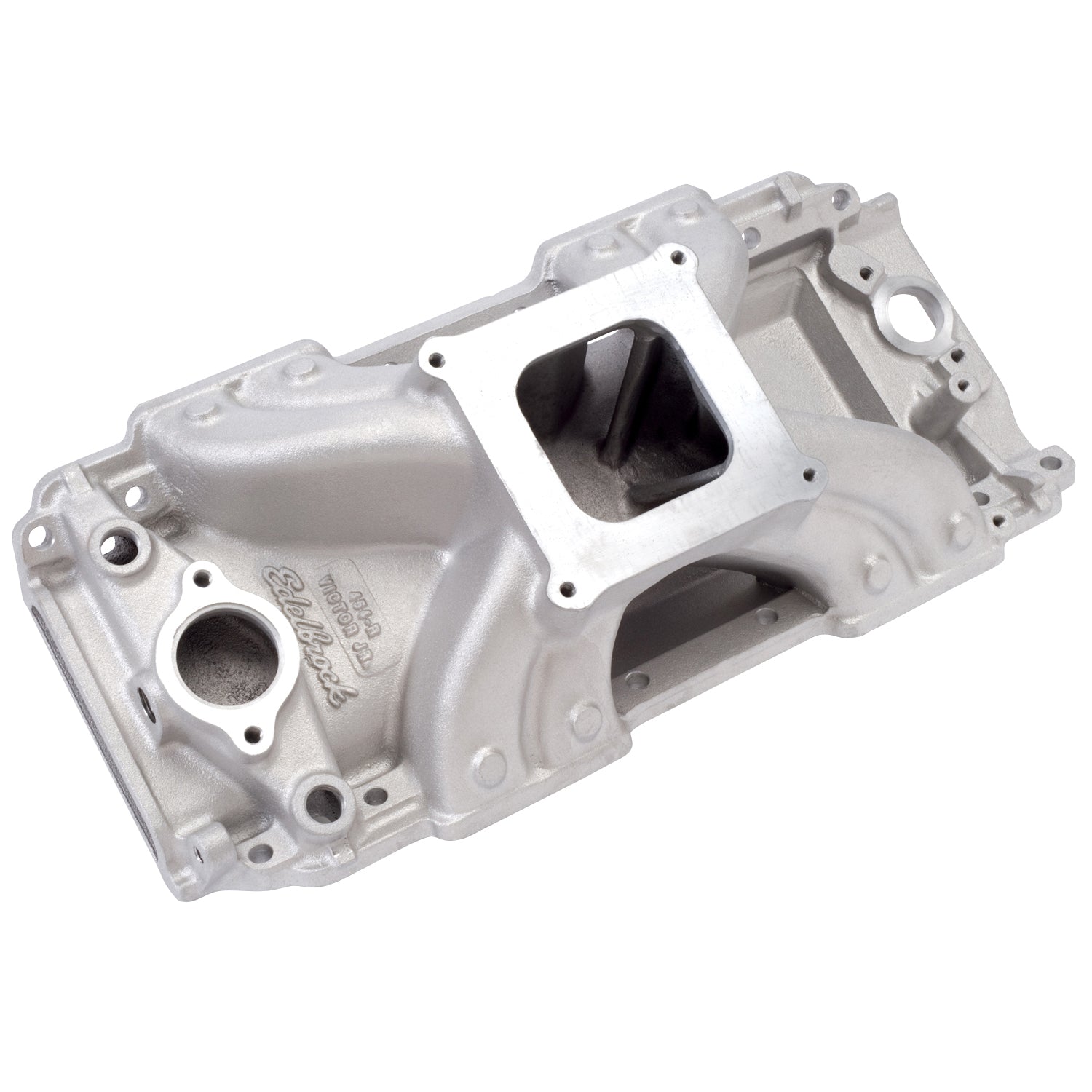

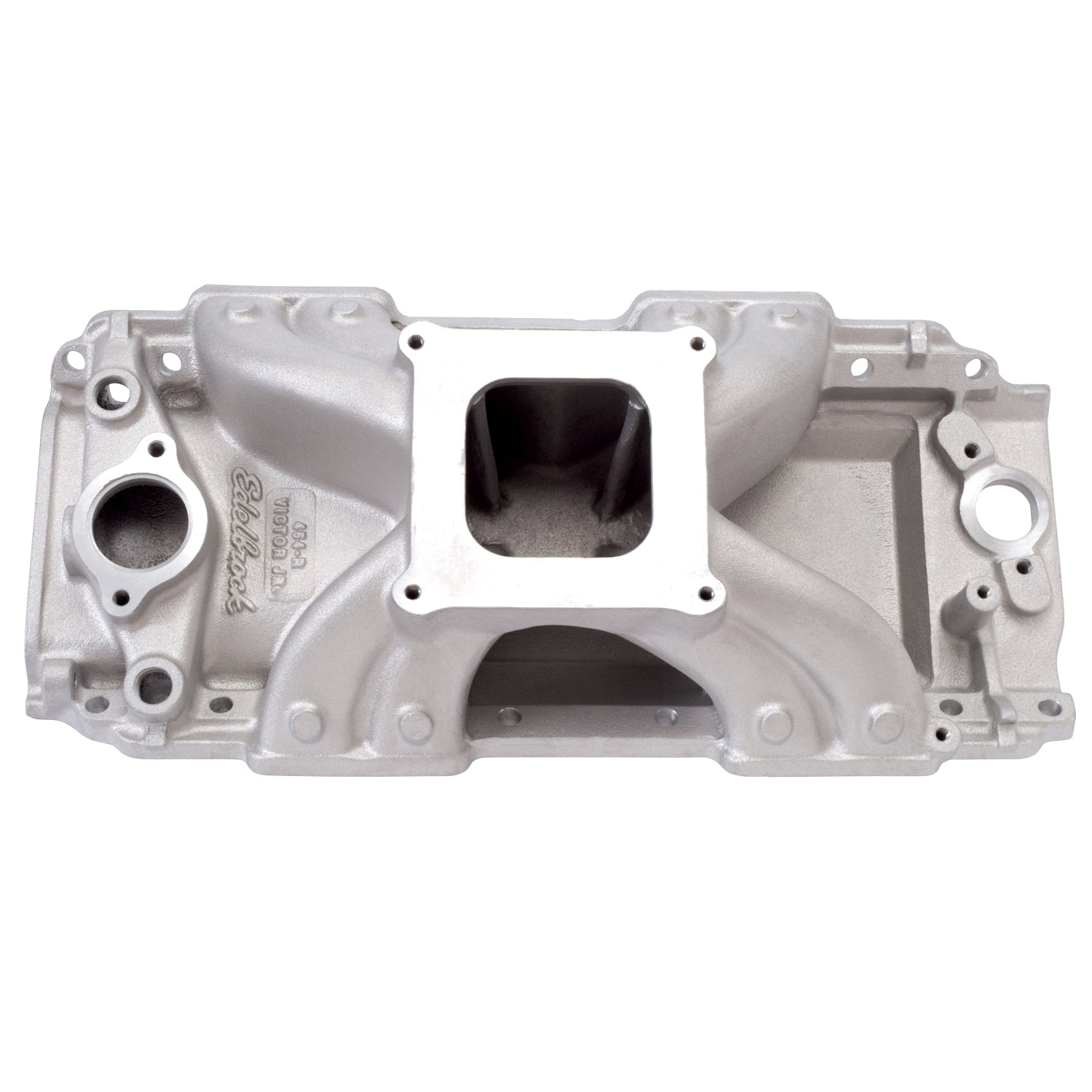

Edelbrock part #2902 Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads #77609 and Victor 24-degree #77409, #77459, #77429, #77479 and #77485.
Specifications:
Description_ABR |
Intake Mnfld |
Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
Description_DEF |
Engine Intake Manifold |
Description_EXT |
Edelbrock Victor Jr. 454-R Intake Manifold For Chevrolet 396-502 Big-Block V8 |
Description_INV |
Victor Jr BBC Rectangular Port Intake |
Description_MKT |
Edelbrock part #2902 Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads #77609 and Victor 24-degree #77409, #77459, #77429, #77479 and #77485. |
Description_LAB |
Victor Jr. 454-R Intake Manifold Big-Block Chevy |
Description_TRA |
Recommended intake gasket: Edelbrock #7208 |
Description_TRA |
Manifold height: A-5.90" & B-5.90" |
Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
Rear Maximum Height |
5.960 |
Flange Type |
4150 |
EGR Port |
No |
CNC Ported |
No |
Finish |
Satin |
Vehicle Model |
Chevrolet |
Series |
Victor |
Basic Operating RPM Range |
3500-7500 |
Single Or Dual Plane Type |
Single |
Front Maximum Height |
5.960 |
Center Maximum Height |
5.960 |
RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Grade Type |
Performance |
Gasket Or Seal Included |
No |
Material |
Aluminum |
Length |
8.0000 |
Width |
15.0000 |
Height |
24.0000 |
Weight |
23.0000 |
