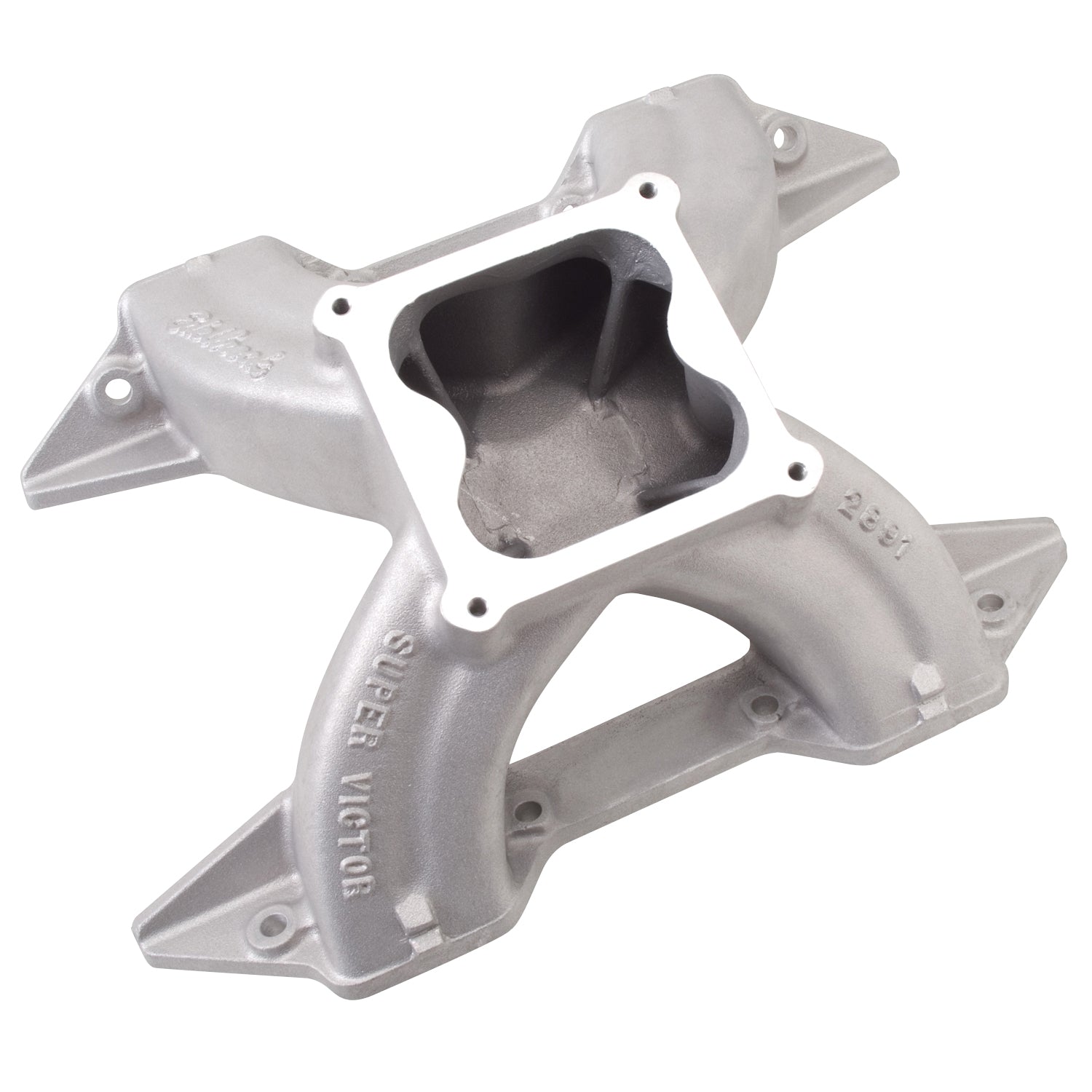

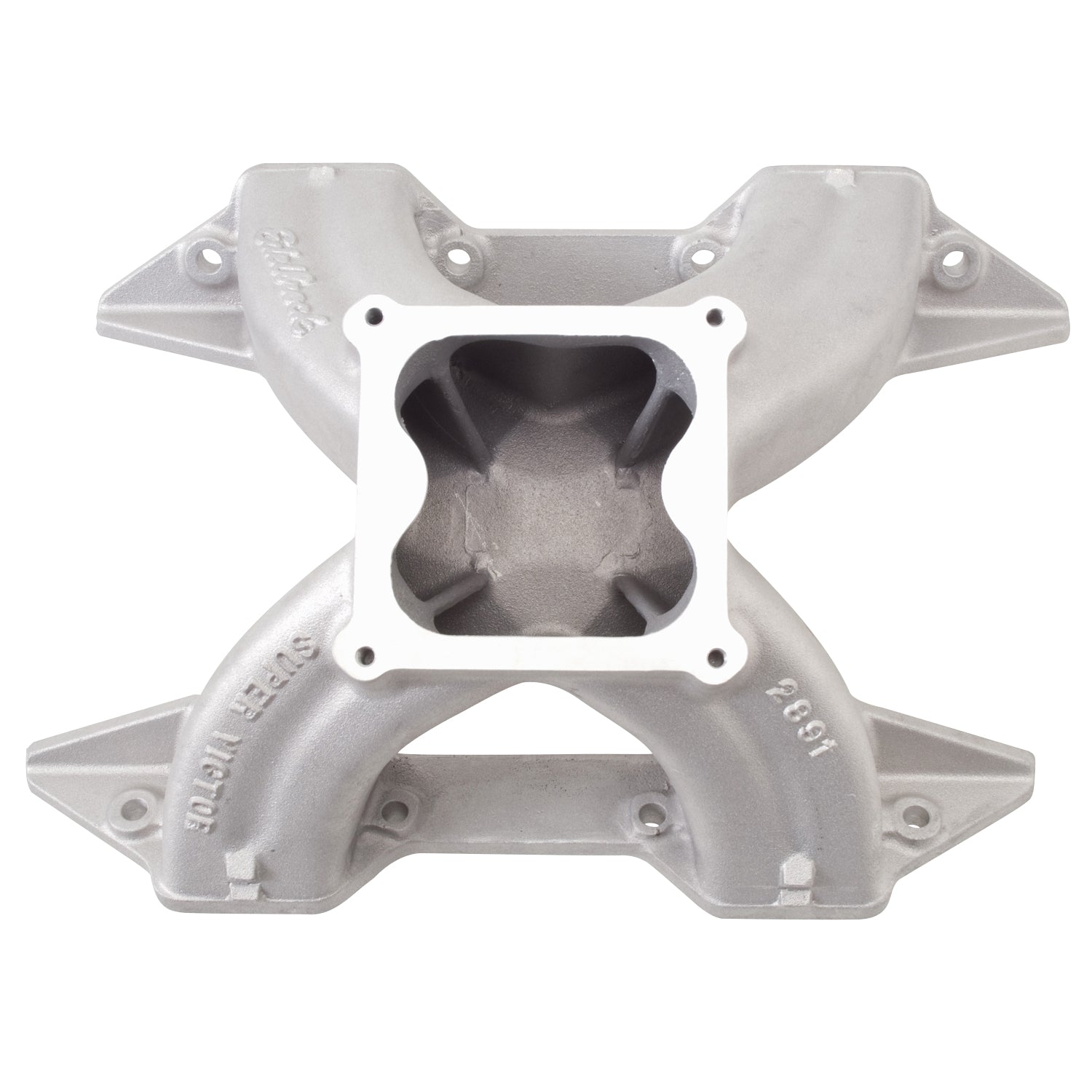

Edelbrock part #2893 Super Victor 440 Max Wedge intake manifold is designed for 413-440-500+ RB with Max Wedge heads and 4500 Series carburetors. This intake manifold is designed to fit 1962-64 Max Wedge heads or the Edelbrock Victor Max Wedge cylinder heads #77939 and #77949 for maximum performance. For competition and high-rpm Chrysler V8's, the Super Victor 440 has an all-new runner design that delivers maximum power from 3500 to 8000 rpm in drag race applications. The manifold port exits are CNC machined to 1.30" x 2.58". Edelbrock part #7798 valley cover is required when used with Edelbrock Victor Series cylinder heads.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Super Victor 440 Max Wedge Intake Manifold with 4500 Series Carb for Chrysler 413-426-440 Big-Block V8 |
| Description_INV |
Super Victor Chrysler 440 Max Wedge Dom |
| Description_LAB |
Super Victor Chrysler 440 Max Wedge Intake Manifold for 4500 Series Carb |
| Description_MKT |
Edelbrock part #2893 Super Victor 440 Max Wedge intake manifold is designed for 413-440-500+ RB with Max Wedge heads and 4500 Series carburetors. This intake manifold is designed to fit 1962-64 Max Wedge heads or the Edelbrock Victor Max Wedge cylinder heads #77939 and #77949 for maximum performance. For competition and high-rpm Chrysler V8's, the Super Victor 440 has an all-new runner design that delivers maximum power from 3500 to 8000 rpm in drag race applications. The manifold port exits are CNC machined to 1.30" x 2.58". Edelbrock part #7798 valley cover is required when used with Edelbrock Victor Series cylinder heads. |
| Description_TRA |
Mopar Performance P/N P5249643, Fel-Pro #1218 or equivalent 2.63" x 1.34" for an area of 3.52 sq. inches. Custom gasket trimming is needed if larger area is desired. |
| Description_TRA |
Carb recommendations: Use appropriate 4500 Series racing carburetor |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Material |
Aluminum |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Center Maximum Height |
6.400 |
| Gasket Or Seal Included |
No |
| Series |
Victor |
| Basic Operating RPM Range |
3500-8000 |
| Flange Type |
4500 |
| Finish |
Satin |
| Front Maximum Height |
6.400 |
| EGR Port |
No |
| CNC Ported |
Yes |
| Rear Maximum Height |
6.400 |
| Vehicle Model |
Chrysler |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
10.0000 |
| Width |
16.0000 |
| Height |
24.0000 |
| Weight |
18.0000 |
