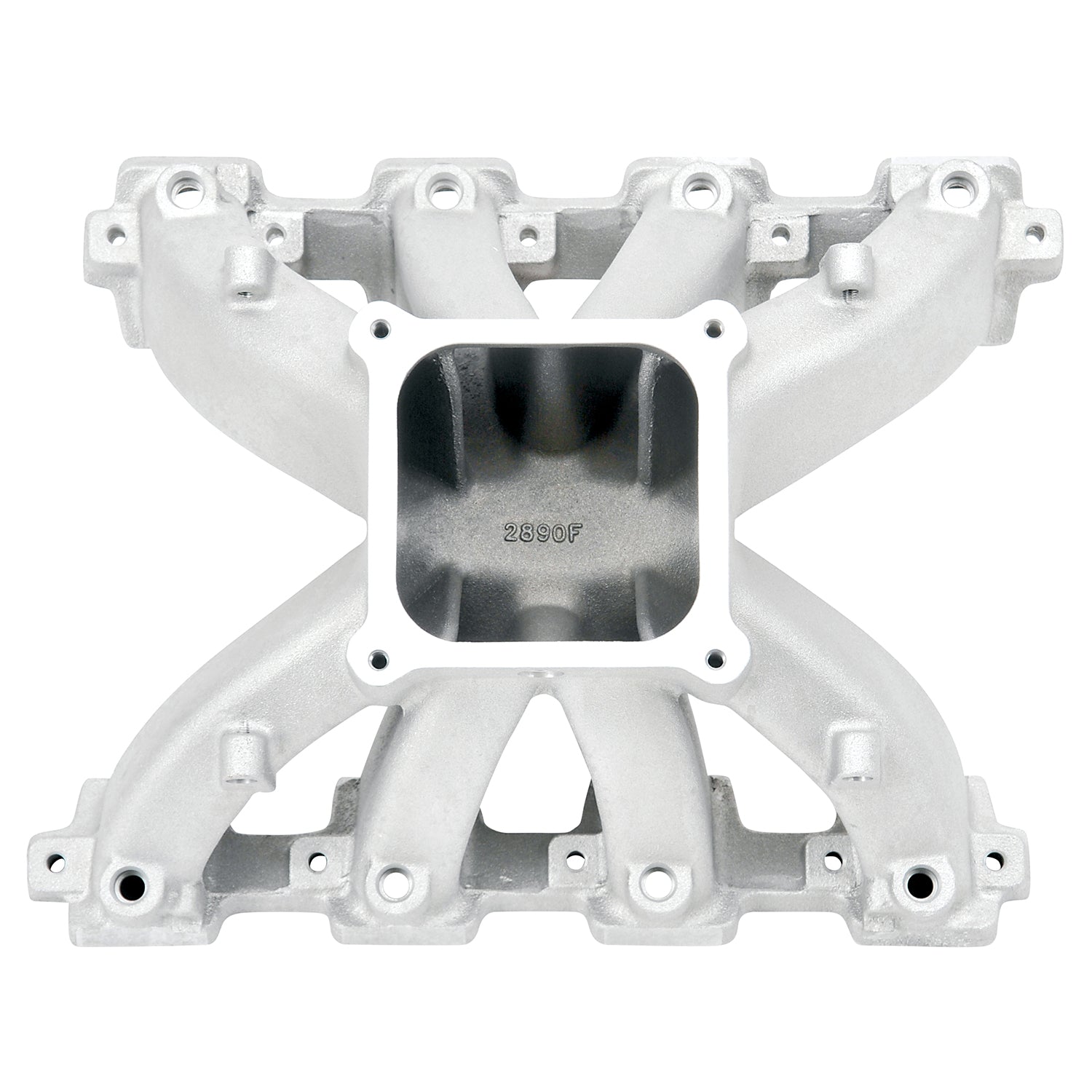

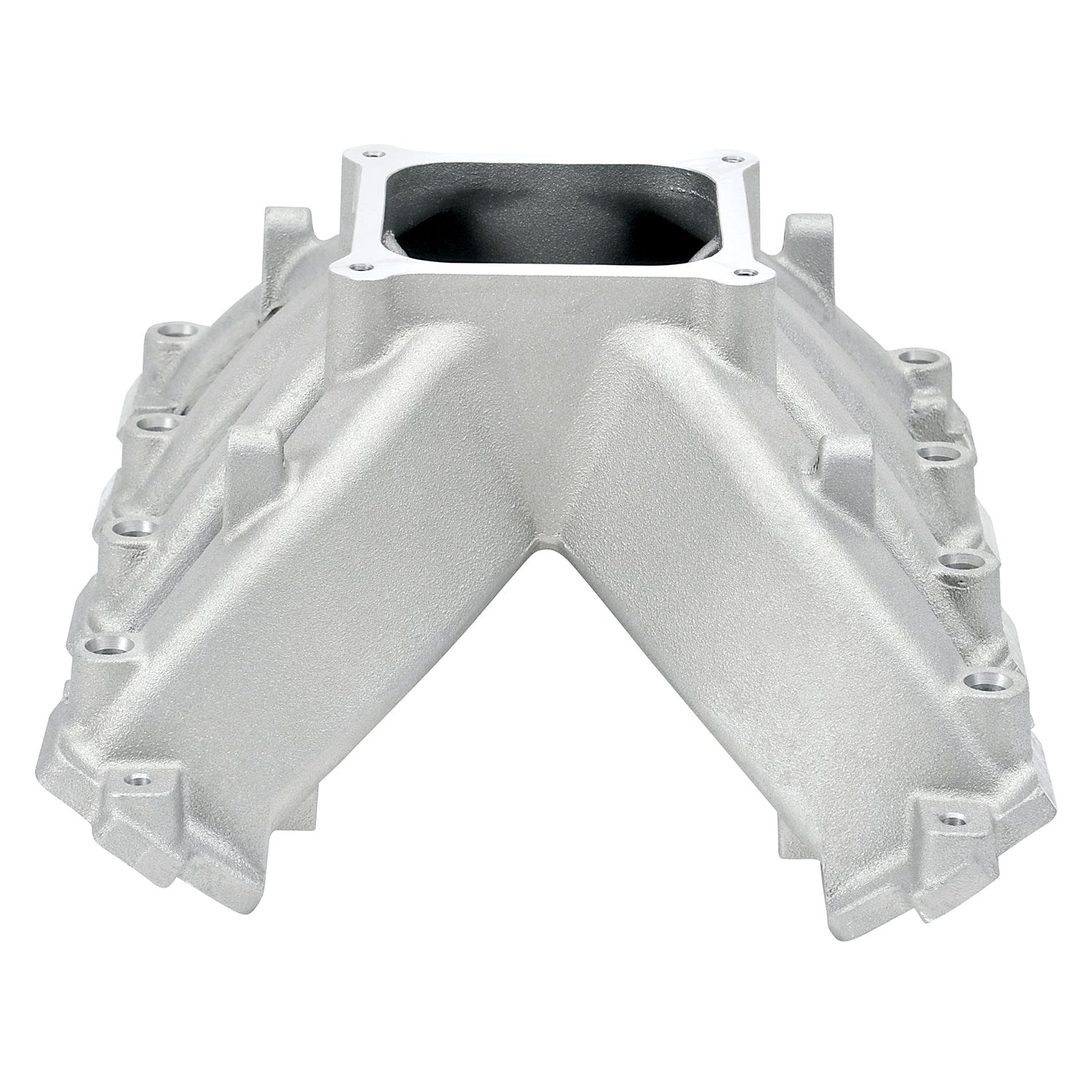

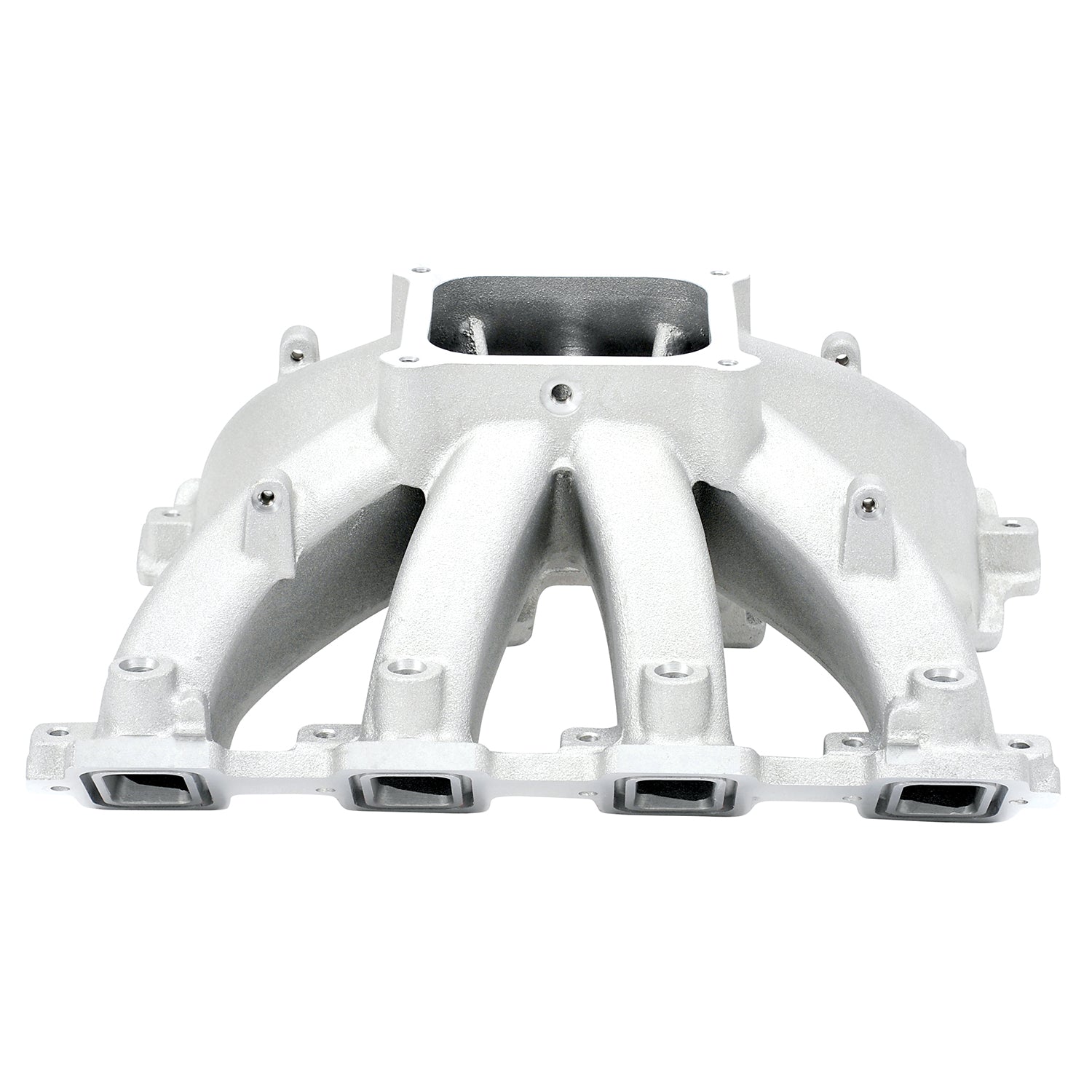

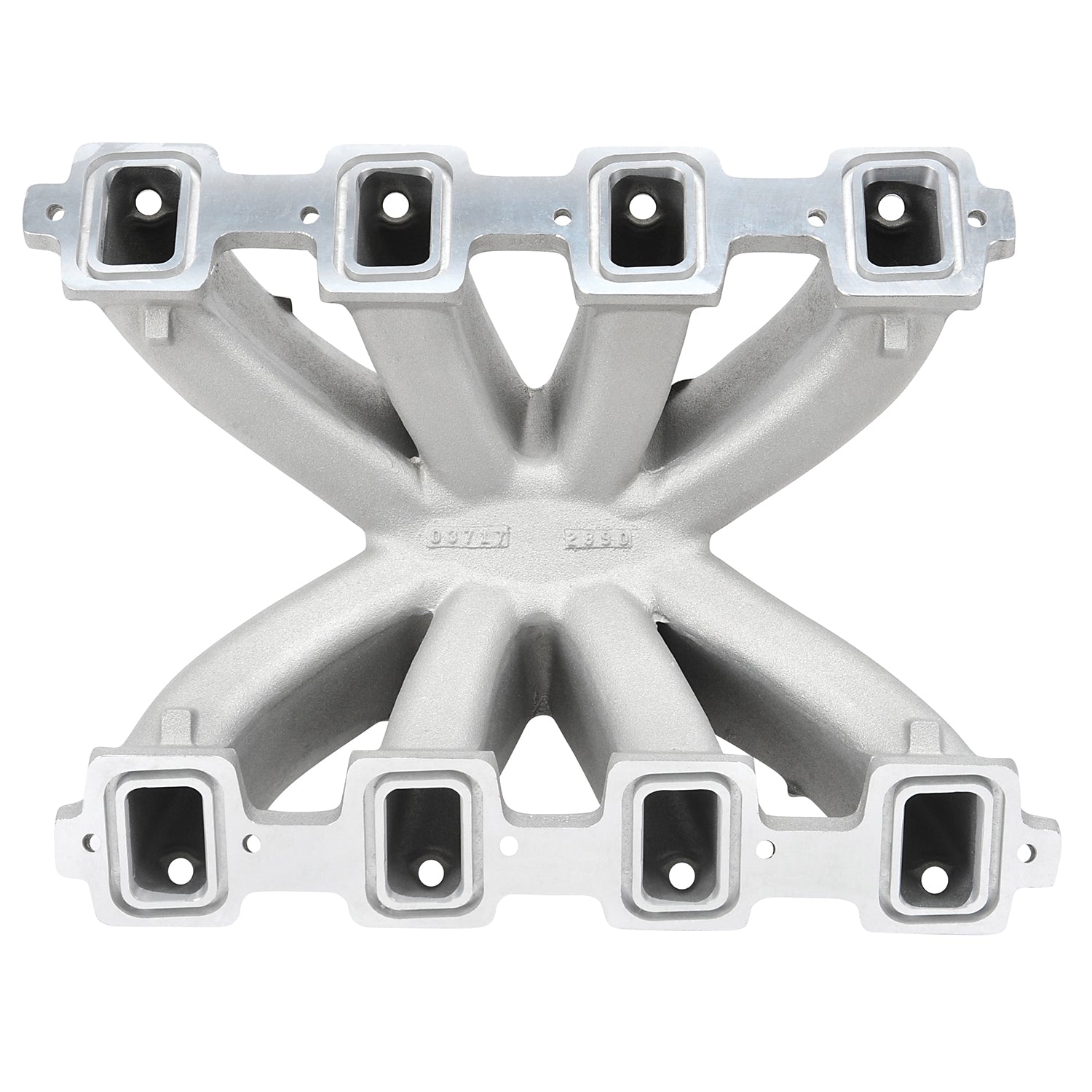

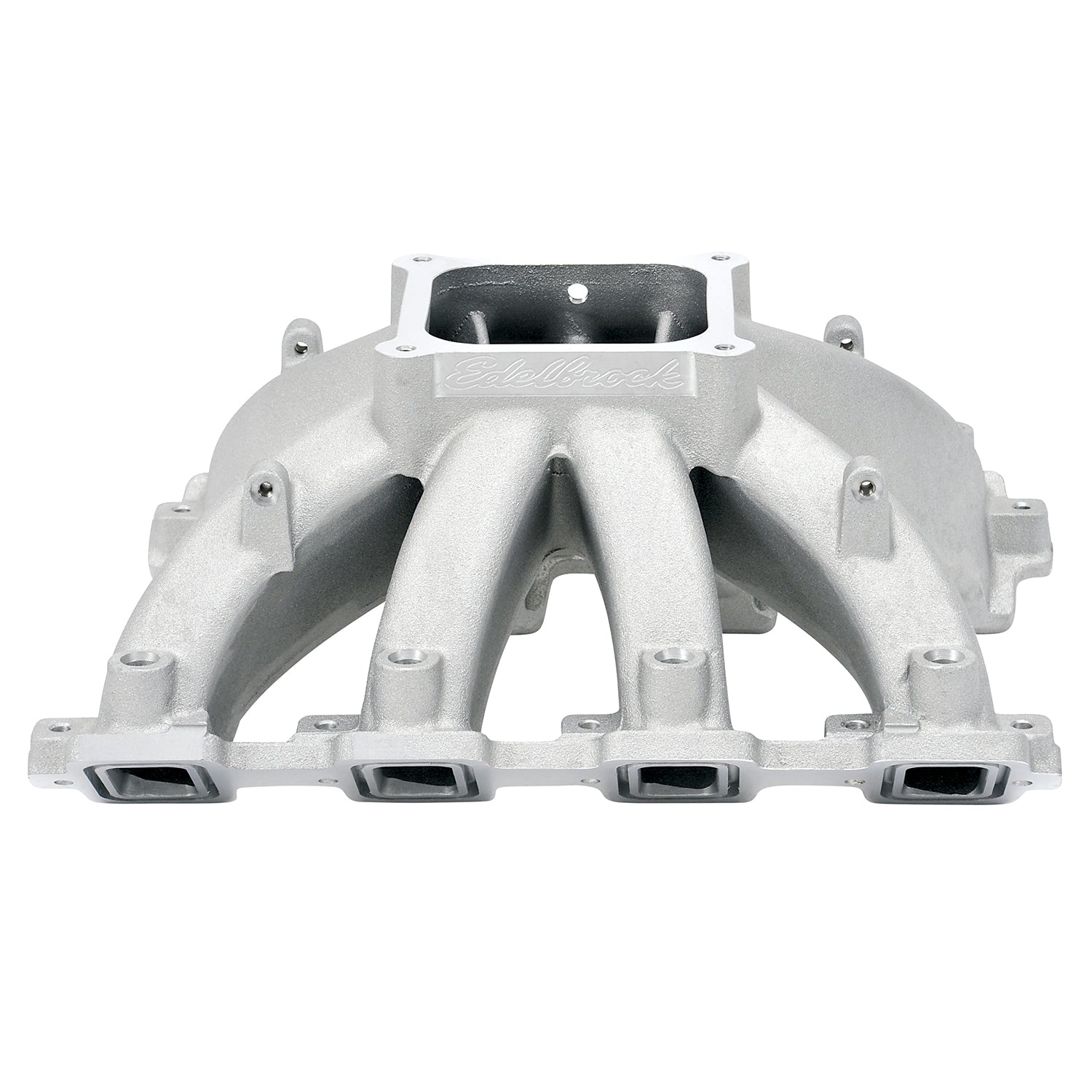

Edelbrock part #28095 Super Victor LS7 EFI intake manifold is designed for Gen IV LS engines equipped with LS7 cylinder heads or Edelbrock Pro-Port Victor Jr. cylinder heads. This manifold is .75" taller than our LS3 Super Victor intakes. This new Super Victor intake manifold is capable of airflow demands of 800+ hp on naturally aspirated engines. This manifold includes machined fuel injector bosses. A carburetor mounted style throttle bracket is recommended.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS7:427 (7.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Super Victor LS7 EFI Dominator Flange Intake Manifold Gen IV 750HP+ |
| Description_INV |
Super Victor LS7 EFI Dominator Flange |
| Description_MKT |
Edelbrock part #28095 Super Victor LS7 EFI intake manifold is designed for Gen IV LS engines equipped with LS7 cylinder heads or Edelbrock Pro-Port Victor Jr. cylinder heads. This manifold is .75" taller than our LS3 Super Victor intakes. This new Super Victor intake manifold is capable of airflow demands of 800+ hp on naturally aspirated engines. This manifold includes machined fuel injector bosses. A carburetor mounted style throttle bracket is recommended. |
| Description_LAB |
Super Victor Small Block Chevy LS7 EFI Dominator Flange Intake Manifold |
| Description_TRA |
Recommended intake gasket: Edelbrock #9746, LS7 style individual port o-ring seals GM PN89017852. |
| Description_TRA |
Uses standard intake Edelbrock bolt kit #8515 |
| Description_TRA |
Edelbrock fuel rail kit #3879 |
| Description_TRA |
Designed for 4500 style throttle body |
| Description_TRA |
Throttle body recommendations: Edelbrock #38783 or #38883 |
| Description_TRA |
Manifold height: A-8.42, B-8.42" |
| Description_TRA |
Carb pad height: 8.42" (measured from the valley cover flange to the carb pad) |
| Description_TRA |
Port exit dimensions machine matched: 1.34" x 2.38". |
| Description_TRA |
.85" taller than the Edelbrock LS3 Super Victor #28265 |
| Description_TRA |
Port exits machine profiled to 1.34" w x 2.38" tall |
| Flange Type |
4500 |
| EGR Port |
No |
| Series |
Victor |
| CNC Ported |
No |
| Material |
Aluminum |
| Rear Maximum Height |
8.420 |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Finish |
Satin |
| Center Maximum Height |
8.420 |
| Front Maximum Height |
8.420 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Chevrolet |
| Basic Operating RPM Range |
3500-8000 |
| Gasket Or Seal Included |
No |
| Length |
12.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
