Edelbrock 28456 Victor Jr W/ Electronic Carb LS3/L76/L92

2 sold in last 8 days
Edelbrock
ds_BDVJ_28456
Engine Intake Manifold
$1,635.15
customers are viewing this product
Holley 9901-209 Efi Manifold - Chevy Big Block V8 - Peanut Port Heads
Holley 9901-209 Efi Manifold - Chevy Big Block V8 - Peanut Port Heads
$1,191.38
Holley 820112-1 Sniper EFI Intake Manifold
Holley 820112-1 Sniper EFI Intake Manifold
$1,345.99
Edelbrock 28456 Victor Jr W/ Electronic Carb LS3/L76/L92
Details

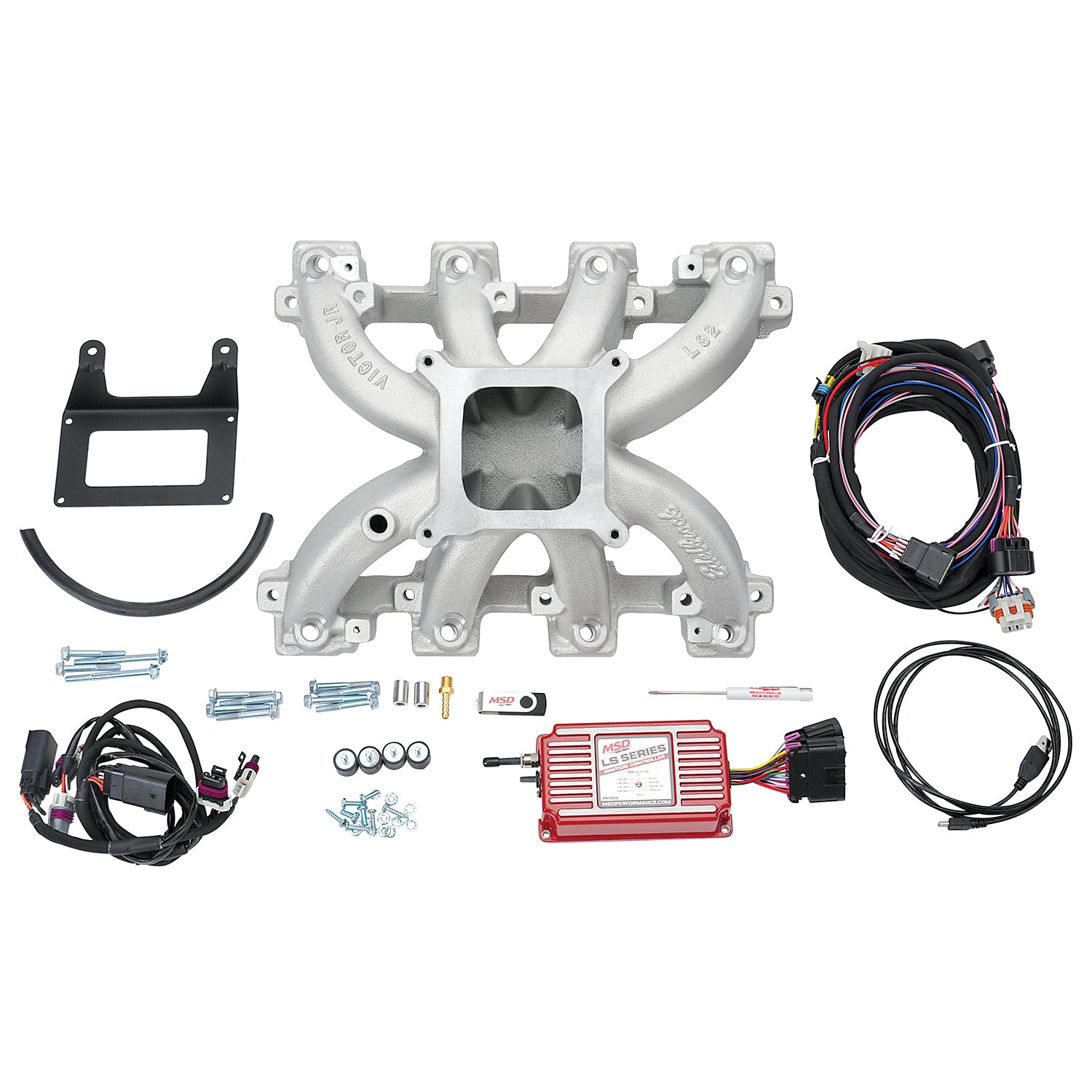

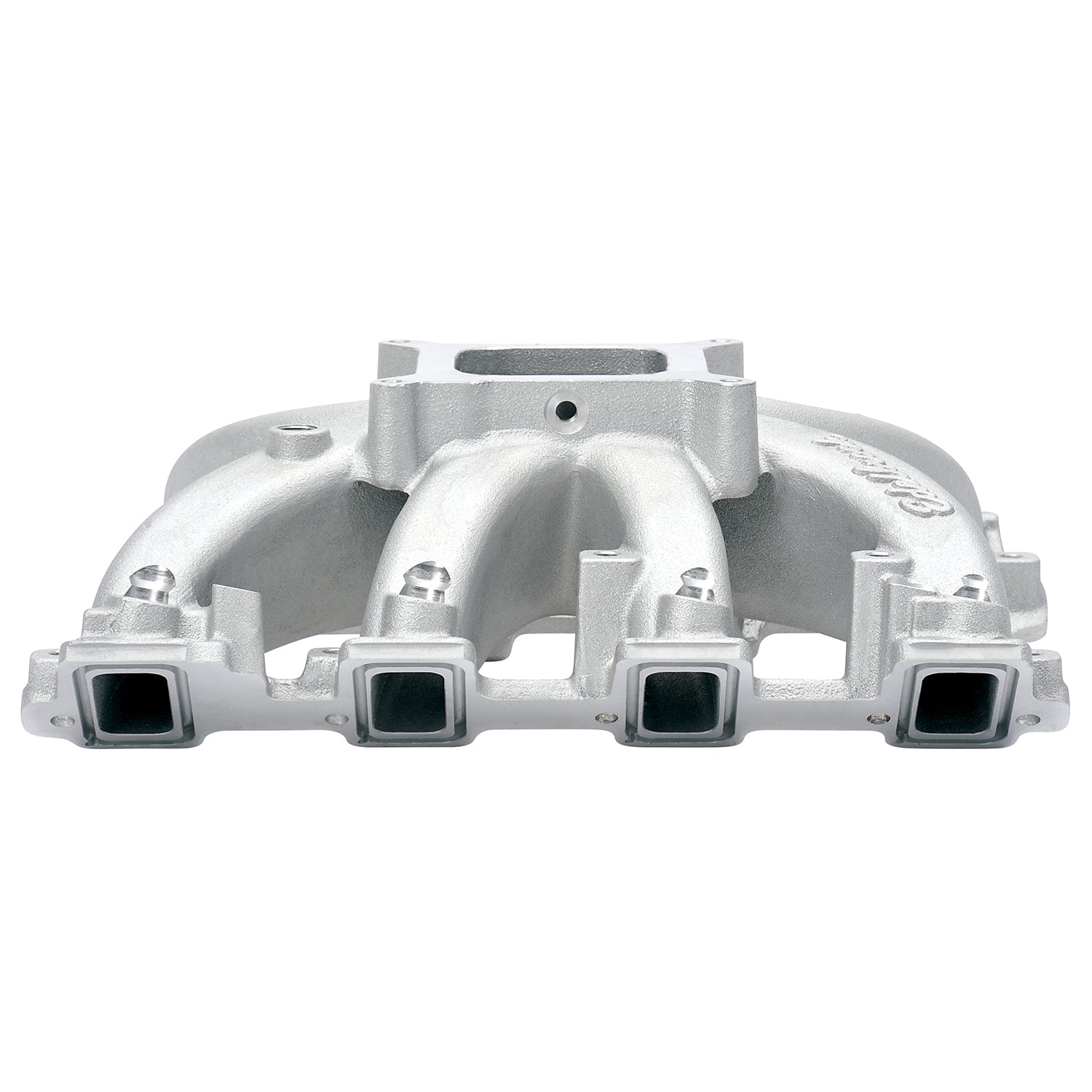

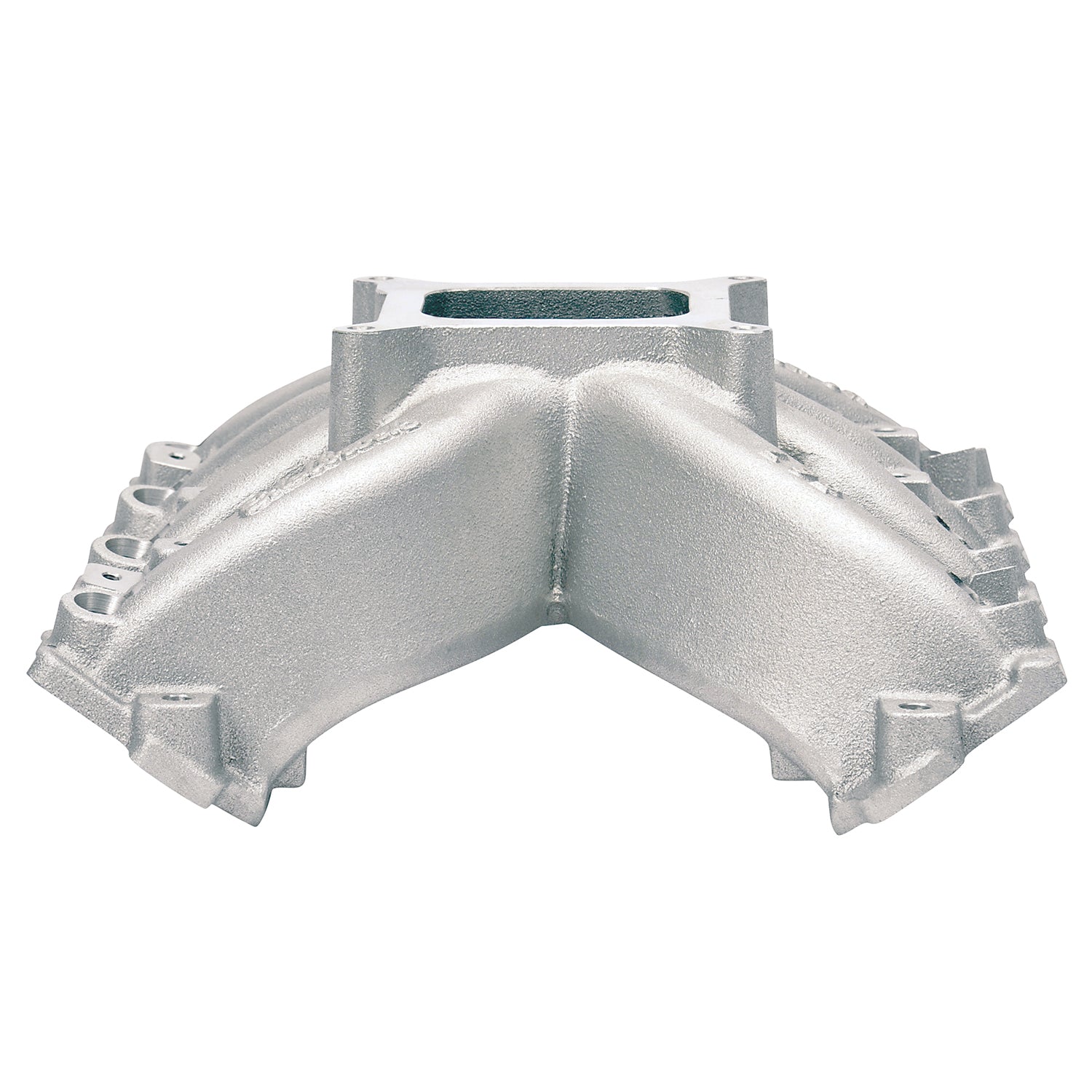

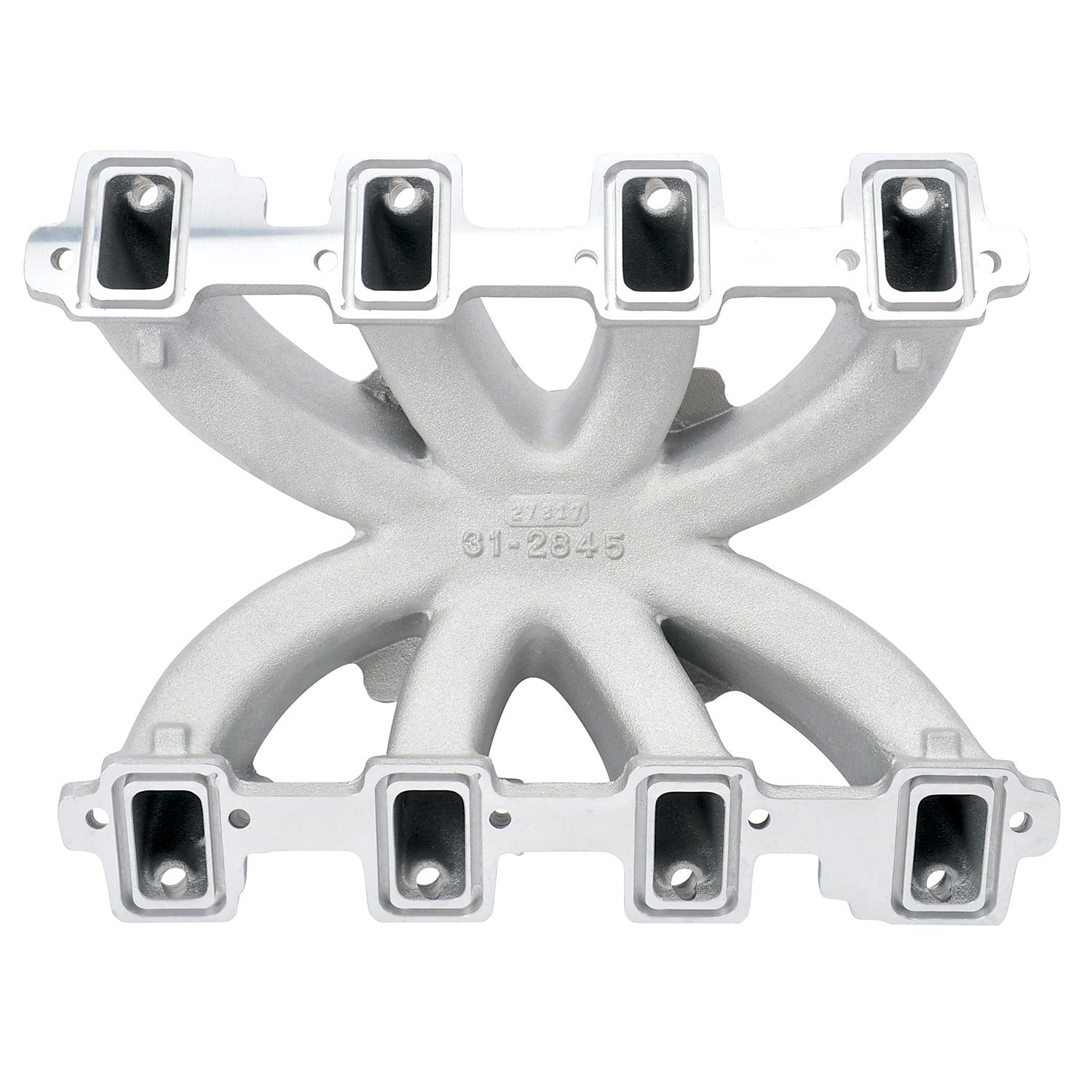

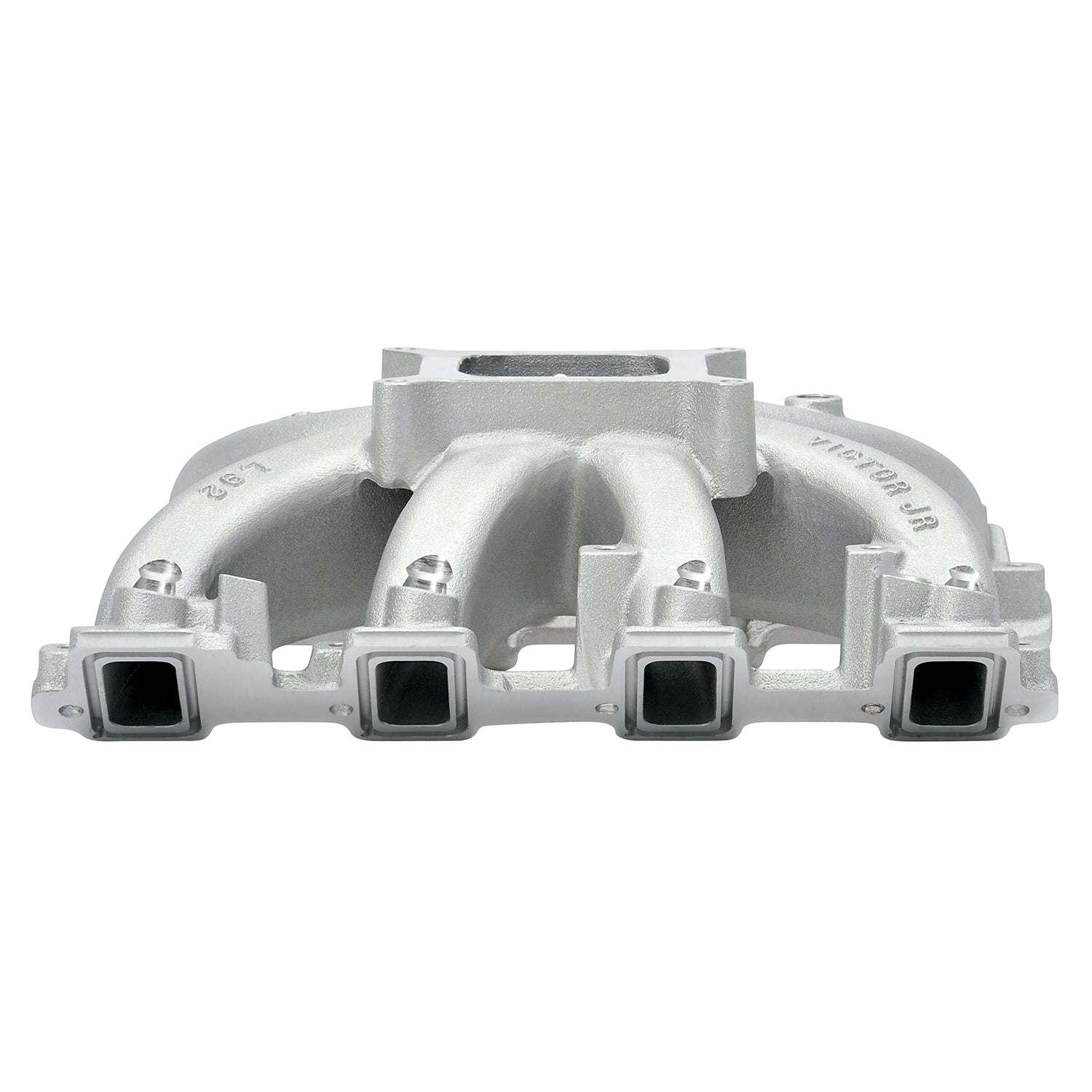

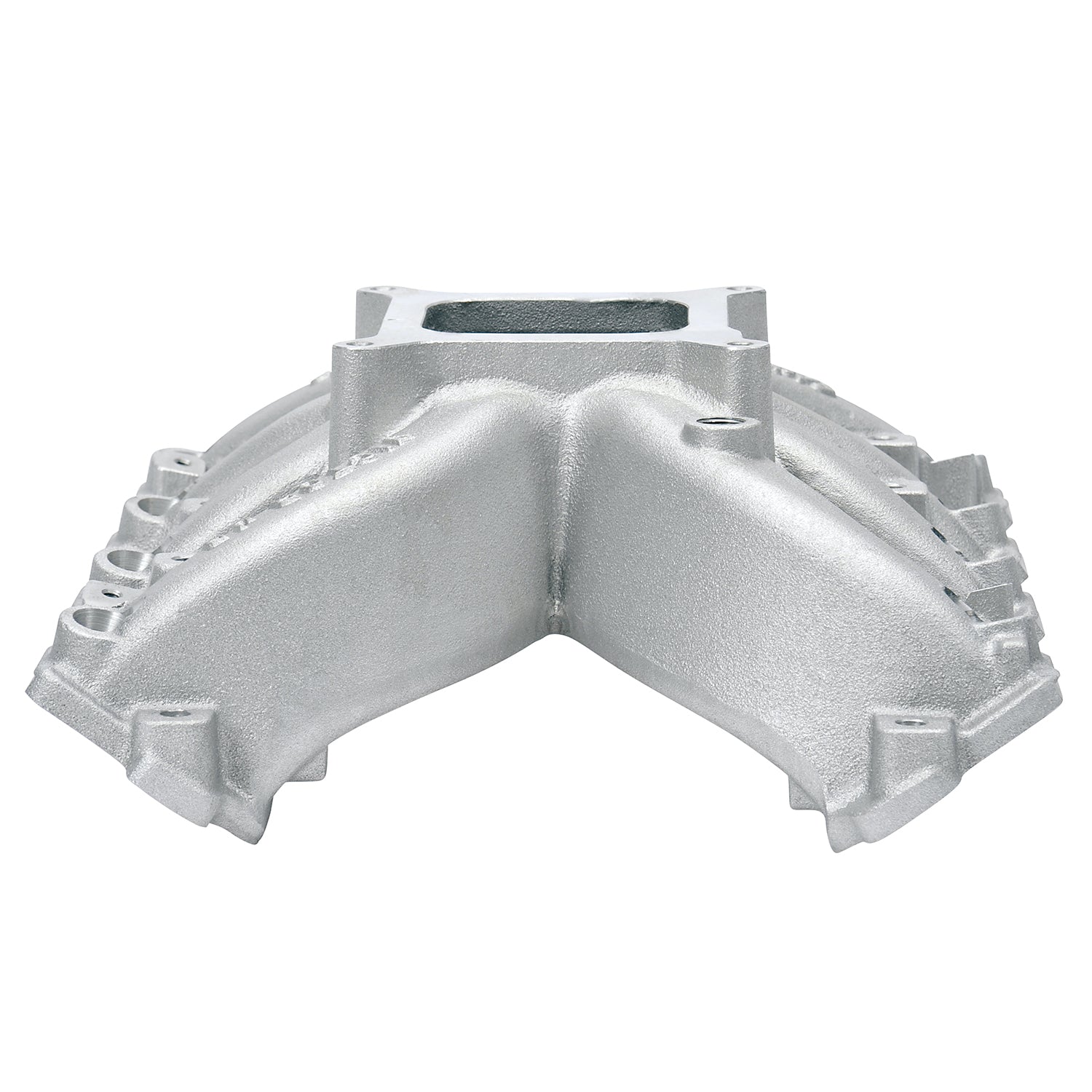

Edelbrock part #28456 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. The Edelbrock Victor JR. LS3 intake manifold comes with an MSD #6014 Timing Control Module. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately). The LS3, L92 and L76 all use the same cylinder head.

Specifications:

Description_ABR Intake Mnfld
Description_ASM Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L)
Description_ASM Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L)
Description_ASM Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L)
Description_ASM Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L)
Description_DEF Engine Intake Manifold
Description_INV Victor Jr W/ Electronic Carb LS3/L76/L92
Description_EXT Edelbrock Victor Jr W/ Electronic Carb LS3/L76/L92 Intake Manifold GM LS Engines
Description_MKT Edelbrock part #28456 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. The Edelbrock Victor JR. LS3 intake manifold comes with an MSD #6014 Timing Control Module. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately). The LS3, L92 and L76 all use the same cylinder head.
Description_LAB Victor Jr Small Block Chevy W/ Electronic Carb LS3/L76/L92 Intake Manifold
Description_TRA Uses LS3/L76/L92 style individual port O-ring seals GM PN19256623
Description_TRA 4150 Carb flange
Description_TRA Throttle body recommendations: Edelbrock #38783
Description_TRA L92 heads are intended for 4.00" bores and will not work with 5.7L blocks without valve reliefs
Description_TRA Comes with MSD control Module #6014
Description_TRA Manifold Dimensions: Roof to bolt centerline-1.85", Floor to bolt centerline -0.57", Hieght-2.42", Carb pad height 7.40"
Finish Satin
EGR Port No
Series Victor
Flange Type 4150
Grade Type Performance
Material Aluminum
Single Or Dual Plane Type Single
CNC Ported No
Rear Maximum Height 6.000
Center Maximum Height 6.000
Front Maximum Height 6.000
Basic Operating RPM Range 3500-7500
Vehicle Model Chevrolet
Gasket Or Seal Included No
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Length 9.0000
Width 16.0000
Height 23.0000
Weight 34.0000
