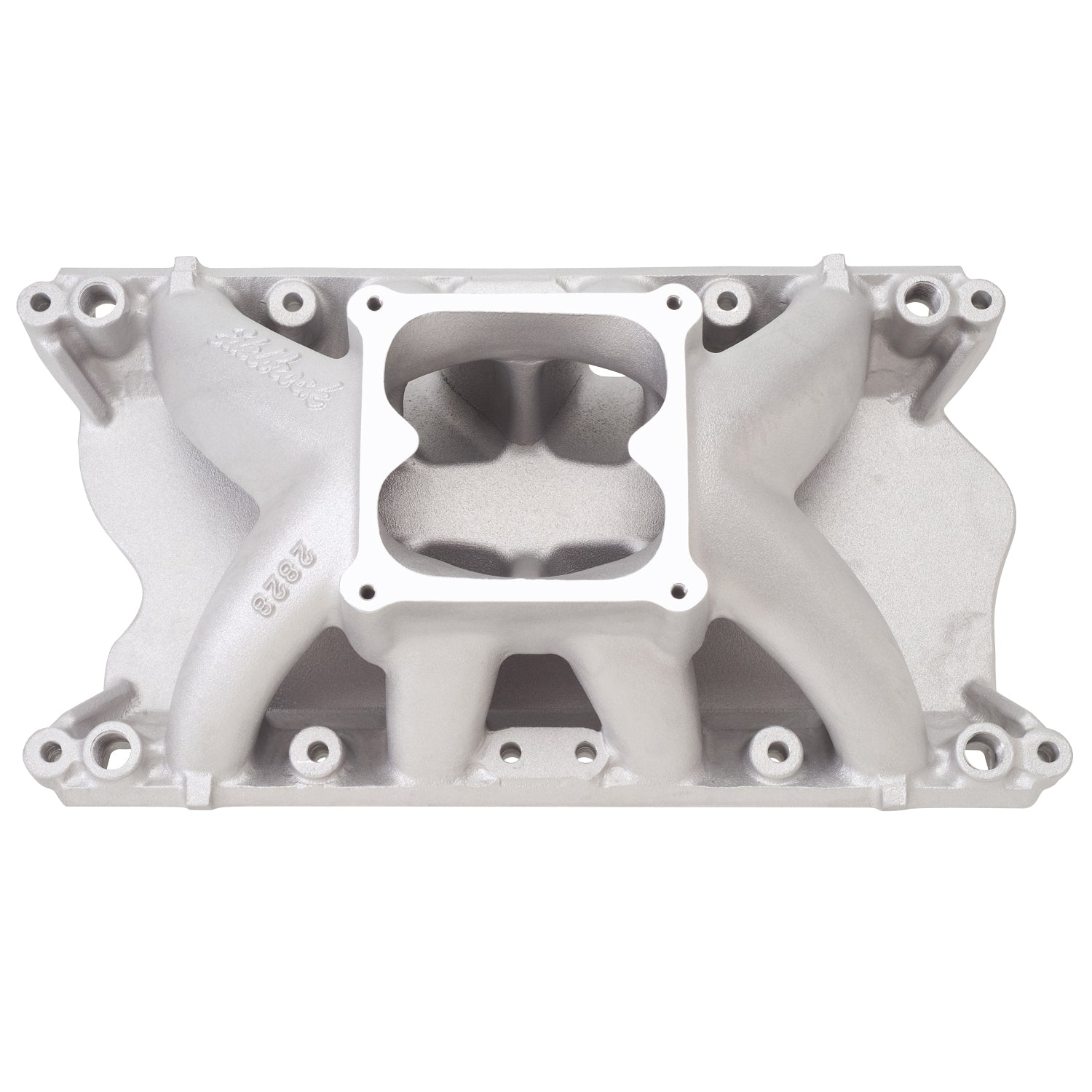

Edelbrock part #2828 Glidden Victor 351W intake manifold is developed in conjunction with noted Ford drag racer Billy Glidden, this manifold is a larger version of our popular Super Victor 351W. Featuring a 4500 series carb pad, it is intended for high rpm and large displacement Windsor headed small-block Fords with a 9.5" deck height. The runner area has been enlarged to 3.6 square inches and the plenum has been increased to produce more high rpm power. To maintain optimum runner shape and location, the front water cross-over has been eliminated, but water fittings have been provided on the intake flange for external plumbing of a thermostat if desired. The carburetor pad height on this manifold is only 0.620" taller than the #2924, making it ideal for single-carb all-out drag racing vehicles.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:351 (5.8L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Gidden Victor 351W Intake Manifold for Small-Block Ford 351-427 Windsor V8 is Designed to fit Windsor Cylinder Heads on a 9.5" Deck Block for Large Cubic Inch & High Horsepower Applications. Accepts 4500-Series Carburetor. Non-EGR |
| Description_INV |
Victor Gildden Ford 351W 9.5 |
| Description_MKT |
Edelbrock part #2828 Glidden Victor 351W intake manifold is developed in conjunction with noted Ford drag racer Billy Glidden, this manifold is a larger version of our popular Super Victor 351W. Featuring a 4500 series carb pad, it is intended for high rpm and large displacement Windsor headed small-block Fords with a 9.5" deck height. The runner area has been enlarged to 3.6 square inches and the plenum has been increased to produce more high rpm power. To maintain optimum runner shape and location, the front water cross-over has been eliminated, but water fittings have been provided on the intake flange for external plumbing of a thermostat if desired. The carburetor pad height on this manifold is only 0.620" taller than the #2924, making it ideal for single-carb all-out drag racing vehicles. |
| Description_LAB |
Victor Gildden 351W 9.5 Intake Manifold Small-Block Ford |
| Description_TRA |
Recommended intake gasket: Fel-Pro #1262 or #1262R. |
| Description_TRA |
Manifold height: A-6.97", B-6.97" |
| Description_TRA |
Carb recommendations: Any size or type class allows |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
7.080 |
| Front Maximum Height |
7.080 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Ford |
| EGR Port |
No |
| Finish |
Satin |
| Basic Operating RPM Range |
5000-9000 |
| CNC Ported |
No |
| Material |
Aluminum |
| Flange Type |
4500 |
| Rear Maximum Height |
7.080 |
| Series |
Victor |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Length |
7.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
24.0000 |
