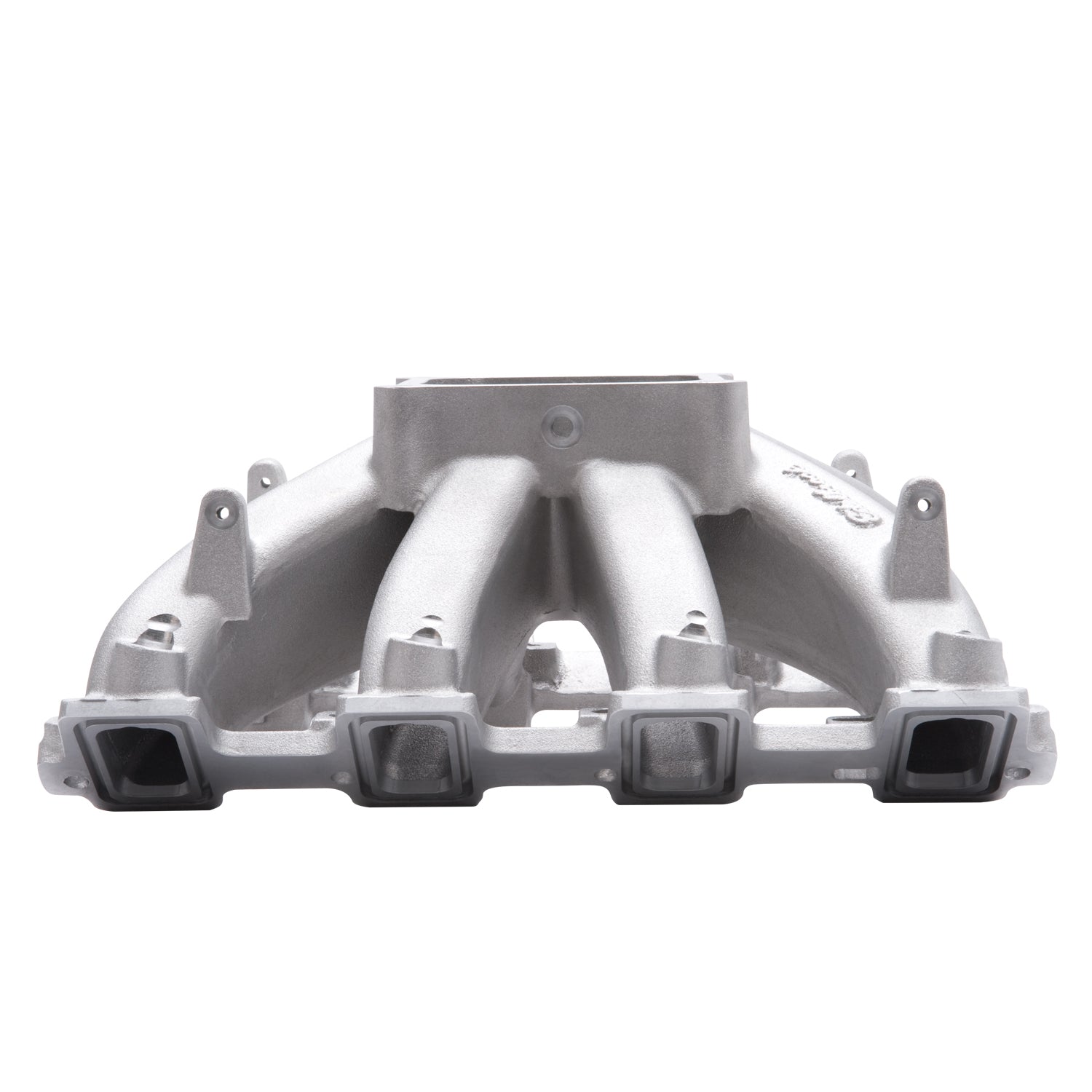

Edelbrock part #28235 Super Victor LS-R EFI two-piece manifold is intended for LS-R high performance race applications operating in the 8,000 rpm range utilizing Edelbrock LS-R CNC cylinder heads #770468. The single plane design features a 4500 series throttle body flange and is capable of producing near 1,000 hp. This Manifold features machined fuel injector bosses for EFI applications. LS-R fuel rail kit, #3510, is available separately. Port exits are tipped 6.5 degrees.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen III Race:- |
| Description_ASM |
Chevrolet:Gen IV Race:- |
| Description_DEF |
Engine Intake Manifold |
| Description_MKT |
Edelbrock part #28235 Super Victor LS-R EFI two-piece manifold is intended for LS-R high performance race applications operating in the 8,000 rpm range utilizing Edelbrock LS-R CNC cylinder heads #770468. The single plane design features a 4500 series throttle body flange and is capable of producing near 1,000 hp. This Manifold features machined fuel injector bosses for EFI applications. LS-R fuel rail kit, #3510, is available separately. Port exits are tipped 6.5 degrees. |
| Description_LAB |
Super Victor Small Block Chevy LSR Dominator EFI intake manifold |
| Description_EXT |
Edelbrock Super Victor LSR Dominator Carburetor GM LS Engines |
| Description_INV |
Super Victor LSR Dominator EFI |
| Description_TRA |
Recommended intake gasket: Edelbrock #7290. |
| Description_TRA |
4500 Series carb flange. |
| Description_TRA |
Throttle body recommendations: Edelbrock #38783 |
| Description_TRA |
Fuel Rail: Edelbrock 3510 (designed for standard injectors measure 2.50" from the o-ring center to o-ring enter). |
| Description_TRA |
Manifold Dimensions: R-1.20", F-.99", H-2.19". |
| Description_TRA |
Carb pad height: 6.02", Carb height for this manifold is measured from the valley cover flange to the carb pad. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Gasket Or Seal Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
9.930 |
| Center Maximum Height |
9.930 |
| Single Or Dual Plane Type |
Single |
| Finish |
Satin |
| Rear Maximum Height |
9.930 |
| CNC Ported |
No |
| EGR Port |
No |
| Grade Type |
Performance |
| Basic Operating RPM Range |
4000-8500 |
| Vehicle Model |
Chevrolet |
| Flange Type |
4500 |
| Material |
Aluminum |
| Series |
Victor |
| Length |
6.0000 |
| Width |
11.0000 |
| Height |
23.0000 |
| Weight |
19.0000 |
