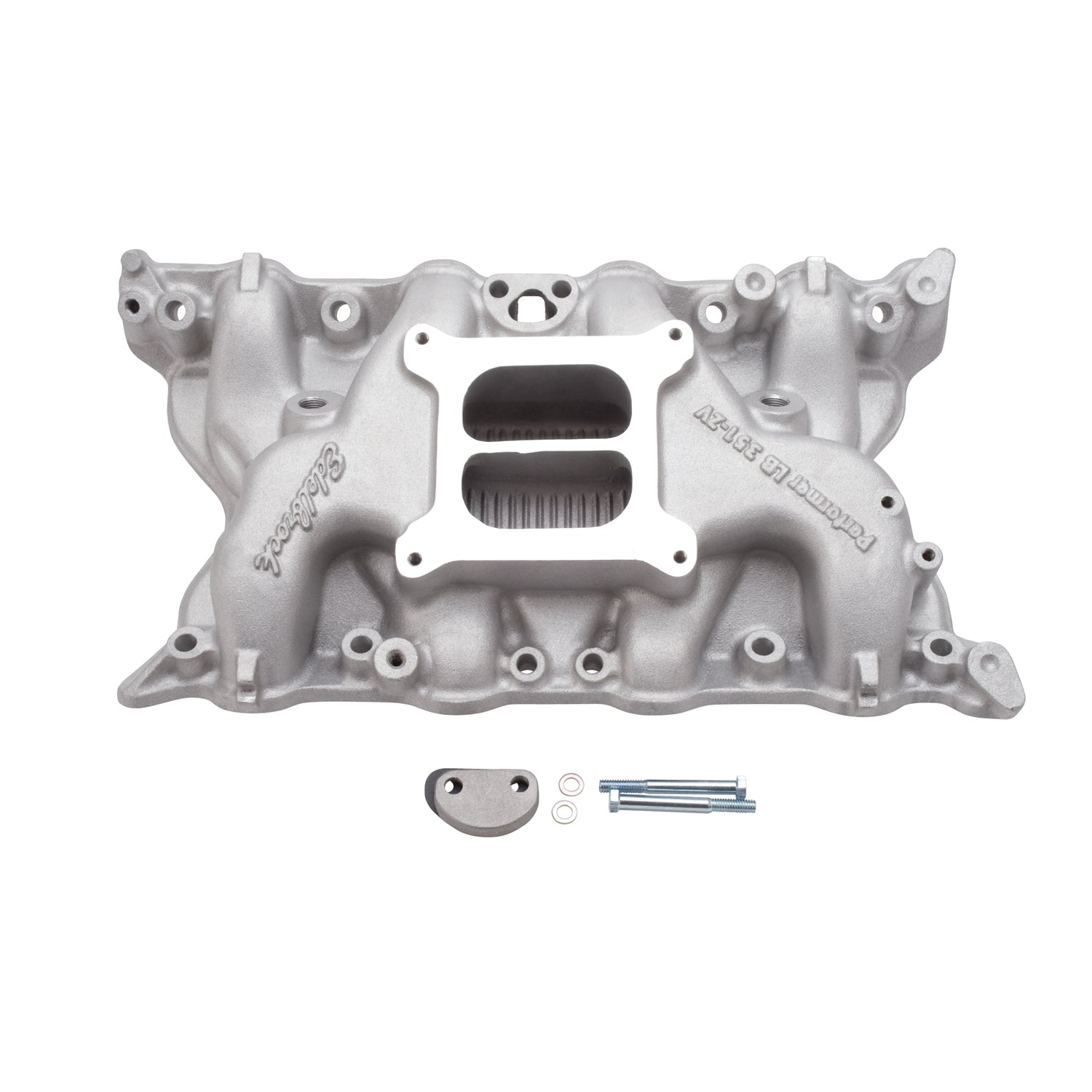

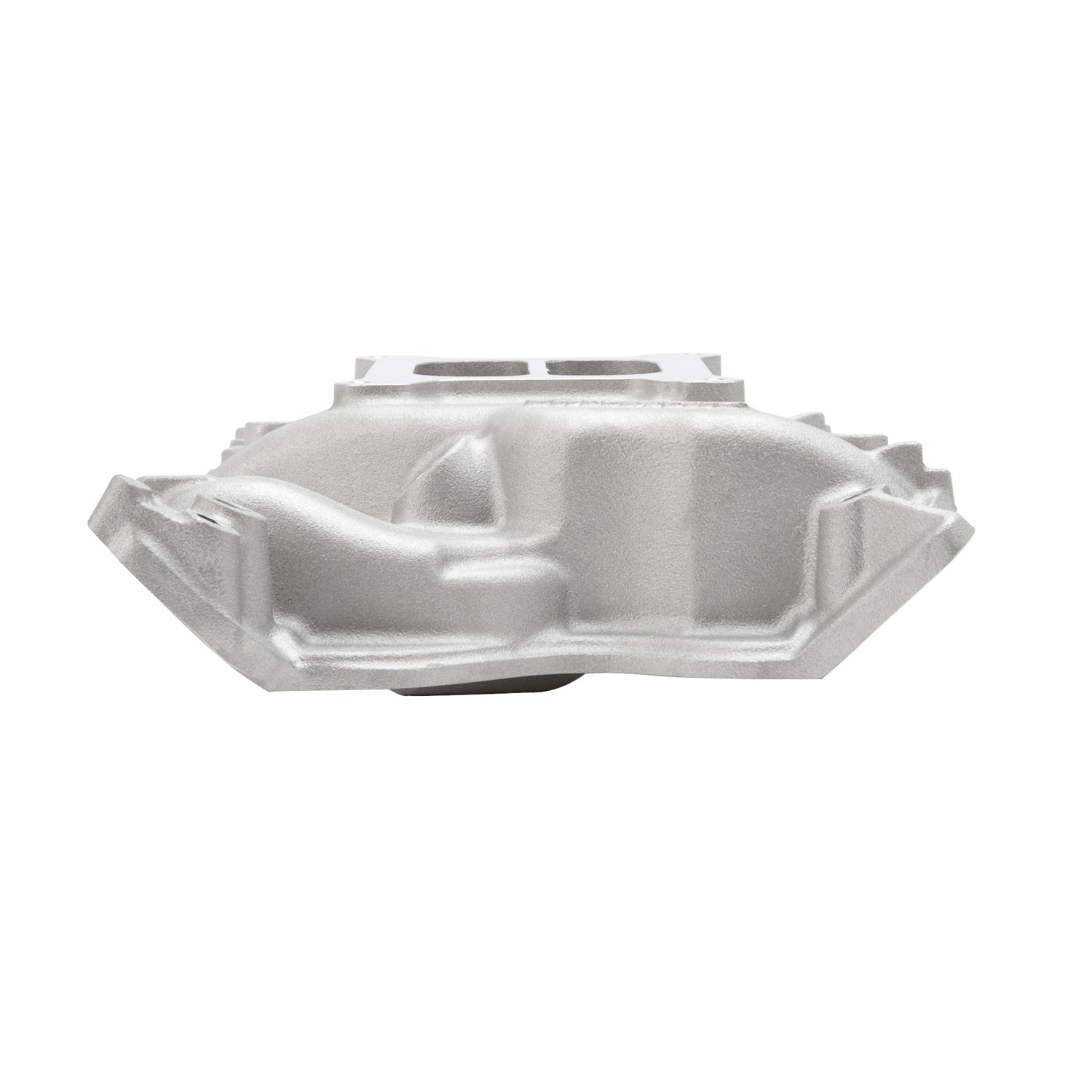

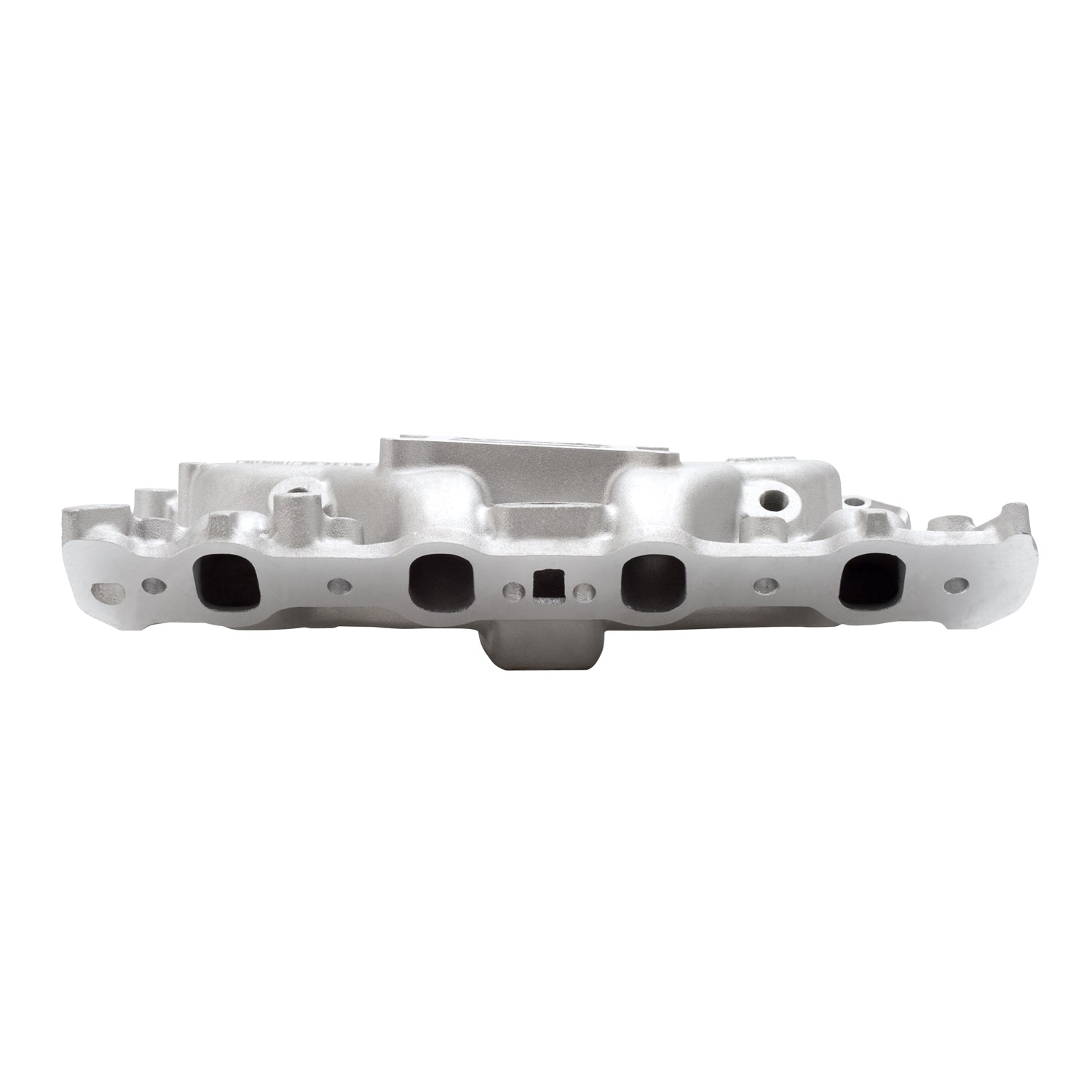

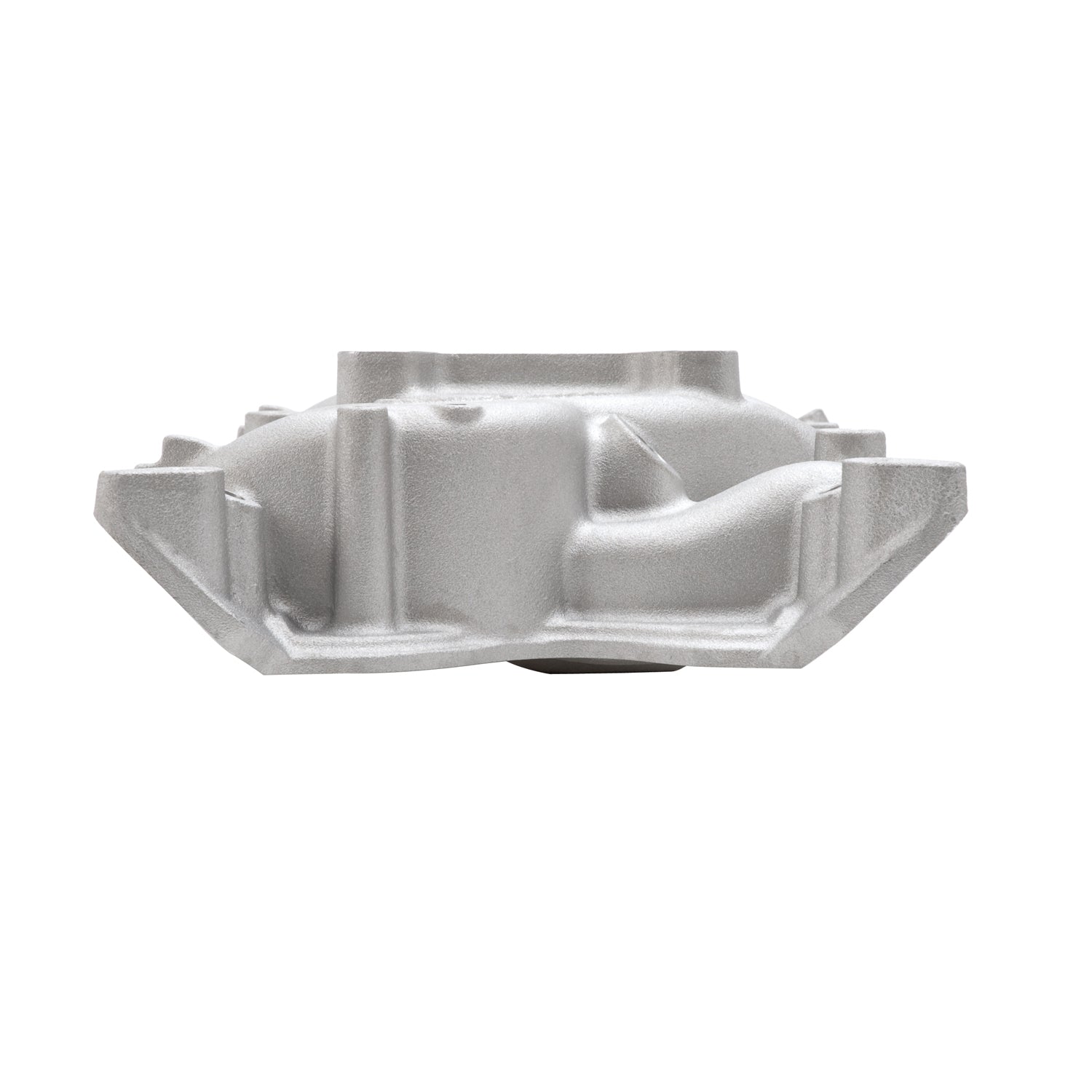

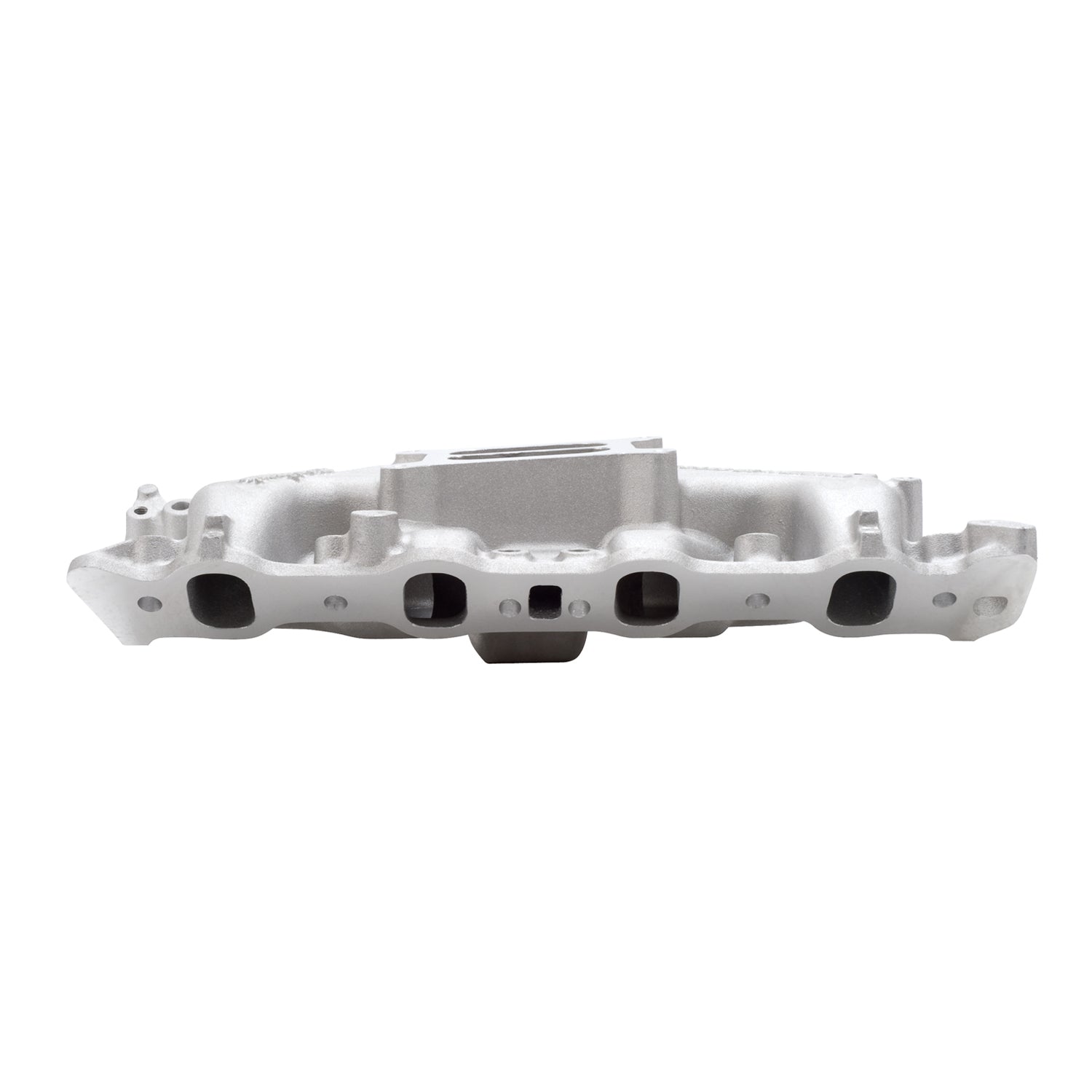

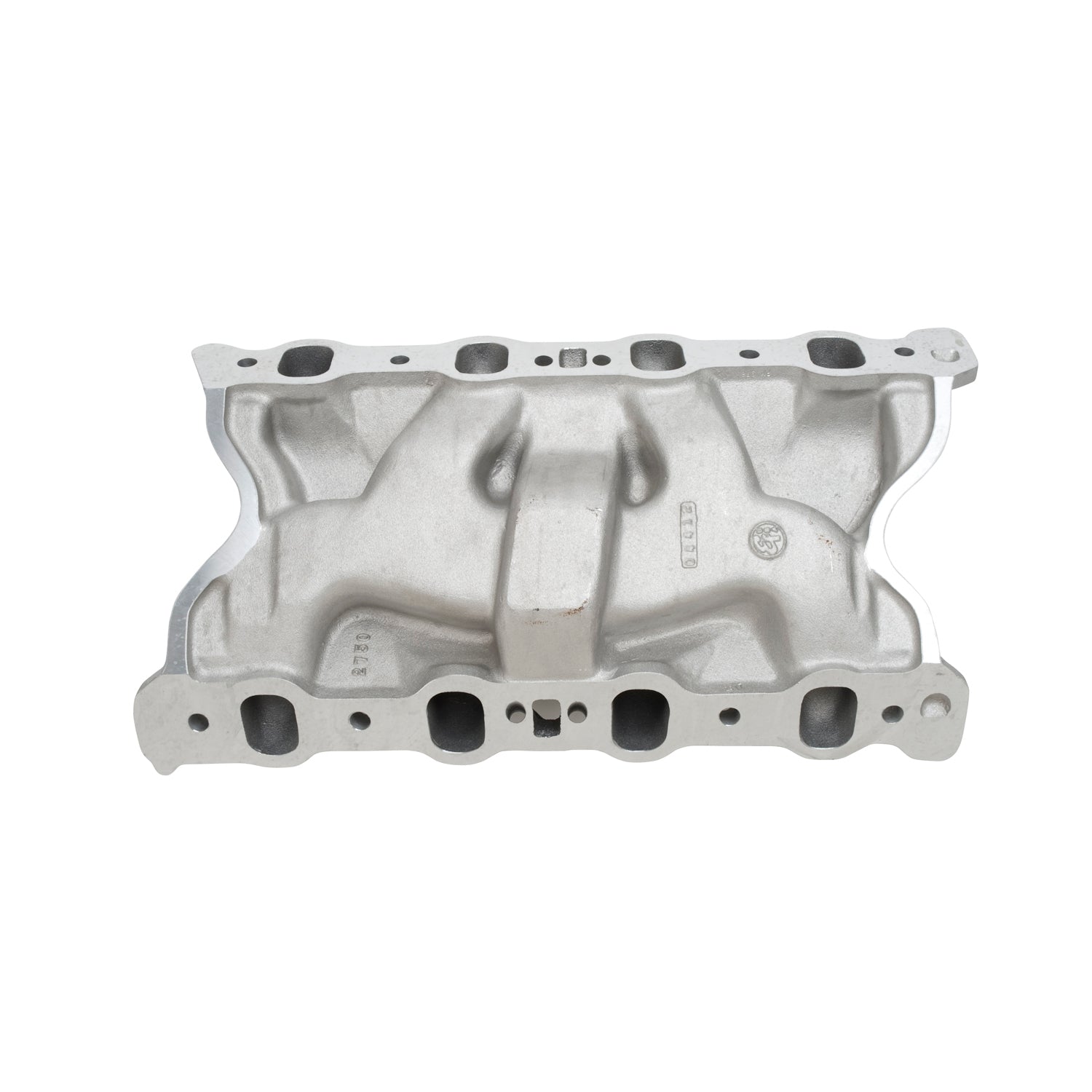

Edelbrock part #2750 Performer 351-2V intake manifold is designed for street 351C and accepts 4V carb, however it's designed to improve the performance of engines that came stock with 2V carb and heads. Manifold will fit Boss 302 or accept stock Motorcraft spread-bore carb. End-seal flange width measures 6-31/32". Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Cleveland:351 (5.8L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Performer 351C 2V Intake Manifold |
| Description_EXT |
Performer 351-2V for Small-Block Ford 351-C & Boss 351 is Designed to Improve the Performance of Engines that came Stock w/2V Carb and Heads. Will Not Fit Boss 302 or Stock Motorcraft Carb. Accepts 4150-Style Square-Bore Carburetor. Non-EGR |
| Description_MKT |
Edelbrock part #2750 Performer 351-2V intake manifold is designed for street 351C and accepts 4V carb, however it's designed to improve the performance of engines that came stock with 2V carb and heads. Manifold will fit Boss 302 or accept stock Motorcraft spread-bore carb. End-seal flange width measures 6-31/32". Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. |
| Description_LAB |
Performer 351 Intake Manifold for Ford 351- 2V Cleveland Engine |
| Description_TRA |
Choke block-off plate included |
| Description_TRA |
Recommended intake gasket: Edelbrock #7265 (2V) |
| Description_TRA |
Manifold height: A-3.50", B-4.30 |
| Description_TRA |
Carb pad height: 3.90" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm, for automatic transmissions use #1483 & #1493 or #1844. |
| Description_TRA |
Port exit dimensions: 1.30" x 1.86" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Front Maximum Height |
3.500 |
| Vehicle Model |
Ford |
| CNC Ported |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Flange Type |
4150 |
| Finish |
Satin |
| EGR Port |
No |
| Rear Maximum Height |
4.300 |
| Grade Type |
Performance |
| Center Maximum Height |
3.900 |
| Basic Operating RPM Range |
Idle-5500 |
| Material |
Aluminum |
| Single Or Dual Plane Type |
Dual |
| Series |
Performer |
| Gasket Or Seal Included |
No |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
