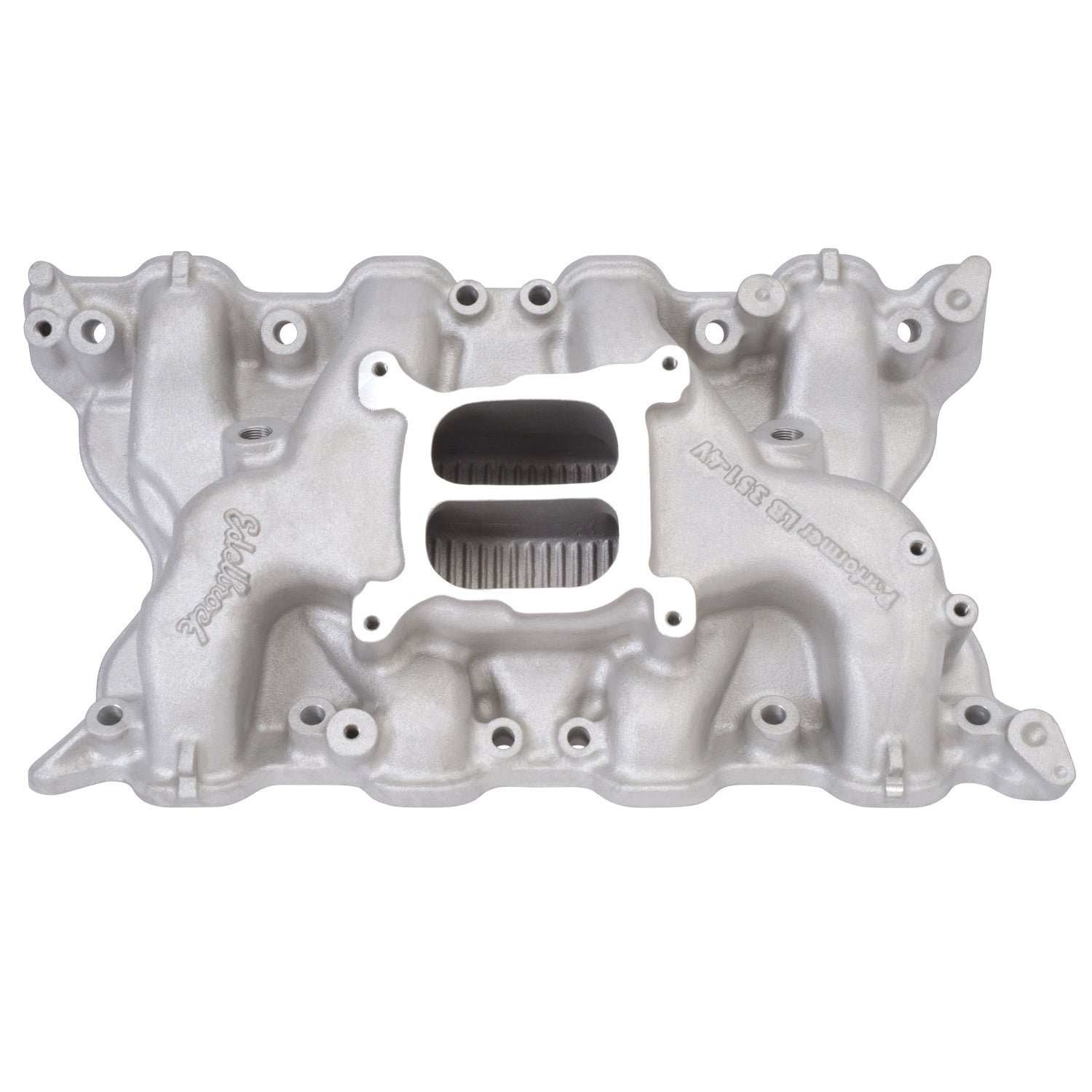

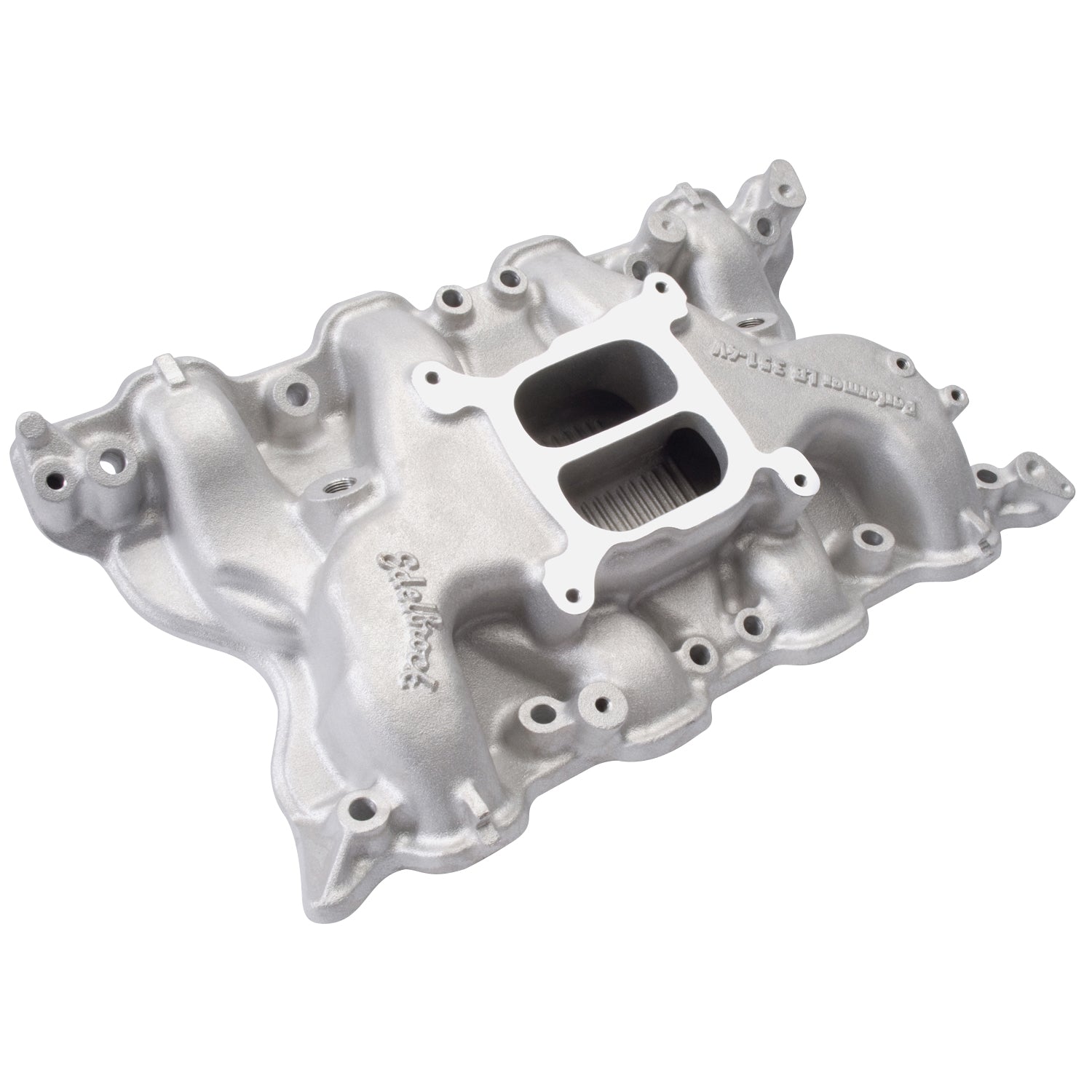

Edelbrock part #2665 Performer 351-4V intake manifold is designed for street 351C and Boss 351 Fords that came stock with 4V carb and heads. Manifold will fit Boss 302 or accept stock Motorcraft spread-bore carb. End-seal flange width measures 6-31/32". Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Cleveland:351 (5.8L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Performer 351C 4V Intake Manifold |
| Description_EXT |
Edelbrock Performer 351 Cleveland 4V Intake Manifold for Ford Cleveland Small-Block 351-C and Boss 351 Fords that came stock with 4V carb and heads. Will Not Fit Boss 302 or accept Stock Motorcraft Spread-Bore Carb. |
| Description_LAB |
Performer 351 Intake Manifold for Ford 351- 4V Cleveland |
| Description_MKT |
Edelbrock part #2665 Performer 351-4V intake manifold is designed for street 351C and Boss 351 Fords that came stock with 4V carb and heads. Manifold will fit Boss 302 or accept stock Motorcraft spread-bore carb. End-seal flange width measures 6-31/32". Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. |
| Description_TRA |
Recommended intake gasket: Fel-Pro #1228 |
| Description_TRA |
Manifold height: A-3.50", B-4.30 |
| Description_TRA |
Carb pad height: 3.90" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm, for automatic transmissions use #1483 & #1493 or #1844 |
| Description_TRA |
Port exit dimensions: #2665 - 1.37" x 2.15" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Vehicle Model |
Ford |
| Rear Maximum Height |
4.300 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Grade Type |
Performance |
| CNC Ported |
No |
| EGR Port |
No |
| Flange Type |
4150 |
| Material |
Aluminum |
| Basic Operating RPM Range |
Idle-5500 |
| Single Or Dual Plane Type |
Dual |
| Gasket Or Seal Included |
No |
| Front Maximum Height |
3.500 |
| Series |
Performer |
| Center Maximum Height |
3.900 |
| Finish |
Satin |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
19.0000 |
