| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen I Vortec:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Performer RPM Q-JET Marine Intake Manifold For 1996+ Small-Block Chevrolet 262-400 V8's with E-Tec or Vortec Heads. Cooling Water Passages are Lined with Brass to Prevent Corrosion. Carb Pads Accept Q-Jet or Square-Bore Marine Carburetors |
| Description_INV |
Marine RPM SBC Vortec Intake Manifold |
| Description_MKT |

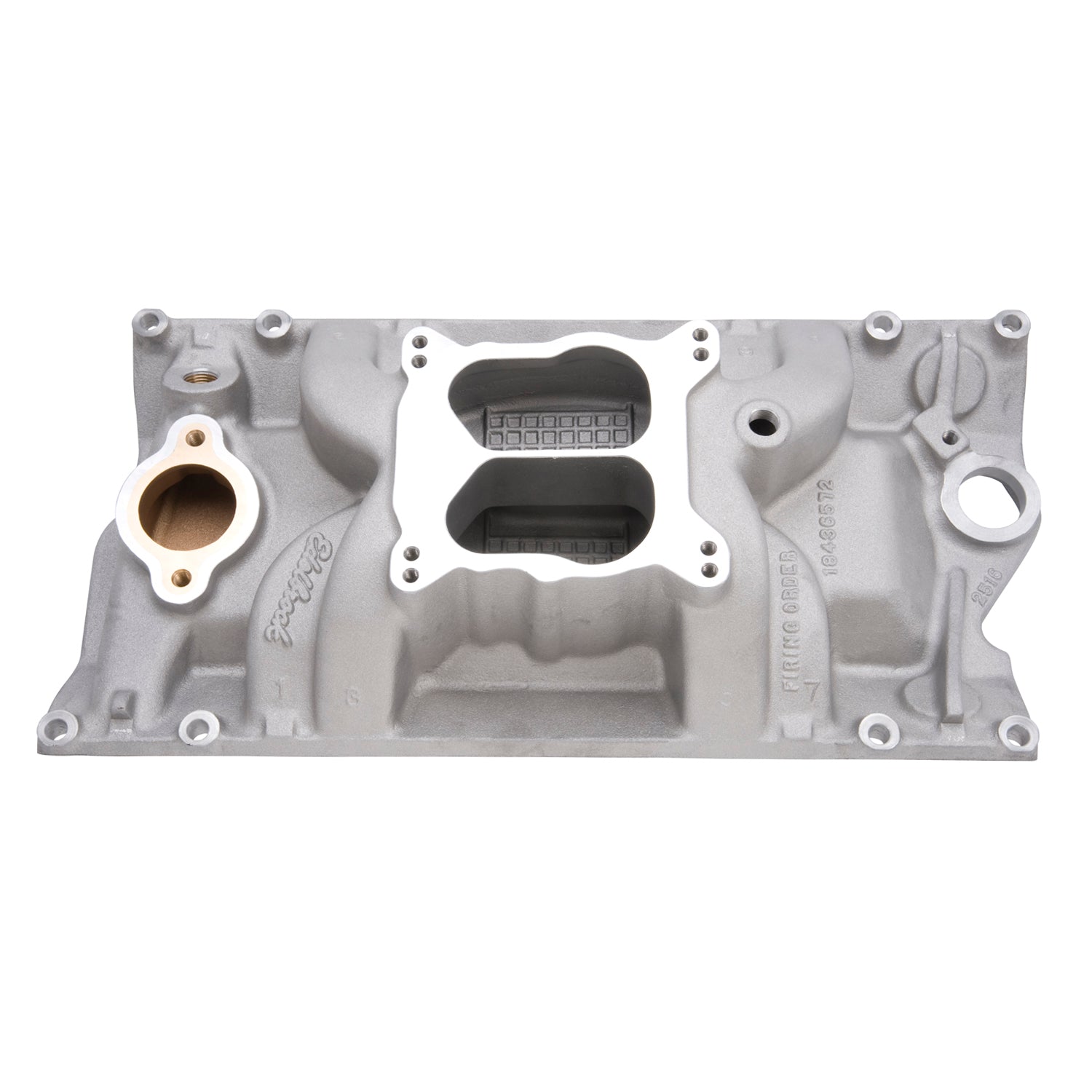

Edelbrock part #2516 Performer RPM Vortec marine intake manifold is based on the powerful Edelbrock #7101. This single four-barrel intake is designed for, marine engines utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. The Edelbrock Performer RPM #2516 marine intake manifold features brass lined front water crossover and brass flange inserts to cover the rear water openings. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. |
| Description_LAB |
Performer RPM 4V/Q-JET Vortec Marine Intake Manifold for Small-Block Chevy |
| Description_TRA |
Recommended intake gasket: Edelbrock #7235 or GM #89017465 |
| Description_TRA |
Manifold ht: .70" taller than #2101 |
| Description_TRA |
Carb recommendations: Edelbrock #1409 or #1410 |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Use #8516 Edelbrock bolt kit |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Stock brackets will require modification to fit the upright manifold bolt holes. Use Edelbrock Vortec throttle bracket #8032. |
| Description_TRA |
A carb flange and plenum design that works well with spread-bore (Q-Jet) or square-bore carburetors without the need for adaptors. |
| Description_TRA |
Match with an Edelbrock Marine carburetor |
| Description_TRA |
Edelbrock does not recommend the use of an economy type carburetor such as the Performer series #1406 or #1411 on Performer RPM Intake Manifolds. Economy type carburetors are calibrated lean for fuel economy and will not perform properly on this style of intake. |
| Description_TRA |
Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Basic Operating RPM Range |
1500-6500 |
| Grade Type |
Performance |
| Rear Maximum Height |
5.250 |
| Flange Type |
4150 |
| Single Or Dual Plane Type |
Dual |
| Series |
Performer RPM |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
4.720 |
| Vehicle Model |
Chevrolet |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Material |
Aluminum |
| Front Maximum Height |
4.200 |
| EGR Port |
No |
| Finish |
Satin |
| CNC Ported |
No |
| Length |
7.0000 |
| Width |
12.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
