| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |

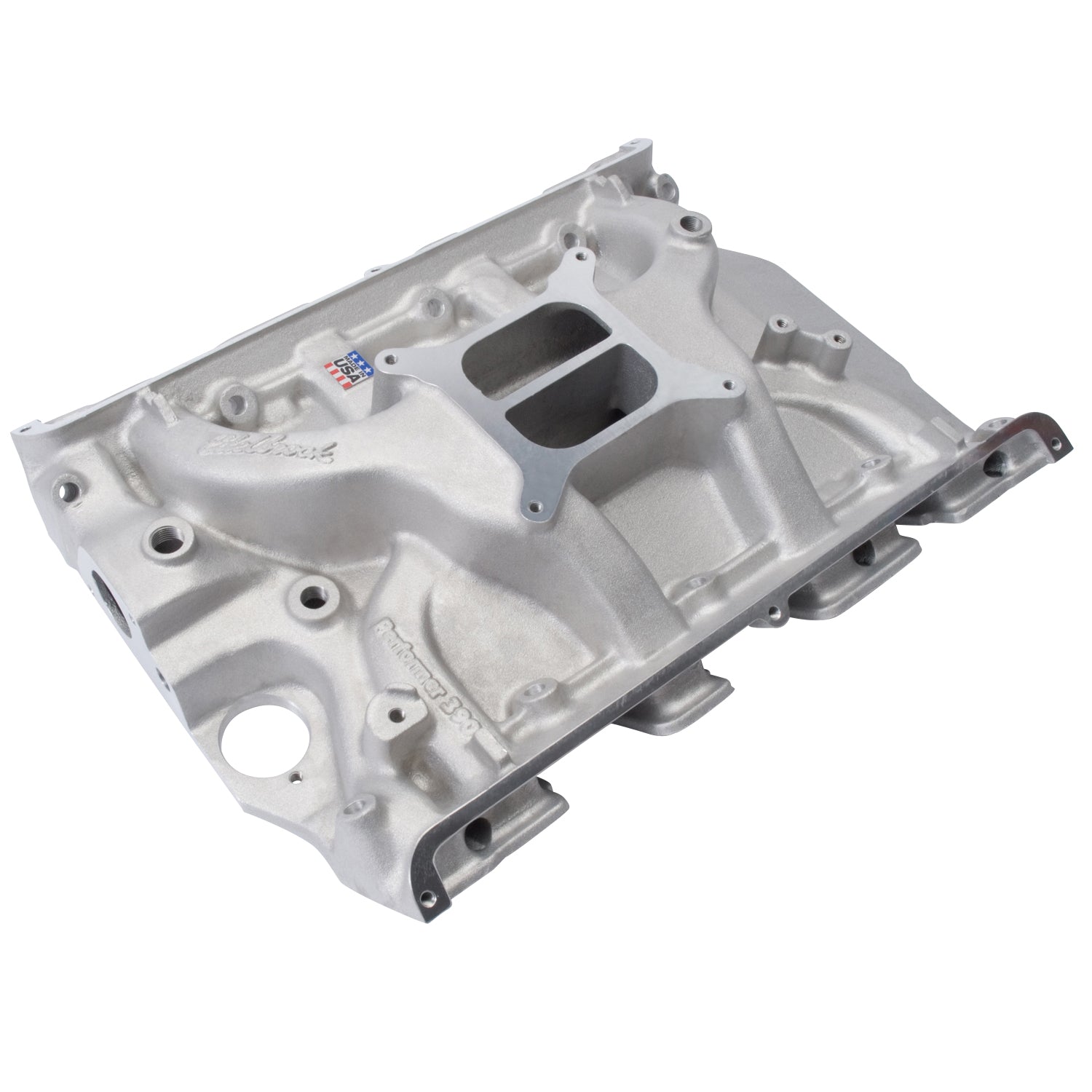

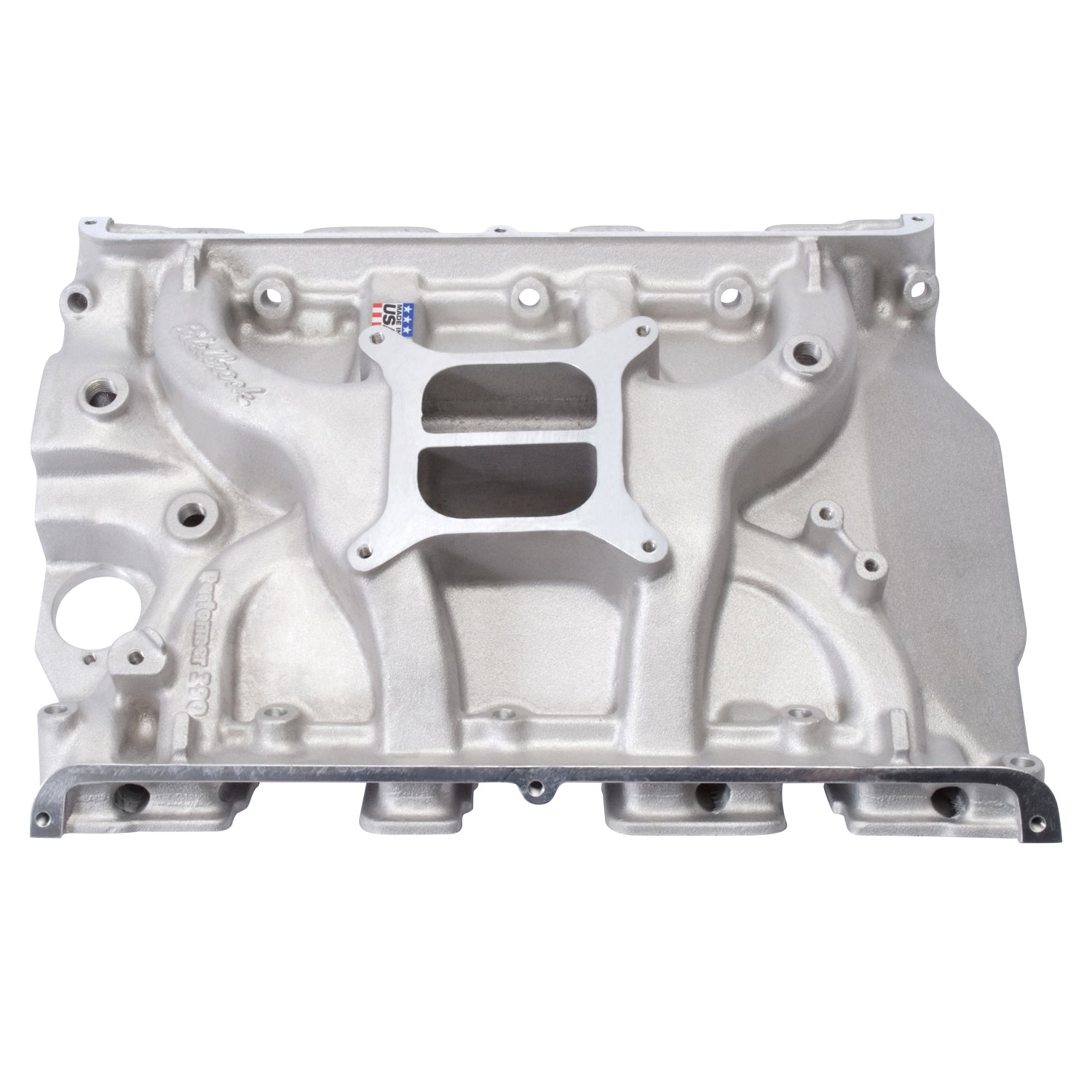

Edelbrock Performer 390 Intake Manifold for 1958-1976 Ford FE Big-Block V-8 is Designed for Street 332-428 c.i.d. Engines with Medium or Low-Rise Cylinder Heads, Accepts (4150-Style) Edelbrock Carb. Non-EGR |
| Description_LAB |
Performer 390 Intake Manifold for Ford FE, Satin Finish |
| Description_MKT |
Edelbrock part #2105 Performer 390 intake manifold is designed for street 332-352-360-390-406-410-427-428 c.i.d. Ford V8's with medium- or low-rise cylinder heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Manifold not equipped with EGR |
| Description_MKT |
will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 c.i.d. and 391 c.i.d. Ford truck V8's. |
| Description_INV |
Performer Manifld 1958-1976 FE 332-428 |
| Description_TRA |
Recommended intake gasket: Edelbrock #7224 or Fel-Pro #1247 |
| Description_TRA |
Manifold height: A-4.35", B-5.50" (same as stock) |
| Description_TRA |
Carb pad height: 4.92" |
| Description_TRA |
Carb recommendations: Edelbrock Thunder Series AVS or Performer Series Carb, 600-800cfm. For automatic transmissions use #1483 or #1844. |
| Description_TRA |
Port exit dimensions: 1.06" x 1.75" |
| Description_TRA |
Will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 & 391 c.i.d. Ford truck V8s. |
| Description_TRA |
Due to the design of Performer manifolds, the throttle and kickdown bracket on some vehicles may require modification to fit. |
| Description_TRA |
Due to the possible lack of hood clearance, you may not be able to use the OEM water heater space block between the intake manifold and carburetor. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Series |
Performer |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Dual |
| Material |
Aluminum |
| Basic Operating RPM Range |
Idle-5500 |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
4.920 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish |
Satin |
| CNC Ported |
No |
| Rear Maximum Height |
5.500 |
| Vehicle Model |
Ford |
| EGR Port |
No |
| Front Maximum Height |
4.350 |
| Flange Type |
4150 |
| Length |
7.0000 |
| Width |
17.0000 |
| Height |
26.0000 |
| Weight |
29.0000 |
