| Description_ABR |
Mn Instl Kit |
| Description_ASM |
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold Installation Kit |
| Description_EXT |

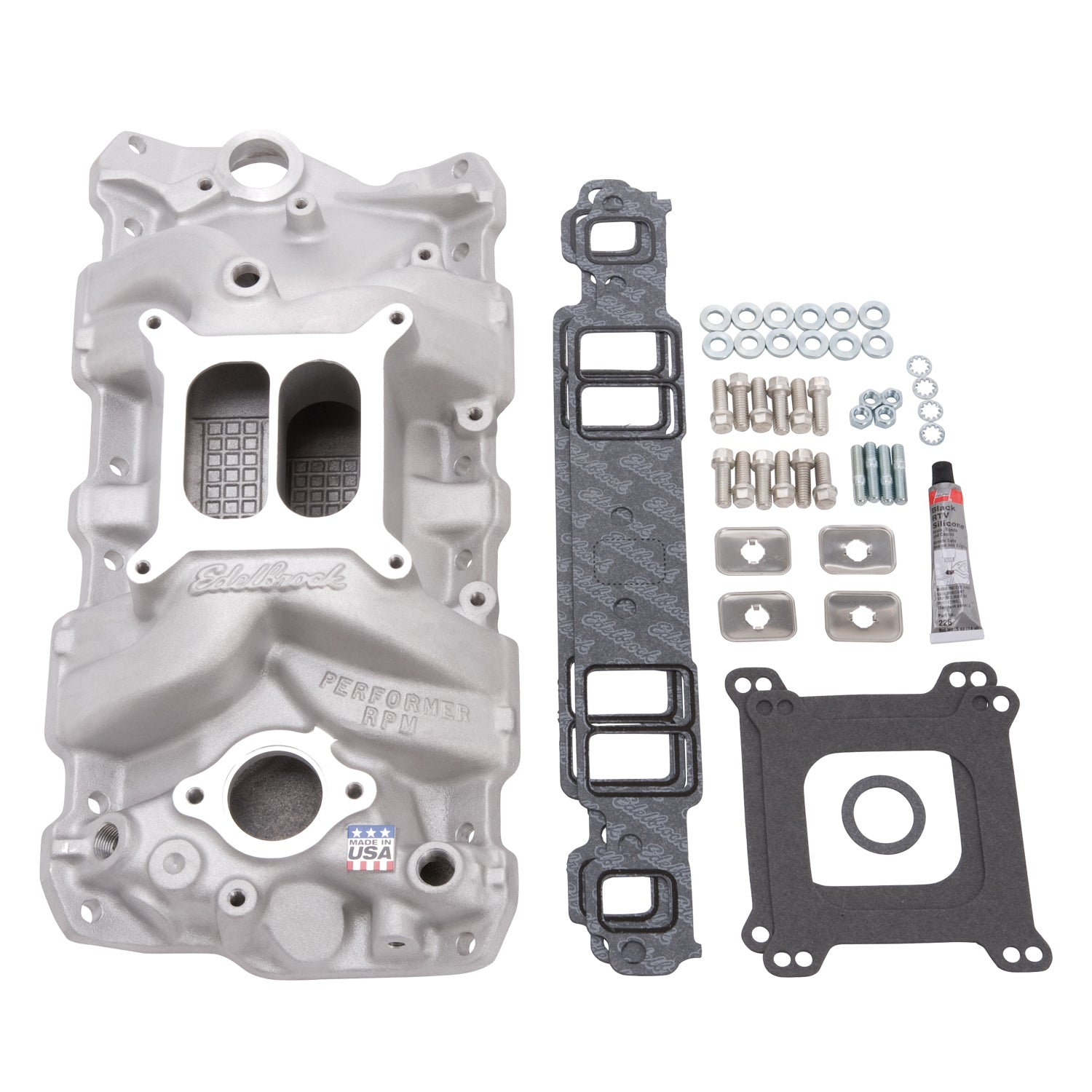

Edelbrock Manifold Installation kit PN 2041 includes all the necessary components to replace your existing intake: PN 7101 Performer RPM intake manifold, intake gasket set, carburetor base gasket, RTV sealant, intake bolts & carb studs. |
| Description_INV |
7101 Chev SB RPM Man w/Full Install Kit |
| Description_MKT |
Edelbrock part #2041 Manifold Installation kit will simplify the process of adding more power and efficiency to your street rod or muscle car. It combines all the necessary components to replace your intake manifold with an Edelbrock aluminum intake manifold. Kit includes: Performer RPM intake manifold #7101, intake gasket set, carburetor base gasket, RTV sealant, intake bolts and carb studs. |
| Description_LAB |
Edelbrock Chevrolet SBC RPM Manifold w/ Gaskets, Bolts, Studs, RTV |
| Description_TRA |
Manifold ht: A-4.20", B-5.25" (.70" taller than #2101) |
| Description_TRA |
Carb pad height: 4.27" |
| Description_TRA |
Port exit dimensions: 1.16" x 1.92" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Use #8504 Edelbrock bolt kit |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Will not fit under stock Corvette hood. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Angle |
(Carb) 3 |
| Material |
Aluminum |
| Family |
Performer RPM |
| Intake Manifold Type |
Part #7101 |
| Single Or Dual Plane Type |
Dual |
| Quantity |
Kit |
| Basic Operating RPM Range |
1500-6500 |
| Series |
Performer RPM |
| Front Maximum Height |
(A) 4.20 |
| Carburetor Quantity |
One |
| Mounting Hole Quantity |
(Carb Bolt) 4 |
| Fastener Material |
Steel |
| Vehicle Model |
Chevrolet |
| Center Maximum Height |
(Carb Pad) 4.72 |
| Hardware Included |
Yes |
| Gasket Or Seal Included |
Yes |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Bolts Or Studs Included |
Yes |
| Port Exit Dimensions |
1.16 x 1.92 |
| CNC Ported |
No |
| Finish |
Satin |
| Rear Maximum Height |
(B) (Measured To Engine Block) 5.25 |
| Deck Height |
Standard |
| Mounting Hole Diameter |
(Carb Bolt) 5/16-18 UNC |
| EGR Port |
No |
| Flange Type |
4150 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
22.0000 |
