| Description_ASC |
Available for 2011-2014 Coyote under 3041 |
| Description_ASM |
2015-2018 Ford 5.0 Coyote |
| Description_DEF |
Engine Timing Chain |
| Description_DES |
Hi-Tech Severe Duty Timing Chain Set for 2015-2018 Ford 5.0 Coyote |
| Description_EXT |
A must when upgrading camshafts, our Hi-Tech Timing Chain Sets for 2015-20185.0 Coyote feature 15% thicker plates than factory secondary chains, preventing the common secondary chain failure. |
| Description_SHO |
HTChains15-185.0Cte |
| Description_INV |
Hi-Tech Chains 15-18 Ford 5.0 Coyote |
| Description_SHP |
None |
| Description_KEY |
Coyote, Ford Mustang, 5.0 Mustang, 5.0 Coyote, Ford Coyote, Mustang GT |
| Description_SLA |
Coyote Timing Chains |
| Description_MKT |

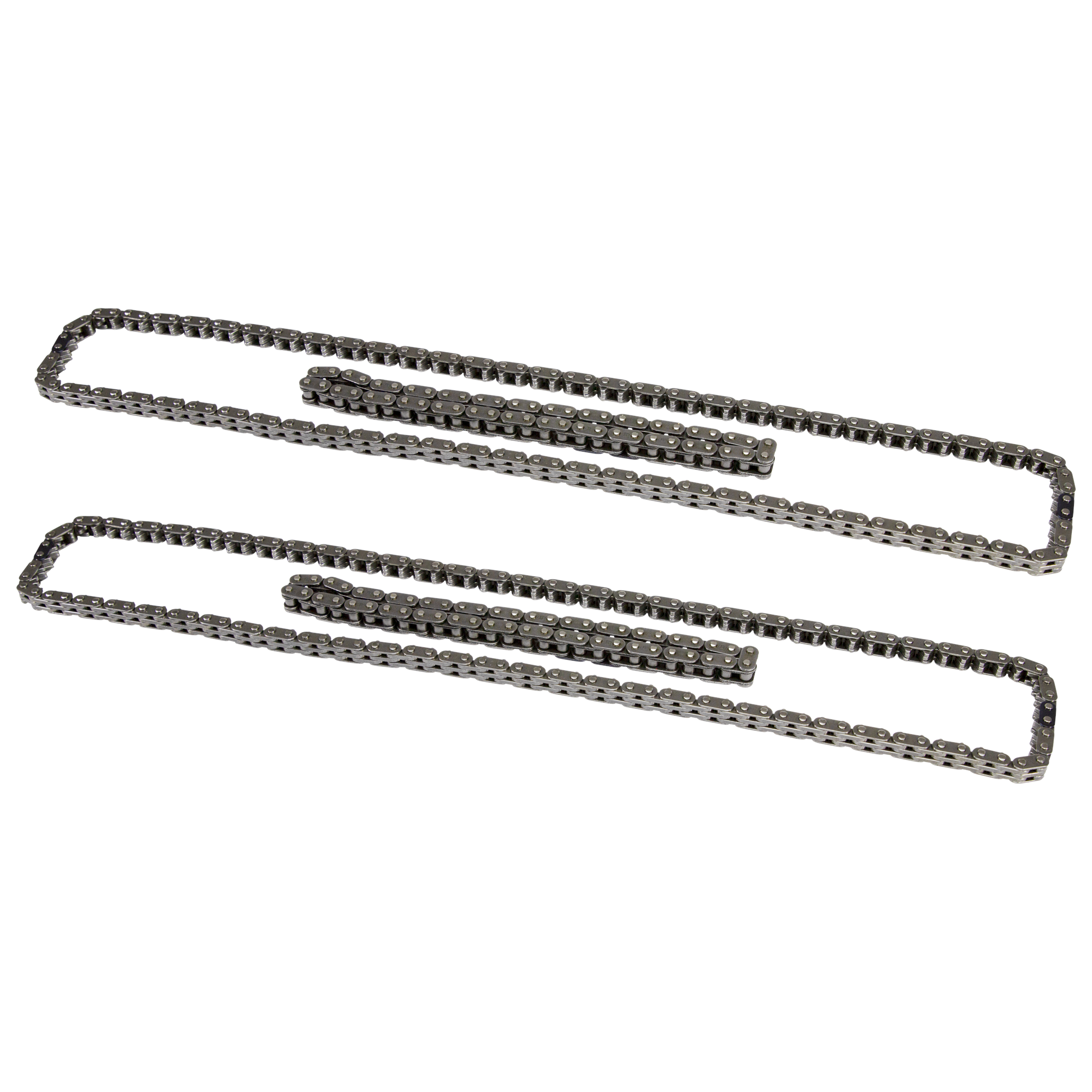

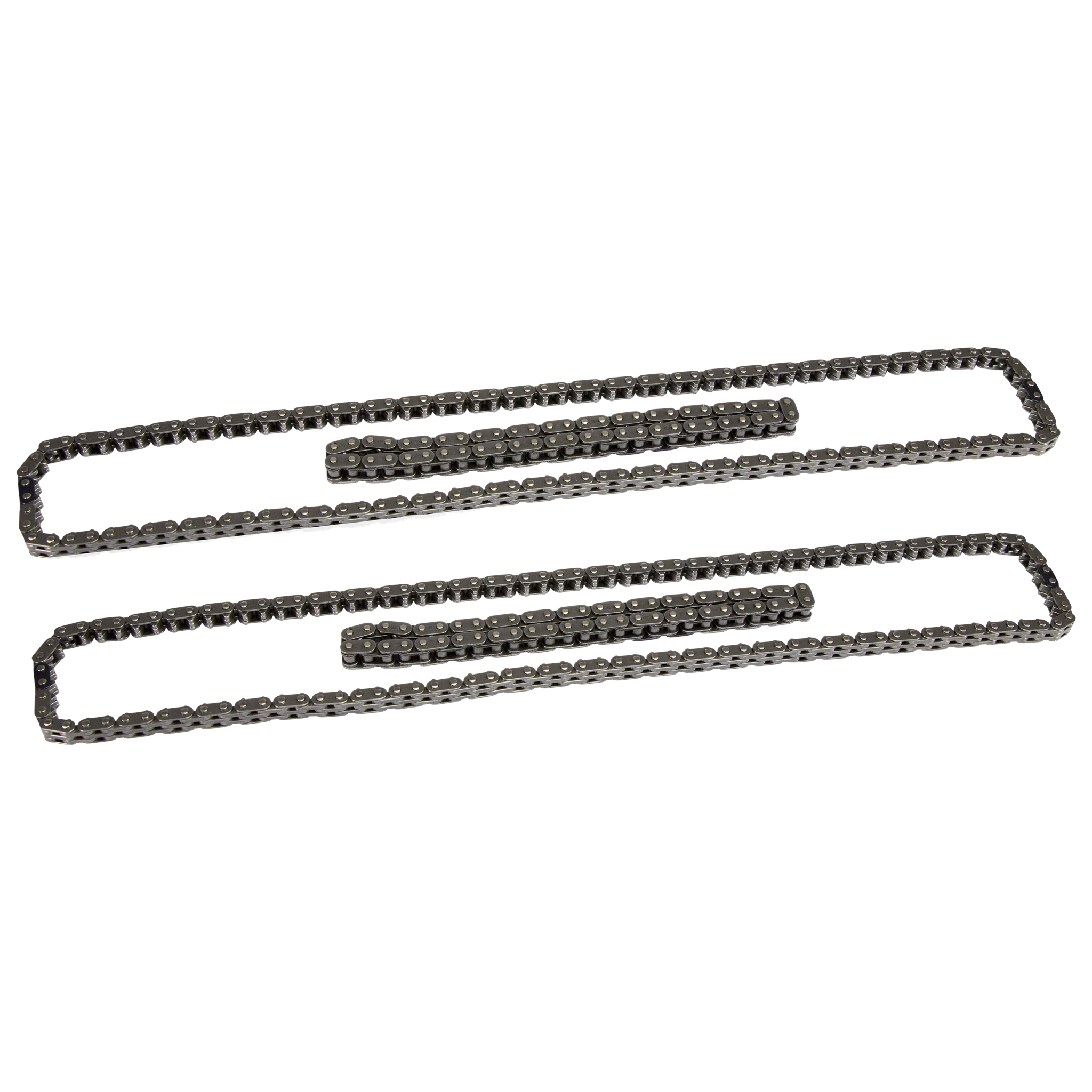

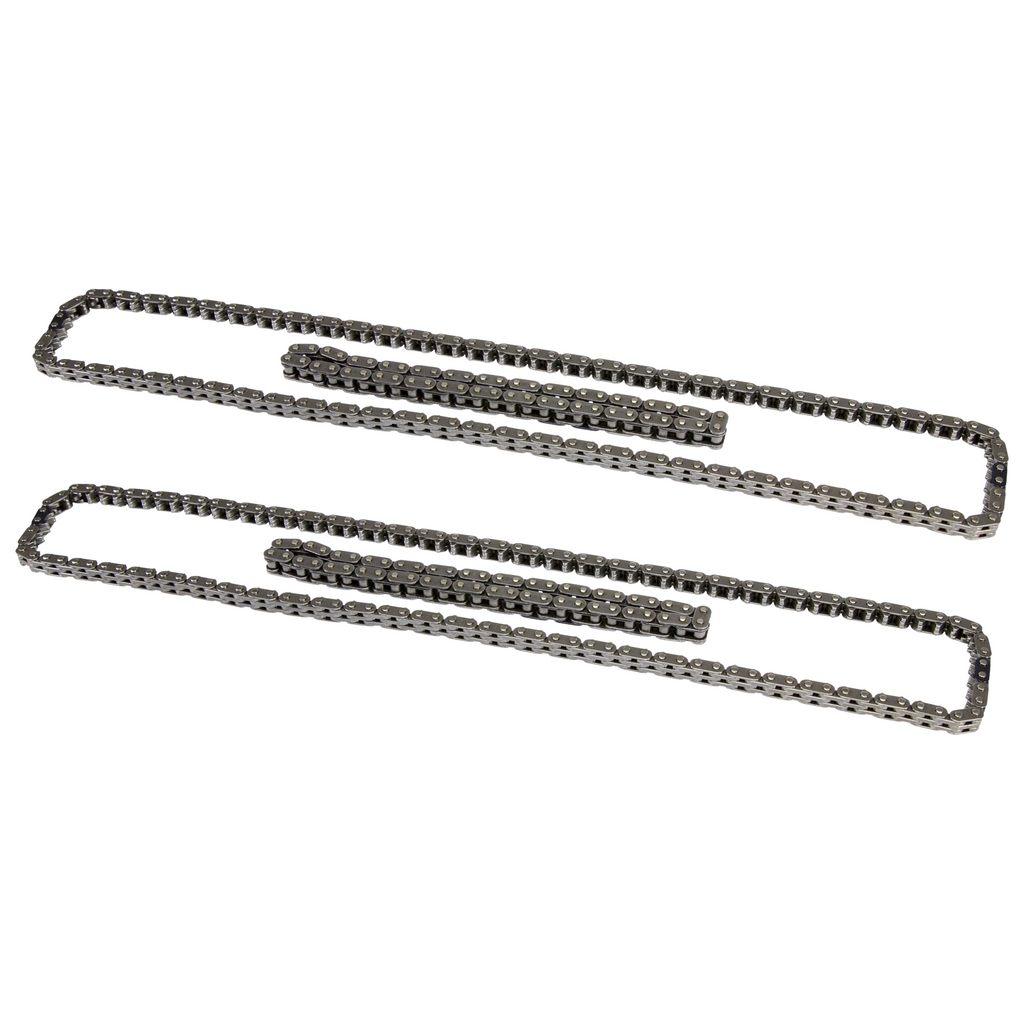

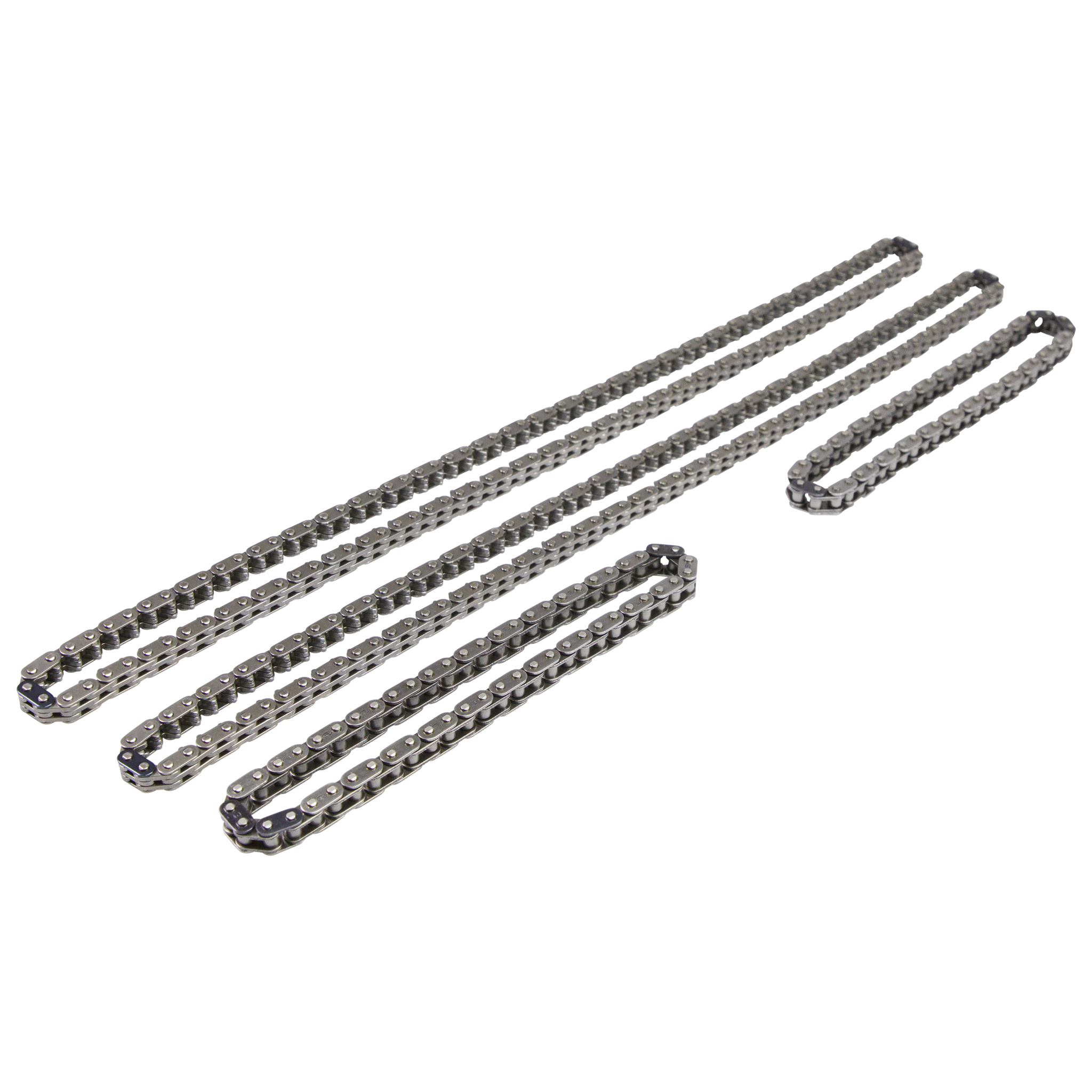

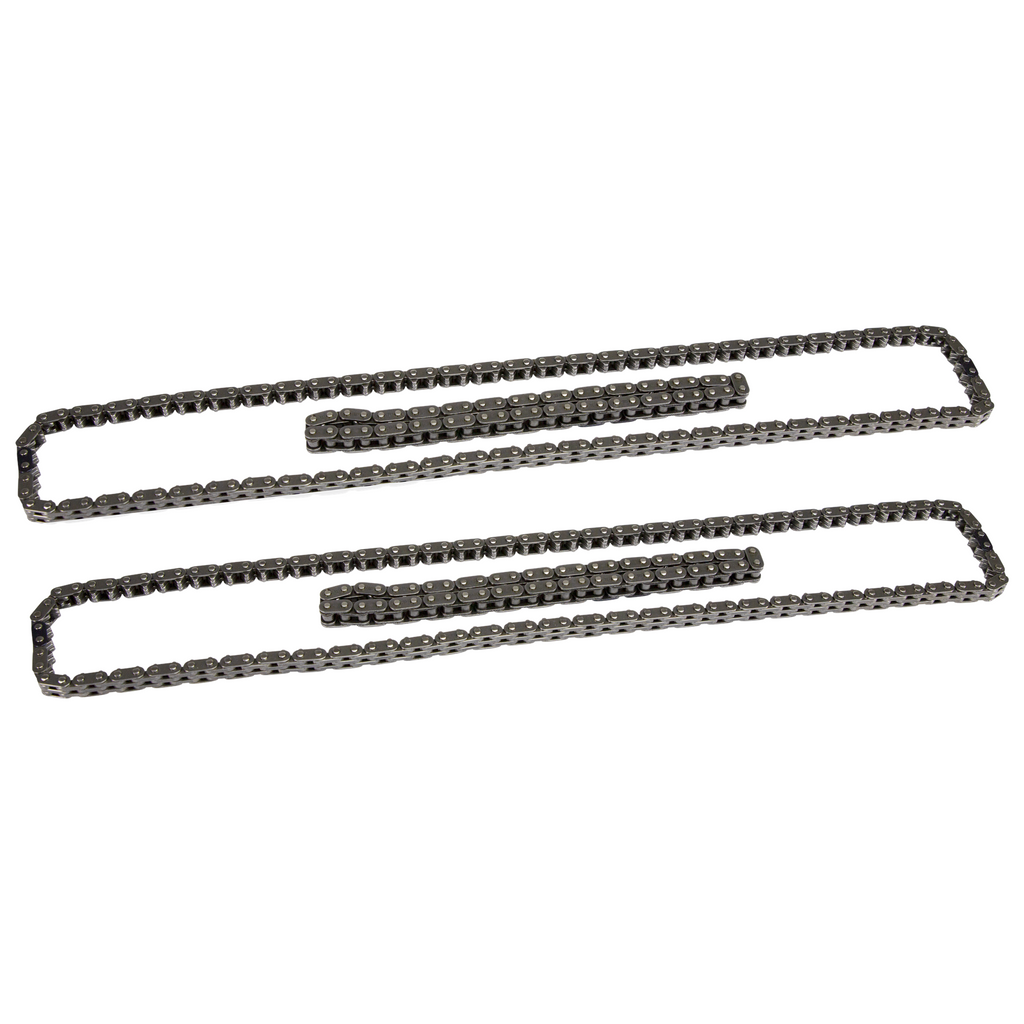

The COMP Cams Hi-Tech Timing Chain Sets for Ford Coyote engines are designed to withstand the stresses of upgraded, modified applications and are the perfect choice when replacing fatigued, worn out factory chains. Any time the cams are being upgraded in a Ford Coyote engine, or it is being built for high RPM racing use, replacing the tired, stock timing chains is a must. The new COMP Cams Hi-Tech Ford Coyote Timing Chain Sets feature heavy-duty secondary chains with 15% thicker plates than the factory chains, which helps to prevent common secondary chain failure. These kits also include premium quality primary chains that are ideal for any high performance or racing application. Whether simply upgrading camshafts or doing a full race engine build, these timing chain sets provide the durability needed in aggressive racing environments. Sets include two primary and two secondary chains. |
| Timing Chain Type |
Inverted tooth / roller |
| Maximum Advance |
N/A |
| Includes Tensioner Arms |
No |
| Chain Width |
0.347 primary, 0.430 secondary |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Clears Factory Timing Cover? |
Yes |
| Thrust Bearing Included? |
No |
| Includes Dowel Pin and Fasteners |
No |
| Includes Crankshaft Sprocket |
No |
| Pole Count |
N/A |
| Number of Crankshaft Keyways |
N/A |
| Maximum Advance At Camshaft |
N/A |
| Includes Secondary Timing Chain Tensioners |
No |
| Crankshaft Sprocket Material |
No sprocket included |
| Includes Timing Chain Tensioners |
No |
| Engine Family |
Ford Coyote |
| Cam Bolt Number |
N/A |
| Timing Set Series |
Hi-Tech |
| Reluctor Count |
No reluctor included |
| Title |
Hi-Tech Severe Duty Timing Chain Set for 2015-2018 Ford 5.0 Coyote |
| Includes Secondary Timing Chains |
Yes |
| Keyway Adjustable |
N/A |
| Includes Crank Position Trigger Wheel |
No |
| Camshaft Sprocket Material |
No sprocket included |
| OE Number |
M-6004-A504 |
| Maximum Retard At Camshaft |
N/A |
| Replacement Performance Chain Part Number |
N/A |
| Includes Timing Chain Guides |
No |
| Maximum Retard |
N/A |
| Length |
3.0000 |
| Width |
7.0000 |
| Height |
12.0000 |
| Weight |
4.0000 |
