| Description_ASC |
Available for 2011-2014 Coyote under 3041 |
| Description_ASM |
2015-2018 Ford 5.0 Coyote |
| Description_DEF |
Engine Timing Chain |
| Description_DES |

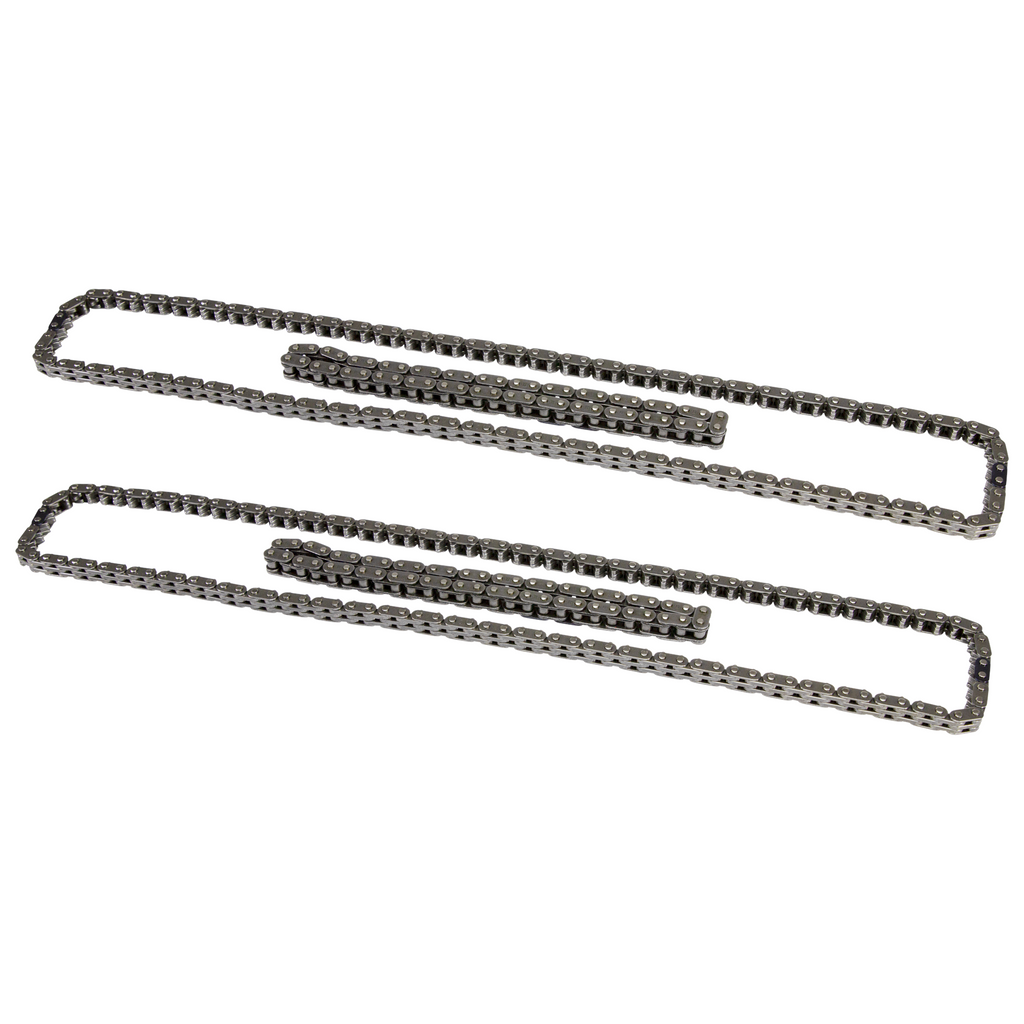

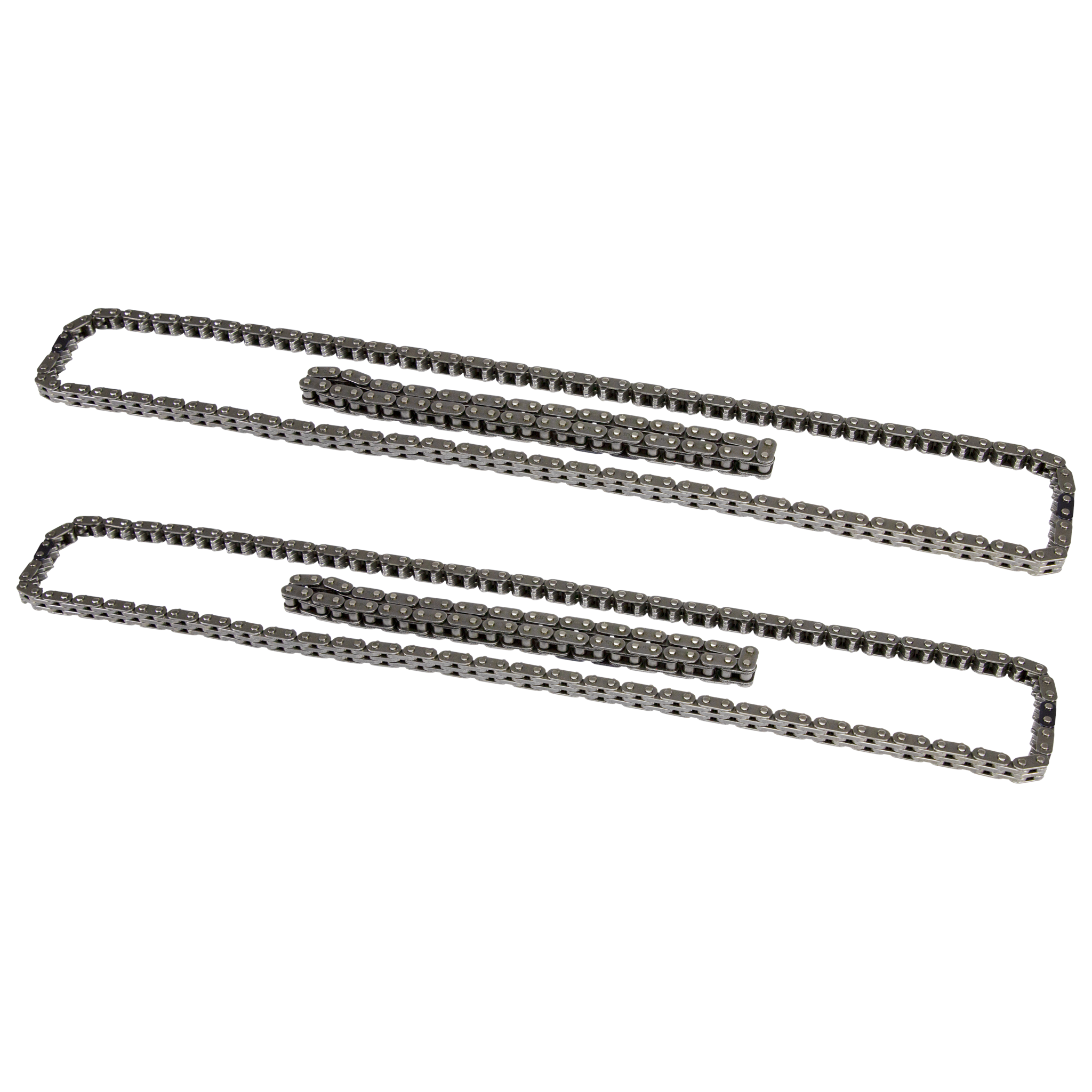

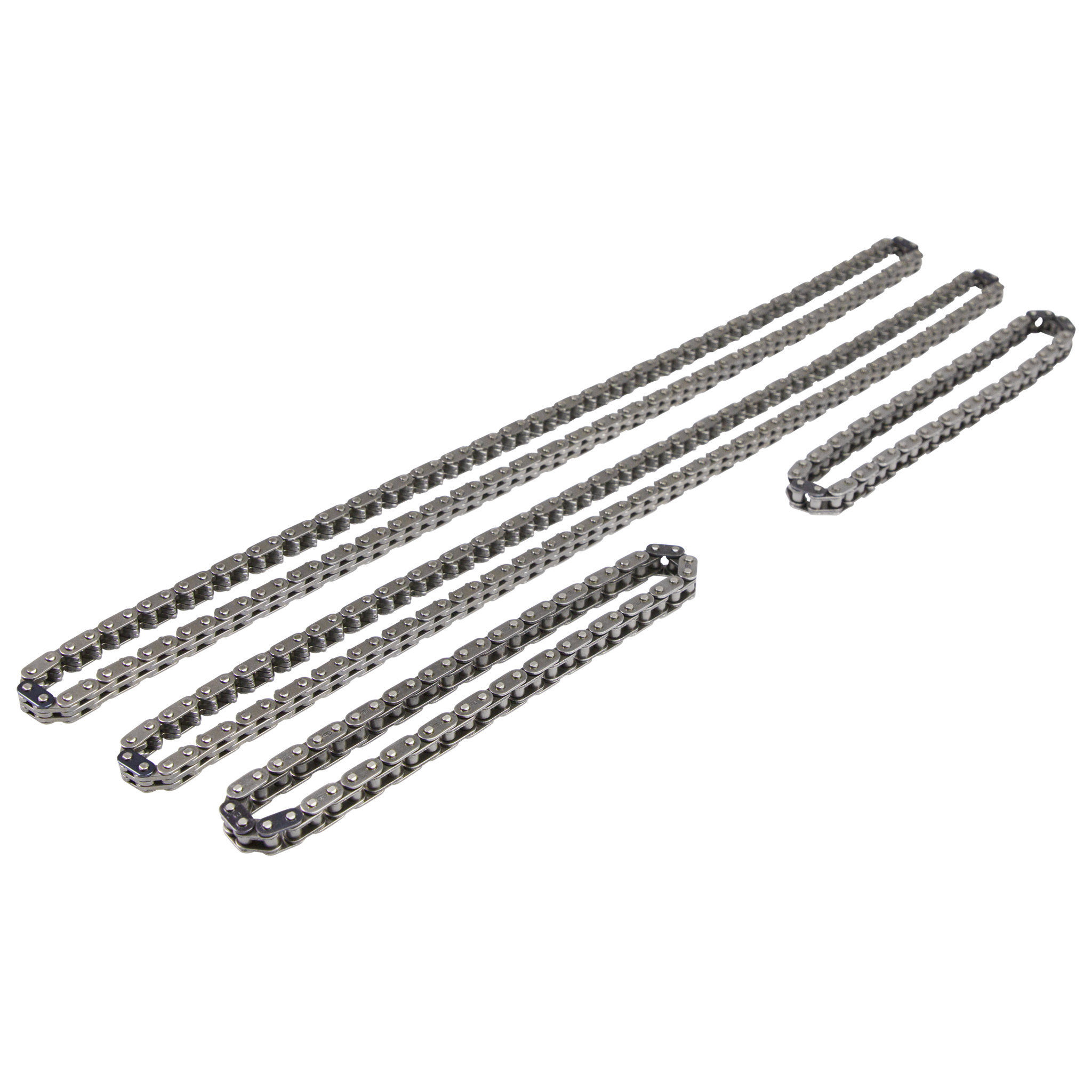

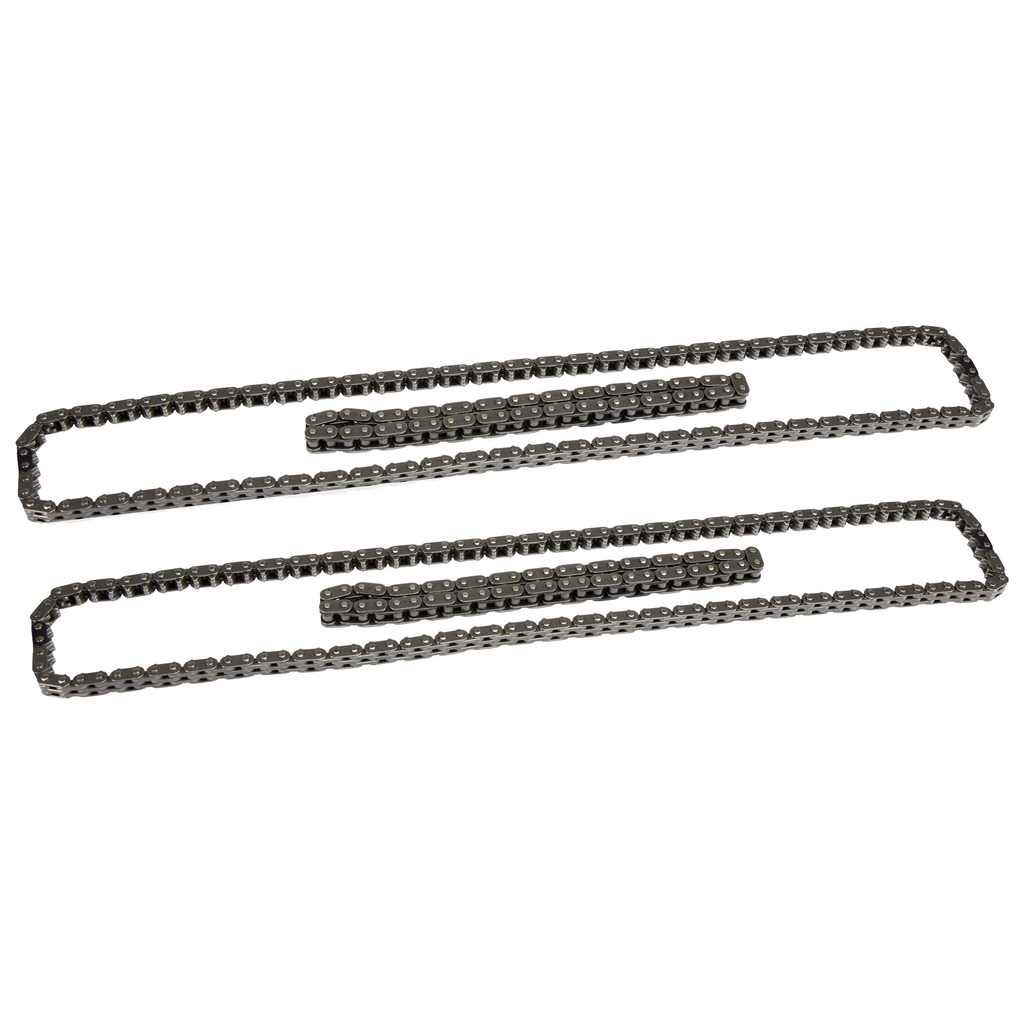

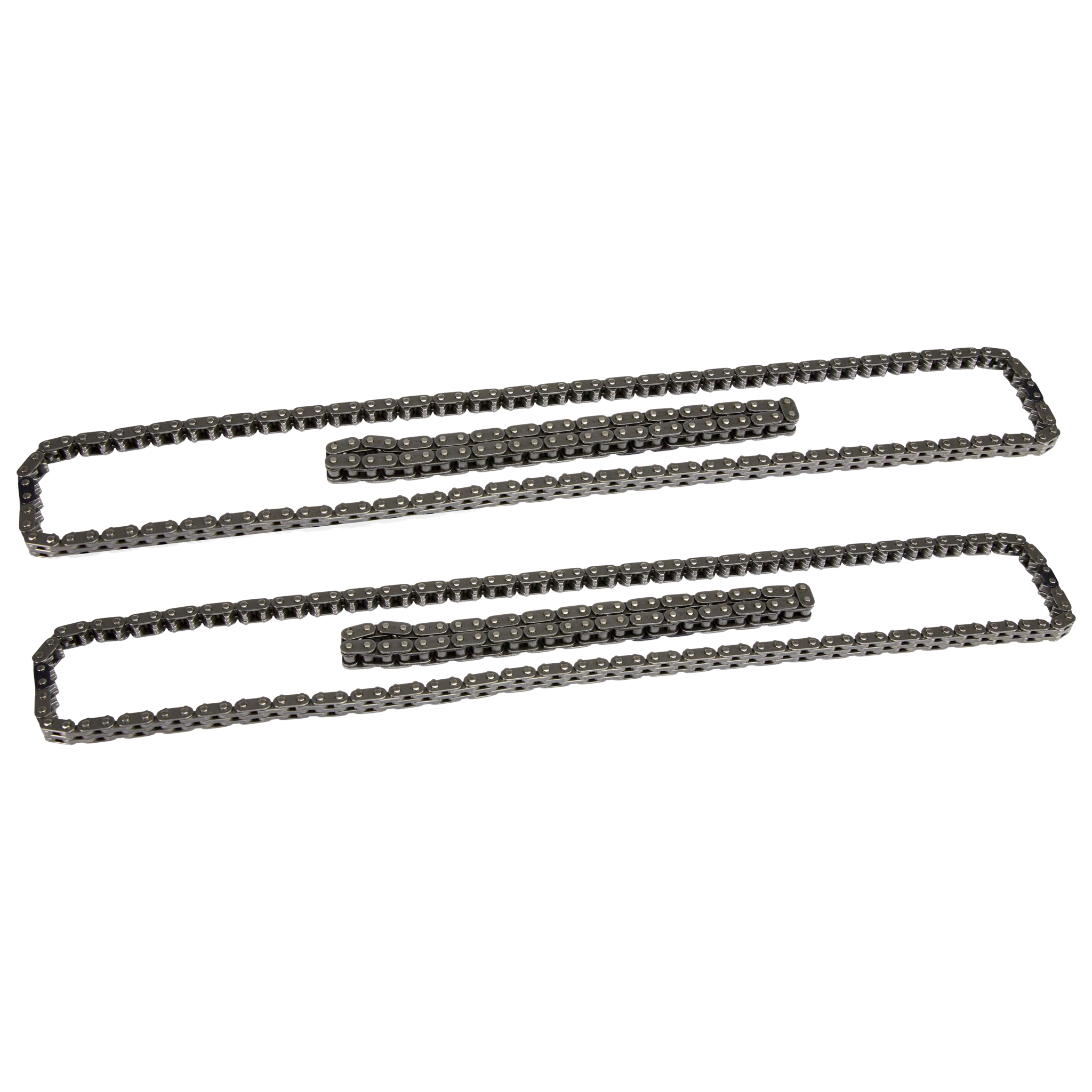

Hi-Tech Severe Duty Timing Chain Set for 2015-2018 Ford 5.0 Coyote |
| Description_MKT |
The COMP Cams Hi-Tech Timing Chain Sets for Ford Coyote engines are designed to withstand the stresses of upgraded, modified applications and are the perfect choice when replacing fatigued, worn out factory chains. Any time the cams are being upgraded in a Ford Coyote engine, or it is being built for high RPM racing use, replacing the tired, stock timing chains is a must. The new COMP Cams Hi-Tech Ford Coyote Timing Chain Sets feature heavy-duty secondary chains with 15% thicker plates than the factory chains, which helps to prevent common secondary chain failure. These kits also include premium quality primary chains that are ideal for any high performance or racing application. Whether simply upgrading camshafts or doing a full race engine build, these timing chain sets provide the durability needed in aggressive racing environments. Sets include two primary and two secondary chains. |
| Description_EXT |
A must when upgrading camshafts, our Hi-Tech Timing Chain Sets for 2015-20185.0 Coyote feature 15% thicker plates than factory secondary chains, preventing the common secondary chain failure. |
| Description_KEY |
Coyote, Ford Mustang, 5.0 Mustang, 5.0 Coyote, Ford Coyote, Mustang GT |
| Description_INV |
Hi-Tech Chains 15-18 Ford 5.0 Coyote |
| Description_SHO |
HTChains15-185.0Cte |
| Description_SLA |
Coyote Timing Chains |
| Description_SHP |
None |
| Includes Secondary Timing Chains |
Yes |
| Includes Dowel Pin and Fasteners |
No |
| Includes Crankshaft Sprocket |
No |
| Includes Timing Chain Tensioners |
No |
| Reluctor Count |
No reluctor included |
| Includes Crank Position Trigger Wheel |
No |
| Thrust Bearing Included? |
No |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Includes Secondary Timing Chain Tensioners |
No |
| Maximum Advance |
N/A |
| Chain Width |
0.347 primary, 0.430 secondary |
| OE Number |
M-6004-A504 |
| Keyway Adjustable |
N/A |
| Crankshaft Sprocket Material |
No sprocket included |
| Pole Count |
N/A |
| Camshaft Sprocket Material |
No sprocket included |
| Clears Factory Timing Cover? |
Yes |
| Maximum Advance At Camshaft |
N/A |
| Cam Bolt Number |
N/A |
| Includes Tensioner Arms |
No |
| Maximum Retard At Camshaft |
N/A |
| Engine Family |
Ford Coyote |
| Title |
Hi-Tech Severe Duty Timing Chain Set for 2015-2018 Ford 5.0 Coyote |
| Timing Set Series |
Hi-Tech |
| Timing Chain Type |
Inverted tooth / roller |
| Maximum Retard |
N/A |
| Includes Timing Chain Guides |
No |
| Number of Crankshaft Keyways |
N/A |
| Replacement Performance Chain Part Number |
N/A |
| Length |
3.0000 |
| Width |
7.0000 |
| Height |
12.0000 |
| Weight |
4.0000 |
