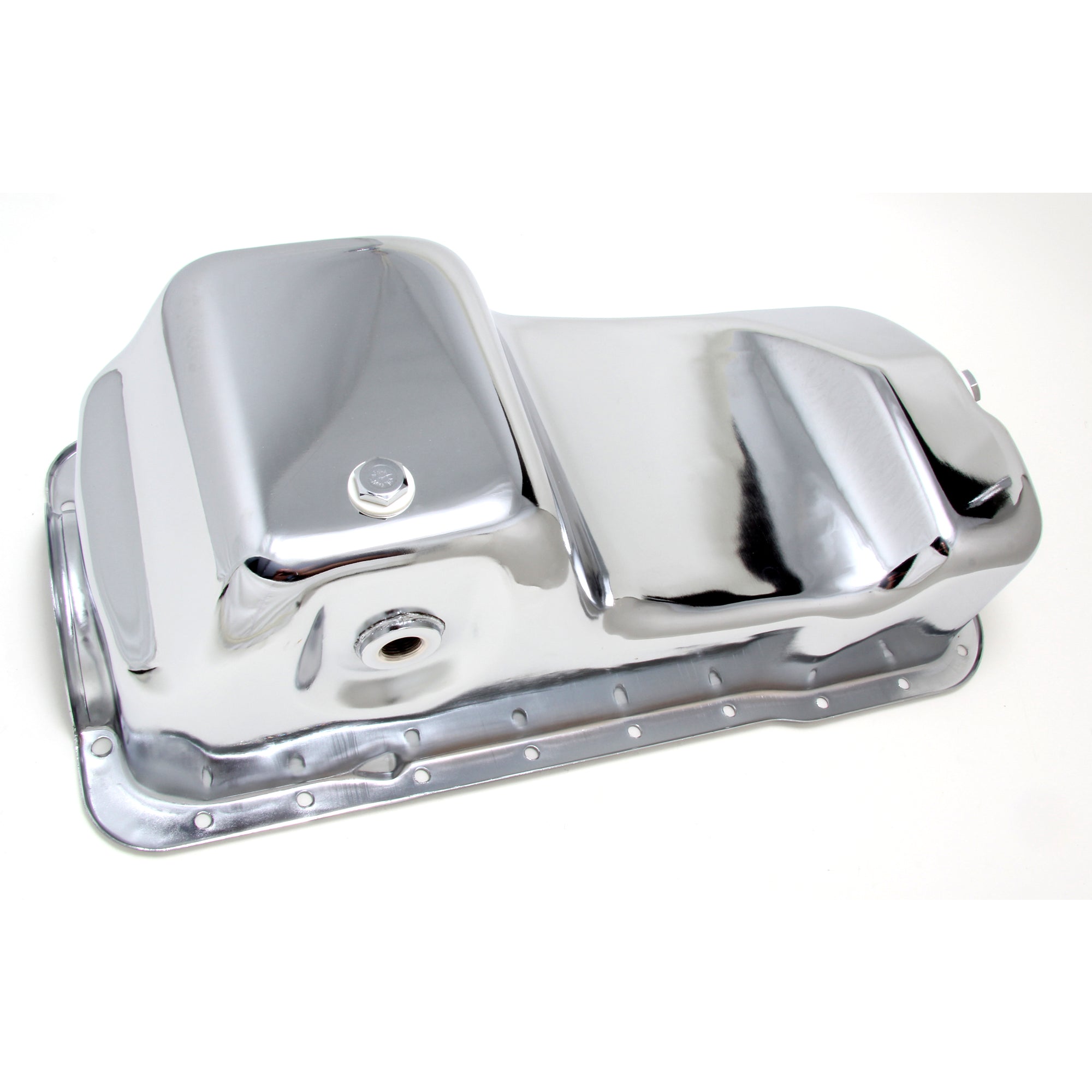

This Classic, Chrome oil pan from Trans-Dapt Performance fits 1983-93 Ford Mustangs with a 5.0L engine. The durable CHROME finish looks great, and complements Trans-Dapt's other quality chrome engine accessories (i.e. valve covers, air cleaner, water neck, etc.).
This pan has 4 Quart oil capacity, and incorporates a 20mm x 1.5 oil level sensor mounting port. If this port will not be used, a plug (Ford E4AZ-6A828A or equivalent) and washer must be purchased separately to block off the port.
Uses Trans-Dapt #9755, or Ford #F0AZ-6622-A oil pump pickup tube. Includes drain plugs. Gaskets, bolts and pick-up tube are not included, and must be purchased separately.
Specifications:
| Description_ASM |
Ford Mustang GT 5.0 1983 to 1993 , Ford Mustang GT 302 1983 to 1993 |
| Description_DEF |
Engine Oil Pan |
| Description_EXT |
CHROME OEM-Style Oil Pan- Ford Mustang 83-93 302 (5.0L) Dual Sump.; Stock Capacity |
| Description_DES |
CHROME OEM-Style Oil Pan- Ford Mustang 83-93 302 (5.0L) Dual Sump.; Stock Cap. |
| Description_SHO |
ENGINE OIL PAN |
| Description_INV |
TRANS-DAPT FORD OIL PAN-CHROME |
| Description_MKT |
This Classic, Chrome oil pan from Trans-Dapt Performance fits 1983-93 Ford Mustangs with a 5.0L engine. The durable CHROME finish looks great, and complements Trans-Dapt's other quality chrome engine accessories (i.e. valve covers, air cleaner, water neck, etc.).
This pan has 4 Quart oil capacity, and incorporates a 20mm x 1.5 oil level sensor mounting port. If this port will not be used, a plug (Ford E4AZ-6A828A or equivalent) and washer must be purchased separately to block off the port.
Uses Trans-Dapt #9755, or Ford #F0AZ-6622-A oil pump pickup tube. Includes drain plugs. Gaskets, bolts and pick-up tube are not included, and must be purchased separately.
|
| Color/Finish |
Chrome |
| Color |
CHROME |
| Construction |
Stamped |
| Bolts/Studs Included |
No |
| Capacity |
4 Qts. |
| Baffled |
No |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Contents |
Oil Pan Only (Pickup, Gaskets and Bolts not included) |
| Crank Shaft Wiper Included |
No |
| Gasket Or Seal Included |
No |
| Oil Pan Material |
Steel |
| Pickup # |
9755 |
| Dipstick Port |
No |
| Drain Plug Included |
Yes |
| Fastener(s) Included |
No |
| Mounting Hardware Included |
No |
| Pan Capacity |
Stock |
| Kicked Out |
No |
| Plug Included |
Yes |
| Oil Pan Bolts Included |
No |
| Installation Hardware Included |
No |
| Engine Manufacturer |
Ford |
| Pickup Included |
No |
| Finish |
Chrome |
| Engine Oil Cooler Return Fitting |
No |
| Oil Pan Depth (in) |
Stock |
| Engine |
Ford SB 260-302 / 5.0L; '79-93 Fox Body |
| Length |
Stock |
| IMPORTANT! |
Not for Marine applications! |
| Material |
Steel |
| Fluid Capacity |
4 Qt |
| Finish Type |
Chrome |
| Photo Disclaimer |
Actual product design or construction may vary. |
| Key Feature |
Can be used with 9736 Engine Mounts For SB FORD In 83-97 2WD Ranger or Explorer! |
| Oil Pan Capacity |
4 Qt. Capacity |
| Package Contents |
Oil Pan only (Gaskets, pickup tube and Bolts not included) |
| Product Type |
Oil Pans |
| Recommended Hedman Hedders |
Use with 89500 Series Hedman Hedders for SB Ford in Ranger/Explorer engine swaps |
| Depth |
Stock |
| Oil Pan Finish |
Chrome |
| Hardware Included |
NO |
| Type |
Oil Pan |
| Title |
TRANS-DAPT PERFORMANCE PRODUCTS CHROME OEM-STYLE OIL PAN- FORD MUSTANG 83-93 302 (5.0L) DUAL SUMP.; STOCK CAPACITY |
| Side Hole Dimension |
20 x 1.5 MM |
| Width |
Stock |
| Sump Style |
Wet Sump |
| Windage Tray Included |
No |
| Sump Location |
Dual |
| Length |
11.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
9.0000 |
