| Description_DEF |
Engine Oil Cooler |
| Description_EXT |
Oil Cooler Kit, fits Ford Mustang 5.0L 2011-2014 |
| Description_DES |
Ford Mustang 5.0L Oil Cooler Kit |
| Description_MKT |

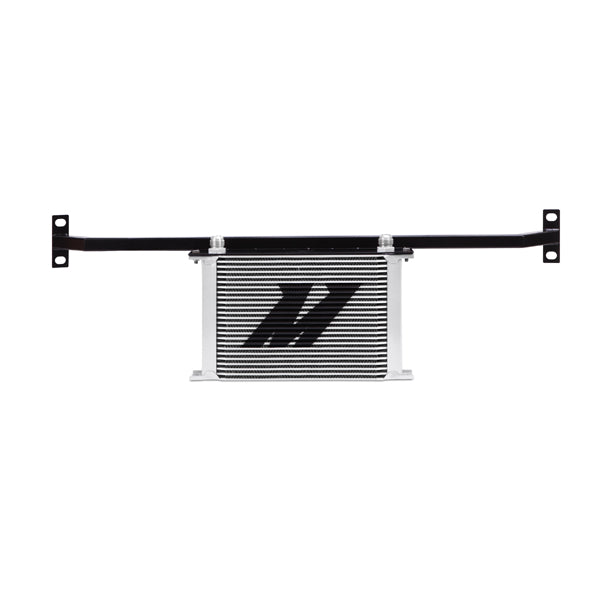

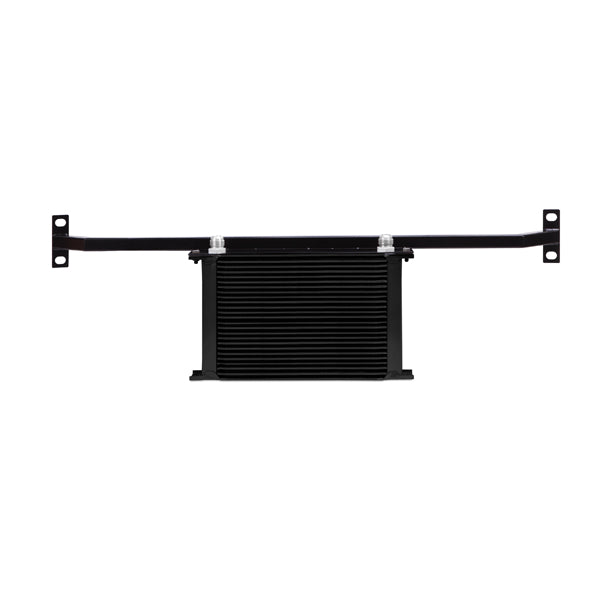

Keep your Coyote-powered Mustang cool on the street and track with the Mishimoto direct-fit oil cooler kit. The 5.0L Mustang is a powerful vehicle that has proven effective on the street, track, drag strip, and drift circuit. Aggressive driving has a direct effect on oil temperatures. High oil temperatures can result in a loss of oil viscosity, which leads to inferior lubrication and premature engine wear. This kit increases oil capacity by 0.75 qt and is proven to reduce oil temperatures by 35 degrees Fahrenheit! The Mishimoto Ford Mustang Oil Cooler Kit features an application-specific mounting bracket that mounts to existing points on the front bumper support. This bracket places the efficient Mishimoto 25-row stacked-plate oil cooler in a location for maximum airflow and fluid temperature reduction. This kit also includes preassembled stainless steel braided oil lines with durable -AN fittings, a billet aluminum thermostatic sandwich plate and all necessary hardware for installation. The included thermostatic sandwich plate provides quicker oil warm-up and enhanced regulation of oil temperatures, perfect for your street or track car. As with all our products, this kit includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship. |
| Description_FAB |
Direct-fit for the 2011-2014 Ford Mustang 5.0L |
| Description_FAB |
Reduces oil temperatures by 35 degreesF |
| Description_FAB |

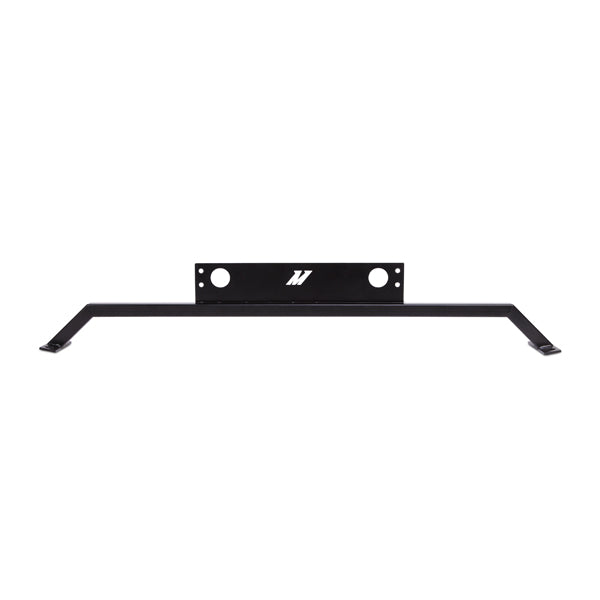

Application-specific mounting bracket |
| Description_FAB |
Pre-made stainless steel braided oil lines with durable -AN fittings |
| Description_FAB |

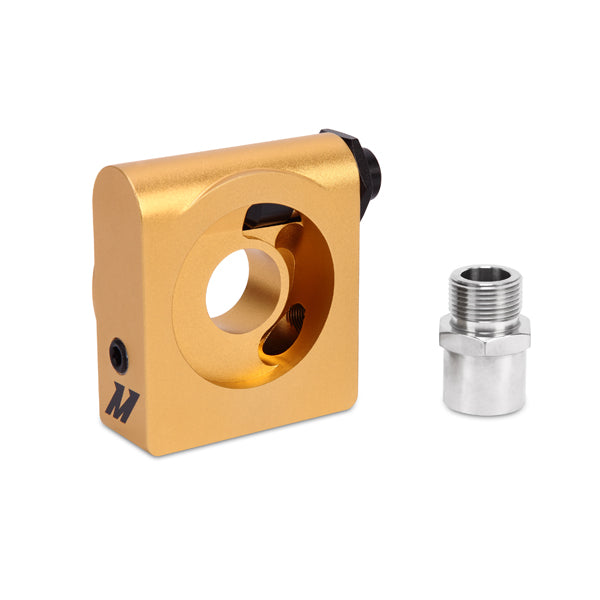

Billet aluminum thermostatic oil sandwich plate |
| Description_FAB |
25-row stacked-plate oil cooler for optimal fluid temperature reduction |
| Description_FAB |
Cooler available in either Sleek Silver or Stealth Black |
| Description_FAB |
Increases oil capacity by 0.75 qt |
| Description_FAB |
Easily replaceable thermostat allows you to customize your fluid temperature |
| Description_FAB |
Additional thermostats available in 160 degreesF, 185 degreesF, and 200 degreesF |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_INV |
Mishimoto MMOC-MUS-11T |
| Description_SHO |
Engine Oil Cooler |
| TechSpec Core Height (in) |
7.32 |
| TechSpec Overall Width (in) |
N/A |
| OptionLabel |
Silver Cooler, Thermostatic |
| SellingPoint10 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint07 |
Cooler available in either Sleek Silver or Stealth Black |
| SellingPoint08 |
Increases oil capacity by 0.75 qt |
| TechSpec Applications |
2011-2014 Ford Mustang GT |
| TechSpec Caution |
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
| TechSpec Note |
Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Outlet |
N/A |
| SellingPoint03 |
Application-specific mounting bracket |
| SellingPoint06 |
25-row stacked-plate oil cooler for optimal fluid temperature reduction |
| SellingPoint09 |
Mishimoto Lifetime Warranty |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| TechSpec Core Length (in) |
11 |
| TechSpec Core Thickness (in) |
1.97 |
| TechSpec Inlet |
N/A |
| TechSpec Installation Notes |
Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Overall Height (in) |
N/A |
| Install Difficulty |
3 |
| SellingPoint01 |
Direct-fit for the 2011-2014 Ford Mustang 5.0L |
| SellingPoint02 |
Reduces oil temperatures by 35 F |
| SellingPoint04 |
Pre-made stainless steel braided oil lines with durable -AN fittings |
| SellingPoint05 |
Billet aluminum thermostatic oil sandwich plate |
| SellingPoint14 |
N/A |
| TechSpec Chassis Codes |
S-197 |
| TechSpec Core Construction |
N/A |
| TechSpec Engine Codes |
5.0L Coyote |
| TechSpec Fluid Capacity (qts) |
N/A |
| TechSpec Includes |

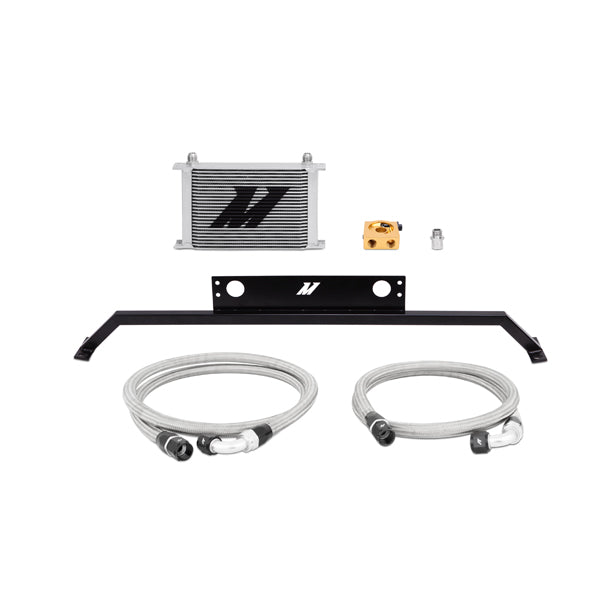

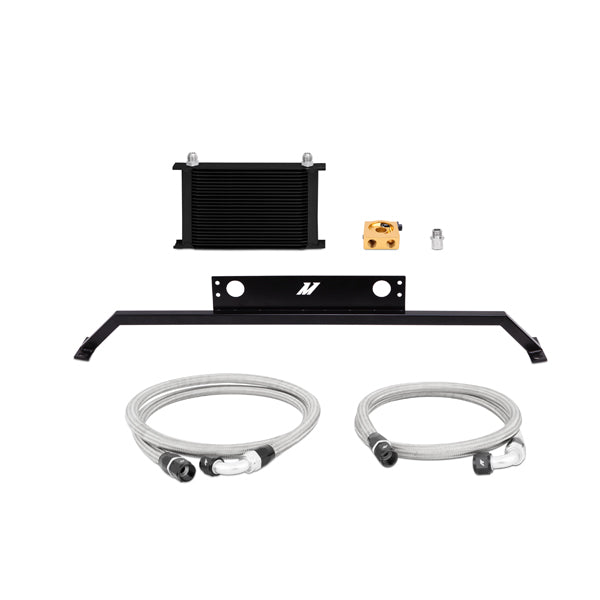

Application Specific Mounting Bracket--25-Row Oil Cooler--3ft 8in Stainless Steel Braided Hose w/ -10AN Fittings--4ft 7.5in Stainless Steel Braided Hose w/ -10AN Fittings--M22 Thermostatic Sandwich Plate--Stainless Steel Sandwich Plate Adapter, M22 x 1.5--M20 x -10AN Straight Fittings--1/8-in NPT Plugs--Large O-ring--Mounting Hardware Set--Mishimoto Lifetime Warranty |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Rows |
25 |
| Length |
23.5000 |
| Width |
7.5000 |
| Height |
31.5000 |
| Weight |
16.0000 |
