| Description_DEF |
Engine Oil Cooler |
| Description_DES |
Subaru BRZ / Scion FR-S Thermostatic Oil Cooler Kit, 2013+ |
| Description_FAB |
Direct fit for the 2013+ Scion FR-S and Subaru BRZ |
| Description_FAB |
Application-specific mounting brackets |
| Description_FAB |
Premade braided stainless steel oil lines with durable -AN fittings |
| Description_FAB |
Billet aluminum oil sandwich plate in standard or thermostatic form |
| Description_FAB |
19-row stacked-plate oil cooler for optimal fluid temperature reduction |
| Description_FAB |
CNC-machined aluminum spacers for the oil sandwich plate |
| Description_FAB |
Increases oil capacity by .65 qt |
| Description_FAB |
Easily replaceable thermostat allows you to customize your fluid temperature |
| Description_FAB |
Additional thermostats available in 160 degreesF, 185 degreesF, and 200 degreesF |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_INV |
Mishimoto MMOC-BRZ-13T |
| Description_EXT |
Oil Cooler Kit, fits Subaru BRZ/Scion FR-S 2013+ |
| Description_SHO |
Engine Oil Cooler |
| Description_MKT |
Mishimoto proudly announces the all-new Direct-Fit Oil Cooler KIt'specifically designed for the Subaru BRZ and Scion FR-S. This direct-fit kit positions a large cooler in the front bumper for ample airflow and optimal cooling, perfect for your street or track BRZ/FR-S. Properly regulated oil temperatures ensure improved durability and longevity for your stock or modified 2.0L. This kit features all components for seamless bolt-on fitment, including application-specific mounting brackets, stainless steel braided oil lines, a Mishimoto billet aluminum oil sandwich plate, and CNC-machined aluminum spacers for the oil sandwich plate. This oil cooler kIt'substantially decreases oil temperatures, making it ideal for a hot day at the track or a spirited drive in the mountains. The kit is also available with a thermostatic oil sandwich plate for quicker fluid warm-up and additional oil temperature control. This oil cooler kit is the perfect complement to the Mishimoto BRZ/FR-S performance aluminum radiator and silicone radiator hose kit for the ultimate cooling solution for your vehicle. The Mishimoto Subaru BRZ / Scion FR-S Direct-Fit Oil Cooler Kit is offered with both black and silver coolers and includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship. |
| TechSpec Core Construction |
N/A |
| TechSpec Includes |

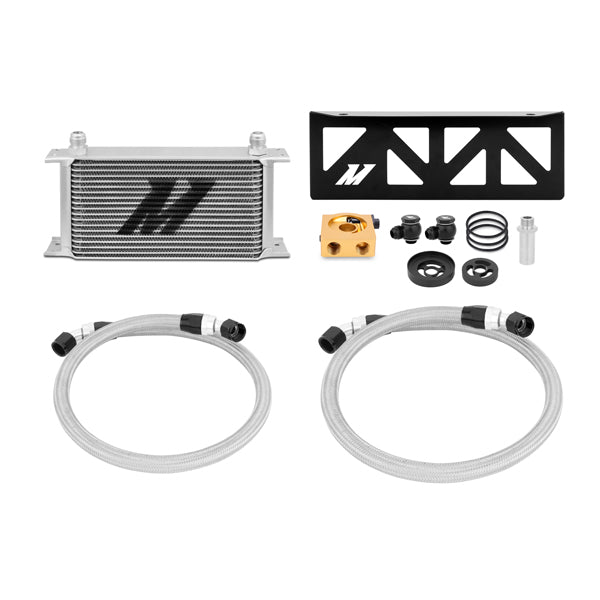

Application-Specific Mounting Bracket--19-Row Oil Cooler--3-ft Stainless Steel Braided Hose w/ -10AN Fittings--4-ft 2-in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--6061 Aluminum CNC Sandwich Plate Spacers, Black--Stainless Steel Sandwich Plate Adapter, M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--1/8-in NPT Plugs--O-rings--Mounting Hardware Set--Mishimoto Lifetime Warranty |
| SellingPoint05 |
19-row stacked-plate oil cooler for optimal fluid temperature reduction |
| SellingPoint14 |
N/A |
| TechSpec Chassis Codes |
ZN6--ZC6 |
| TechSpec Engine Codes |
FA20 |
| Install Difficulty |
3 |
| SellingPoint01 |
Direct fit for the 2013+ Scion FR-S and Subaru BRZ |
| SellingPoint02 |
Application-specific mounting brackets |
| SellingPoint04 |
Billet aluminum oil sandwich plate in standard or thermostatic form |
| SellingPoint07 |
Increases oil capacity by .65 qt |
| SellingPoint13 |
N/A |
| TechSpec Core Thickness (in) |
1.97 |
| TechSpec Fluid Capacity (qts) |
N/A |
| TechSpec Installation Notes |
Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Rows |
19 |
| OptionLabel |
Silver Cooler, Thermostatic |
| SellingPoint03 |
Premade braided stainless steel oil lines with durable -AN fittings |
| SellingPoint06 |
CNC-machined aluminum spacers for the oil sandwich plate |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Applications |
2013+ Subaru BRZ--2013+ Scion FR-S--2013+ Toyota GT86 |
| TechSpec Caution |
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. |
| TechSpec Core Height (in) |
5.43 |
| TechSpec Core Length (in) |
11 |
| TechSpec Inlet |
N/A |
| TechSpec Note |
N/A |
| TechSpec Outlet |
N/A |
| TechSpec Overall Height (in) |
N/A |
| TechSpec Overall Width (in) |
N/A |
| Length |
14.5000 |
| Width |
8.0000 |
| Height |
18.0000 |
| Weight |
12.0000 |
