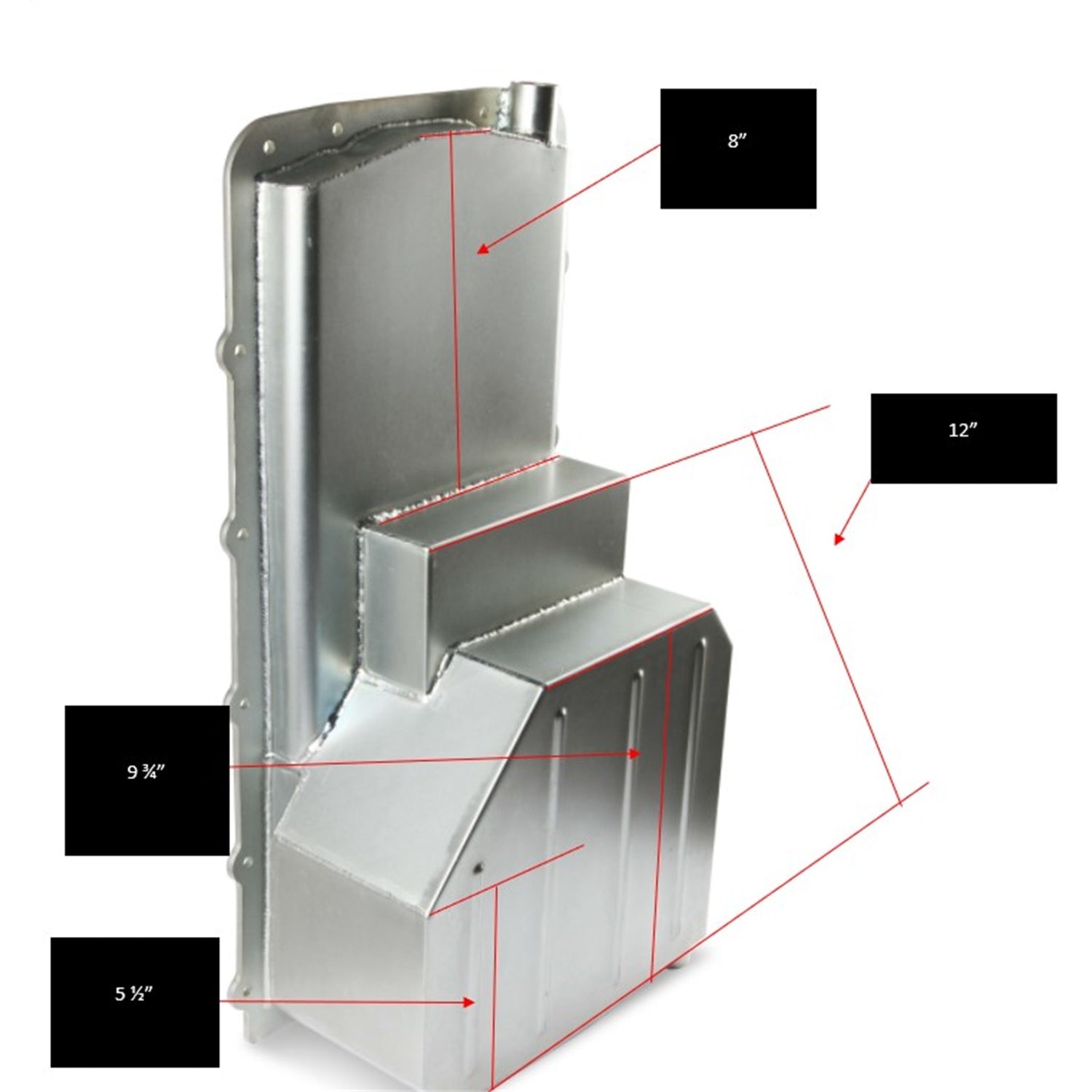

Load image into Gallery viewer, Ford-Coyote-Swap-Oil-Pan

Have Questions?

(877) 743-7862 Ask an Expert

Guaranteed Fitment

Always the correct part
In-House Experts

We know our products
Added Value

Performance matched parts
Nationwide Delivery

Economy shipping

Holley 302-50 Ford Coyote Swap Oil Pan

2 sold in last 8 days

Brand: Holley

SKU: ds_BBVL_302-50

Stock:

Product Code: Engine Oil Pan

$734.79

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Holley 302-50 Ford Coyote Swap Oil Pan

Details
Reviews

Details

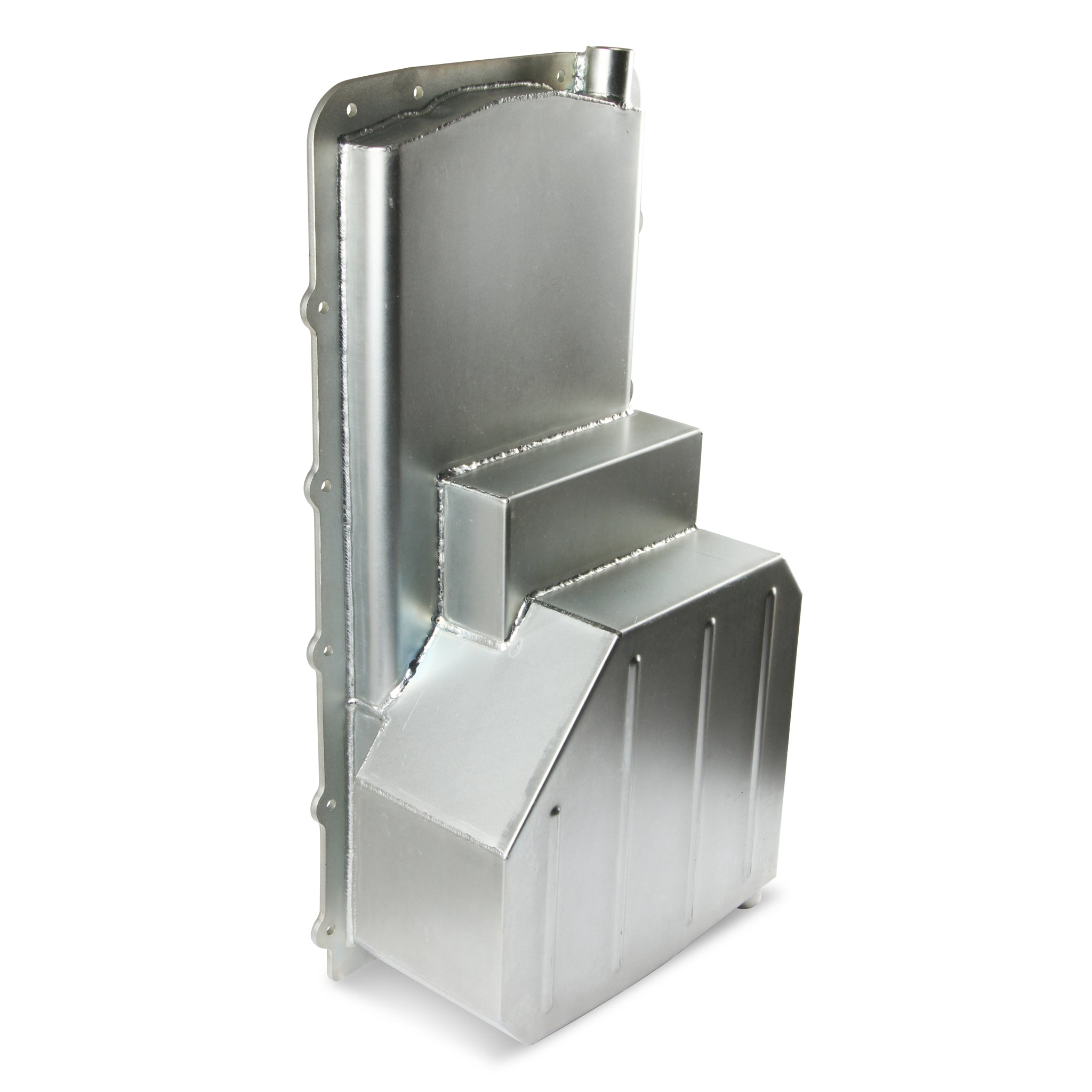

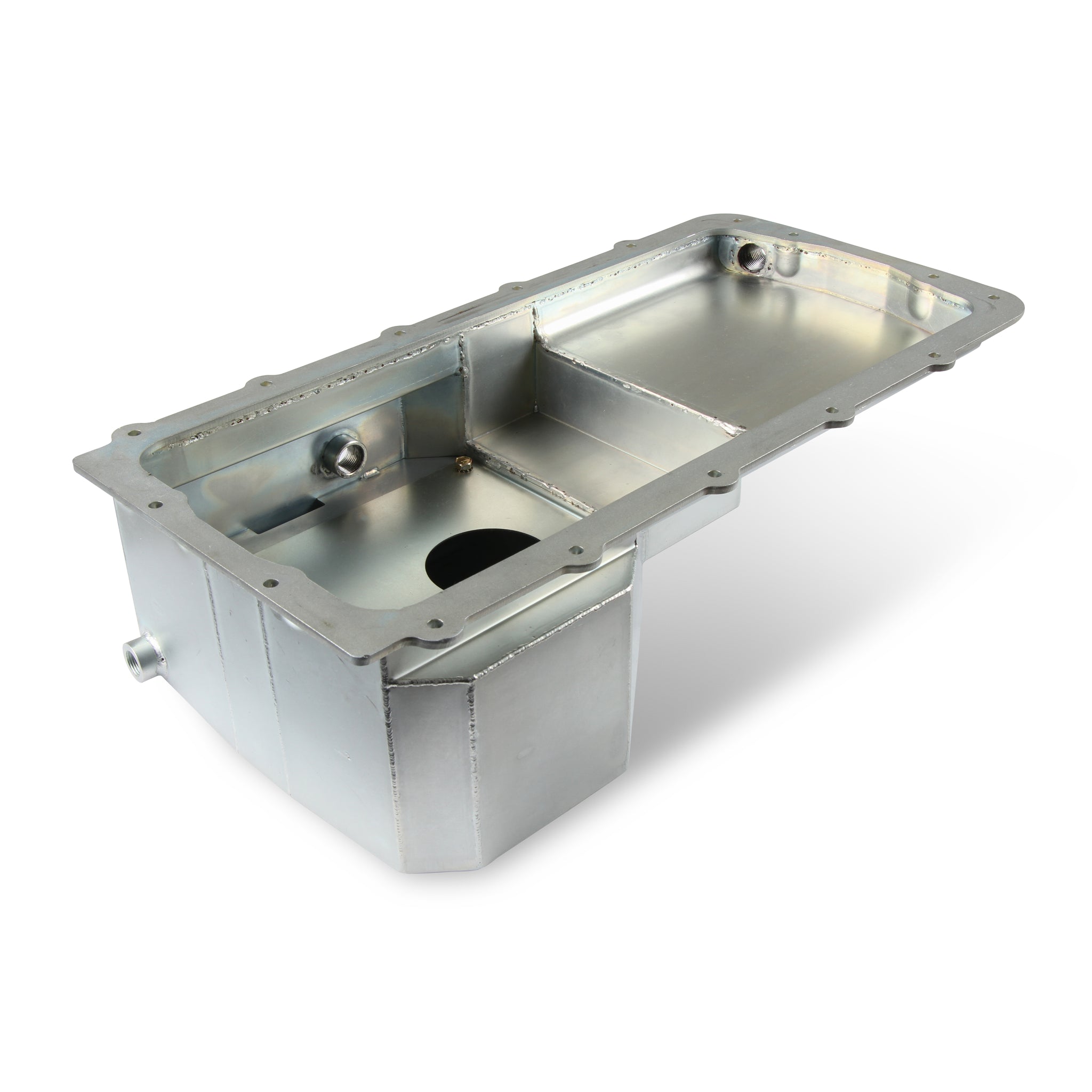

Holleys new Gen1/Gen2 Coyote oil pan makes your Fox body Mustang swap easier. The oil pan design maintains the oil capacity of stock Mustang Coyote oil pan (8 qt. nominal) to ensure adequate oil supply in all street performance and factory-stock type racing applications. The new design installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics. A proprietary design pick-up tube/O-ring and lower sump baffle plate are included. The 302-50 comes equipped with -10 O-ring boss (ORB) port bung at front of pan for easy connection of turbo drain plumbing (fitting and/or plug is user-supplied as needed).The new low-profile front pan geometry permits Coyote engine installation on stock 1984-2004 Mustang K-members (1984-1995 K-members require the use of specific proprietary design Hooker Blackheart engine mounting brackets) and specific aftermarket K-members from AJE, Team Z, Maximum Motorsports, and UPR for 1979-2004 Mustangs. Application fitment is compatible with Hooker Blackheart and other brand Coyote swap headers for 1979-2004 Mustangs. The steel construction is hand-welded for strength, longevity and good looks. The zinc plated finish provides corrosion resistance on the inside and outside of the pan.

Specifications:

Description_ASC	Compatible with Gen 1 and Gen 2 5.0L Coyote engines (2011-2017 Ford 5.0L Coyote Engines).
Description_DEF	Engine Oil Pan
Description_DES	Holley Ford Coyote Swap Oil Pan

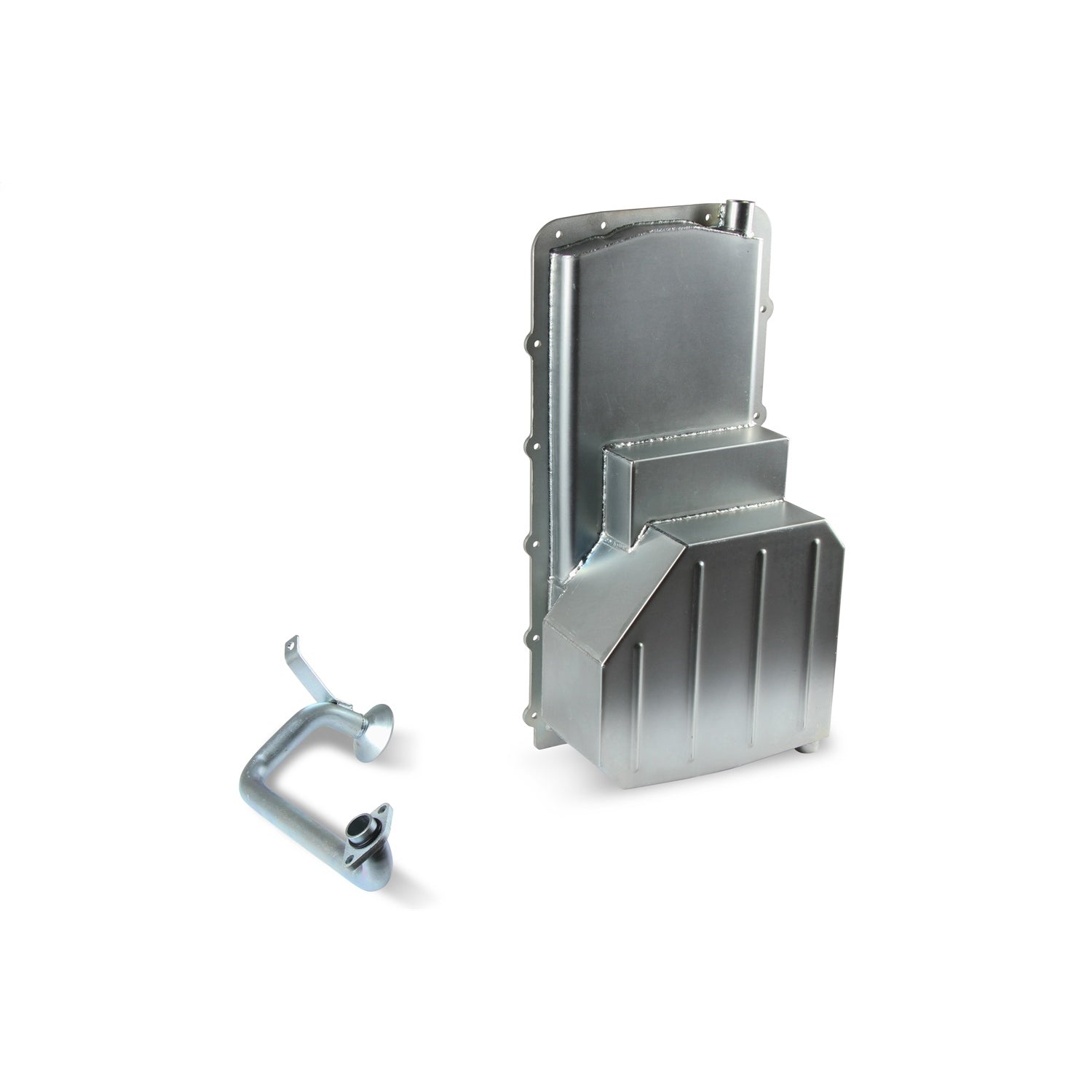

Description_EXT	Oil Pan Kit; For Use w/1979-2004 Ford Mustang w/Coyote Engine Swap; Rear; Steel; Gold Zinc; 8.0 Quarts Capacity: Incl. Pickup Tube/O Ring/Lower Sump Baffle Plate;
Description_FAB	Low-profile front pan geometry permits Coyote engine installation on stock 1984-2004 Mustang K-members (1984-1995 K-members require the use of specific proprietary design Hooker Blackheart engine mounting brackets).
Description_FAB	Also fits specific aftermarket K-members from AJE, Team Z, Maximum Motorsports, and UPR.
Description_FAB	Maintains oil capacity of stock Mustang Coyote oil pan (8 qt. nominal) to ensure adequate oil supply in all street performance and factory-stock type racing applications.
Description_FAB	Installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics.
Description_FAB	The design includes a bung on the left side of the sump for the stock Mustang Coyote oil level sensor.

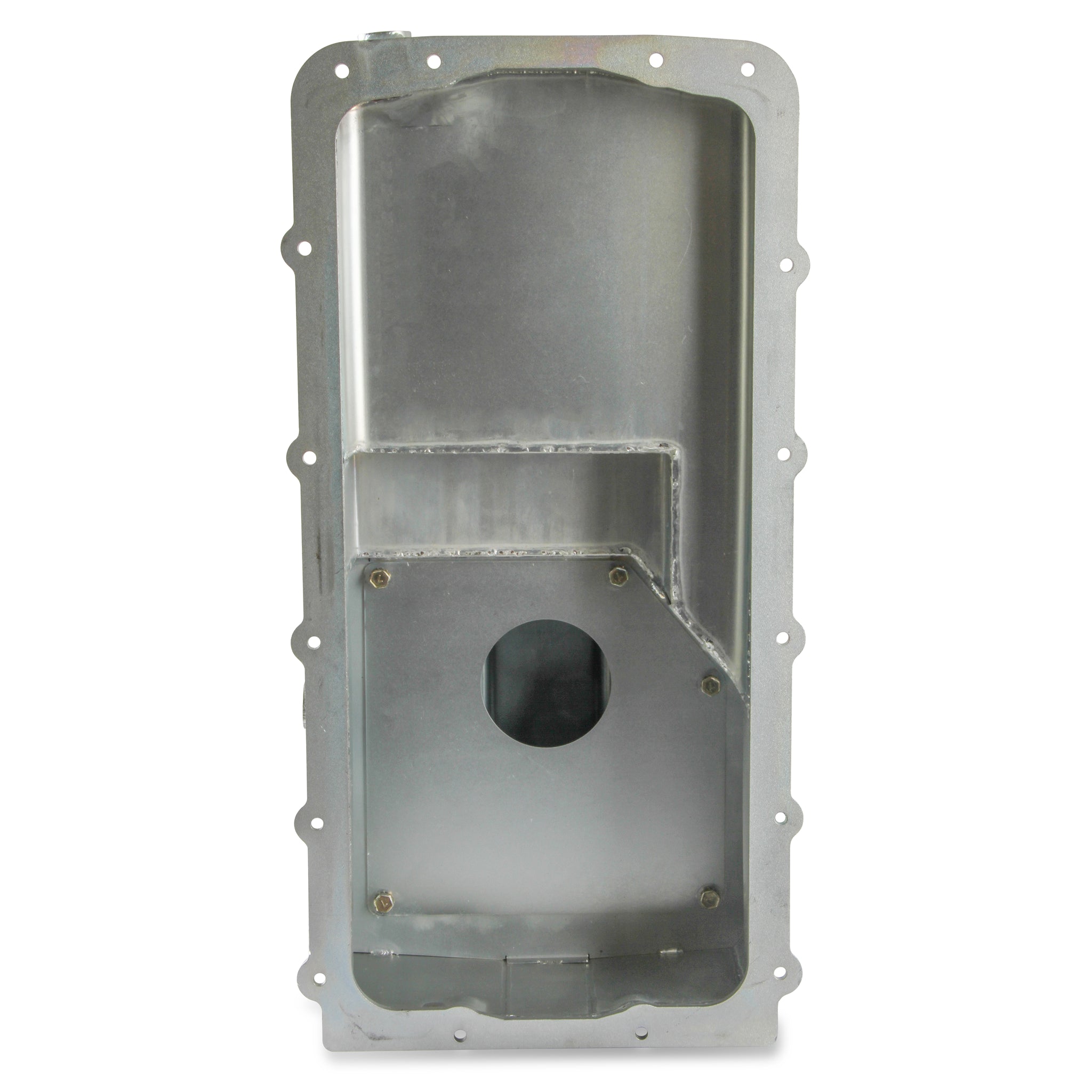

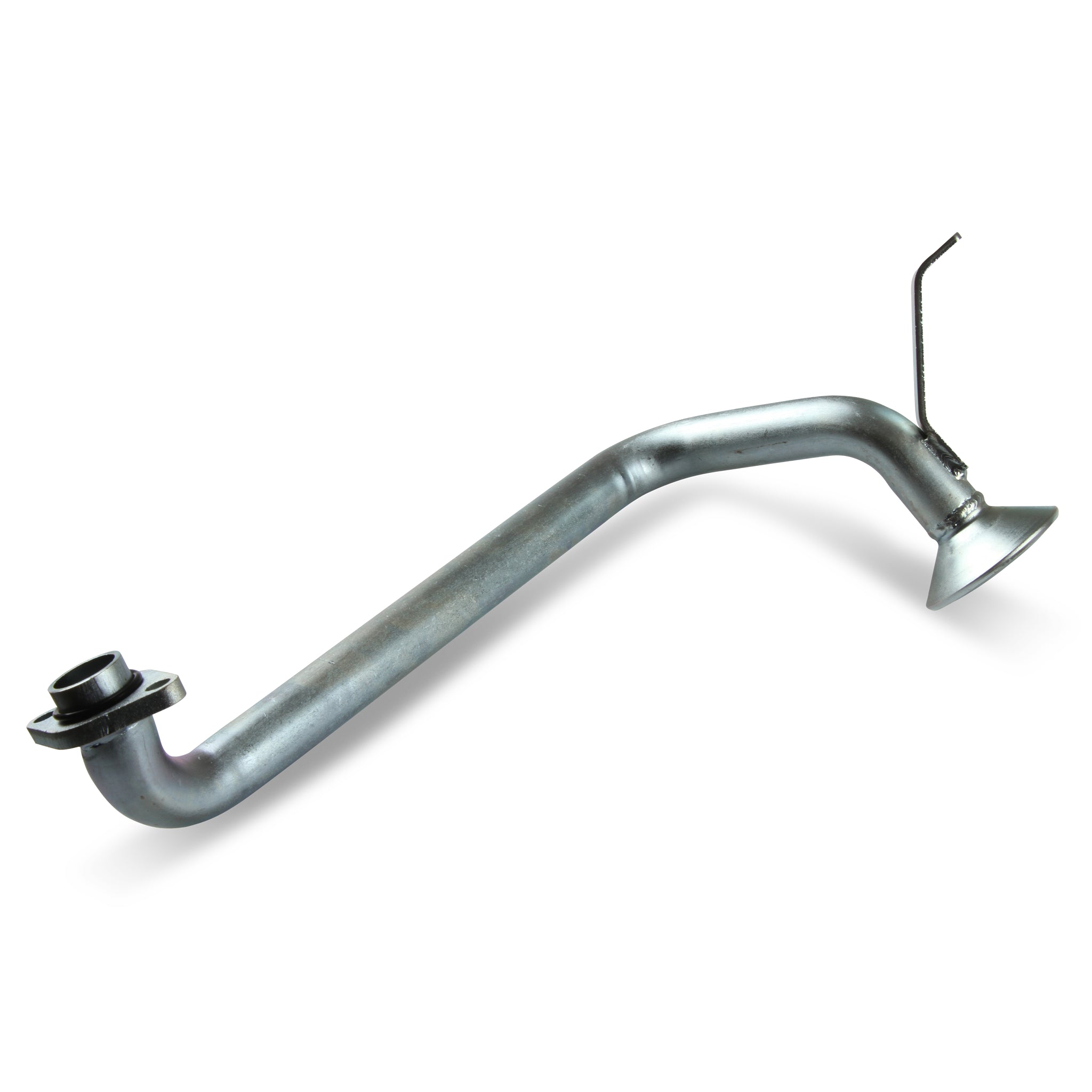

Description_FAB	Proprietary design pick-up tube/O-ring and lower sump baffle plate are included.

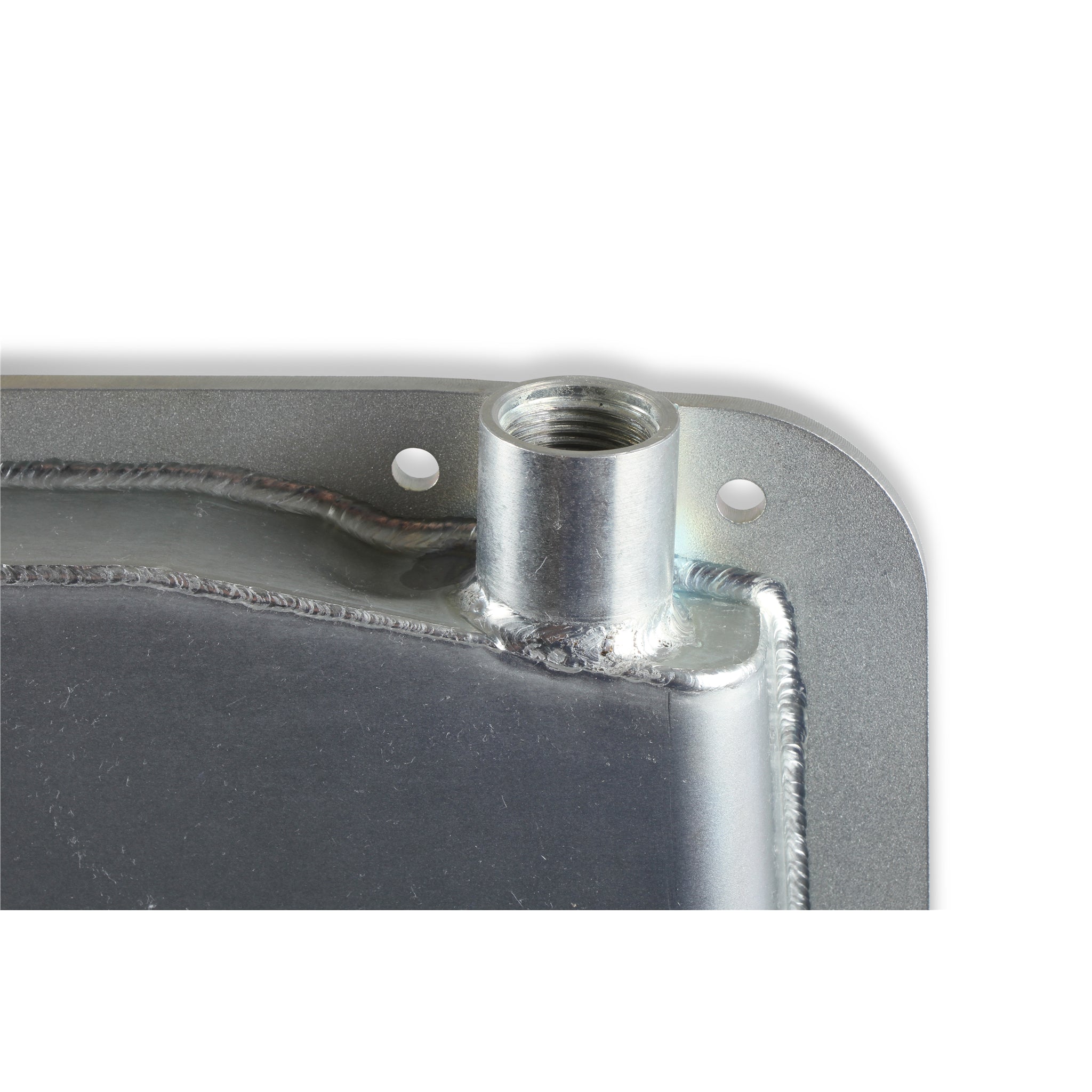

Description_FAB	Equipped with -10 O-ring boss (ORB) port bung at front of pan for easy connection of turbo drain plumbing (fitting and/or plug is user-supplied as needed).
Description_FAB	100% quality hand-welded construction for strength, longevity and good looks.
Description_FAB	Zinc plated finish provides corrosion resistance on the inside and outside of the pan.
Description_FAB	Fitment compatible with Hooker Blackheart and other brand Coyote swap headers for 1979-2004 Mustangs.
Description_FAB	Oil pan fits 2011-2017 Coyote engines
Description_MKT	Holleys new Gen1/Gen2 Coyote oil pan makes your Fox body Mustang swap easier. The oil pan design maintains the oil capacity of stock Mustang Coyote oil pan (8 qt. nominal) to ensure adequate oil supply in all street performance and factory-stock type racing applications. The new design installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics. A proprietary design pick-up tube/O-ring and lower sump baffle plate are included. The 302-50 comes equipped with -10 O-ring boss (ORB) port bung at front of pan for easy connection of turbo drain plumbing (fitting and/or plug is user-supplied as needed).The new low-profile front pan geometry permits Coyote engine installation on stock 1984-2004 Mustang K-members (1984-1995 K-members require the use of specific proprietary design Hooker Blackheart engine mounting brackets) and specific aftermarket K-members from AJE, Team Z, Maximum Motorsports, and UPR for 1979-2004 Mustangs. Application fitment is compatible with Hooker Blackheart and other brand Coyote swap headers for 1979-2004 Mustangs. The steel construction is hand-welded for strength, longevity and good looks. The zinc plated finish provides corrosion resistance on the inside and outside of the pan.
Description_INV	FORD COYOTE SWAP OIL PAN KIT
Description_SHO	Oil Pan
Application	Ford Coyote
Brand	Holley
Material	Steel
WARNING CA Proposition 65	No
Engine Make/Size	Ford 5.0L/302
Oil Return Size	10 AN ORB
Product Type	Oil Pan Kit
Warranty	Limited 90 Day
Sump Location	Rear
Usage	Street/Performance
Emission Code	5
Oil Pan Capacity	8.0 Quarts
Oil Pan Type	Fabricated
Engine	Ford Coyote
Windage Tray Included	No
Turbo Oil Drainback	Yes
Finish	Zinc

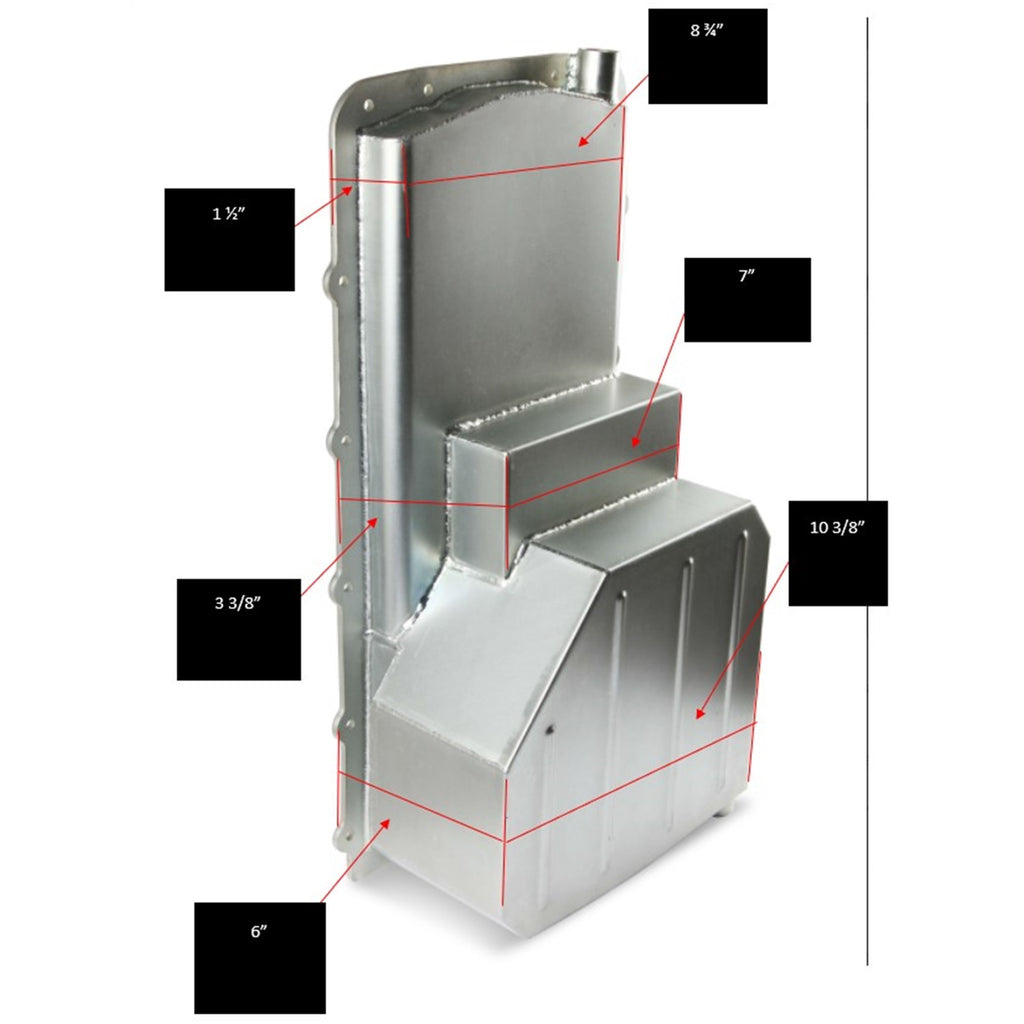

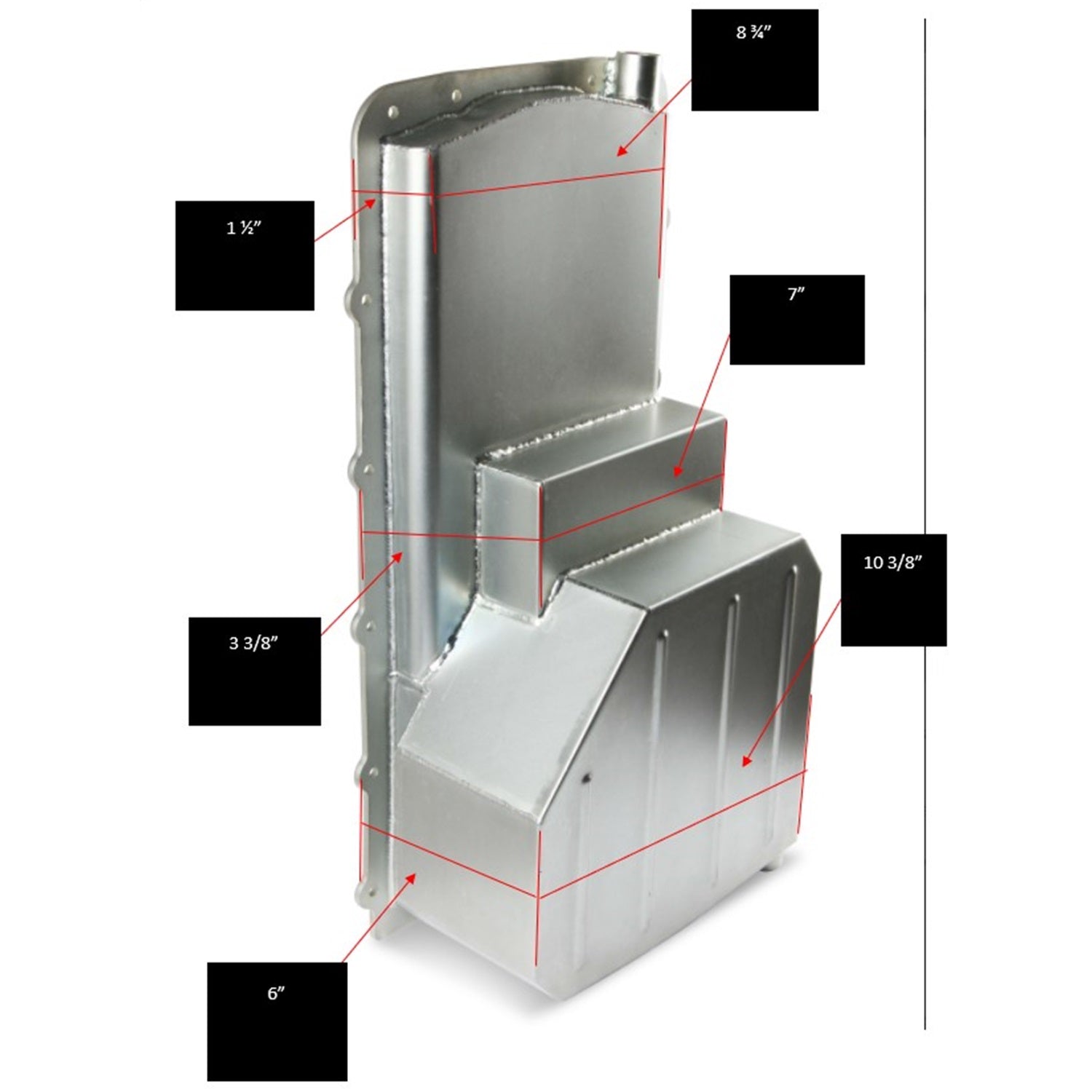

Length	10.0000
Width	12.0000
Height	24.0000
Weight	12.0000
