Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish.
Specifications:
| Description_DEF |
Engine Oil Cooler |
| Description_DES |

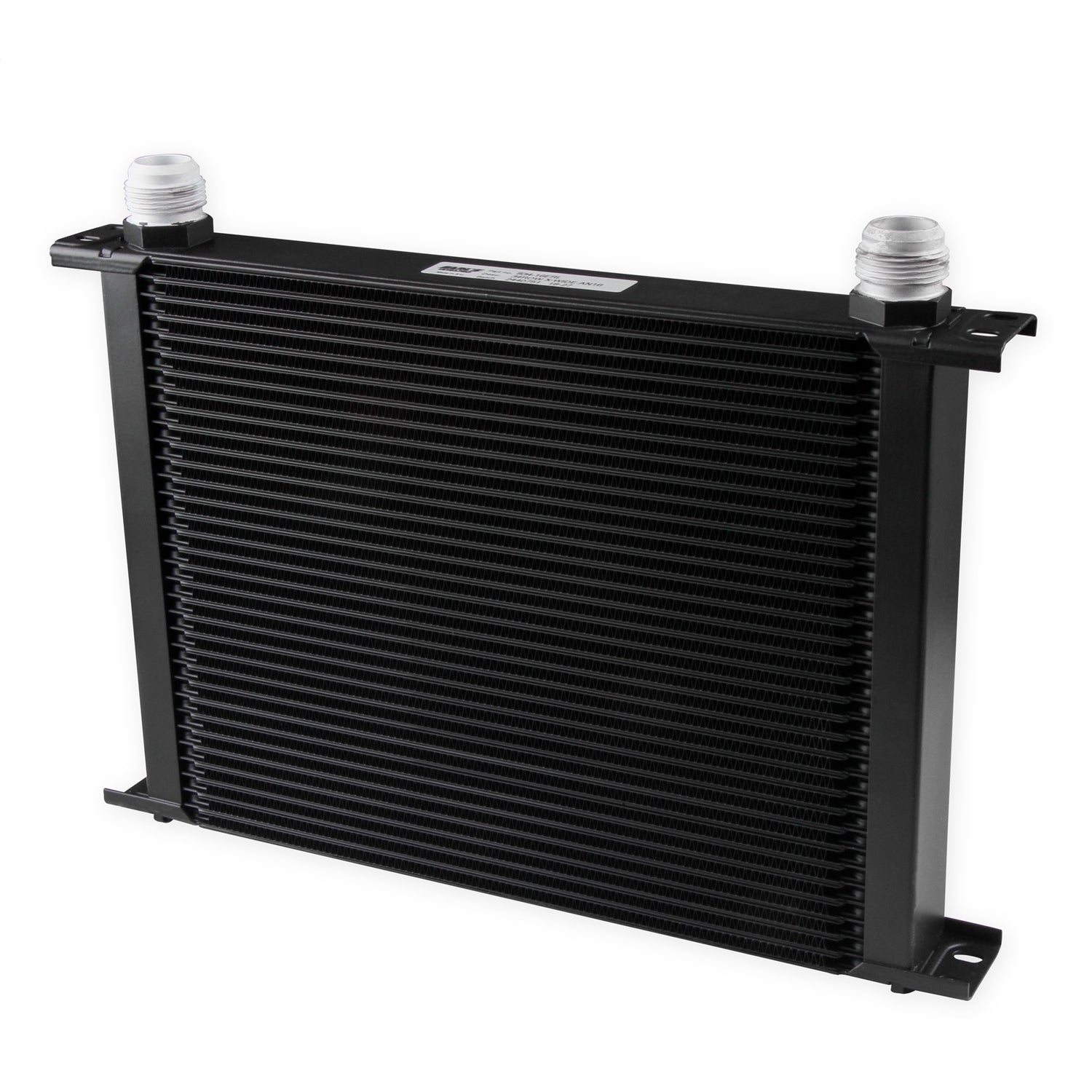

Earl's UltraPro Oil Cooler - Black - 34 Rows - Extra-Wide Cooler - 16 AN Male Flare Ports |
| Description_MKT |
Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish. |
| Description_KEY |
Temp-A-Cure; ultrapro; ultra pro; oil cooler; |
| Description_EXT |
UltraPro Oil Cooler; Black; 34 Row; -16AN Male; Extra-Wide; |
| Description_FAB |
Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers |
| Description_FAB |
Made Using State of the Art Brazing Technology |
| Description_FAB |
Highly Efficient Design w/ Minimal Pressure Drop |
| Description_FAB |
Extremely Durable Lightweight Aluminum Construction w/Black Finish |
| Description_FAB |
(3) Width Options - Narrow 8.25", Wide 12.99", and Extra Wide 15.94" Overall Width |
| Description_FAB |
(10) Height Options - w/ 7 to 60 Rows (2.09" to 18.31" Tall) |
| Description_FAB |
(3) Fan Pack Style Coolers Include the Oil Cooler, Spal (R) Cooling Fan(s) & Shroud |
| Description_FAB |

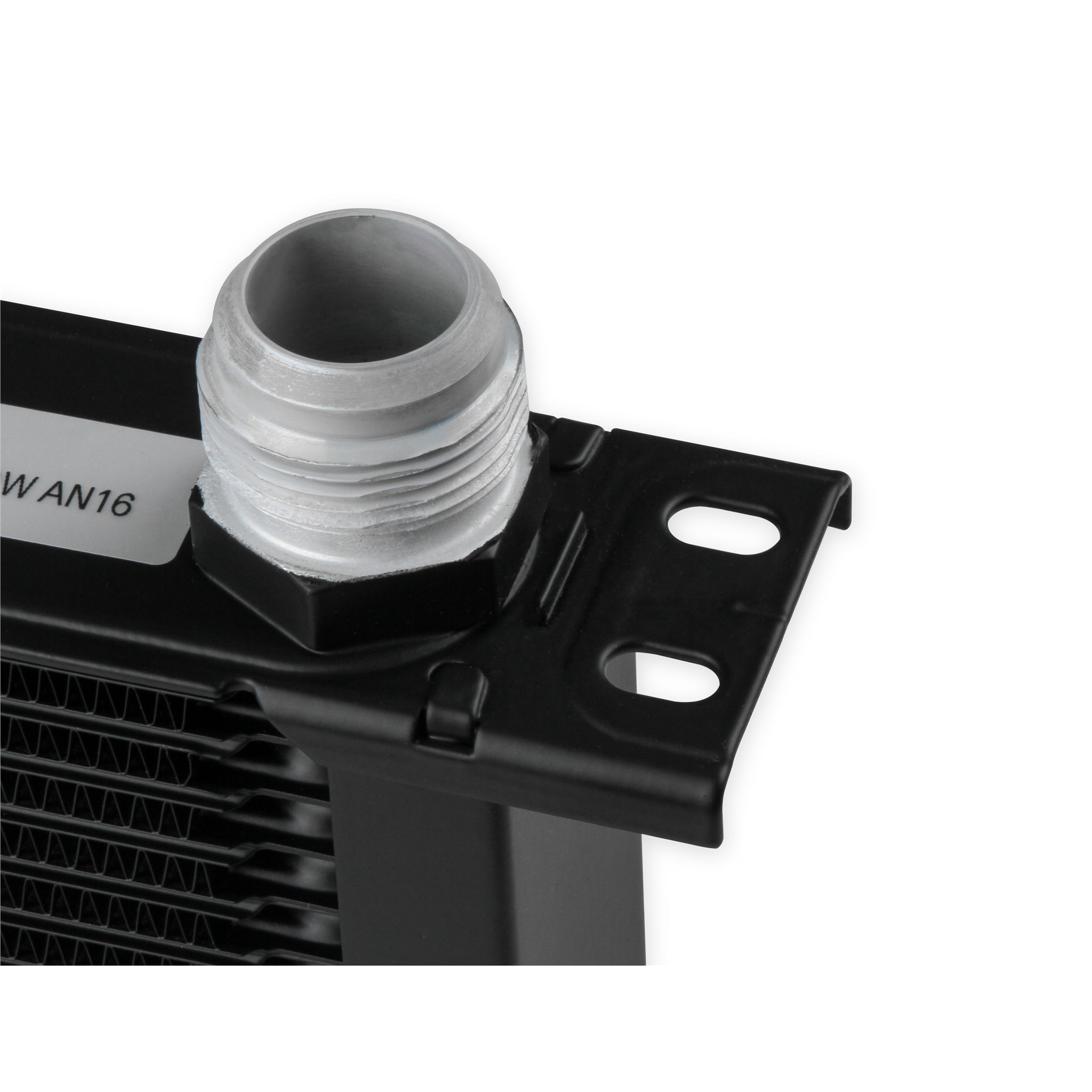

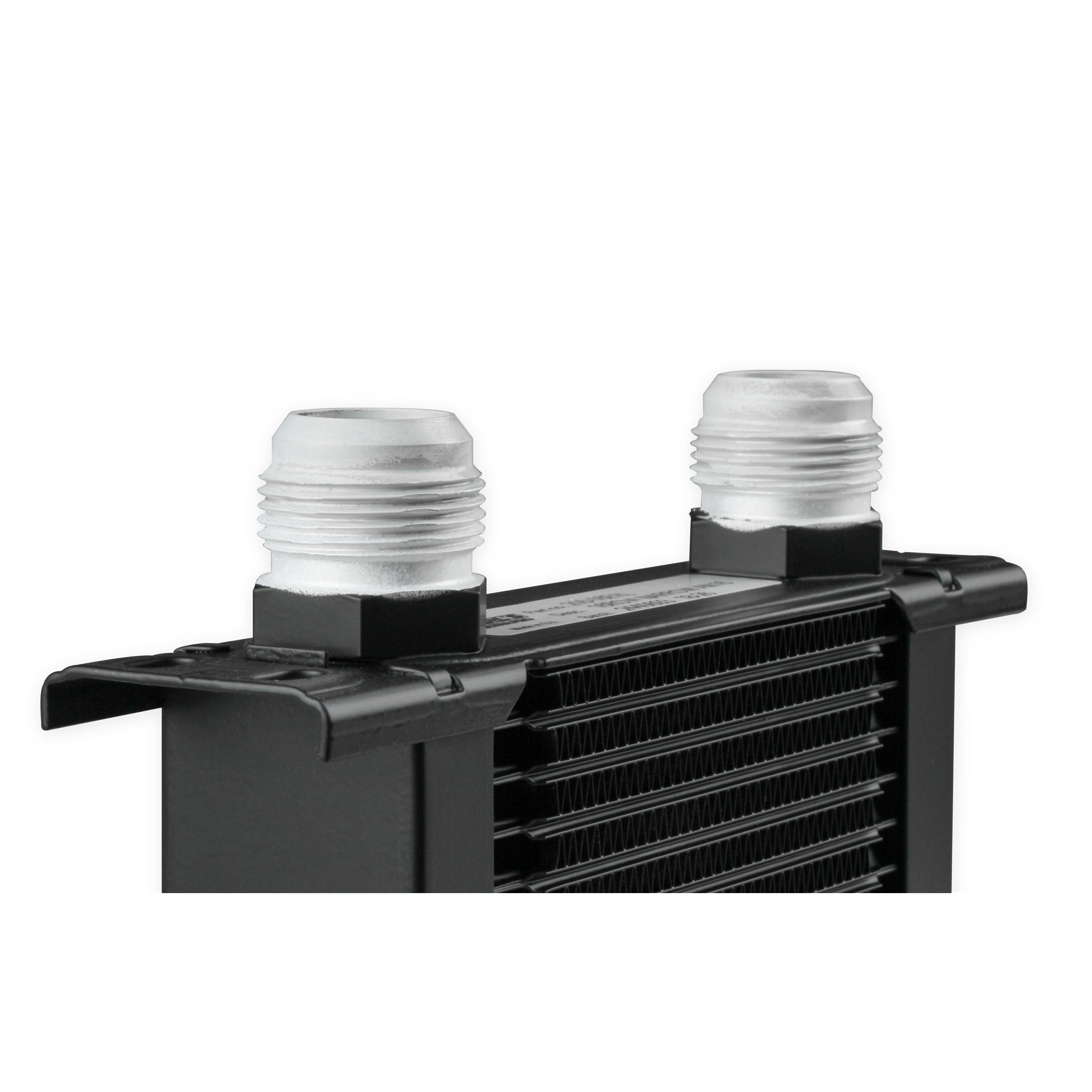

Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings) or 16 AN Male Ports |
| Description_FAB |
(10) Select Sizes w/ 16 AN Male Ports Will Be Stocked (no longer special order) |
| Description_FAB |
Optional Mounting Brackets - Sold Separately |
| Description_INV |
34 ROW -16 AN COOLER ULTRAPRO X-WIDE BLK |
| Description_SHO |
Engine Oil Cooler |
| Mounting Bracket Width |
15.160 in. |
| Thickness |
2.000 in. |
| Capacity |
1.00 qt. |
| Finish |
Black |
| Fittings Included |
Yes |
| Radiator Core Row Quantity |
34 |
| Item Height |
10.390 in. |
| Application |
Engine Oil Cooler |
| Emission Code |
5 |
| Body Width |
16.000 in. |
| Bracket Included |
No |
| Construction |
Stacked Plate - Brazed |
| Fitting Number |
Not Required |
| Item Weight |
5.850 lbs. |
| Material |
Aluminum |
| Product Line |
UltraPro |
| WARNING CA Proposition 65 |
No |
| Width |
Extra-Wide Cooler |
| Width (Less Mounting Ears) |
14.125 in. |
| Brackets Included |
No |
| Brand |
Earl's |
| Engine HP Range |
450-550 HP |
| Engine Oil BTU Range |
53,100-72,100 |
| Mounting Brackets |
800ERL |
| Port Size |
16 AN MALE |
| ROWS |
34 Rows |
| Special Offers |
Summer Sale |
| Volume |
1.00 Quarts |
| Weight |
5.85 Lbs |
| Discount Percentage |
26-50% |
| Sale Category |
Cooling |
| Fitting Centers |
12.480 in. |
| Mounting Bracket Number |
800ERL |
| Body Width (Overall) |
16.000" |
| Cooler Fittings |
Not Required |
| Cooler Fittings Included |
Yes |
| Height |
10.390" |
| Product Type |
Oil Cooler |
| Clearance Category |
Cooling |
| Length |
3.0000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
6.0000 |
