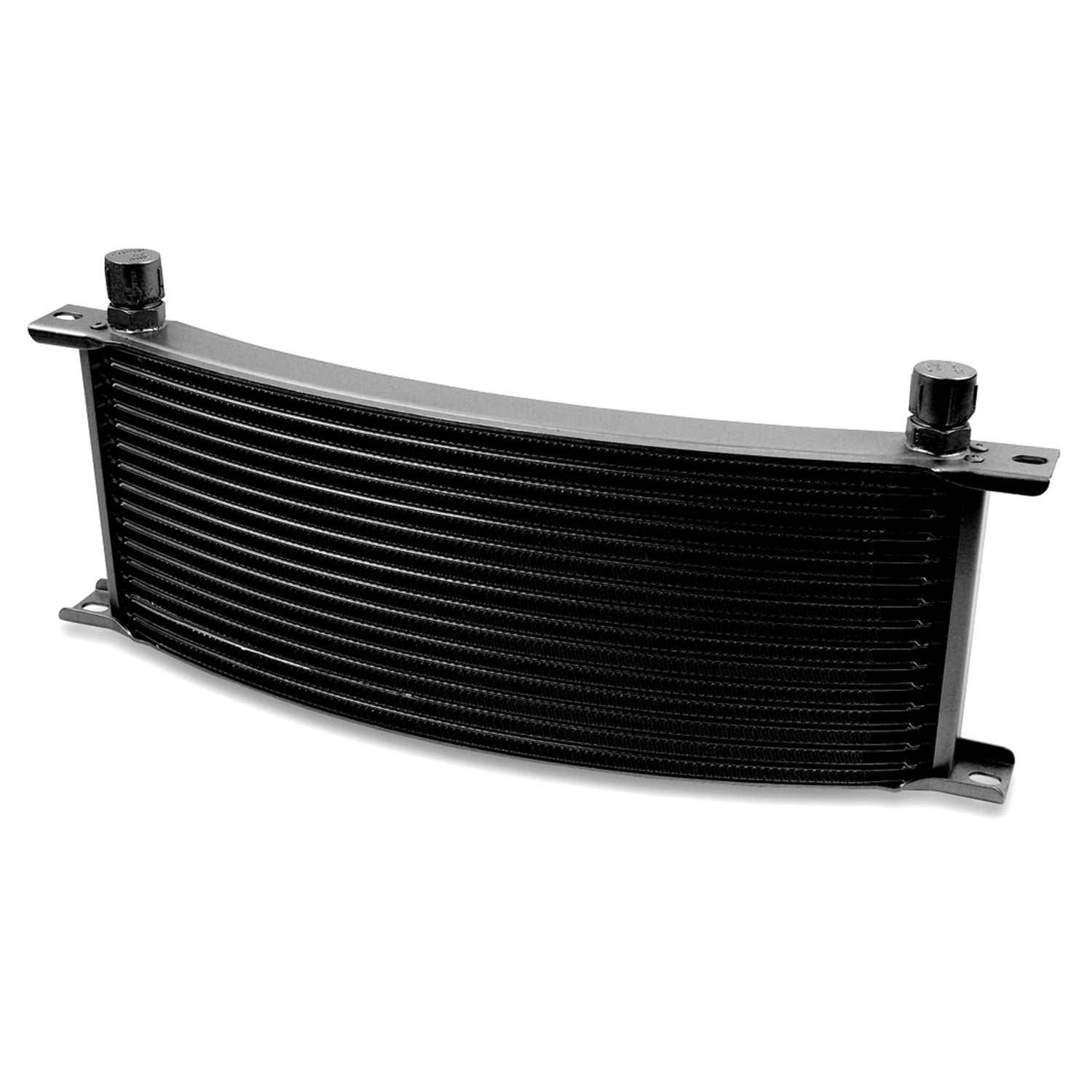

Earl's curved coolers are constructed with the same high grade aluminum and the same internal design as our standard 2 in. coolers, but have a curved design to fit neatly between the down tubes of the frame of a motorcycle for maximum heat dissipation. The curved design allows for full wheel travel no matter where it is mounted on the front of the frame. These coolers are only 1-1/4 in. thick and are available in two widths, three different heights and male -6 or -8 inlet and outlet fittings.
Specifications:
| Description_DEF |
Engine Oil Cooler |
| Description_EXT |
Temp-A-Cure (TM) Curved Oil Cooler; Black; 10 Row; H-3.05 in.; -8AN Male; Narrow; |
| Description_DES |
Temp-A-Cure (TM) Curved Oil Cooler |
| Description_INV |
OBS -8M 10 Row Narrow Curved Cooler Blac |
| Description_MKT |
Earl's curved coolers are constructed with the same high grade aluminum and the same internal design as our standard 2 in. coolers, but have a curved design to fit neatly between the down tubes of the frame of a motorcycle for maximum heat dissipation. The curved design allows for full wheel travel no matter where it is mounted on the front of the frame. These coolers are only 1-1/4 in. thick and are available in two widths, three different heights and male -6 or -8 inlet and outlet fittings. |
| Description_FAB |
Available in two widths with inlet and outlet fittings male AN. |
| Description_FAB |
Manufactured in the U.S.A from aircraft spec aluminum alloy, using the latest vacuum brazing technology. |
| Description_FAB |
Corrugated screen internal turbulator plates increase both thermal efficiency and mechanical strength resulting in the most efficient, smallest and lightest practical package. |
| Description_FAB |
Manufactured from thin aluminum plates for the fastest possible heat transfer. |
| Description_FAB |
Inlet and outlet fittings o-ring to the top plate assembly. |
| Description_FAB |
Designed for the range of oil flows and air speeds encountered in high performance motorcycles. |
| Description_FAB |
Every cooler is pressure checked to 175 psi. Periodic samples are burst tested to 350 psi. |
| Description_SHO |
Engine Oil Cooler |
| Height |
3.050" |
| Radiator Core Row Quantity |
10 |
| Fitting Centers |
9.050 in. |
| Cooler Fittings Included |
Yes |
| Fittings Included |
Yes |
| Mounting Bracket Number |
N/A |
| ROWS |
10 Rows |
| Body Width |
11.562 in. |
| Construction |
Stacked Plate - Brazed |
| Finish |
Black |
| Fitting Number |
Not Required |
| Item Height |
3.050 in. |
| Material |
Aluminum |
| Product Line |
Temp-A-Cure |
| Thickness |
1.250 in. |
| WARNING CA Proposition 65 |
No |
| Application |
Motorcycle Oil Cooler |
| Brackets Included |
No |
| Brand |
Earl's |
| Emission Code |
5 |
| Port Size |
8 AN MALE |
| Product Type |
Oil Cooler |
| Temperature Range |
-40 degrees F to 302 degrees F |
| Bracket Included |
No |
| Width |
Narrow Curved Cooler |
| Width Between Tanks |
8.000 in. |
| Body Width (Overall) |
11.562" |
| Cooler Fittings |
Not Required |
| Length |
5.0000 |
| Width |
7.0000 |
| Height |
14.0000 |
| Weight |
4.0000 |
