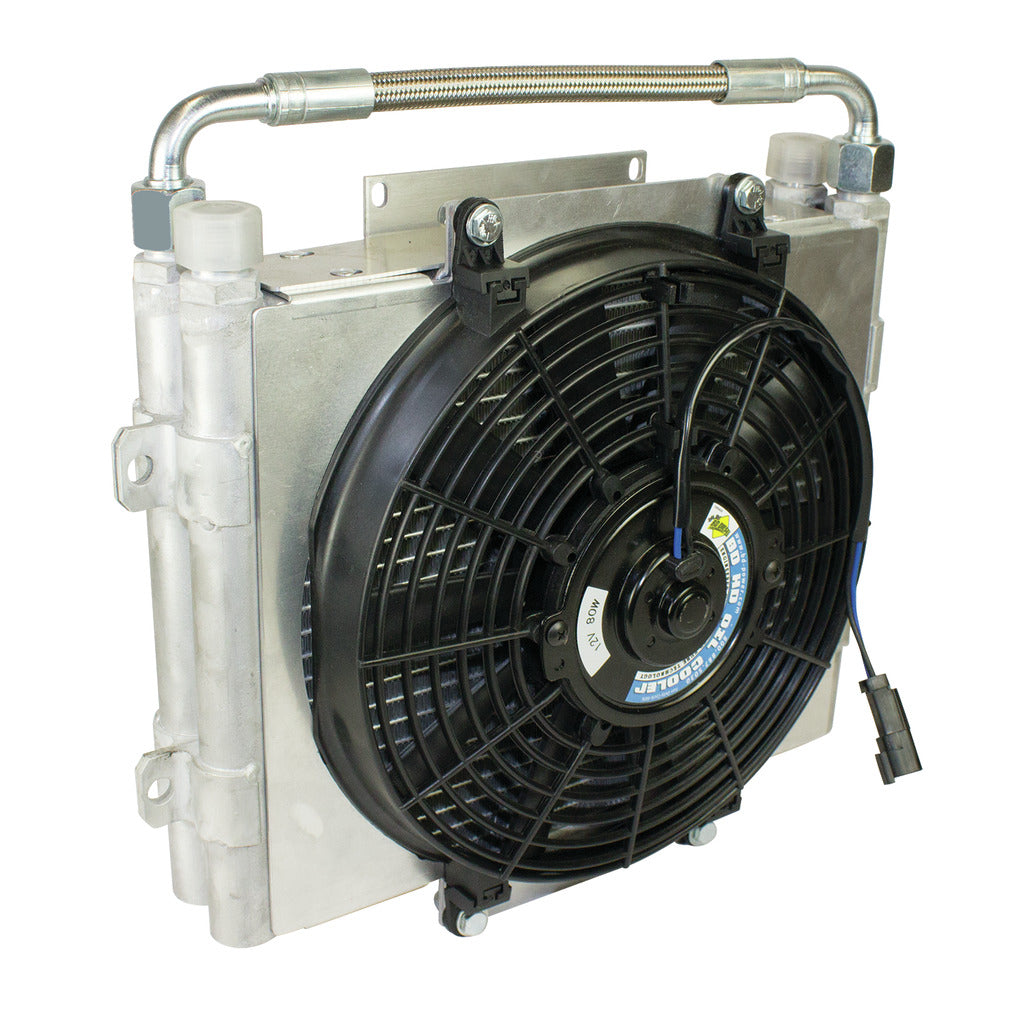

HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.
Specifications:
| Description_DEF |
Automatic Transmission Oil Cooler |
| Description_DES |
Xtrude Trans Cooler - Double Stacked (No Install Kit) |
| Description_EXT |
Xtrude Trans Cooler - Double Stacked (No Install Kit) |
| Description_FAB |
Cooler Assembly Only |
| Description_FAB |
Double stacked cores deliver over 40,000 BTU/HR of cooling |
| Description_FAB |
Over 350% temperature drop versus the factory system |
| Description_FAB |
136% better temperature drop than XTRUDED single core kit |
| Description_FAB |
Motor is IP54 with 65% duty cycle |
| Description_MKT |
HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. |
| Description_INV |
XTRUDED TRNS COOLER DOUBLE COOLERS W/FAN |
| Description_SHO |
XTRUDED TRANS COOLER |
| Category |
Trans Coolers |
| Prop 65 Yes/No |
Yes |
| Prop 65 Warning |
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Engine |
Duramax 6.6L 17-up L5P |
| Prop 65 - Short Label |
bddiesel_prop65_warning.png |
| Prop 65 (C, R or CR) |
CR |
| Title |
Xtrude Trans Cooler - Double Stacked (No Install Kit) |
| Make |
Ford |
| Length |
11.0000 |
| Width |
16.0000 |
| Height |
23.0000 |
| Weight |
14.0000 |
