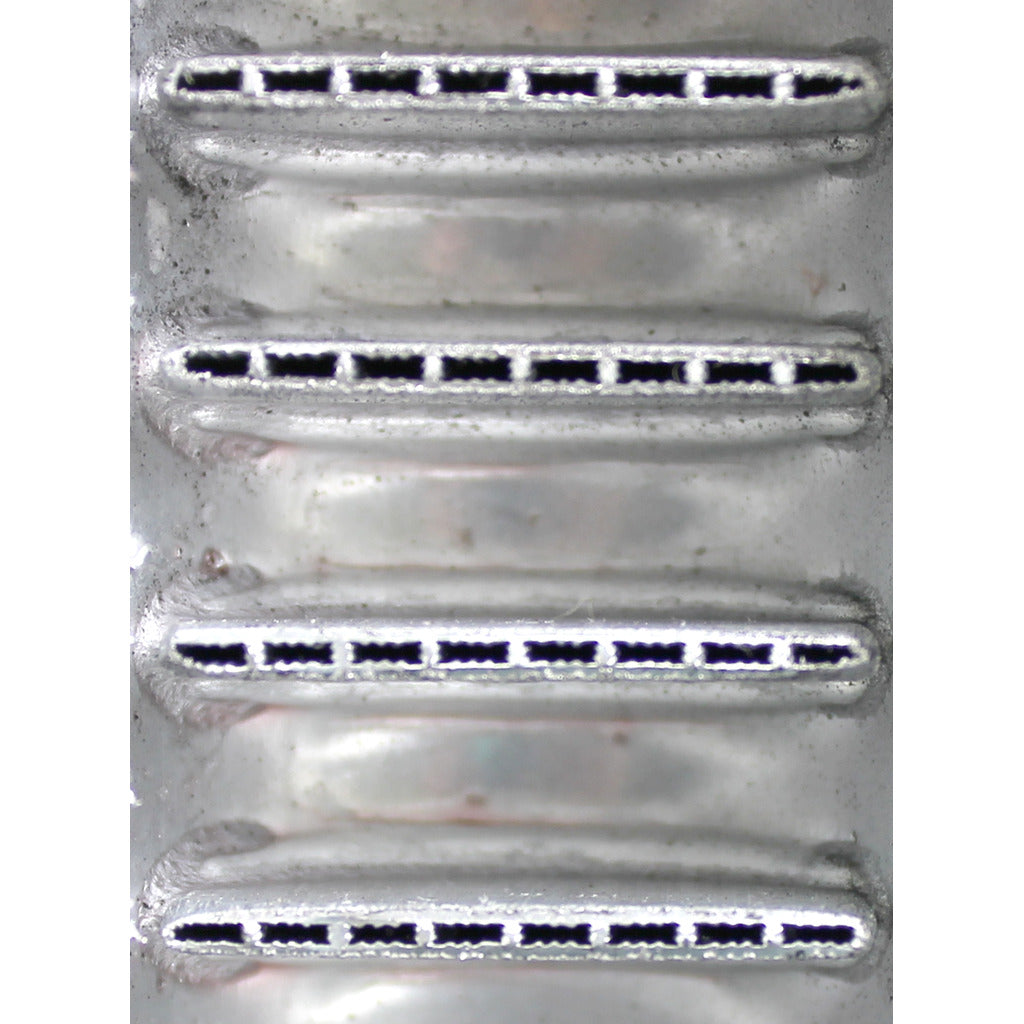

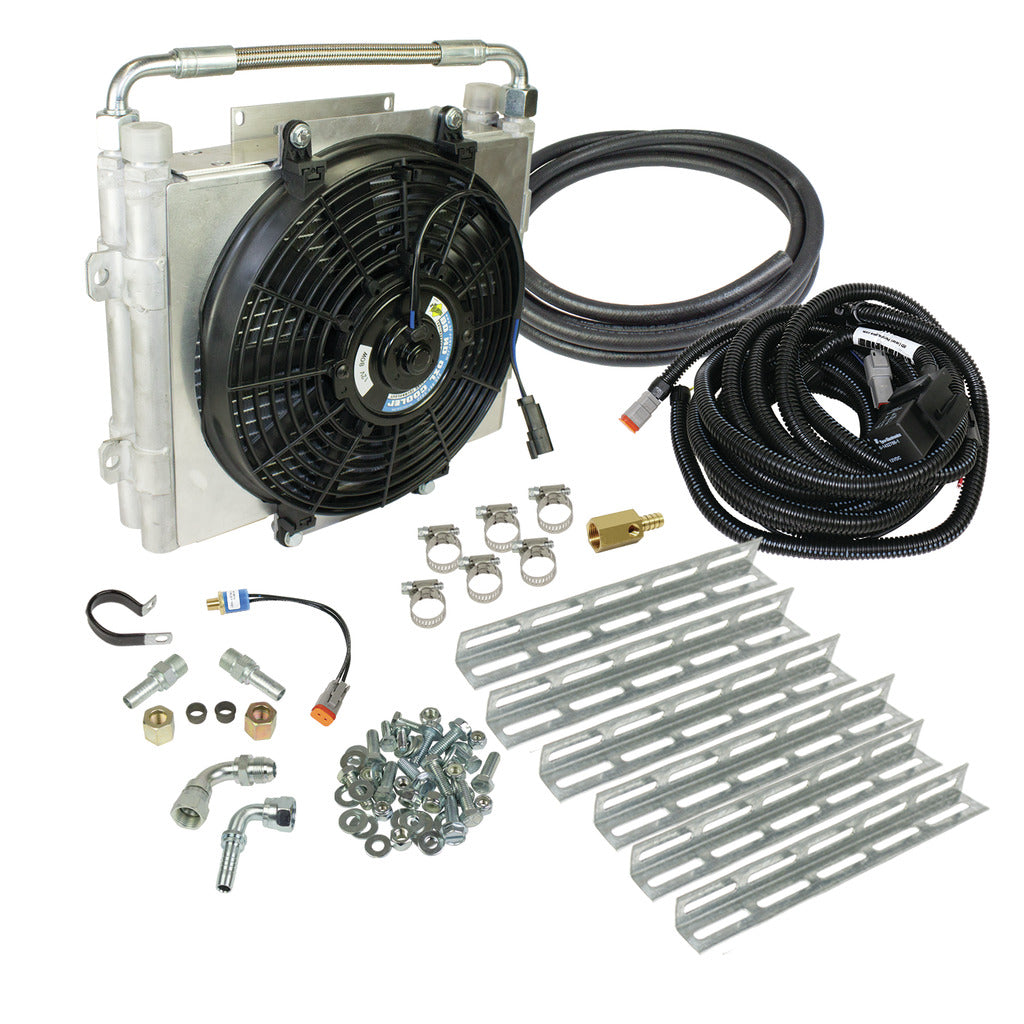

HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Specifications:
| Description_DEF |
Automatic Transmission Oil Cooler |
| Description_EXT |
Xtrude Double Stacked Transmission Cooler Kit - Universal 5/8in Tubing |
| Description_DES |
Xtrude Double Stacked Transmission Cooler Kit - Universal 5/8in Tubing |
| Description_SHO |
XTRUDED TRANS COOLER |
| Description_INV |
XTRUDED TRANS COOLER DOUBLE 5/8IN LINES |
| Description_FAB |

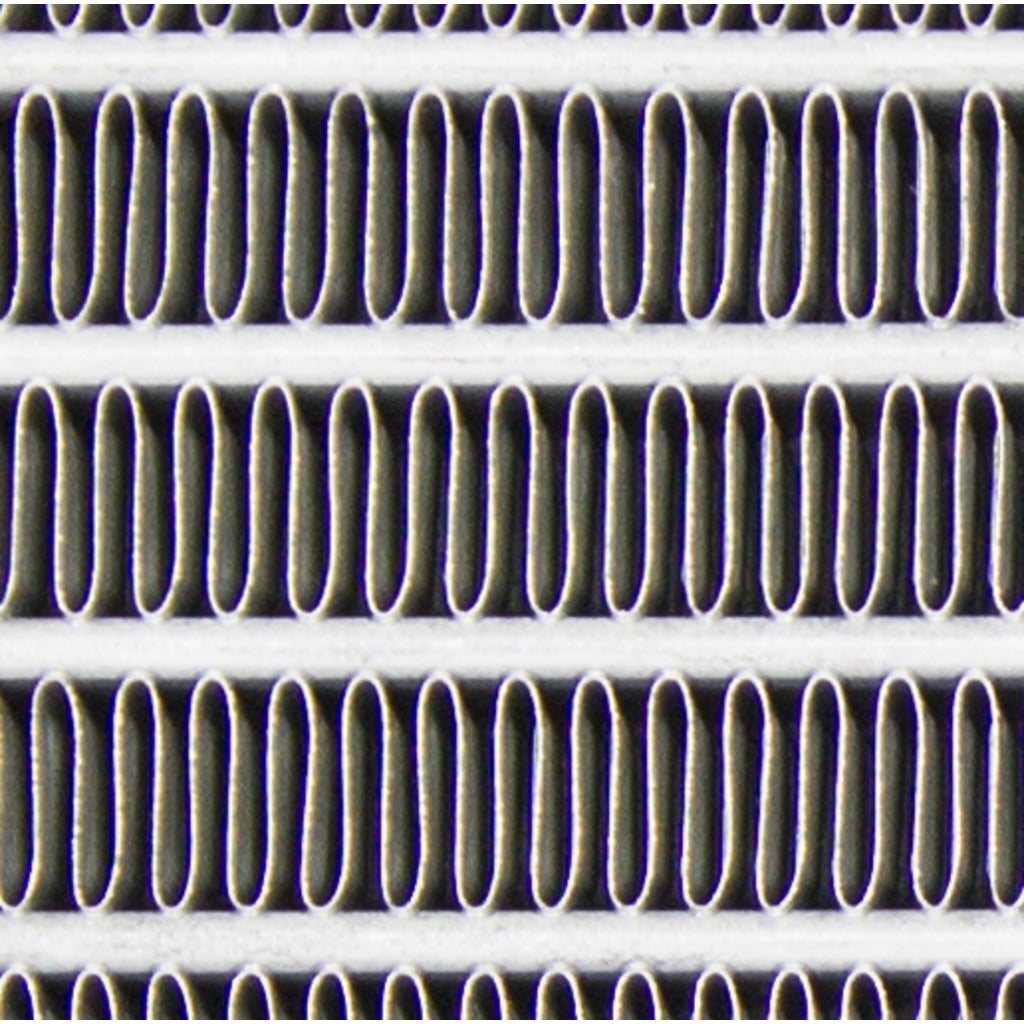

Large surface area to transfer heat for external air flow cooling |
| Description_FAB |
Turbulent oil flow design promotes a more complete cooling |
| Description_FAB |
Large 5/8-inch ports prevents inlet/outlet restriction |
| Description_FAB |
Furnace brazed rails have been tested to 300psi of pressure |
| Description_FAB |
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan |
| Description_FAB |
Kits complete with all fittings, clamps, hoses and hardware |
| Description_FAB |
Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal |
| Description_FAB |
The pre-wired loomed harness with fuse and relay comes with plug-in connectors |
| Description_FAB |
Chevy Allison 1000 - 5/8-inch Cooler Lines |
| Description_FAB |
Double stacked cores deliver over 40,000 BTU/HR of cooling |
| Description_FAB |
Over 350% temperature drop versus the factory system |
| Description_FAB |
136% better temperature drop than XTRUDED single core kit |
| Description_MKT |
HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look. |
| Prop 65 (C, R or CR) |
CR |
| Suggested Product |
1061825 |
| Prop 65 - Short Label |
bddiesel_prop65_warning.png |
| Prop 65 Warning |
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Engine |
Motorhome Diesel Power |
| Prop 65 Yes/No |
Yes |
| Title |
Xtrude Double Stacked Transmission Cooler Kit - Universal 5/8in Tubing |
| Category |
Trans Coolers |
| Make |
Chevy/GM |
| Length |
11.0000 |
| Width |
16.0000 |
| Height |
23.0000 |
| Weight |
23.0000 |
