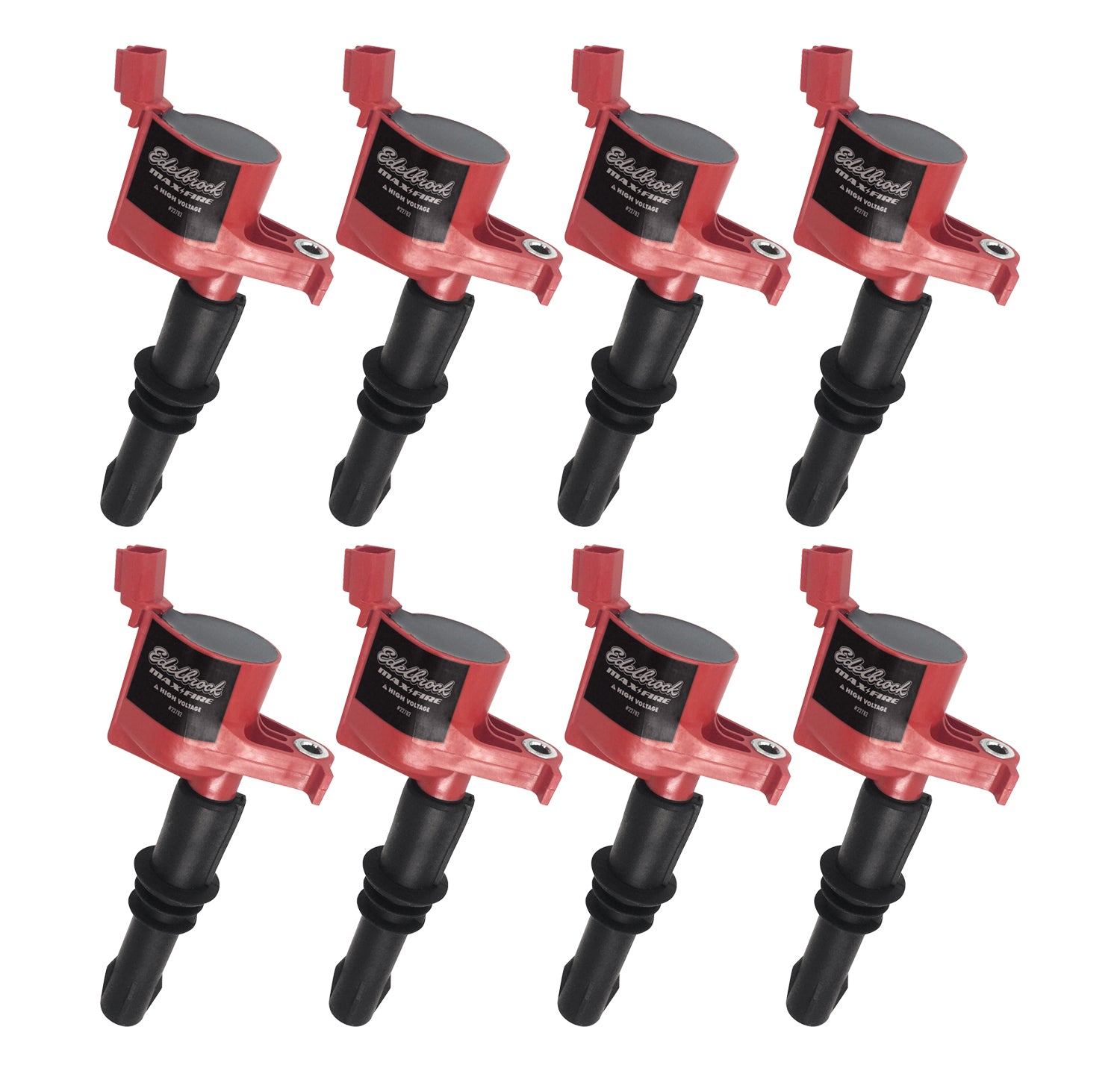

Edelbrock Coil Pack #22783 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 2004-08 Ford 4.6L-5.4L 3-valve V8 engines. Each coil in the #22783 pack features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is also sold individually under #22782.
Specifications:
| Description_ABR |
Igntion Coil |
| Description_ASM |
Ford V8 4.6L-5.4L, 2004-08 |
| Description_DEF |
Ignition Coil Set |
| Description_DES |
Coil #22783 is a direct performance replacement coil pack for Ford |
| Description_EXT |
Edelbrock Part #22783 Coil on Plug |
| Description_EXT |
Ford V8 4.6L-5.4L, 2004-08, 3 Valve Engine |
| Description_INV |
Ford Ignition Coil-On-Plug Pack #22783 |
| Description_LAB |
Ignition Coil #22783 2004-08 Ford V8 4.6L-5.4L, Set of 8 |
| Description_MKT |
Edelbrock Coil Pack #22783 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 2004-08 Ford 4.6L-5.4L 3-valve V8 engines. Each coil in the #22783 pack features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is also sold individually under #22782. |
| Description_TRA |
68:1 Turn Ratio. Fits later model 3-valve engines with 16mm spark plugs. Coils feature a 4 in. long black boot and is marked with 8L3E on top of the coil. |
| Requires External Resistor |
No |
| Terminal Quantity |
1 |
| Height |
(Short Black Boot) 4.0 |
| Mounting Bracket Included |
No |
| Recommended Use |
For Models With 3 Valves Per Engine |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mount Type |
Plug |
| Secondary Resistance |
5.43K |
| Voltage |
Maximum 28000 |
| Terminal Type |
Blade Pin |
| Coil Wire Included |
No |
| Primary Resistance |
0.500 |
| Length |
(Short Black Boot) 4.0 |
| Terminal Gender |
Female |
| Oil Filled |
No |
| Coil Shape |
Round |
| Connector Gender |
Female |
| Quantity |
Set of 8 |
| Coil Type |
Coil Pack |
| Length |
8.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
3.0000 |
