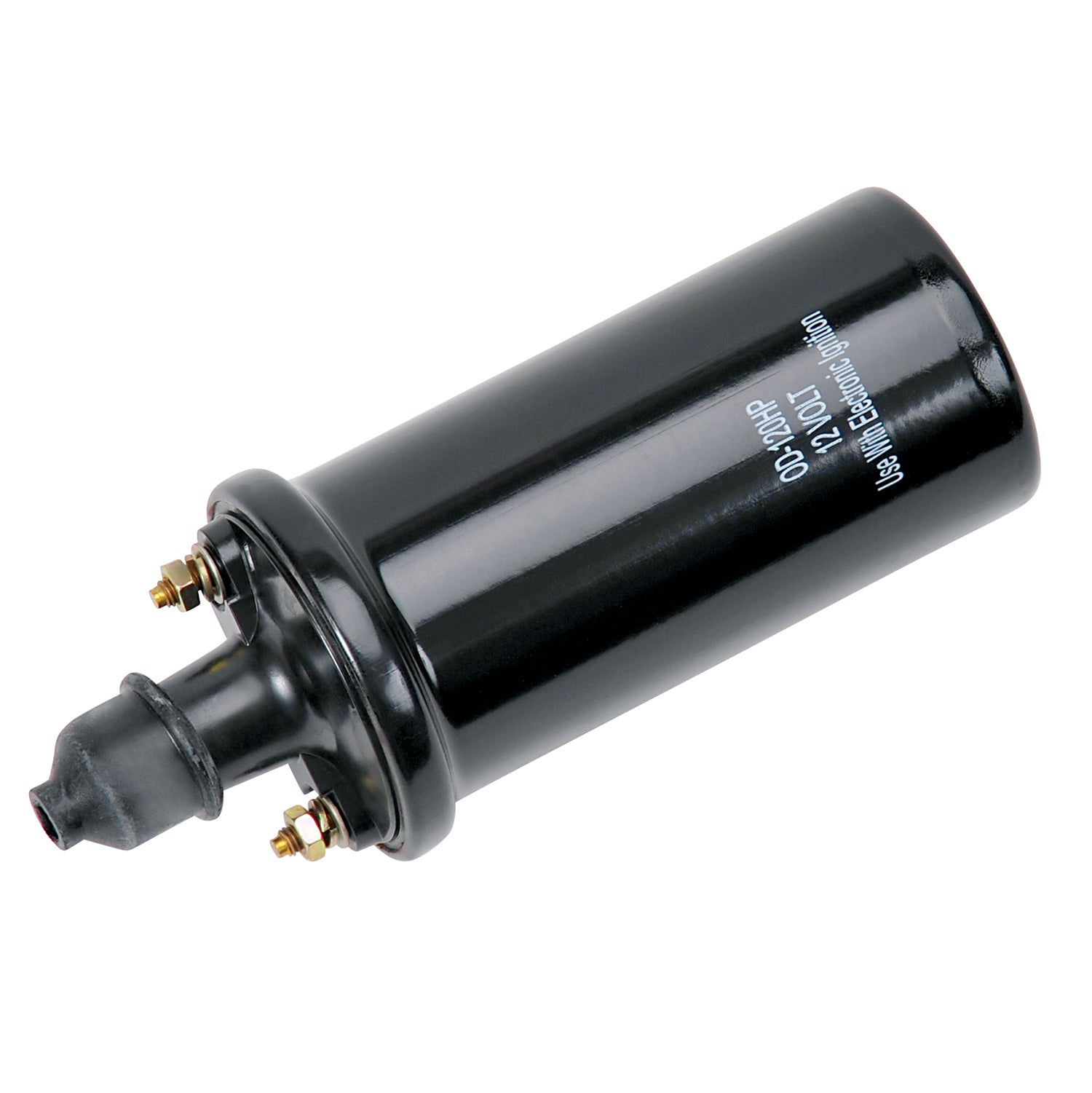

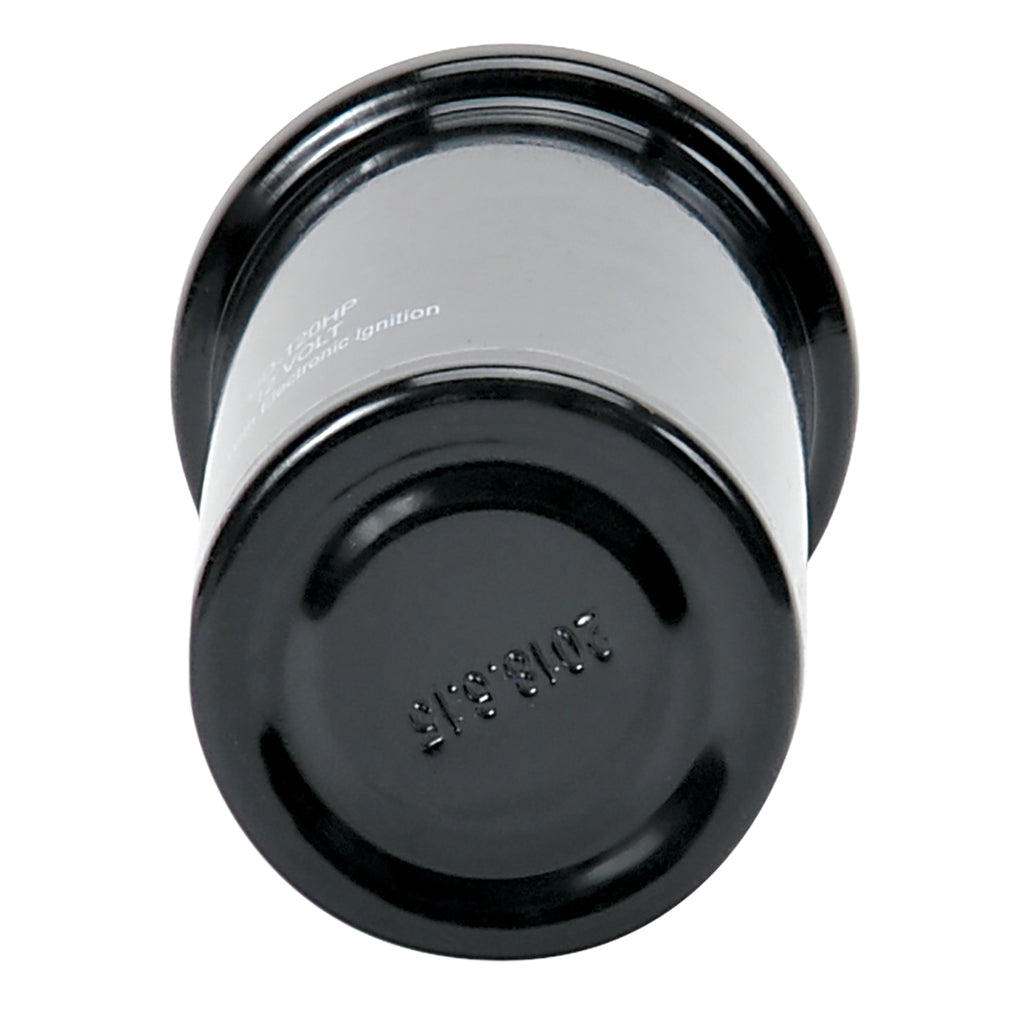

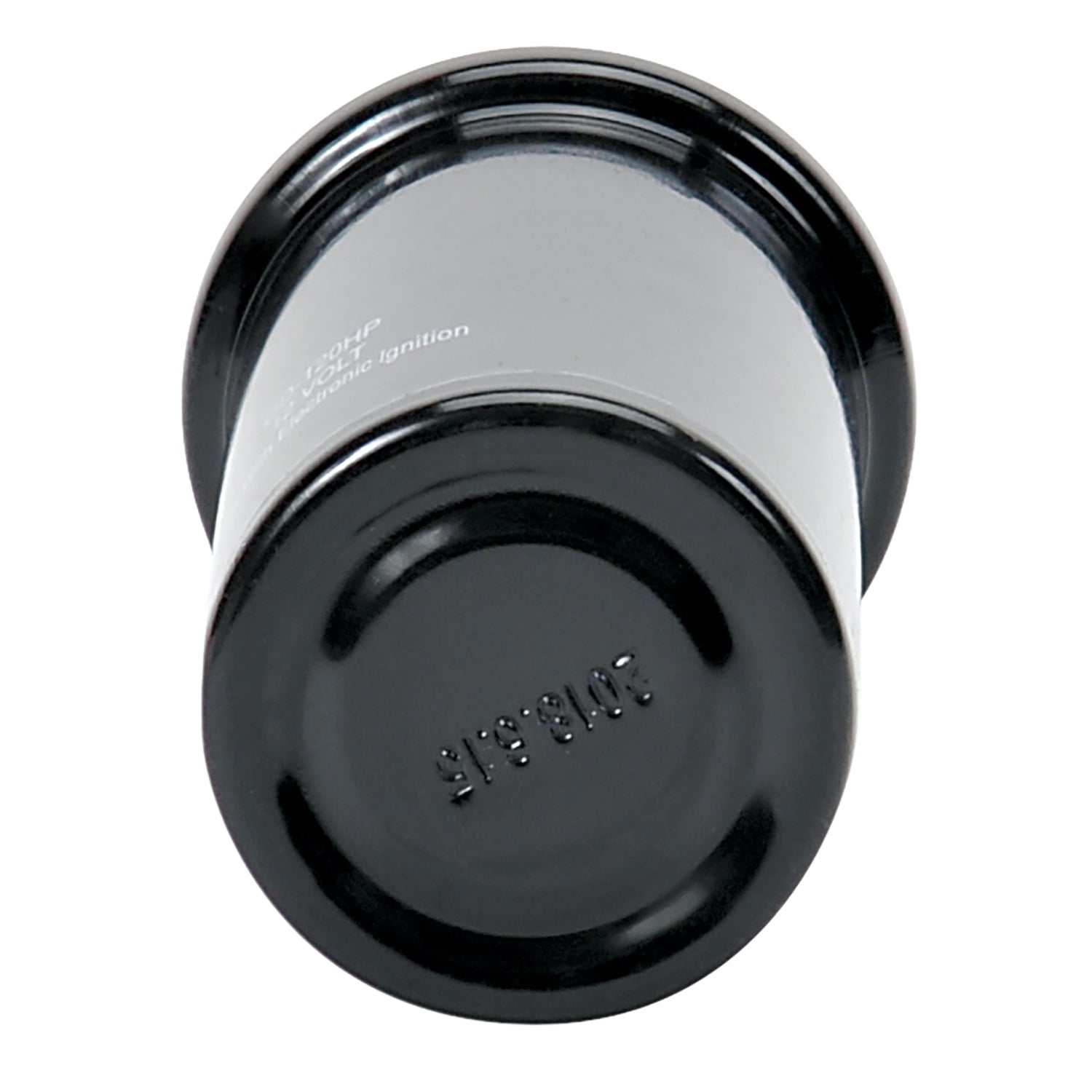

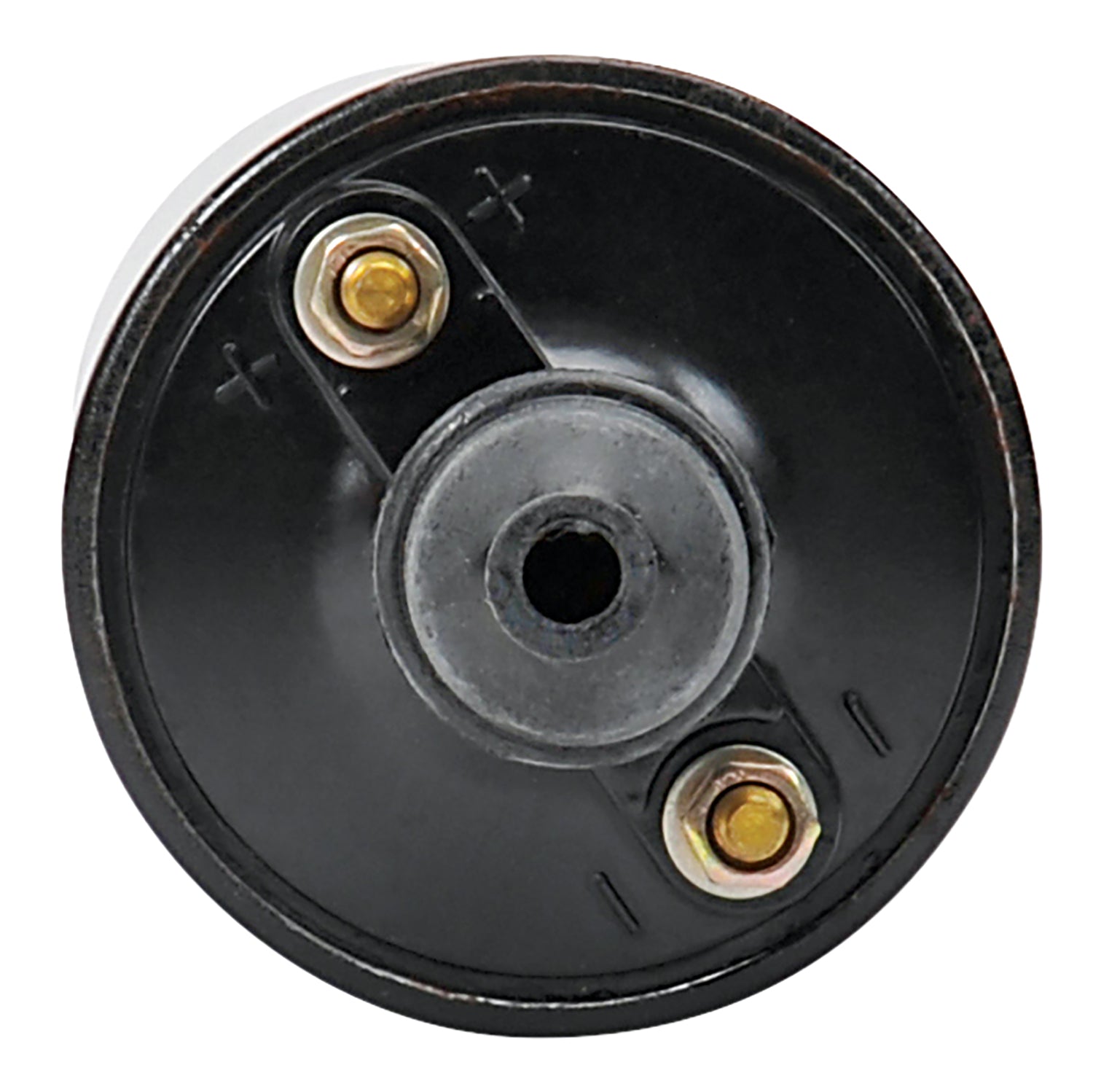

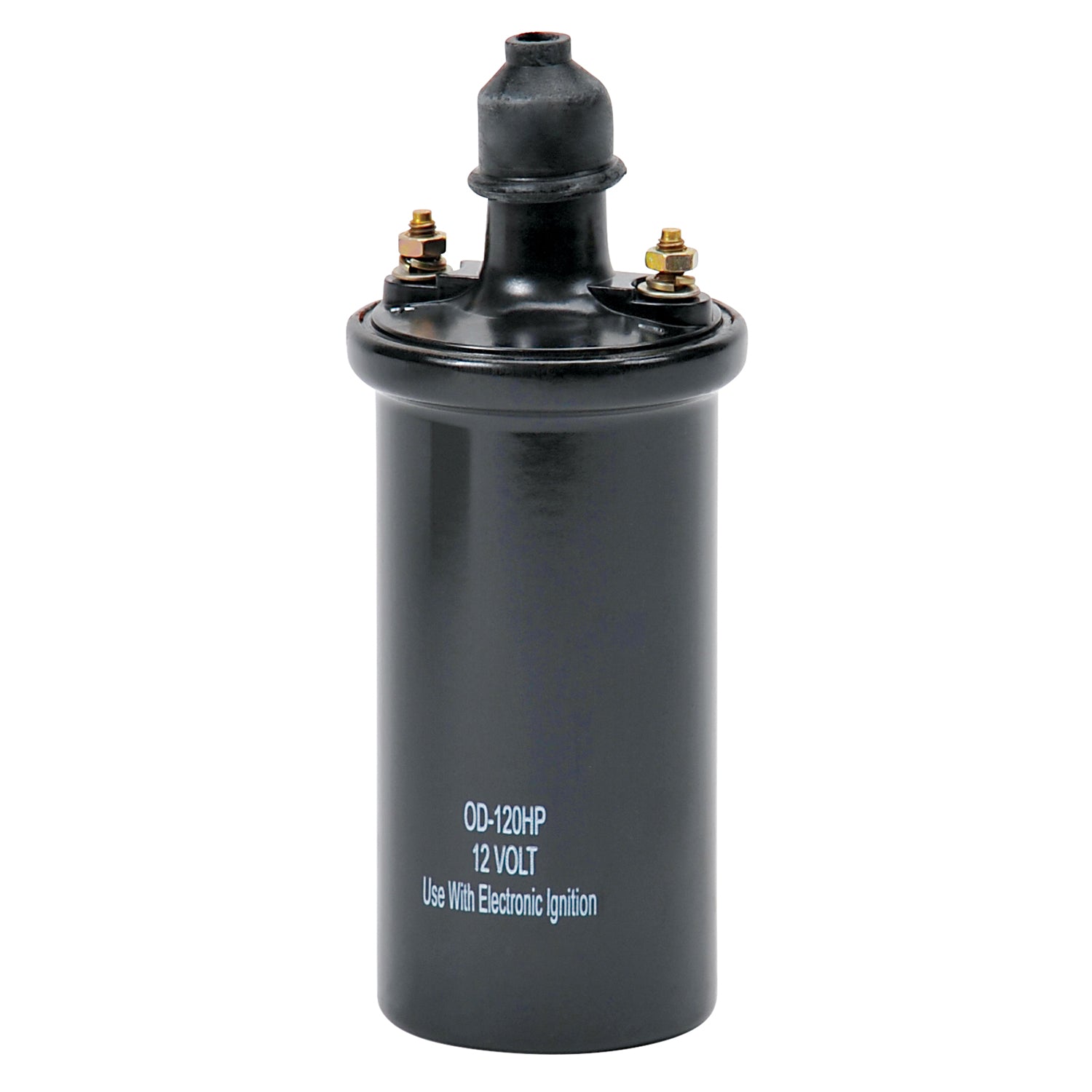

Edelbrock Ignition Coil #22746 is a high-output oil-filled cannister-style coil recommended for use with Pro-Flo 4 EFI applications and is also compatible with other aftermarket EFI and ready-to-run distributors. Features include a higher winding ratio for more voltage build-up and higher spark energy when compared to competitor coils. The main difference between the Edelbrock #22746 Coil and other cannister-style coils is the primary resistance of 0.7 ohms compared to 0.4 ohms for standard ignition systems. A primary resistance of 0.7 ohms is the minimum that we recommend for use with Pro-Flo 4 EFI systems.
Specifications:
| Description_ABR |
Igntion Coil |
| Description_ASM |
Universal |
| Description_DEF |
Ignition Coil Assembly |
| Description_EXT |
Edelbrock ignition coil #22746 with 0.7 ohms primary resistance for Pro-Flo 4 and aftermarket EFI systems |
| Description_DES |
High-output cannister-style ignition coil for Pro-Flo 4 and aftermarket EFI |
| Description_LAB |
Ignition Coil Assembly #22746 0.70 Ohms Primary Resistance, Oil-Filled Type |
| Description_TRA |
ECU damage can be caused by improper coil selection. For Pro-Flo 4 EFI systems, we recommend a minimum primary resistance of 0.7 ohms. |
| Description_MKT |
Edelbrock Ignition Coil #22746 is a high-output oil-filled cannister-style coil recommended for use with Pro-Flo 4 EFI applications and is also compatible with other aftermarket EFI and ready-to-run distributors. Features include a higher winding ratio for more voltage build-up and higher spark energy when compared to competitor coils. The main difference between the Edelbrock #22746 Coil and other cannister-style coils is the primary resistance of 0.7 ohms compared to 0.4 ohms for standard ignition systems. A primary resistance of 0.7 ohms is the minimum that we recommend for use with Pro-Flo 4 EFI systems. |
| Description_FAB |
Oil-filled cannister design protects coil windings from vibration |
| Description_FAB |
Higher winding ratio for more voltage build up and higher spark energy |
| Description_FAB |
Primary resistance of 0.7 ohms for use with Pro-Flo 4 EFI |
| Description_FAB |
Can be used with other aftermarket EFI |
| Internal Construction Type |
Oil-Filled |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Primary Resistance |
0.70 |
| Color |
Red |
| Connector Gender |
Female |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
8.0000 |
| Weight |
1.0000 |
