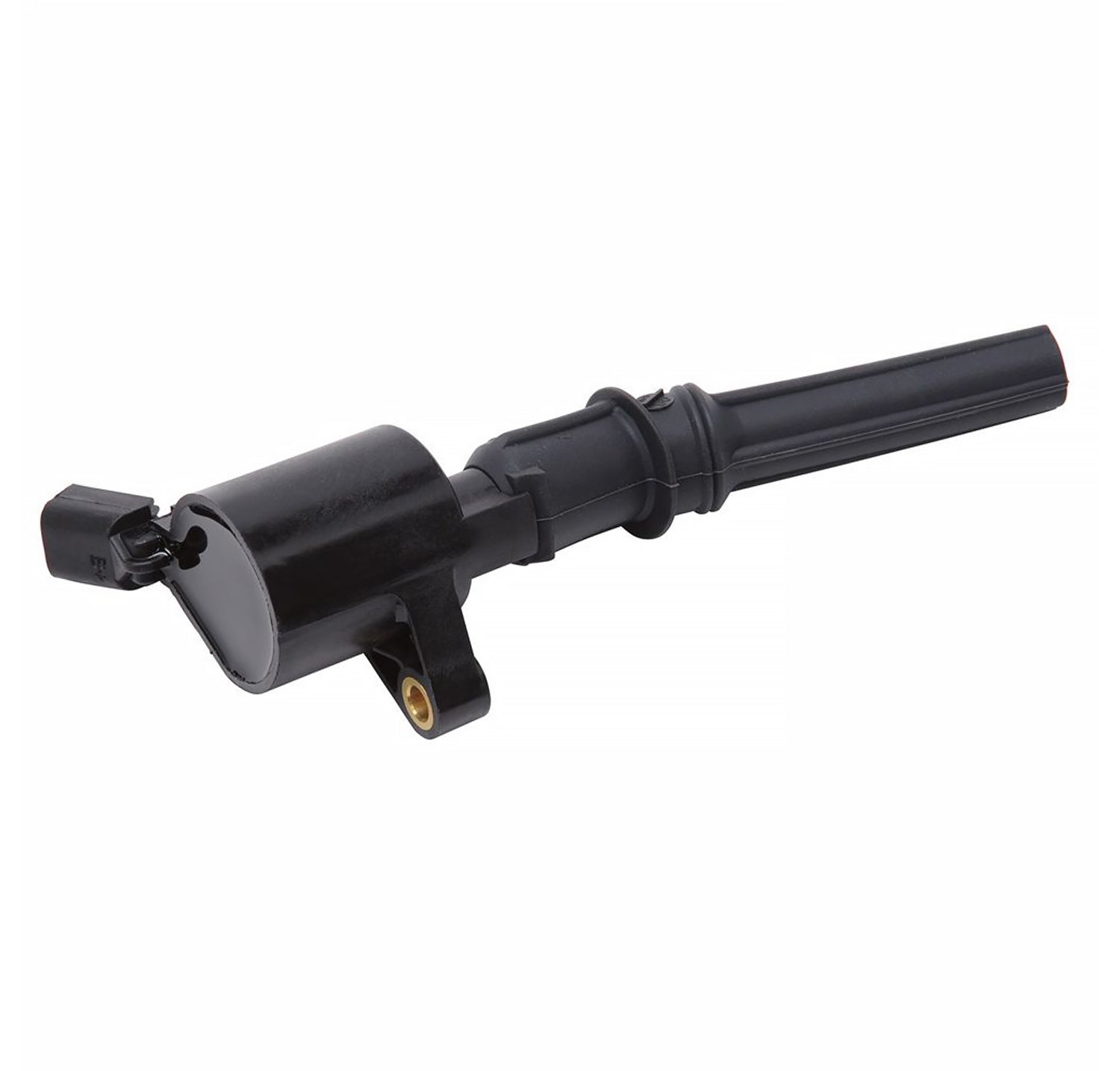

Edelbrock part #22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L, 5.4L and 6.8L engines with 2-valve cylinder heads. It's a direct bolt-on with OEM DIS electronic controls and aftermarket high performance ignition systems. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise
Specifications:
| Description_ABR |
Igntion Coil |
| Description_ASM |
Ford:Small-Block Modular 2V:281 (4.6L) |
| Description_DEF |
Ignition Coil |
| Description_EXT |
Edelbrock part #22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L, 5.4L and 6.8L engines with 2-valve cylinder heads. It's a direct bolt-on with OEM DIS electronic controls |
| Description_MKT |
Edelbrock part #22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L, 5.4L and 6.8L engines with 2-valve cylinder heads. It's a direct bolt-on with OEM DIS electronic controls and aftermarket high performance ignition systems. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise |
| Description_MKT |
while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack best suited for your vehicle. Fits 2-valve engines only. Sold Individually. |
| Description_LAB |
Edelbrock Max-Fire Coil-On-Plug ignition Ford 4.6L, 5.4L and 6.8L |
| Description_INV |
Ford Ignition Coil-On Plug 22744 |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Connector Gender |
Female |
| Coil Type |
Ignition Coils |
| Terminal Gender |
Female |
| Coil Shape |
Round |
| Voltage |
12 |
| Terminal Type |
Blade Pin |
| Length |
6.5 |
| Oil Filled |
No |
| Overall Height |
6.5 |
| Ignition Type |
Distributorless |
| Coil Wire Included |
No |
| Mounting Bracket Included |
No |
| Height |
6.5 |
| Requires External Resistor |
No |
| Mount Type |
Plug |
| Wire Quantity |
2 |
| Terminal Quantity |
1 |
| Mounting Position |
Cylinder Head |
| Width |
2.25 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
2.0000 |
| Width |
4.0000 |
| Height |
8.0000 |
| Weight |
1.0000 |
