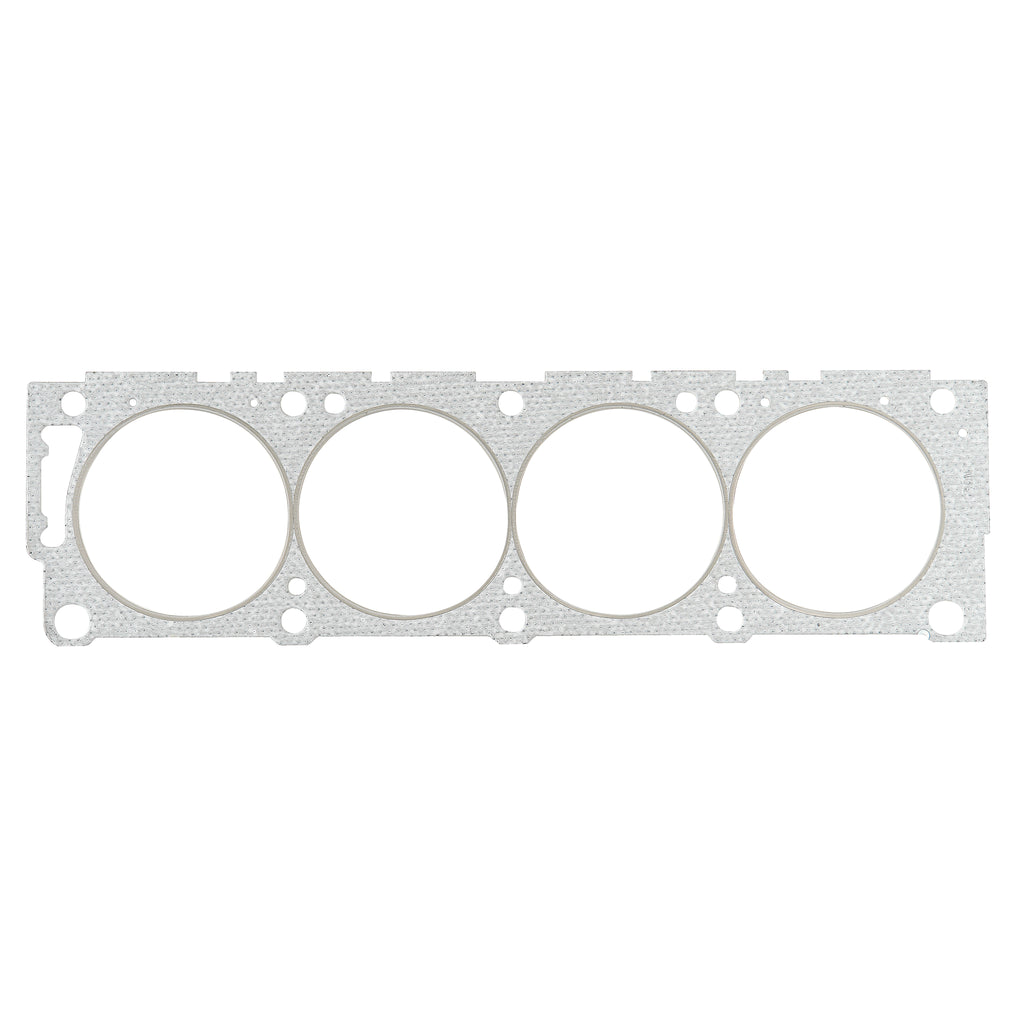

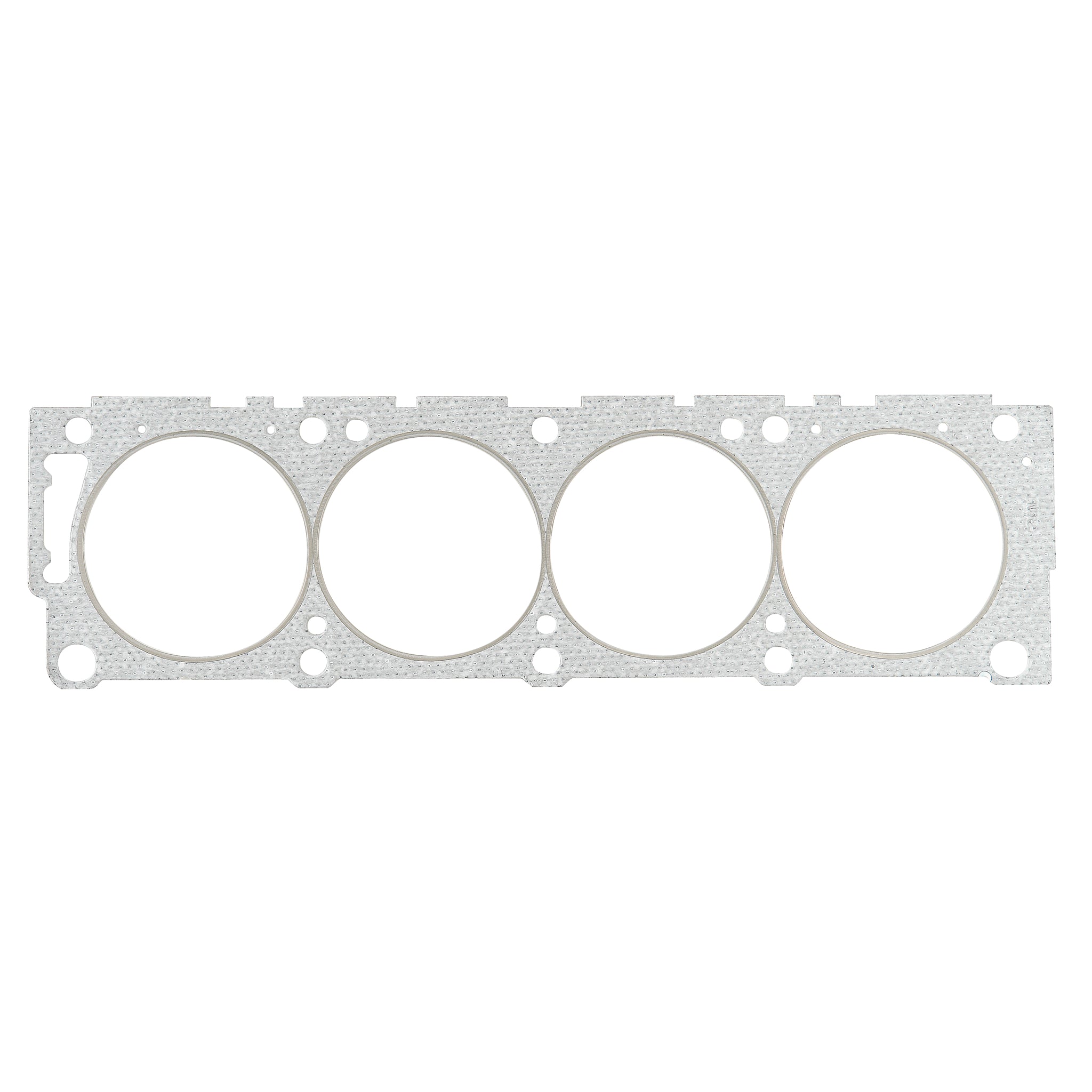

Mr. Gasket Ultra-Seal Head Gaskets are a five layer (graphite core/perforated steel outer layers) composite construction. The graphite core has excellent thermoconductivity (transfers heat) away from hot spots in head preventing gasket burn-out. They provide excellent stability, compressibility and high temperature endurance. A high temperature silicone coating ensures sealing of engine fluids. Compatible with cast iron or aluminum heads, they will not brinell (indent) aluminum cylinder heads. Suitable for high performance street, drag race and oval track use. Sold individually.
Gasket Gasket Bore 4.400:, Compressed thickness 0.038 inch.
Specifications:
| Description_DES |
Mr. Gasket Ultra-Seal Head Gasket 390-428 Ford Big Block FE 1961-1971 |
| Description_FAB |
Five layer (graphite core/perforated steel outer layers) composite construction |
| Description_FAB |
Graphite core has excellent thermo-conductivity-transfers heat away from hot spots in head preventing gasket burn-out |
| Description_FAB |
Provides excellent stability, compressibility and high temperature endurance |
| Description_FAB |
Coated with high temperature silicone to ensure sealing of engine fluids |
| Description_FAB |
Will not brinell (indent) aluminum cylinder heads |
| Description_FAB |
For high performance street, drag race and oval track use |
| Description_INV |
U/S HD GSKT FORD 390-428 1 PC |
| Description_EXT |
Fits 1958-1976 Ford 332,352,360,390,427,428 FE Big Block - 4.400 Inch Gasket Bore |
| Description_MKT |
Mr. Gasket Ultra-Seal Head Gaskets are a five layer (graphite core/perforated steel outer layers) composite construction. The graphite core has excellent thermoconductivity (transfers heat) away from hot spots in head preventing gasket burn-out. They provide excellent stability, compressibility and high temperature endurance. A high temperature silicone coating ensures sealing of engine fluids. Compatible with cast iron or aluminum heads, they will not brinell (indent) aluminum cylinder heads. Suitable for high performance street, drag race and oval track use. Sold individually.
Gasket Gasket Bore 4.400:, Compressed thickness 0.038 inch. |
| Packaging |
Retail |
| Brand |
Mr. Gasket |
| Gasket Bore |
4.400 inch |
| Product Type |
Head Gasket |
| Application |
Ford 390-428 |
| Compression Ratio |
Up to 14:1 |
| Emission Code |
5 |
| Engine |
Ford FE Block |
| Gasket Line |
Ultra-Seal |
| Quantity Per Pkg. |
1 |
| Warranty |
Limited 90 Day |
| Weight |
0.5000 |
| Compressed Thickness |
.038 inch |
| Length |
0.2000 |
| Width |
10.0000 |
| Height |
29.0000 |
| Weight |
0.5000 |
