JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.
Specifications:
| Description_DES |
Piston Ring Set, 1 Cyl., File Fit, Each. |
| Description_DEF |
Engine Piston Ring Set |
| Description_EXT |

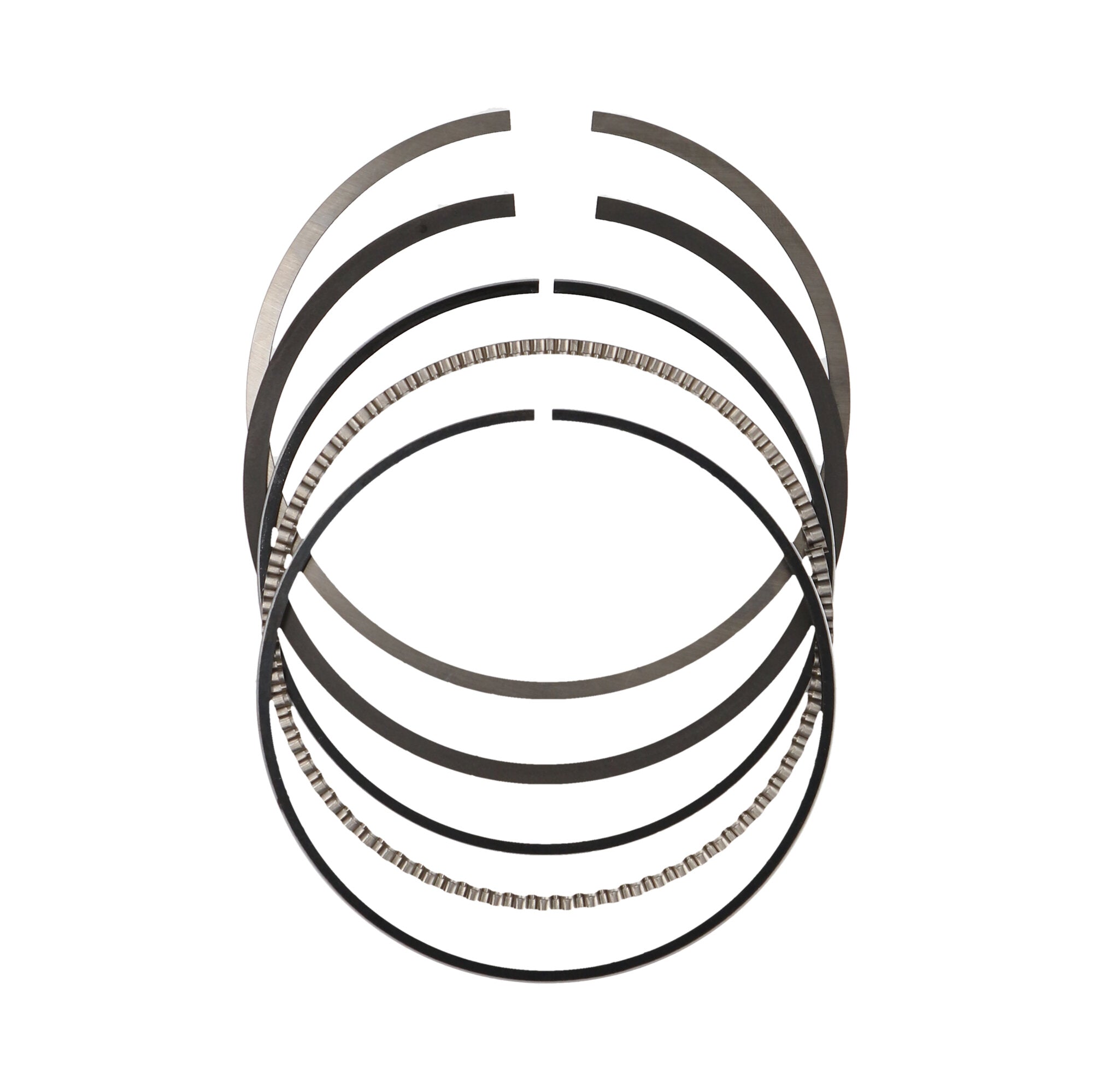

Piston Ring Set, 1 Cyl., File Fit, 0.043 in. Carbon Steel Nitride Top Ring, 0.043 in. Ductile Iron Phosphate Second Ring, 0.1181 in. Carbon Steel Chrome Low Tension Oil Ring, Each. |
| Description_INV |
JE Pistons, Ring Set |
| Description_TLE |
Piston Ring Set JG7701-4185-5 |
| Description_MKT |
JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal. |
| Description_SHO |
Ring Set |
| Second Ring Facing Material |
Phosphate |
| Category Hierarchy |
Powersports>Accessories>Rings |
| Title - Web |
Piston Ring Set, 1 Cyl., File Fit, Each. |
| Category Hierarchy |
Auto>Accessories>Pro Seal Piston Rings |
| Category Hierarchy |
Auto>Accessories>Rings |
| Out of Stock Message |
Call for Availability |
| File Fit |
Yes |
| Top Compression Ring Thickness |
0.0430 |
| Industry |
Automotive |
| Product Type |
Engine Piston Ring Set |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Third Ring Material |
Carbon Steel |
| Second Compression Ring Thickness |
0.0430 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Second Ring Material |
Ductile Iron |
| Oil Ring Thickness |
0.118 |
| Third Ring Facing Material |
Carbon Steel |
| Top Ring Facing Material |
Nitride |
| Title |
Piston Ring Set, 1 Cyl., File Fit, Each. |
| Engine Type |
ICE |
| Top Ring Material |
Carbon Steel |
| Length |
2.0000 |
| Width |
6.0000 |
| Height |
11.0000 |
| Weight |
2.0000 |
