JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.
Specifications:
| Description_DEF |

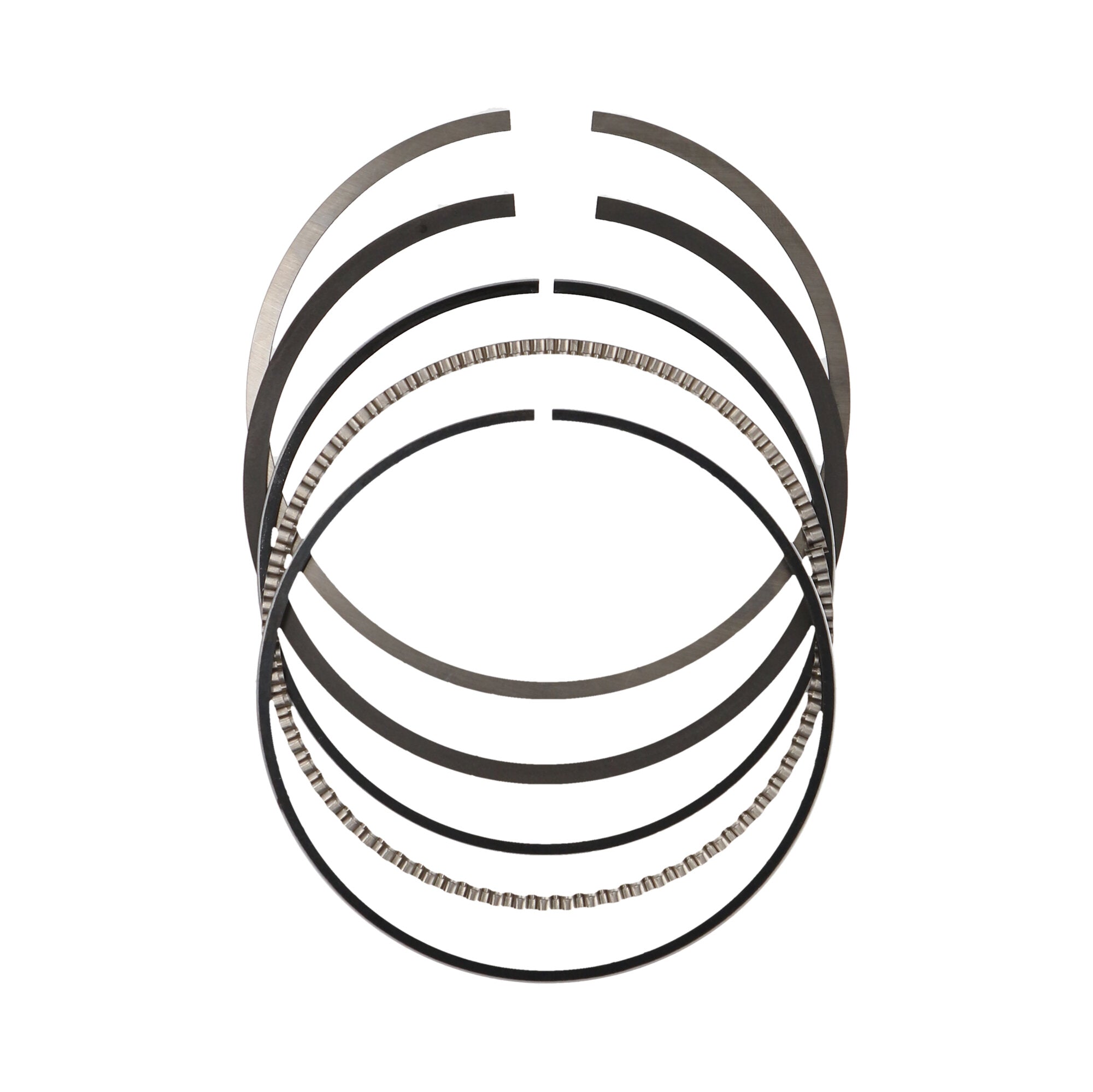

Engine Piston Ring Set |
| Description_DES |
Piston Ring Set, 1 Cyl., File Fit, Each. |
| Description_EXT |
Piston Ring Set, 1 Cyl., File Fit, 0.0394 in. Carbon Steel Nitride Top Ring, 0.0472 in. Ductile Iron Phosphate Second Ring, 0.1102 in. Carbon Steel Nitride Low Tension Oil Ring, Each. |
| Description_INV |
JE Pistons, Ring Set |
| Description_MKT |
JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal. |
| Description_SHO |
Ring Set |
| Description_TLE |
Piston Ring Set JG1001-3425 |
| Category Hierarchy |
Powersports>Accessories>Rings |
| Category Hierarchy |
Auto>Accessories>Rings |
| Category Hierarchy |
Auto>Accessories>Pro Seal Piston Rings |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Ring Set |
| Industry |
Automotive |
| Prop 65 Yes/No |
Yes |
| File Fit |
Yes |
| Second Compression Ring Thickness |
0.0472 |
| Title - Web |
Piston Ring Set, 1 Cyl., File Fit, Each. |
| Out of Stock Message |
Call for Availability |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Third Ring Material |
Carbon Steel |
| Title |
Piston Ring Set, 1 Cyl., File Fit, Each. |
| Top Ring Facing Material |
Nitride |
| Second Ring Facing Material |
Phosphate |
| Top Ring Material |
Carbon Steel |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.110 |
| Third Ring Facing Material |
Carbon Steel |
| Top Compression Ring Thickness |
0.0394 |
| Second Ring Material |
Ductile Iron |
| Length |
2.0000 |
| Width |
6.0000 |
| Height |
11.0000 |
| Weight |
2.0000 |
